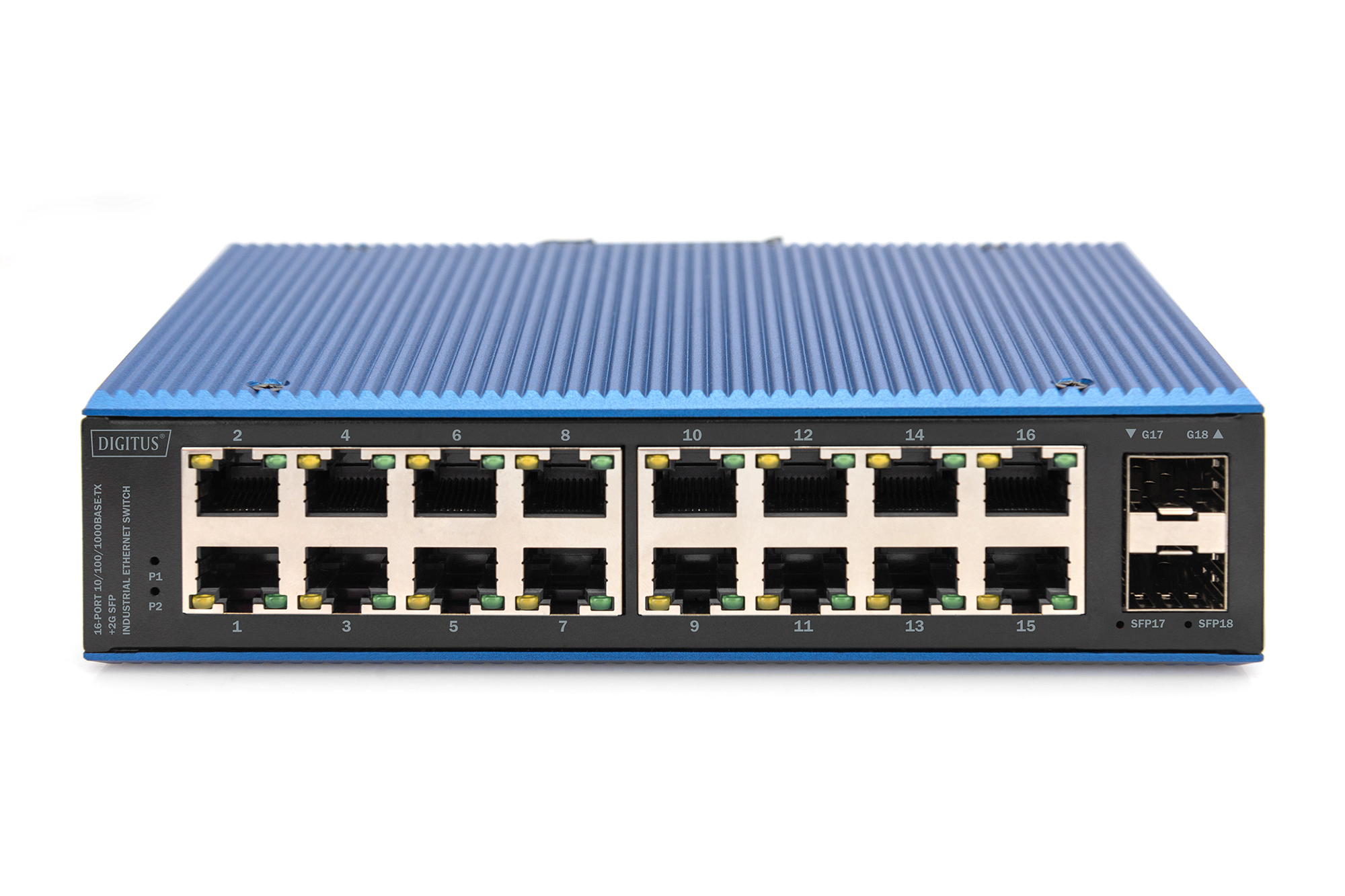

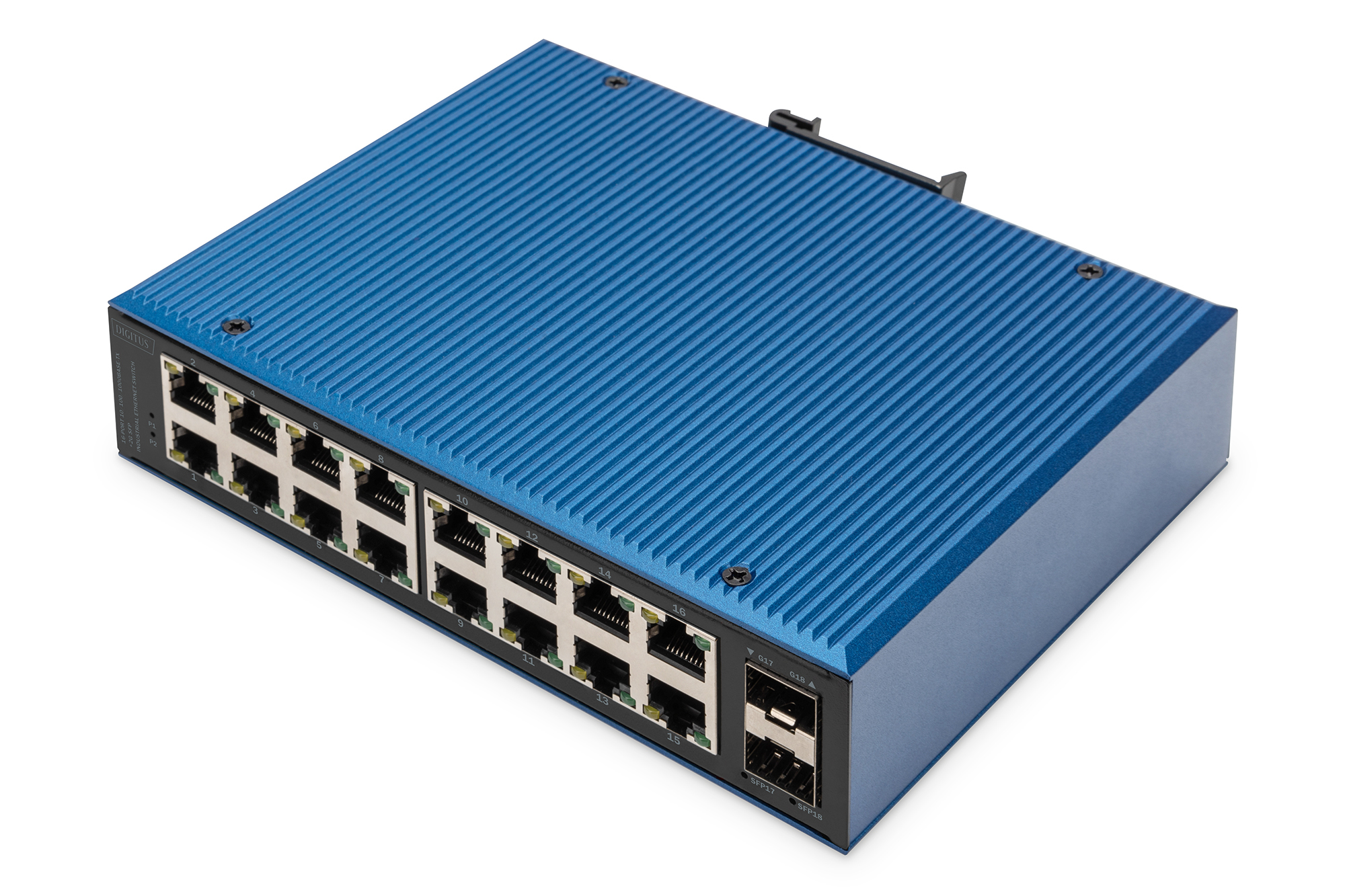

16 port Gigabit Ethernet network switch, industrial, unmanaged, 2 SFP uplink

The DN-651138 is a 16+2 port Gigabit Ethernet switch suitable for industrial applications (IP40) that offers interference-free data transfer performance in harsh industrial environments.

- The use of a high-quality photoelectric integration module ensures good transmission rates for optical and electrical connections.
- Ensures reliable data transmission
- Supports full-duplex or half-duplex mode, with automatic negotiation
- Network connection supports automatic cross-identification
- Uses "Store and Forward" technology The switch supports a variety of protocols
- complies with industrial operating standards

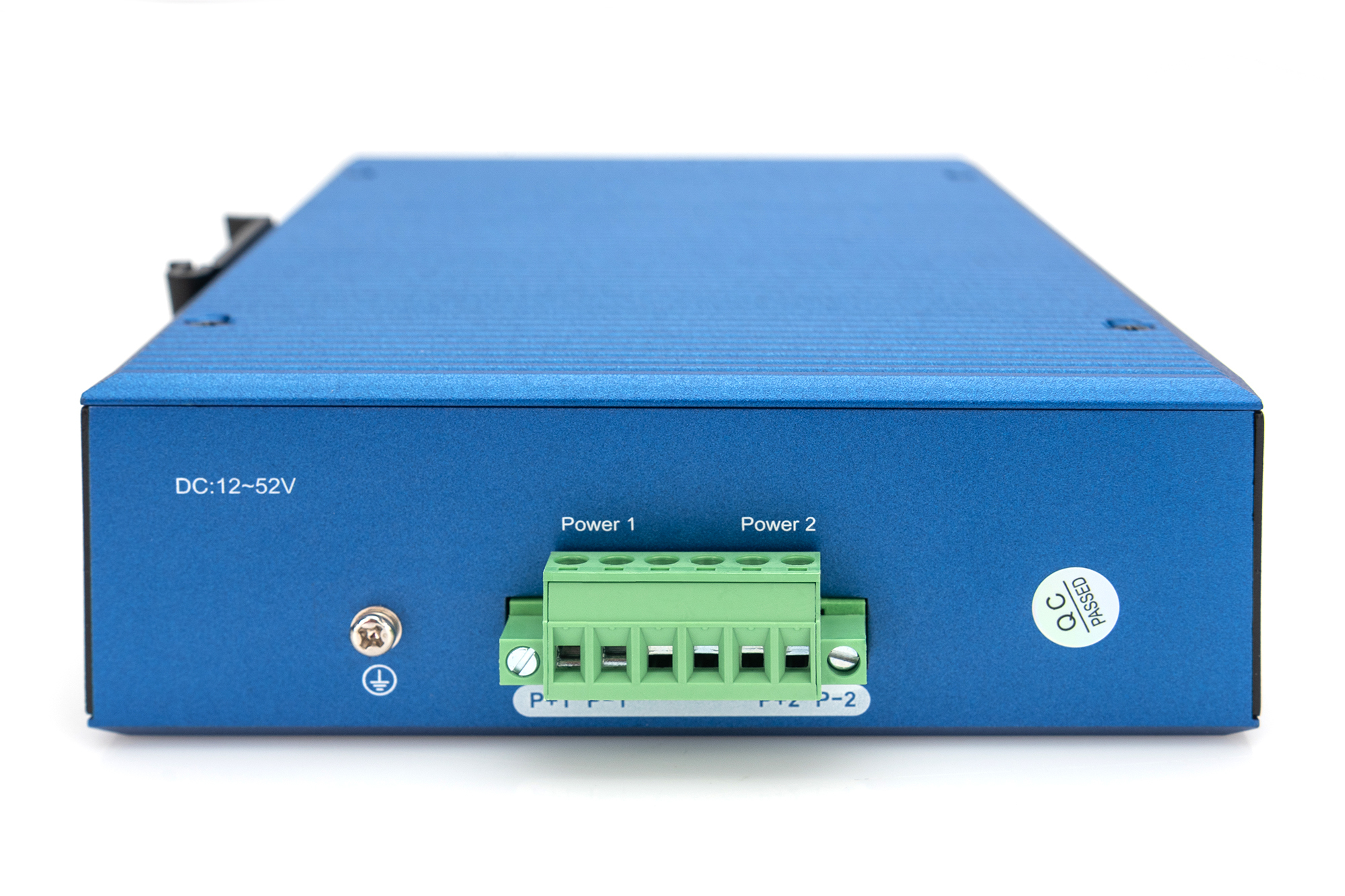

- Operating voltage: DC 12-52V
- Lightning surge protection (power): 5000A(8/20μs)

DN-651138 is an industrial Gigabit Ethernet switch with 16 port 10/100/1000 Mbps RJ45 +2 port 1000 Mbps base-FX. The industrial switch has the operating temperature of -40℃ ~ 80℃, has been manufactured ruggedly and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, IP40-rated housing and LED indicator make the DN-651138 an industrial-grade plug-and-play device that provides users with a reliable and convenient solution for networking their Ethernet devices.

[Data Network Technology][Active Network Components]

Specification

Product
Product id	895830
Brand	Digitus
Partnr	DN-651138
EAN/UPC code	4016032486084
Product information sheet(s)
Class	Network switch
Ethernet	true
Number of ports 10/100/1000 Mbps RJ45	16
Number of ports 1000 Mbps RJ45	16
Number of ports 100/1000 Mbps Mini GBIC	2
Number of ports 1000 Mbps Mini GBIC	2
Number of ports 1000 Mbps GBIC	2
Power over Ethernet (PoE)	None
Max. power consumption	10 W
Redundant power supply	true

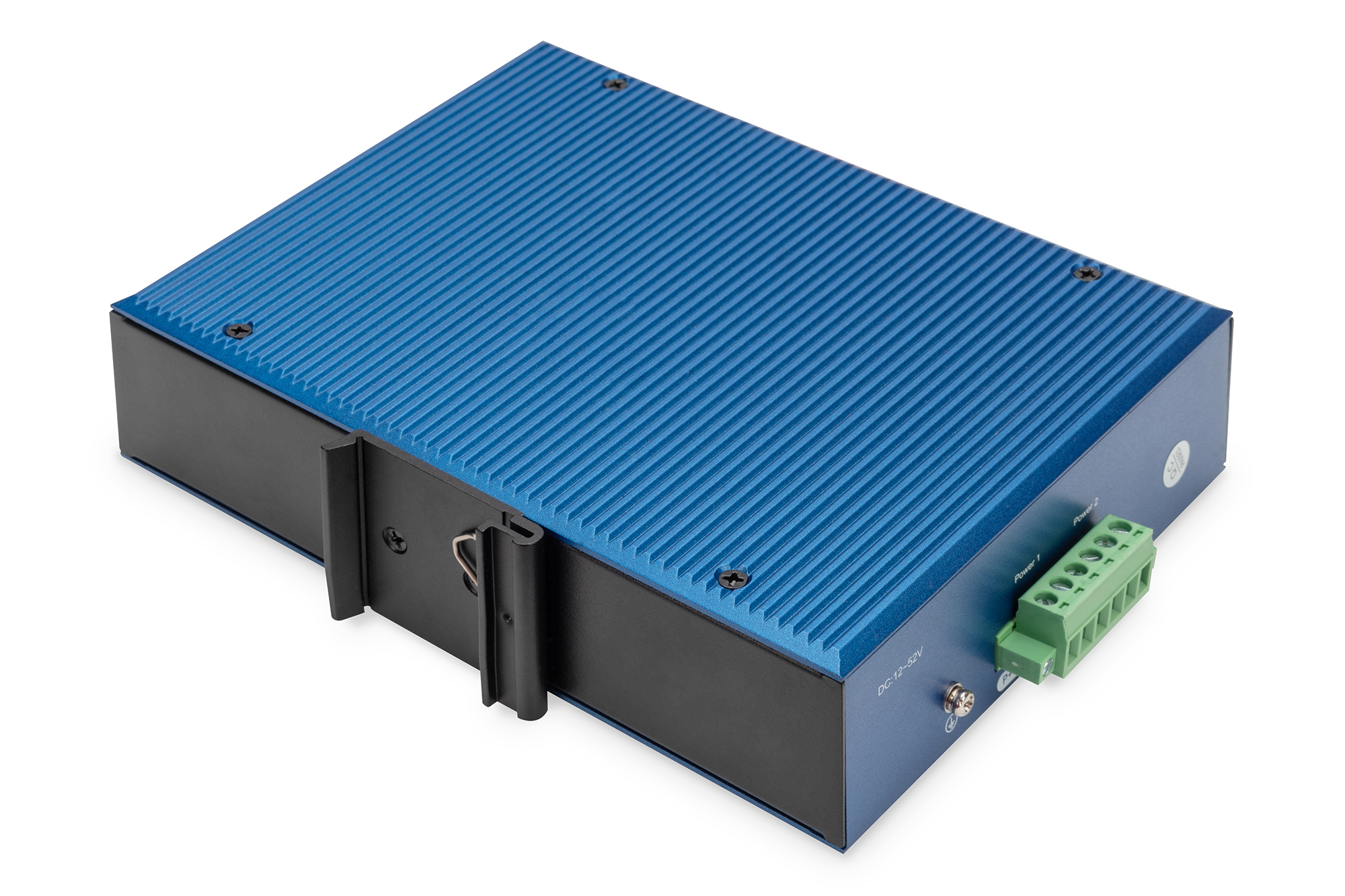

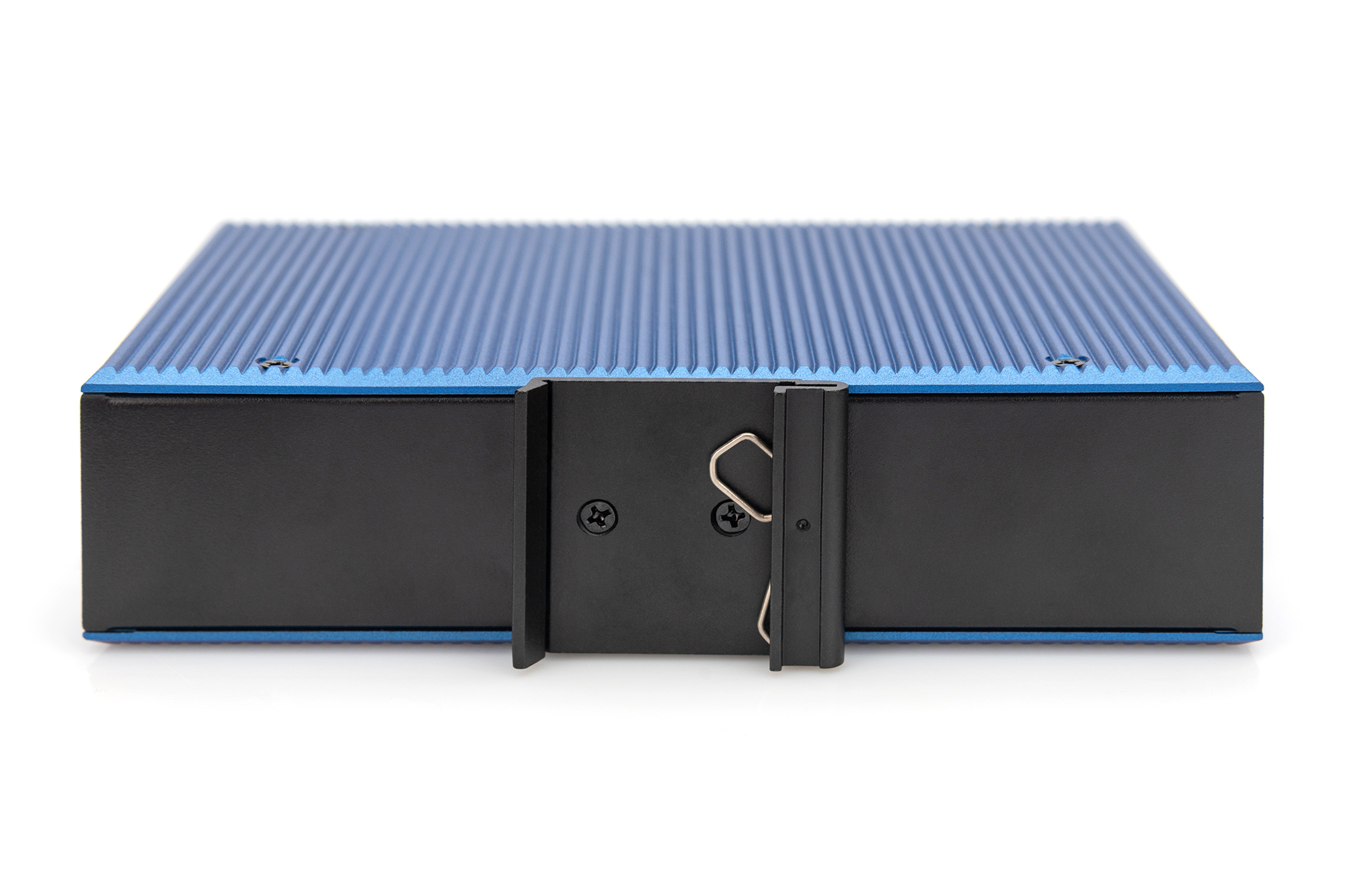

Mounting method	DIN rail (top hat rail)
Number of max. stackable switches	1
Number of module slots	2
Layer 2	false
Layer 3	false
Manageable	false
Degree of protection (IP)	IP40
Height	142.5 mm
Width	53.5 mm
Depth	107 mm
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
