Modular patch panel, 24-port, equipped with 24x DN-93615

- All-in-one convenience - Simplifies purchasing and inventory by combining patch panel and keystones in a single, ready-to-install package.
- Time-saving installation - pre-matched components eliminate compatibility problems and speed up commissioning.
- Professional presentation - Supplied as a neatly packaged combo pack, ideal for installers and projects that require a quick and clean implementation.
- More value for less - The complete solution is cheaper than buying patch panels and keystones individually.
- Optimized project planning - One article number, one delivery and complete operational readiness reduce the logistical complexity of larger rollouts.

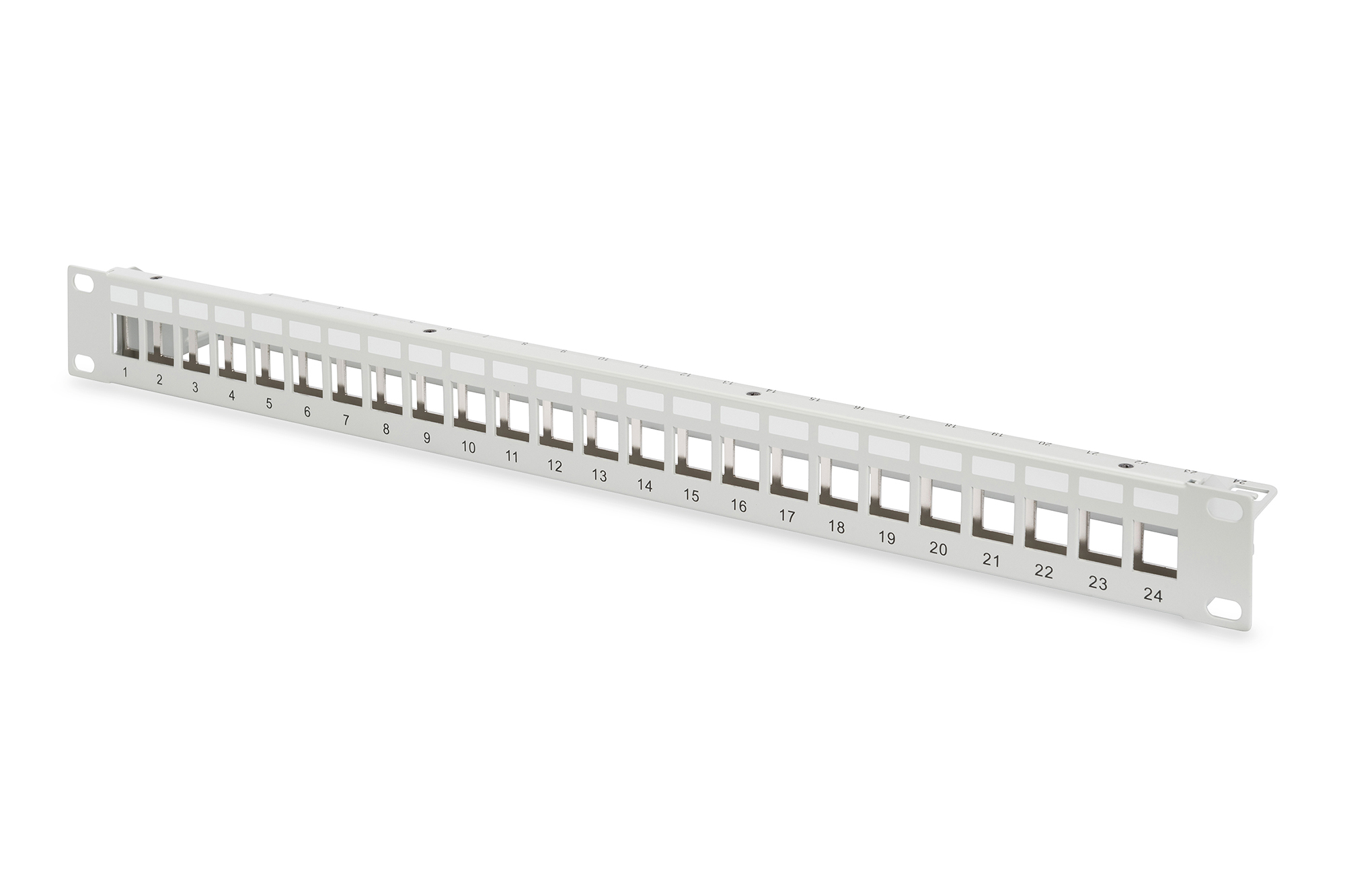

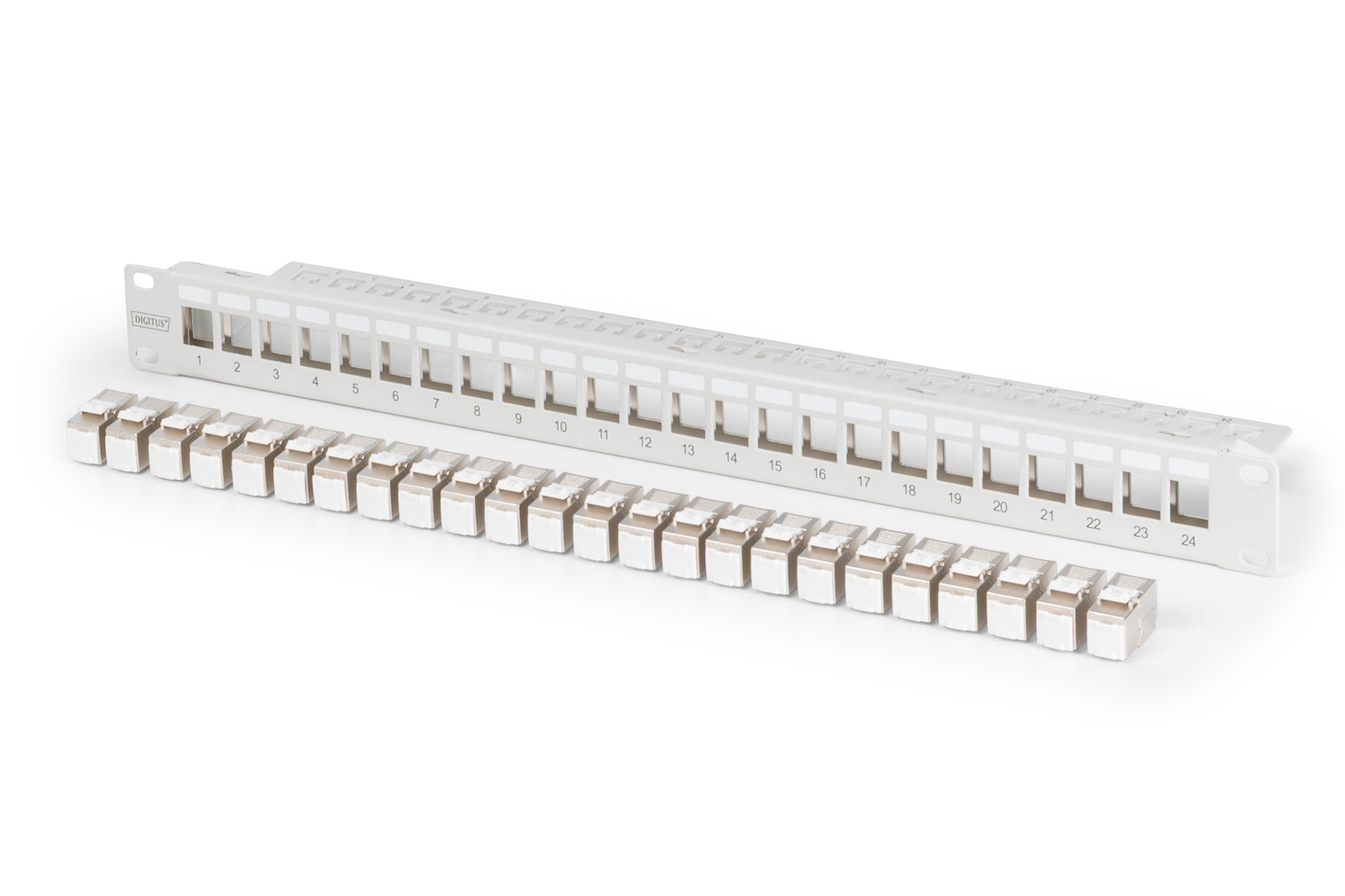

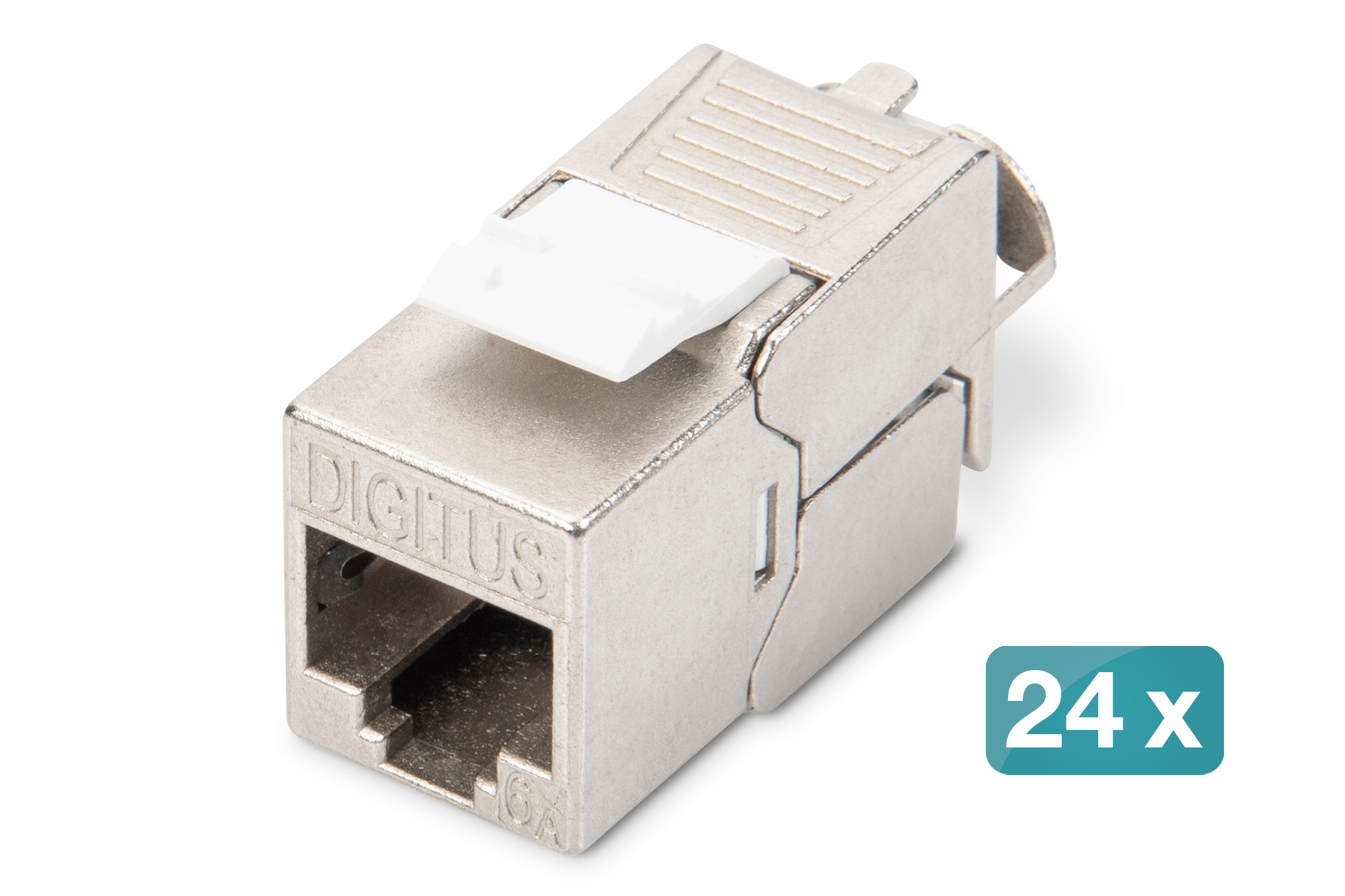

The DIGITUS Modular Patch Panel, 24-port, is a robust, rack-mountable 19-inch panel with 24 CAT 6A Keystone modules (DN-93615) - ready for immediate, fast and efficient installation. It offers easy management and enables flexible network configurations thanks to its modular design. With fully matched CAT 6A Keystone modules included, there is no need for separate procurement or compatibility checks. An integrated cable management strip ensures order and stability, while the earthing connection provides additional safety. This complete solution optimizes rack space, reduces installation time and simplifies project planning - ideal for professional installers and demanding IT environments.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	1011020
Brand	Digitus
Partnr	DN-91410-24
EAN/UPC code	4016032505730
Product information sheet(s)
Class	Patch panel copper (twisted pair)
Number of buses/couplings	24
Suitable for number of connectors	24
Type of connector	RJ45 8(8)
Screened	true
Category	6A (IEC)
Connection type	Other
Number of height units	1
Colour	Grey
RAL-number	7035
Mounting method	482.6 mm (19 inch) mounting
Height	44 mm
Width	483 mm
Depth	15 mm
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
