CAT 6A Slim Patch Panel, shielded, 8-port, 0.5 U, 10", black

Very space-saving (only 0.5U) - future-oriented standards and high-end quality for your network

- Slim installation height of only 0.5 U
- Complete shielding of housing and shield contacting

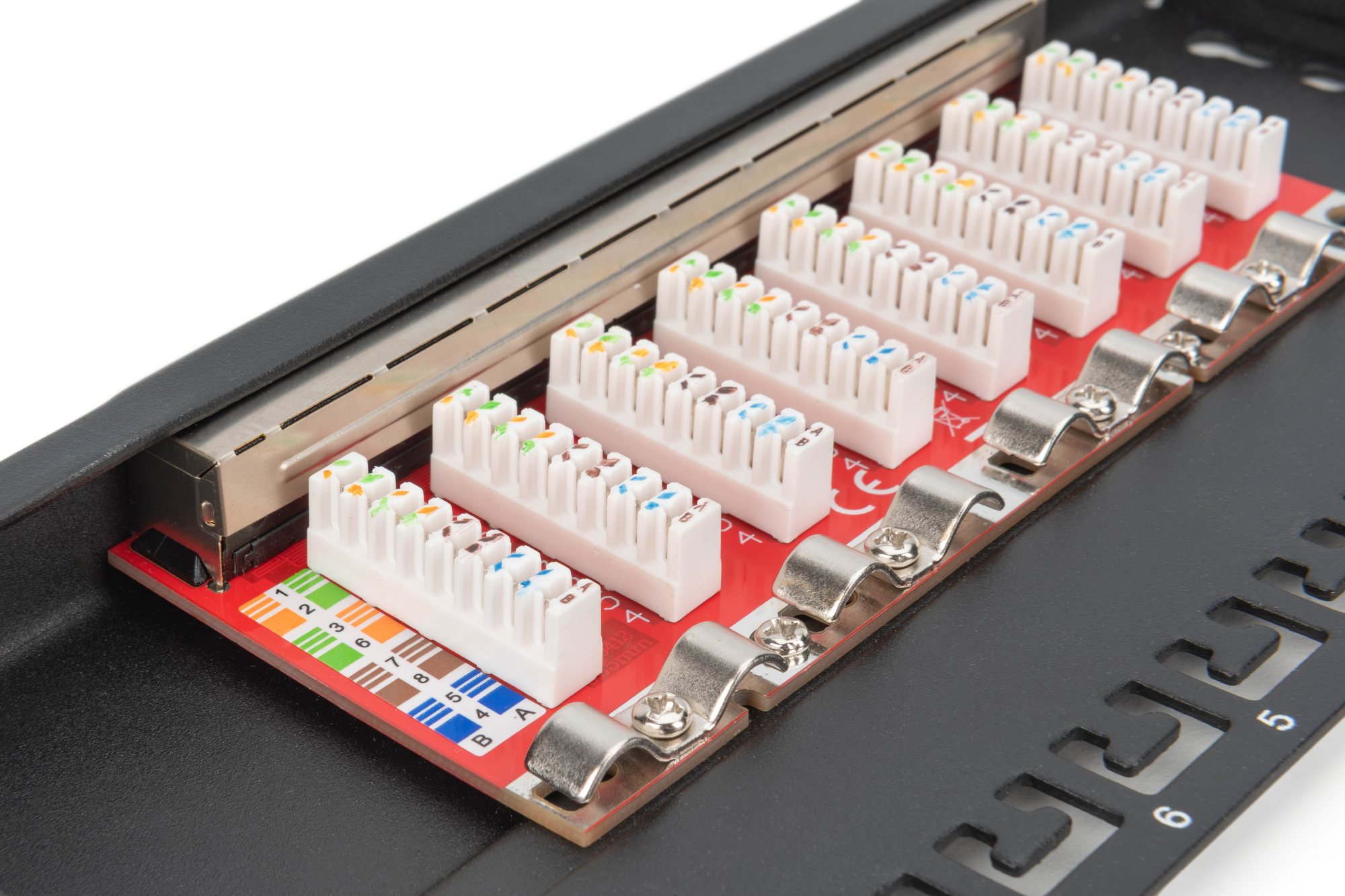

- Cable installation via LSA strips
- Central earthing connection
- Dielectric strength up to 1500 VDC (contact / ground)
- PoE-capable according to: IEEE 802.3af, IEEE 802.3at PoE+
- 360° shield contacting

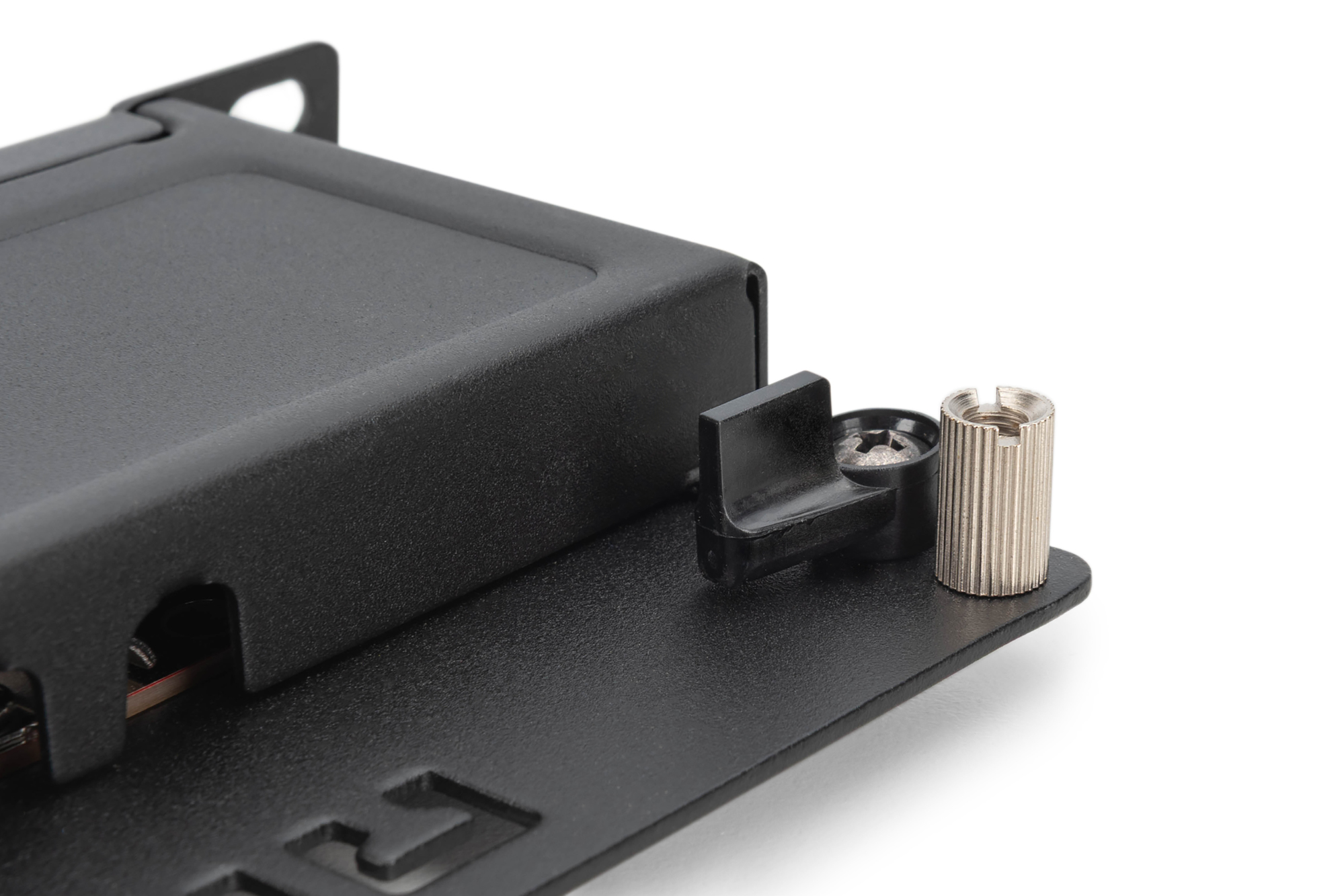

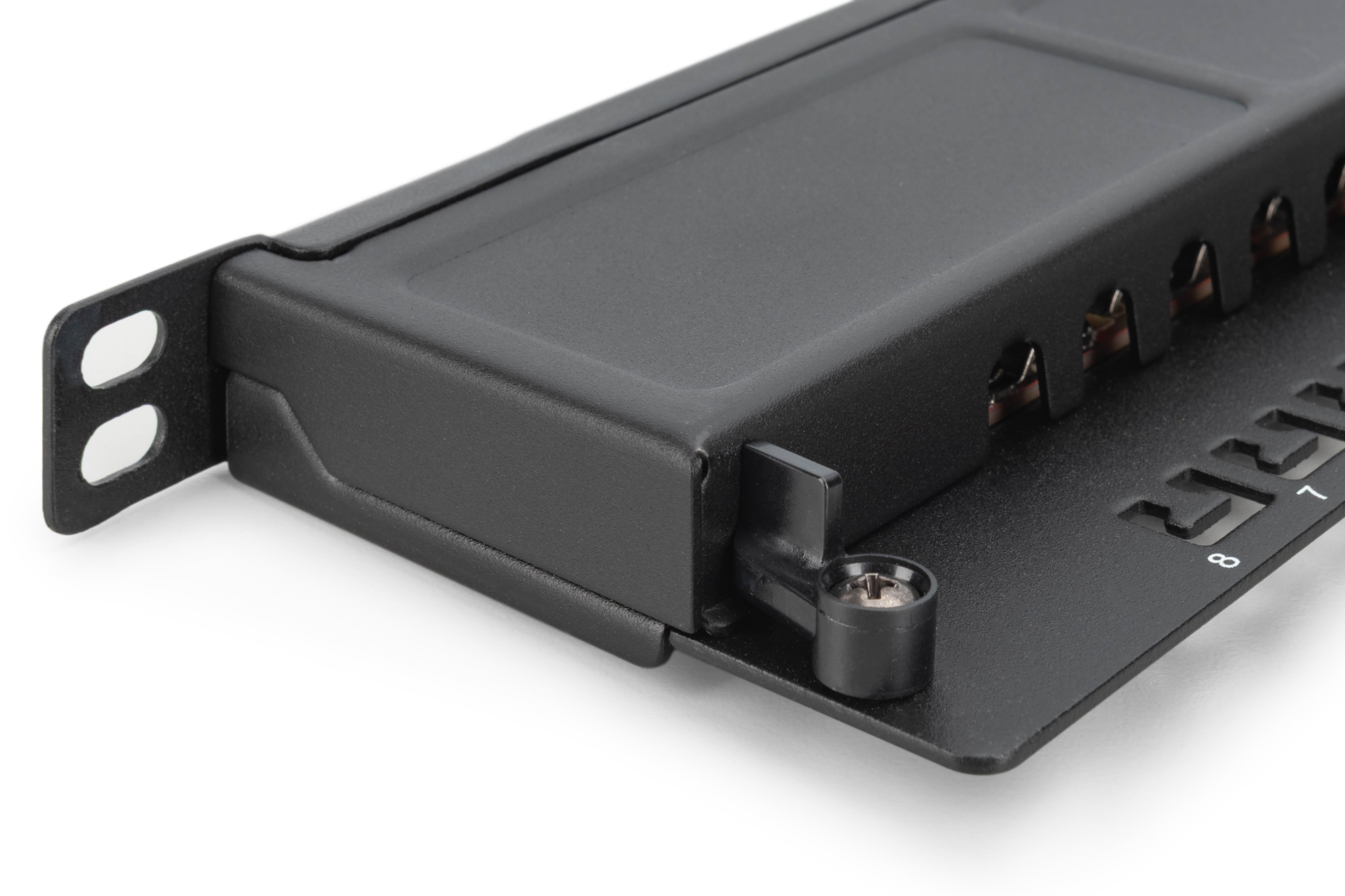

- Quick-release fastener to secure the housing cover
- Wall mounting possible

The DIGITUS® 8-Port Patch Panel offers a very high packing density with only 0.5 U. This means that up to 16 ports can be implemented on 1 U with two 0.5 U panels. The patch panel is shielded. The 360° shield contact of the cables ensures the best performance characteristics. The installation cables can be securely fixed with the integrated cable clamps. The quick-release fastener on the housing ensures easy and tool-free access to the LSA cutting terminals. It complies with the 802.3at PoE+ and the 802.3af PoE standard.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	841337
Brand	Digitus
Partnr	DN-91608S-SL-EA
EAN/UPC code	4016032473169
Product information sheet(s)
Class	Patch panel copper (twisted pair)
Number of buses/couplings	8
Suitable for number of connectors	8
Type of connector	RJ45 8(8)
Screened	true
Category	6A (IEC)
Connection type	LSA
Number of height units	0.5
Colour	Black
RAL-number	9005
Mounting method	254 mm (10 inch) mounting
Height	22 mm
Width	254 mm
Depth	100 mm
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
