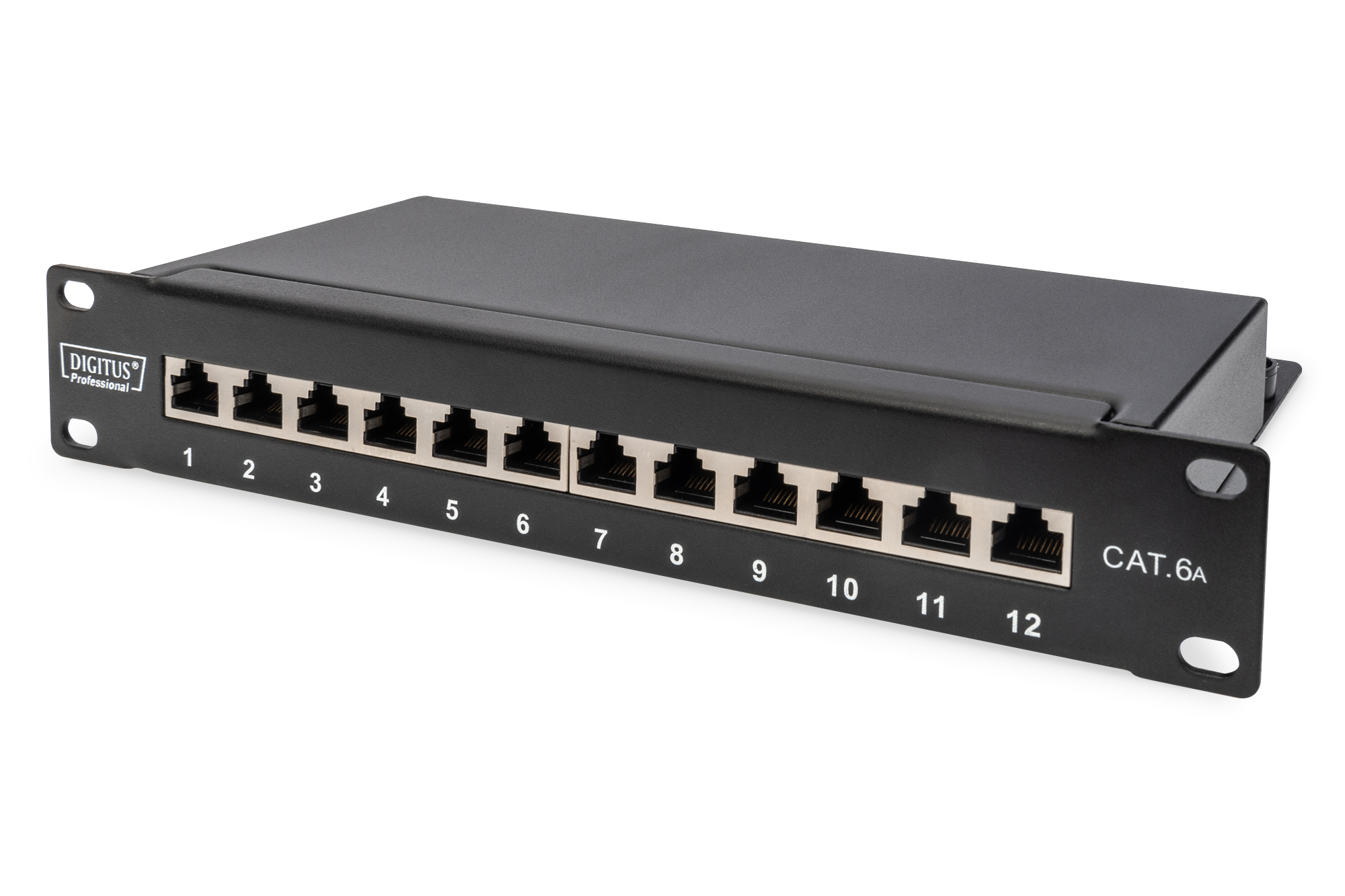

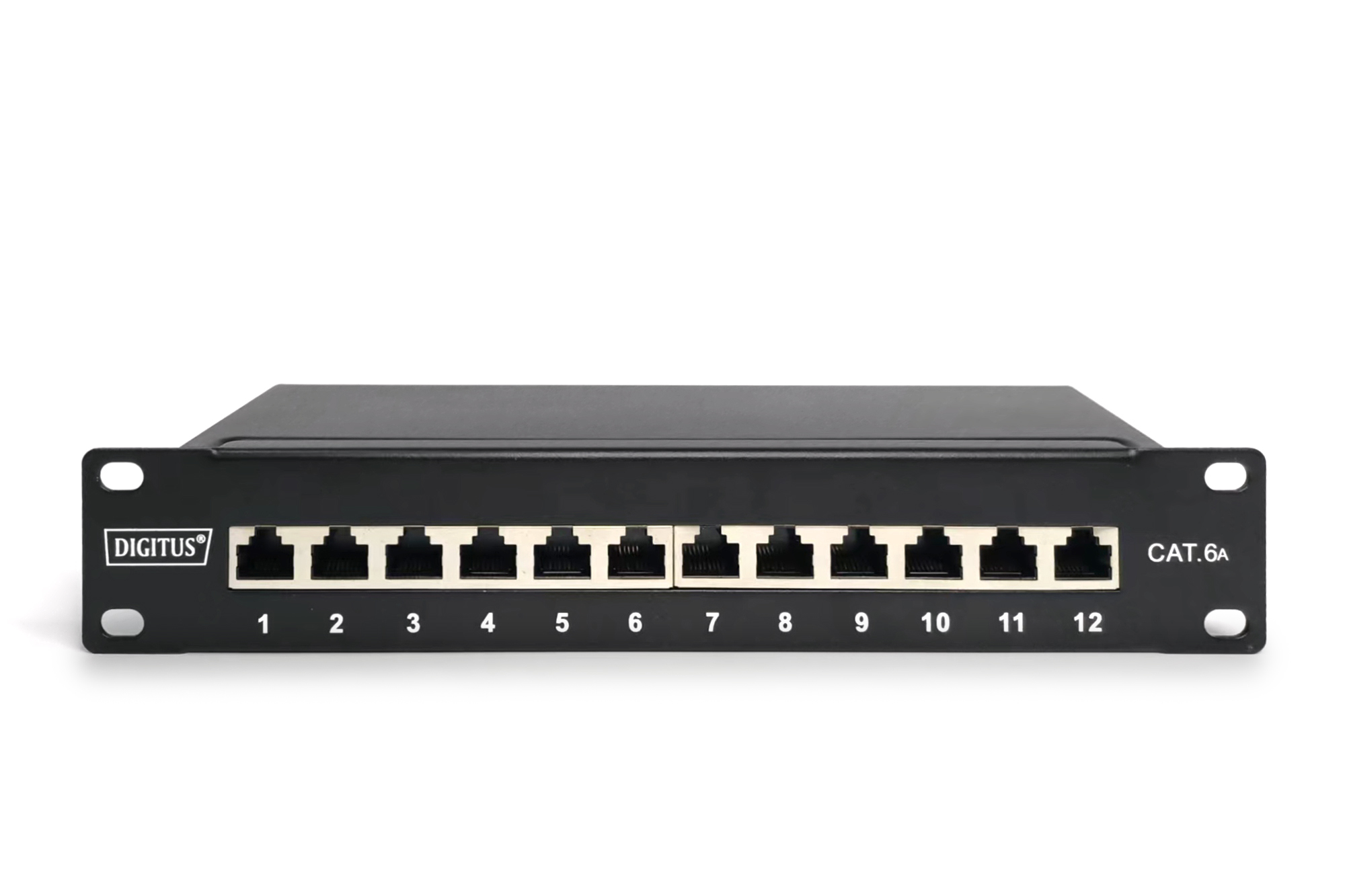

CAT 6A Patch Panel, shielded, 12-Port, 1HE, 10", black

Future-orientated standards and high-end quality for your network.

- Sturdy patch panel with metal housing
- Complete shielding of housing and shield contact

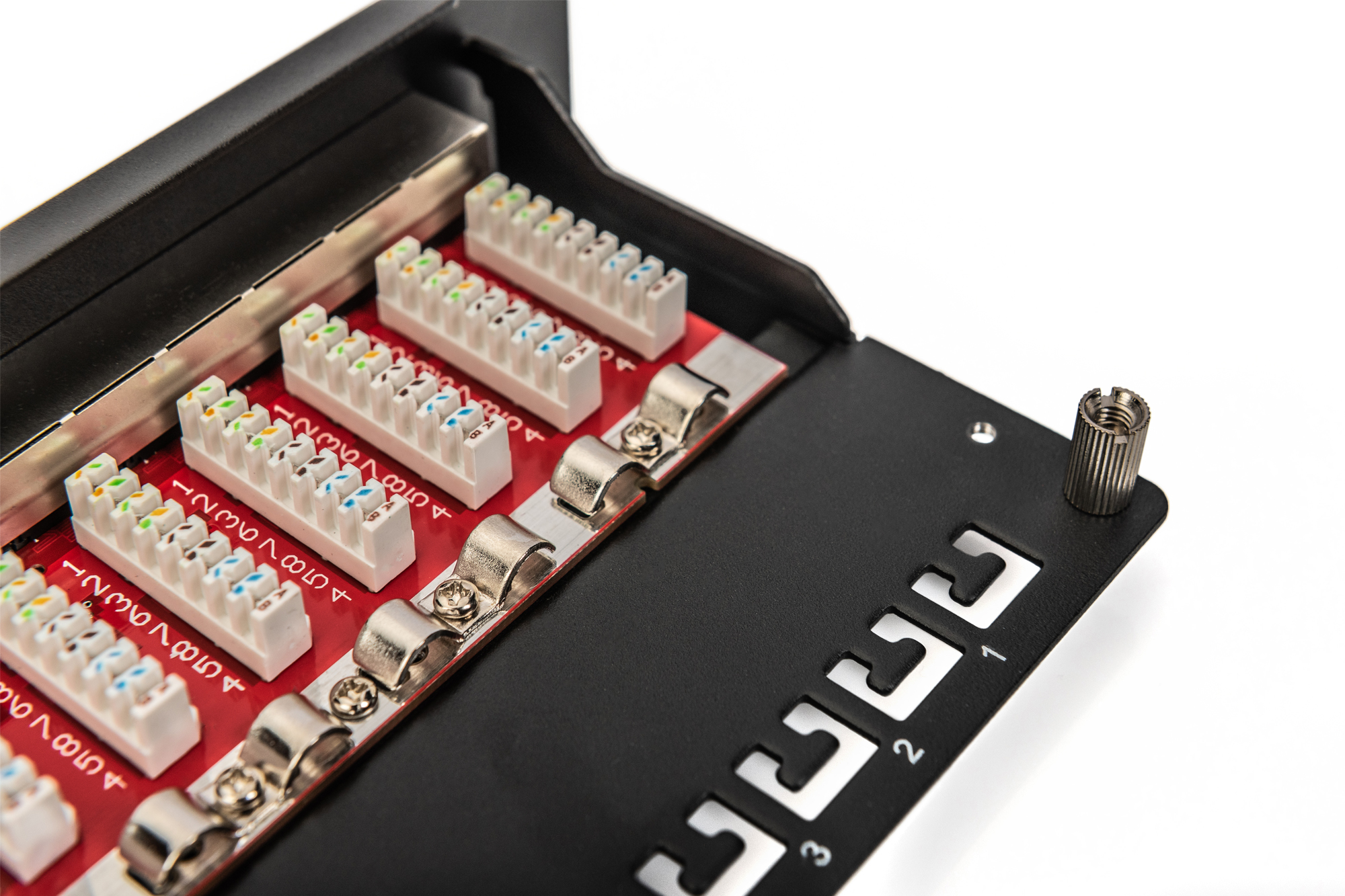

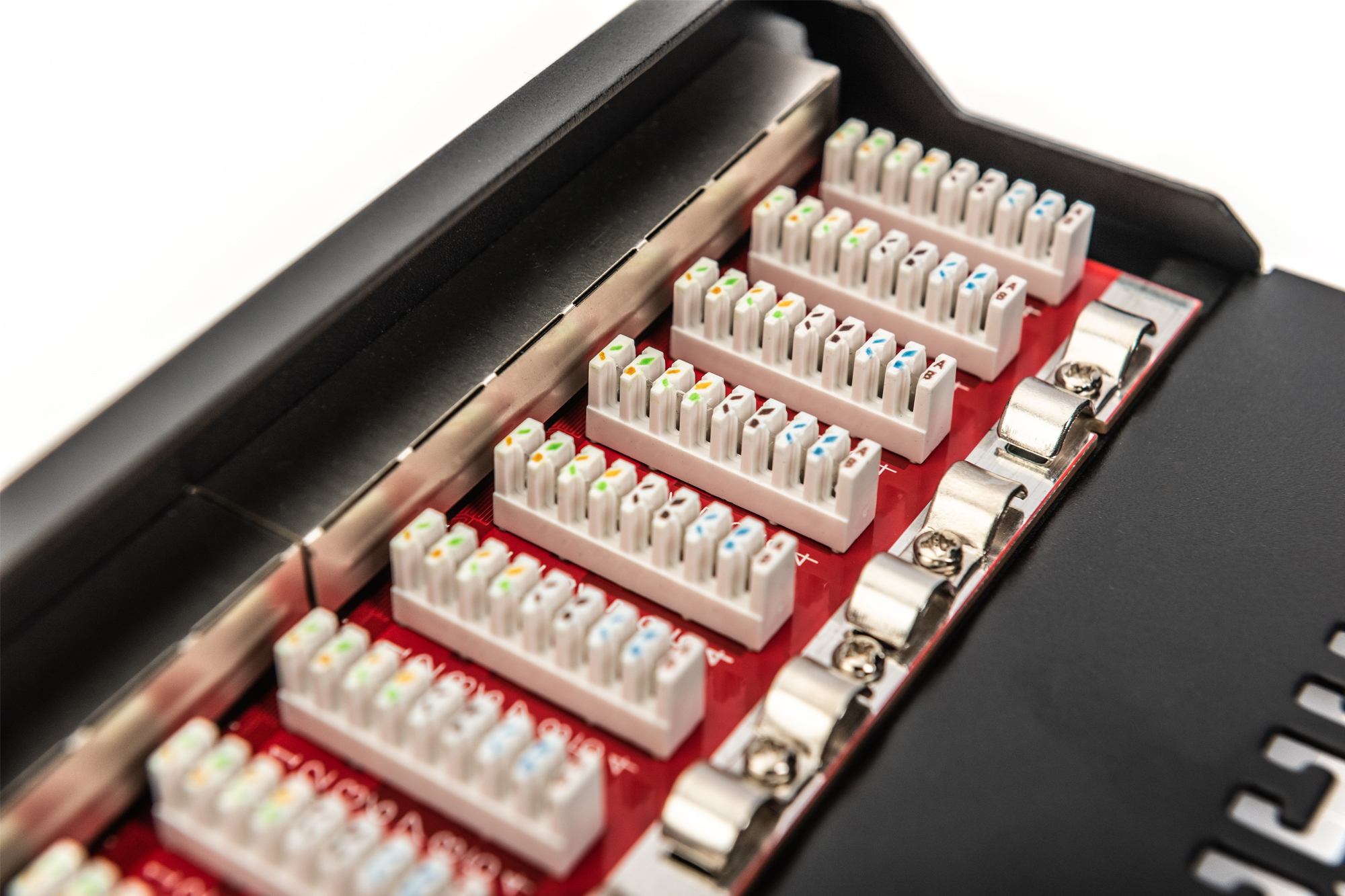

- Cable installation by IDC-strips
- Central grounding connector
- Dielectric strength up to 1500 VDC (contact/ground)

The CAT 6A patch panel is available in this 12 port version. It offers sturdy design by its 1.5mm galvanic cold rolled steel. Perfect for 10" cabinet mounting. The fully shielded RJ45 sockets provide an optimal stability for your cables with best performances. The patch panel applies to (IEEE 802.3at/af) PoE+ standard. It is shielded electromagnetically and offers lost and interruption free forwarding of your data in your network. The 360 degree shielding at the contact points makes sure every single point of consilidation is shielded perfectly.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	793415
Brand	Digitus
Partnr	DN-91612S-EA
EAN/UPC code	4016032454861
Product information sheet(s)
Class	Patch panel copper (twisted pair)
Number of buses/couplings	12
Suitable for number of connectors	12
Type of connector	Other
Screened	true
Category	6A (IEC)
Connection type	LSA
Number of height units	1
Colour	Black
RAL-number	9005
Mounting method	254 mm (10 inch) mounting
Height	44 mm
Width	254 mm
Depth	109 mm
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
