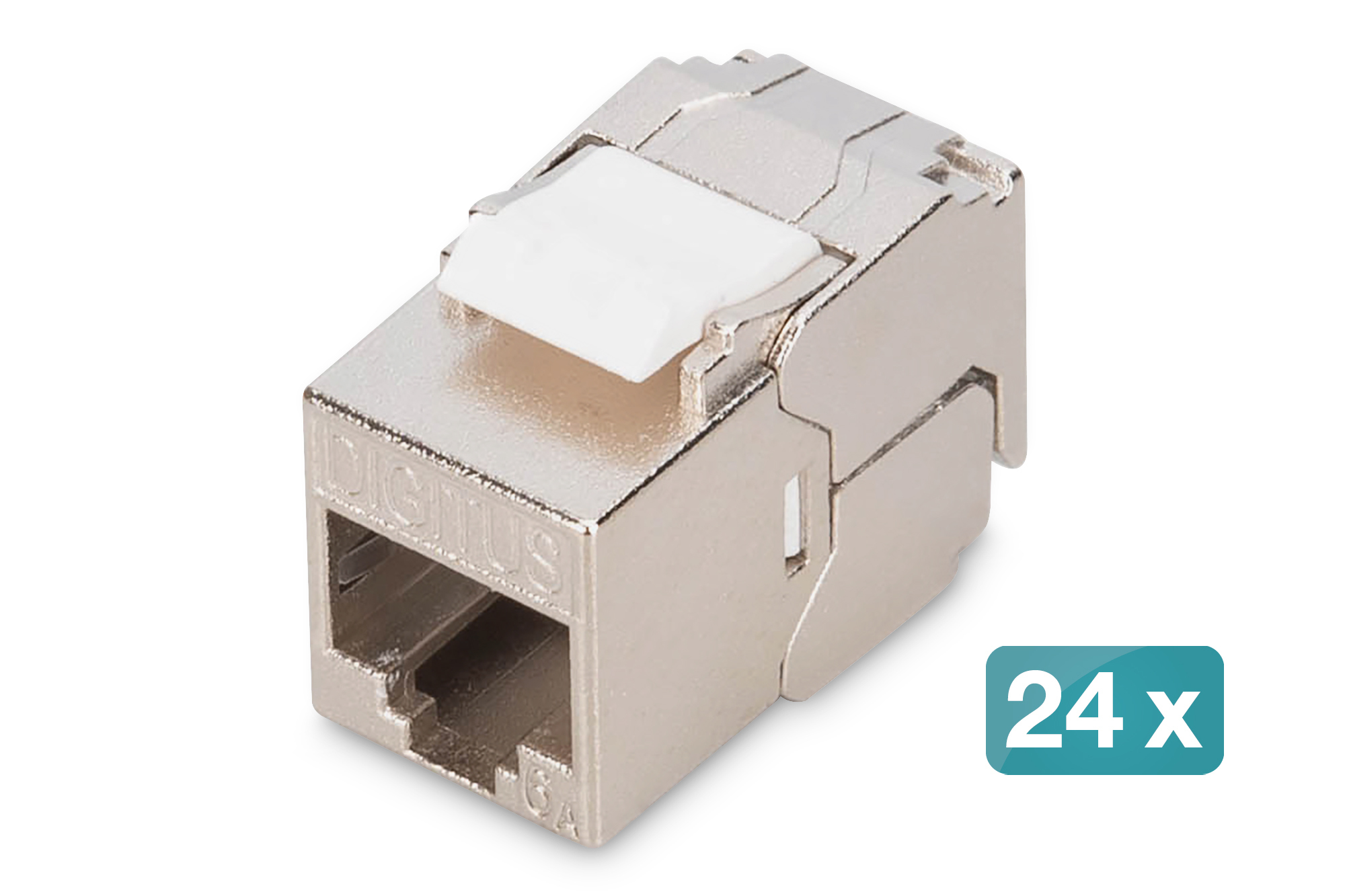

CAT 6A compact keystone module, shielded, tool-free mounting connection. 24 pcs.

Quick and easy installation without special tools

- 360° shield contacting
- Suitable for field assembly (tool-free installation)
- Design-compatible - suitable for mounting in distribution panels and junction boxes
- CAT 6A with LSA insulation displacement connectors
- Dust protection cap for RJ45 socket
- Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)

The shielded CAT 6A short keystone module DN-93615-S-24 from DIGITUS® impresses with its future-oriented standards and high-end quality for your network. The compact design allows a series installation in 483 mm (19") 1U panels. The tool-free installation is carried out via LSA strips, color-coded according to EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	1011015
Brand	Digitus
Partnr	DN-93615-S-24
EAN/UPC code	4016032505228
Product information sheet(s)
Class	Modular connector
Model	Bus (jack)
Type of connector	RJ45 8(8)
Screened	true
Category	6A (IEC)
Connection type	LSA
Special tool necessary	false
Suitable for round cable	true
Suitable for flat cable	false
Suitable for litz wire conductor	true
Suitable for solid conductors	true
Colour	Silver
Transparent	false
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
