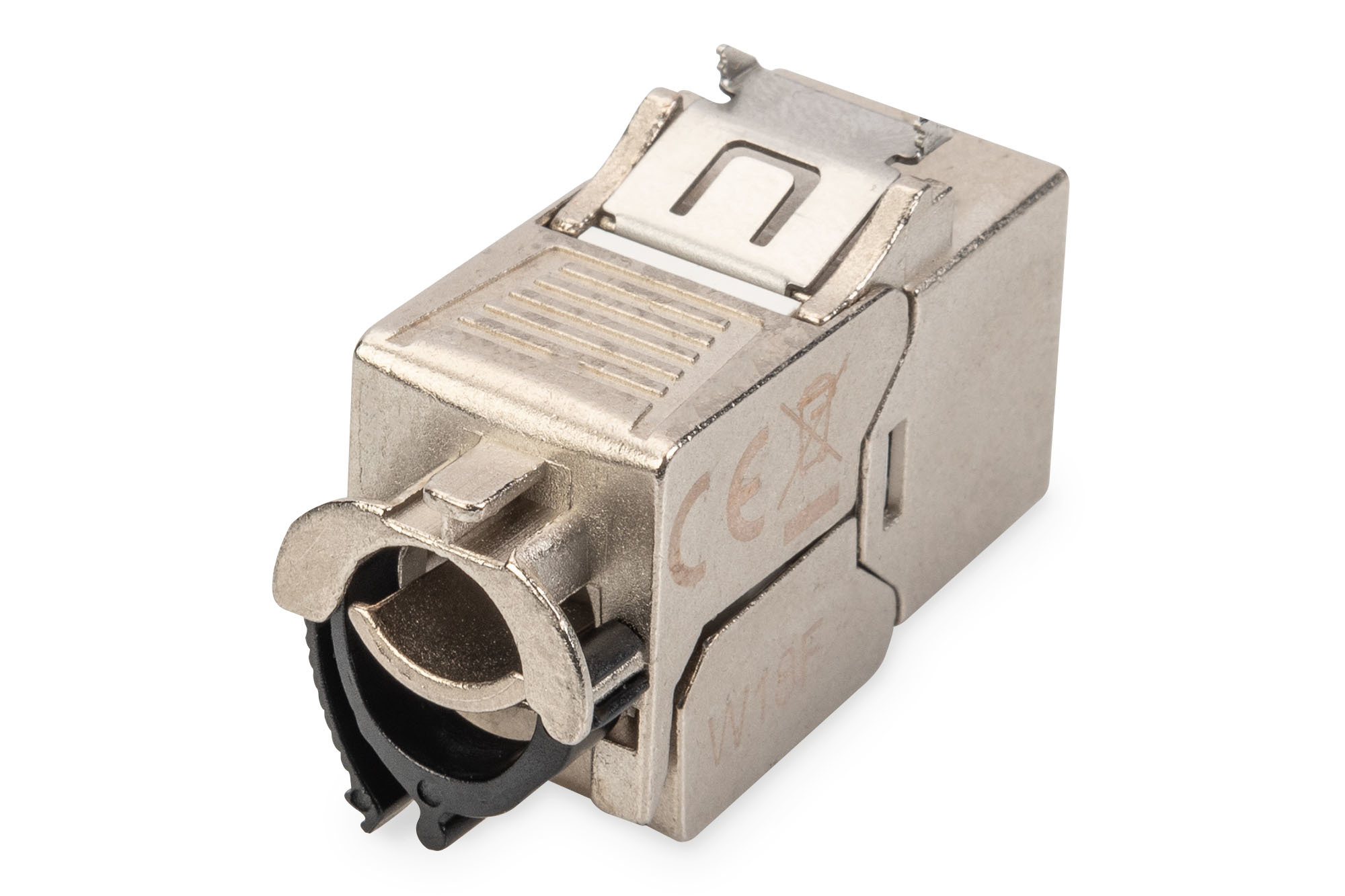

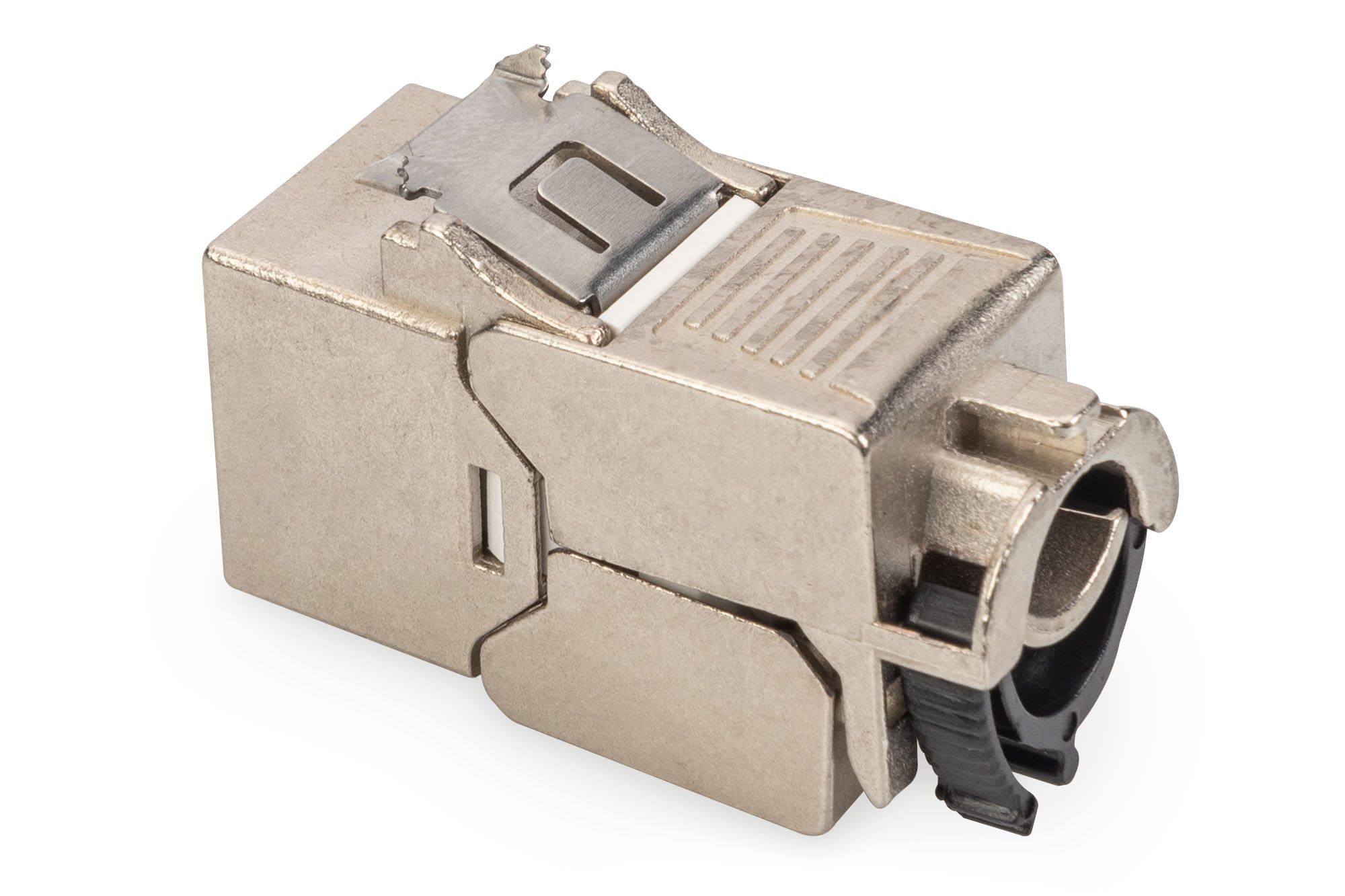

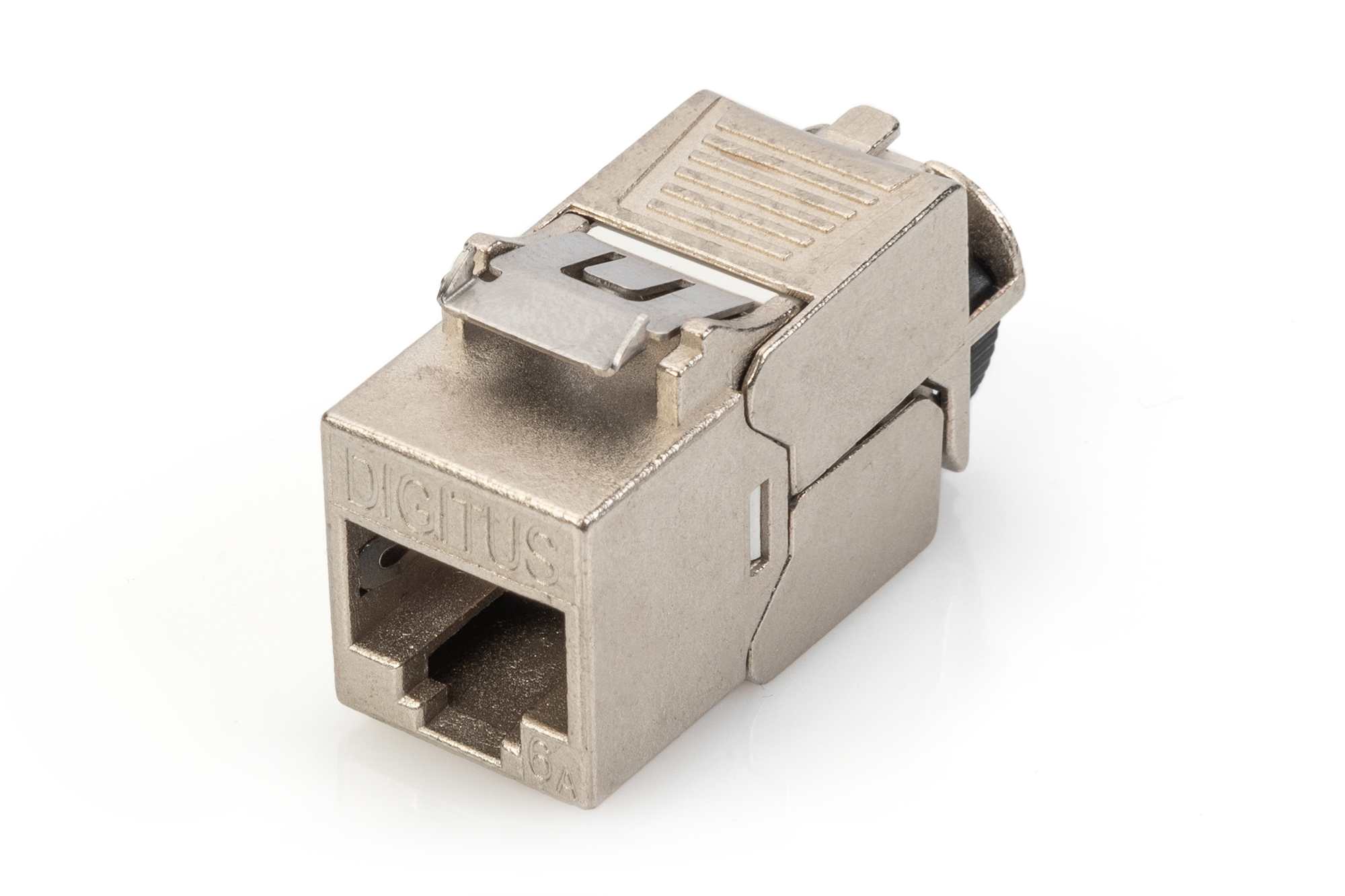

CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces)

Design-compatible, shielded, tool-free, with metal locking lever and intelligent cable manager

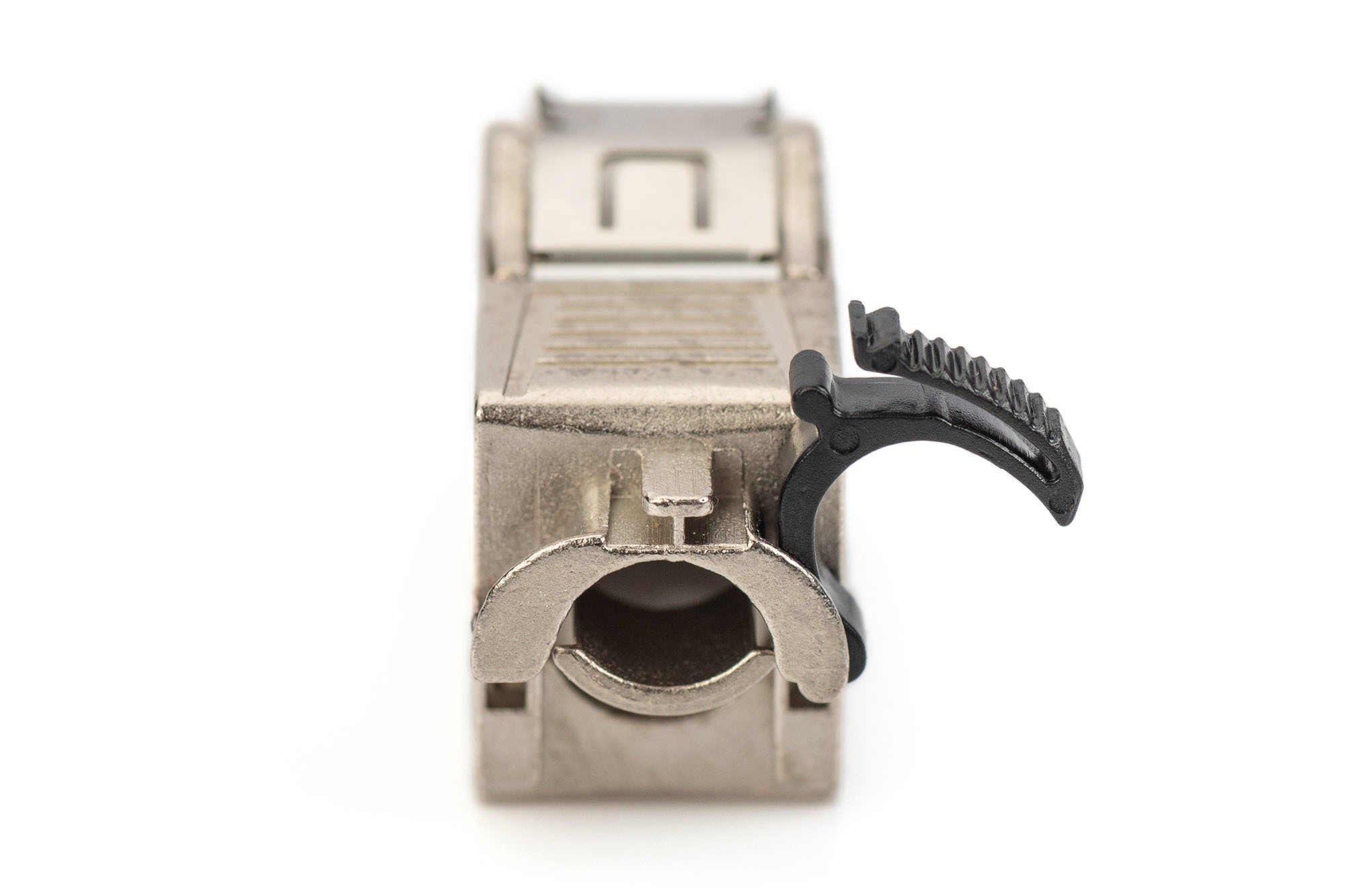

- Strain relief and cable fixing using intelligent cable manager
- 360° shield contacting
- Suitable for field assembly (tool-free installation)
- Design-compatible - suitable for mounting in distribution panels and junction boxes
- CAT 6A with LSA insulation displacement connectors
- Metal detent lever

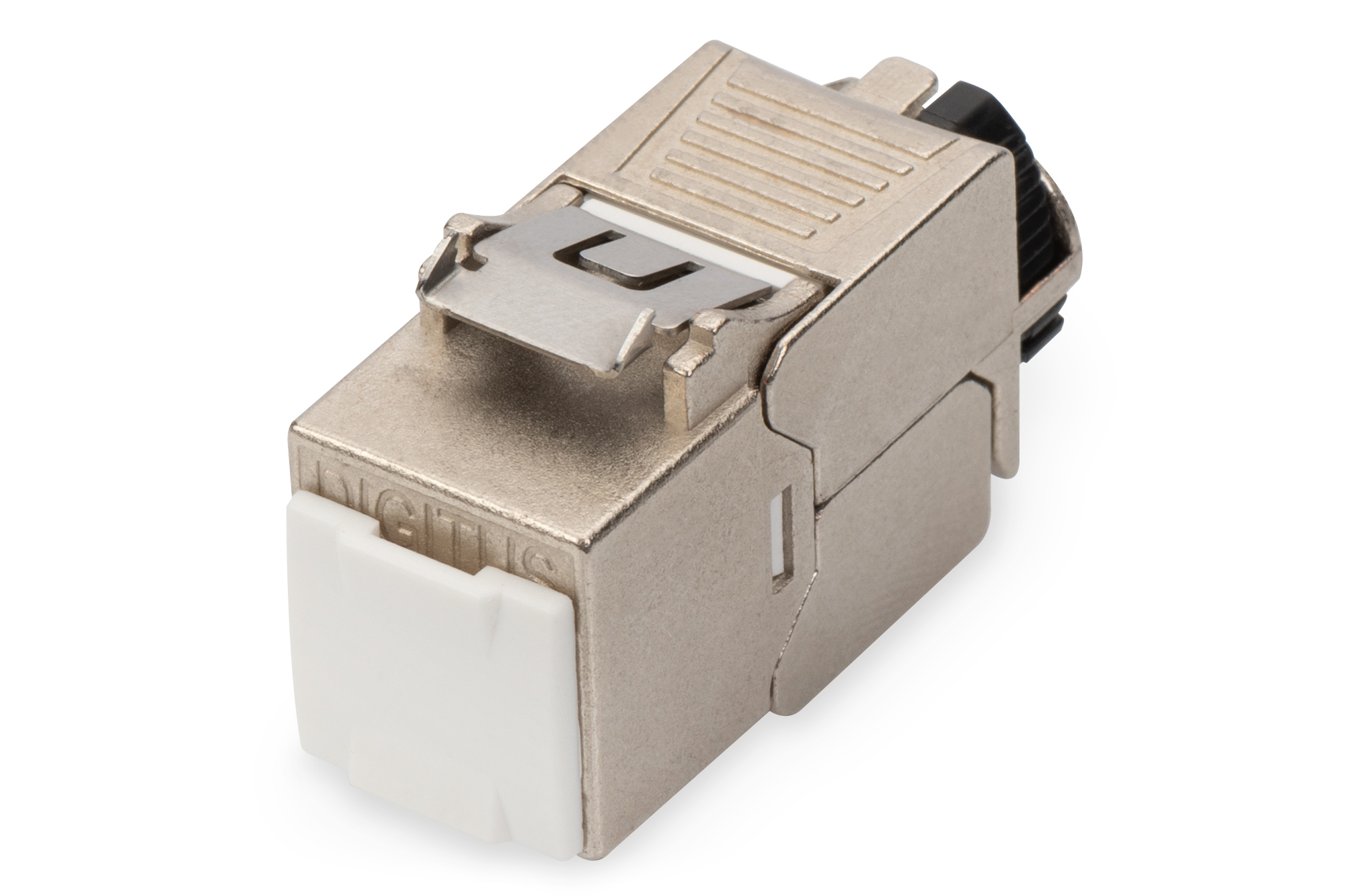

- Dust protection cap for RJ45 socket
- GHMT certified
- Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ & 4PPoE (in Permanent Link)

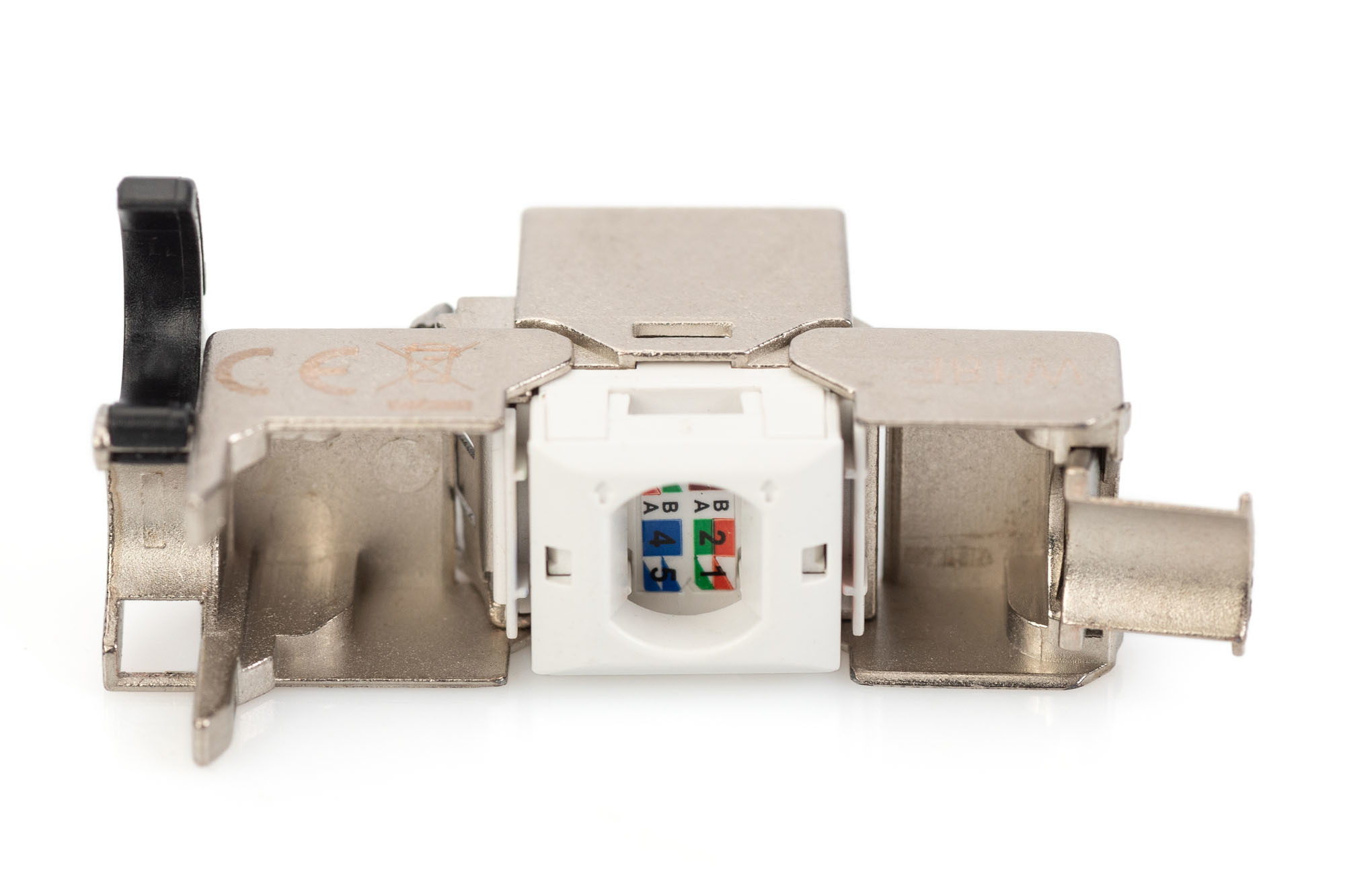

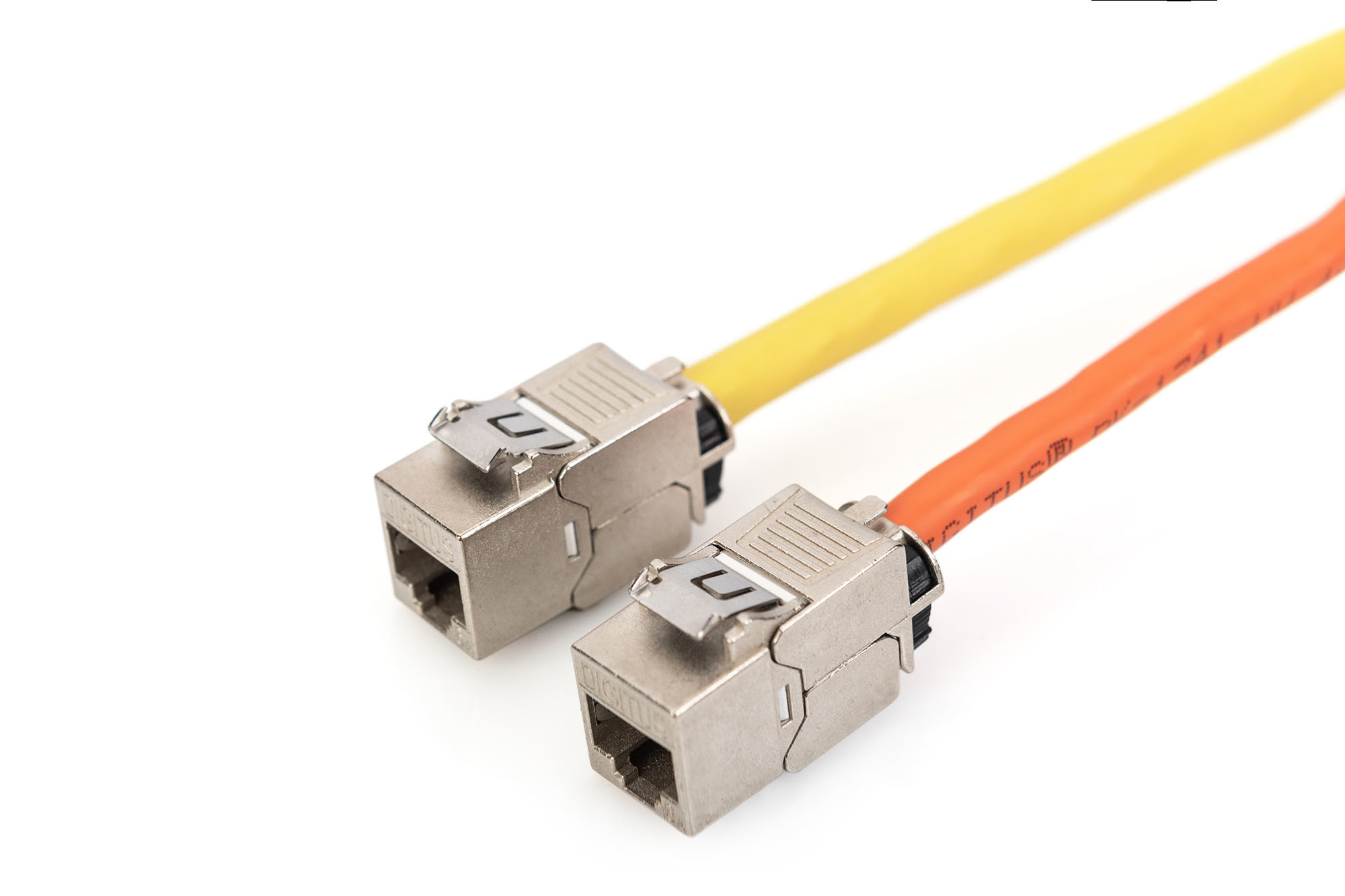

The shielded CAT 6A Keystone module set DN-93619-24 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The modules have 360° shield contacting, a metal locking lever and a reclosable, intelligent cable manager for strain relief and cable fixing. The compact design allows 24 units to be installed in series in a 483 mm (19") 1U panel. The tool-free installation is carried out via LSA strips, color-coded in accordance with EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	657740
Brand	Digitus
Partnr	DN-93619-24
EAN/UPC code	4016032458760
Product information sheet(s)
Class	Modular connector
Model	Bus (jack)
Type of connector	RJ45 8(8)
Screened	true
Category	6A (IEC)
Connection type	LSA
Special tool necessary	false
Suitable for round cable	true
Suitable for flat cable	false
Suitable for litz wire conductor	true
Suitable for solid conductors	true
Colour	Silver
Transparent	false
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
