Cat. 6A CAT Connector (Coupling for field applications), 500 MHz

The CAT connector is perfect for extending or repairing a Twisted Pair cable section.

- Cat. 6A, 500 MHz
- 10G Base-T
- Screw cable grip
- Tool-free mounting

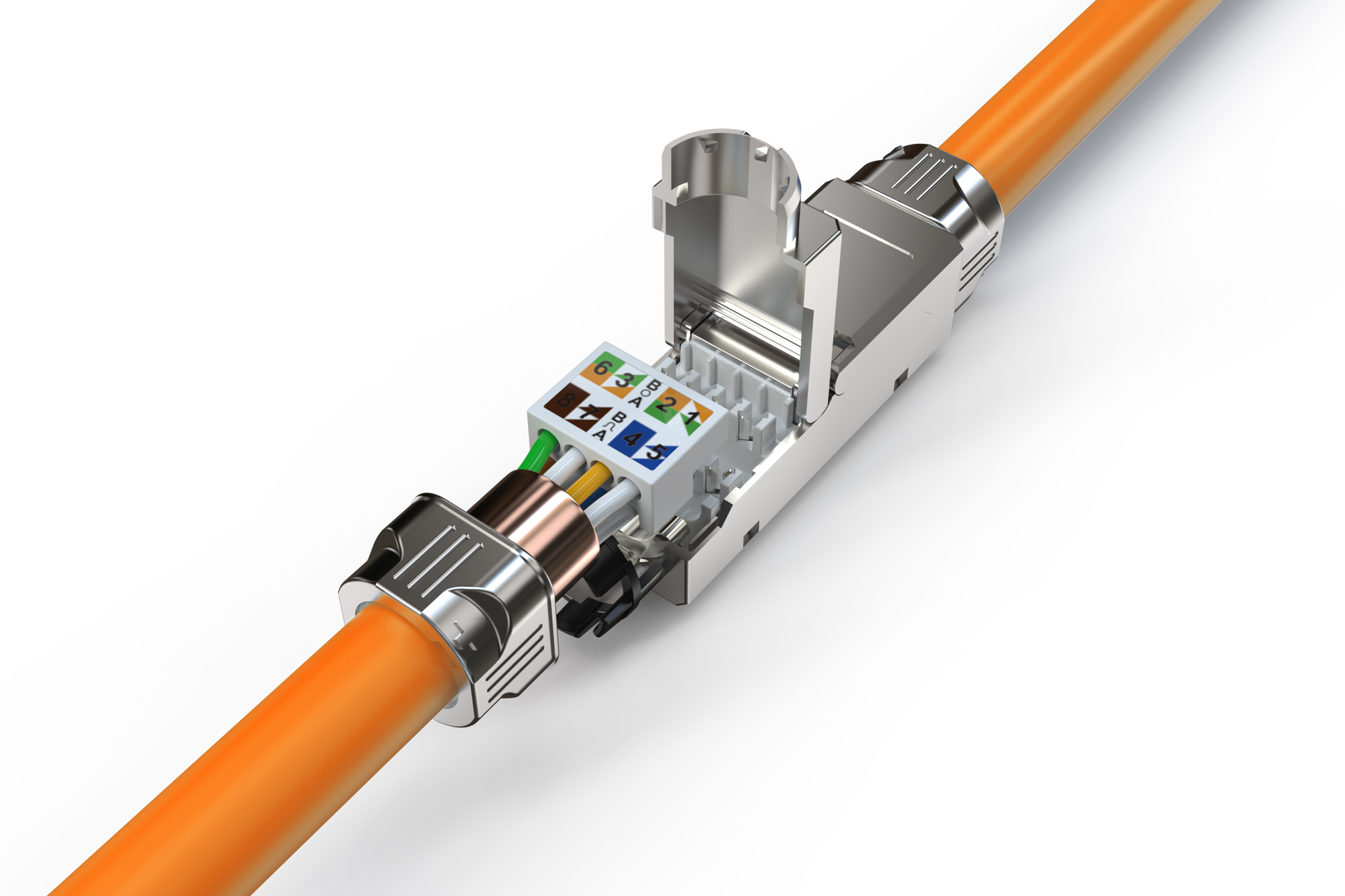

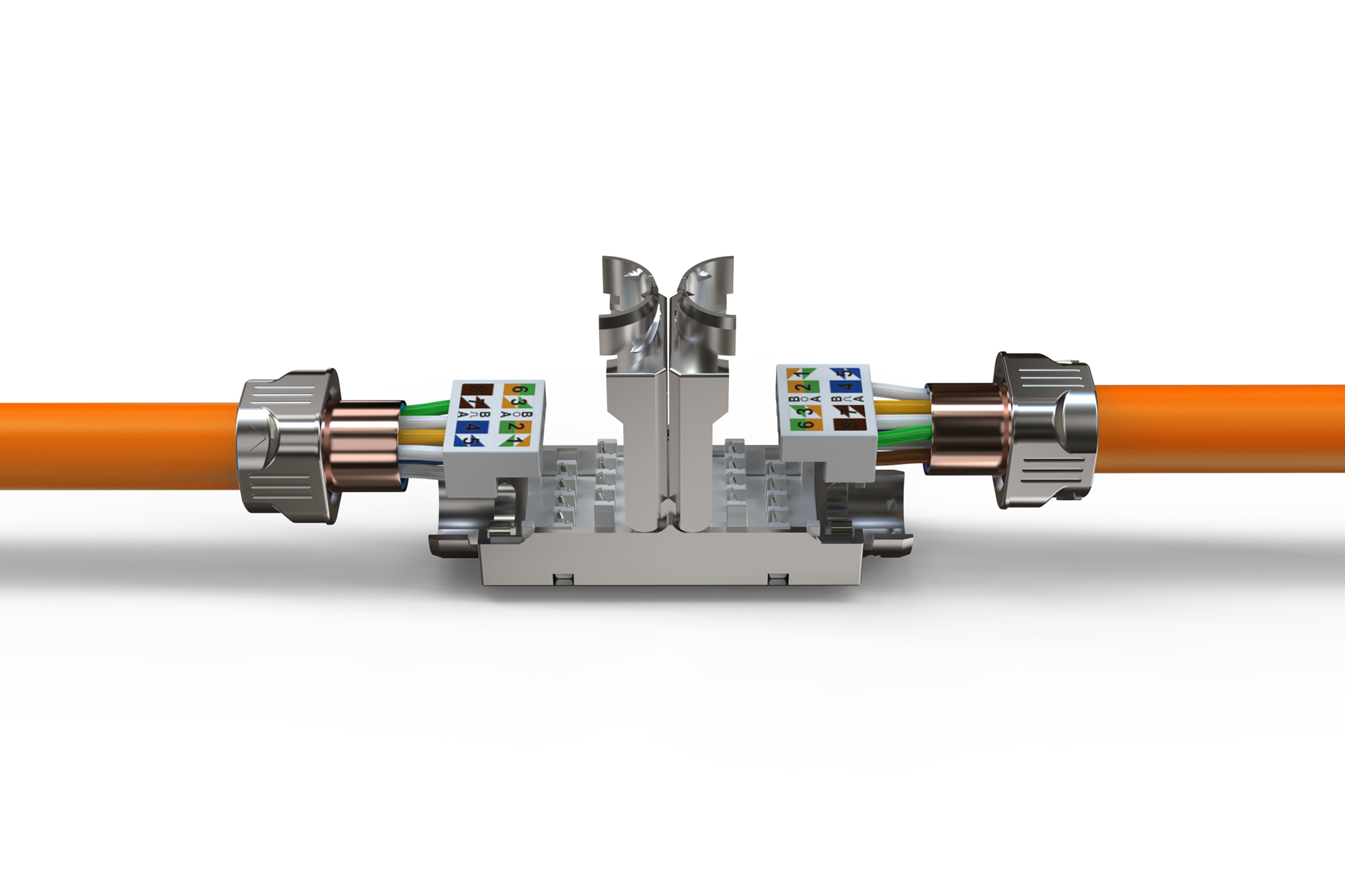

- Conductor manager for easy field installation (tool free)
- 360° shield contact
- Cat. 6A with LSA insulation-displacement connector
- Slim design
- Suitable for PoE/PoE+/4PPoE (IEEE 802.3af; 3at; 3bt)

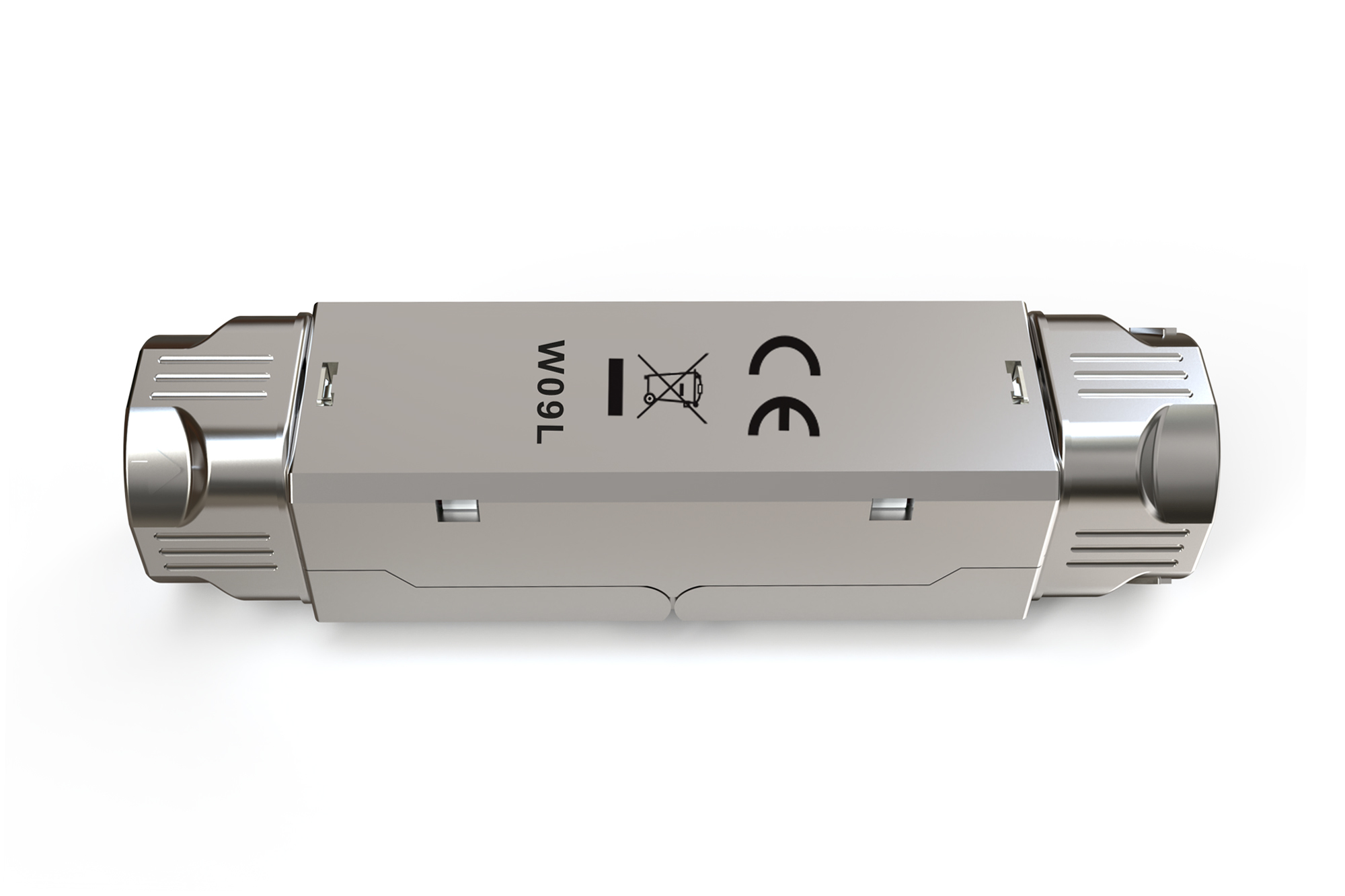

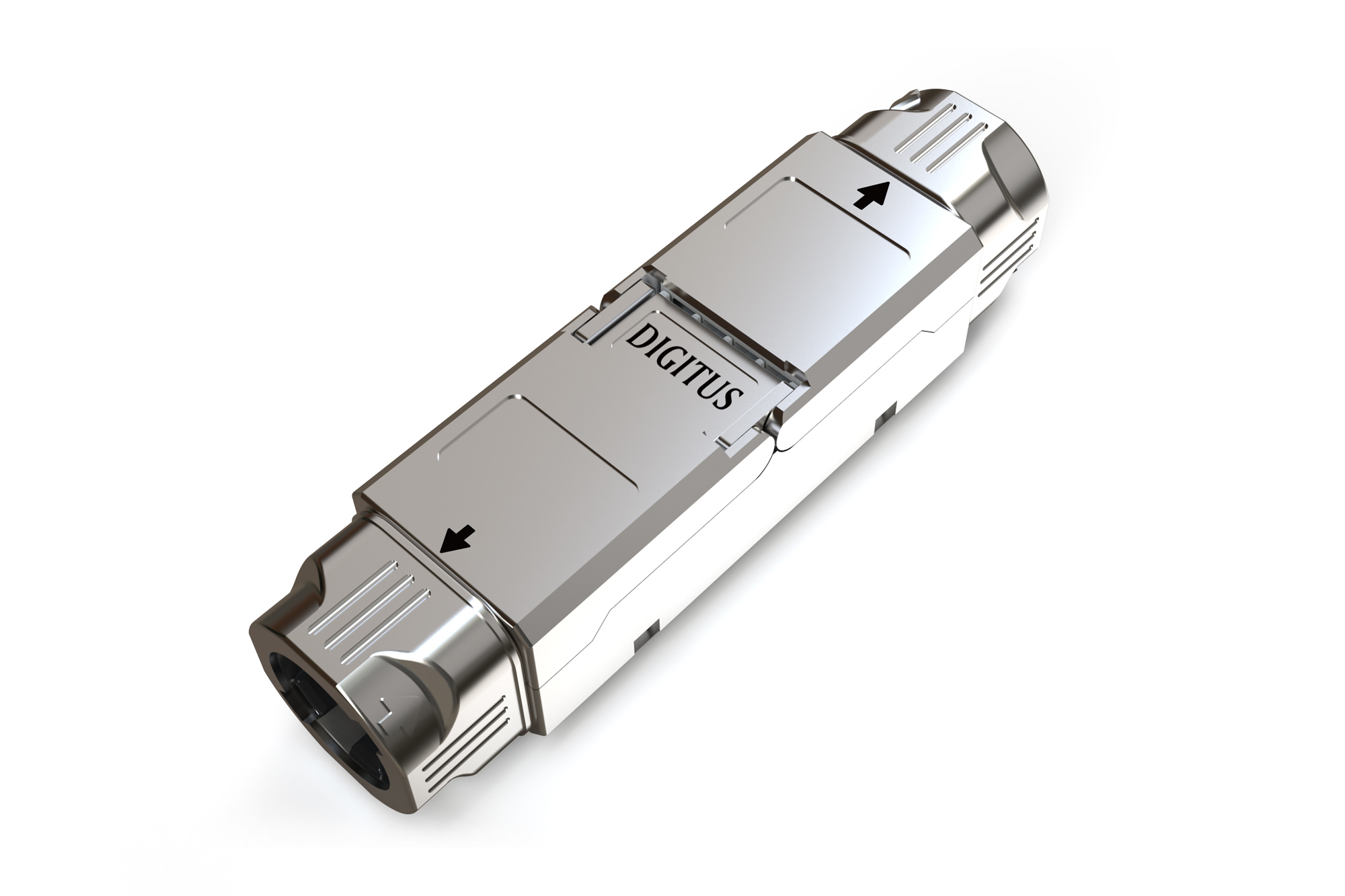

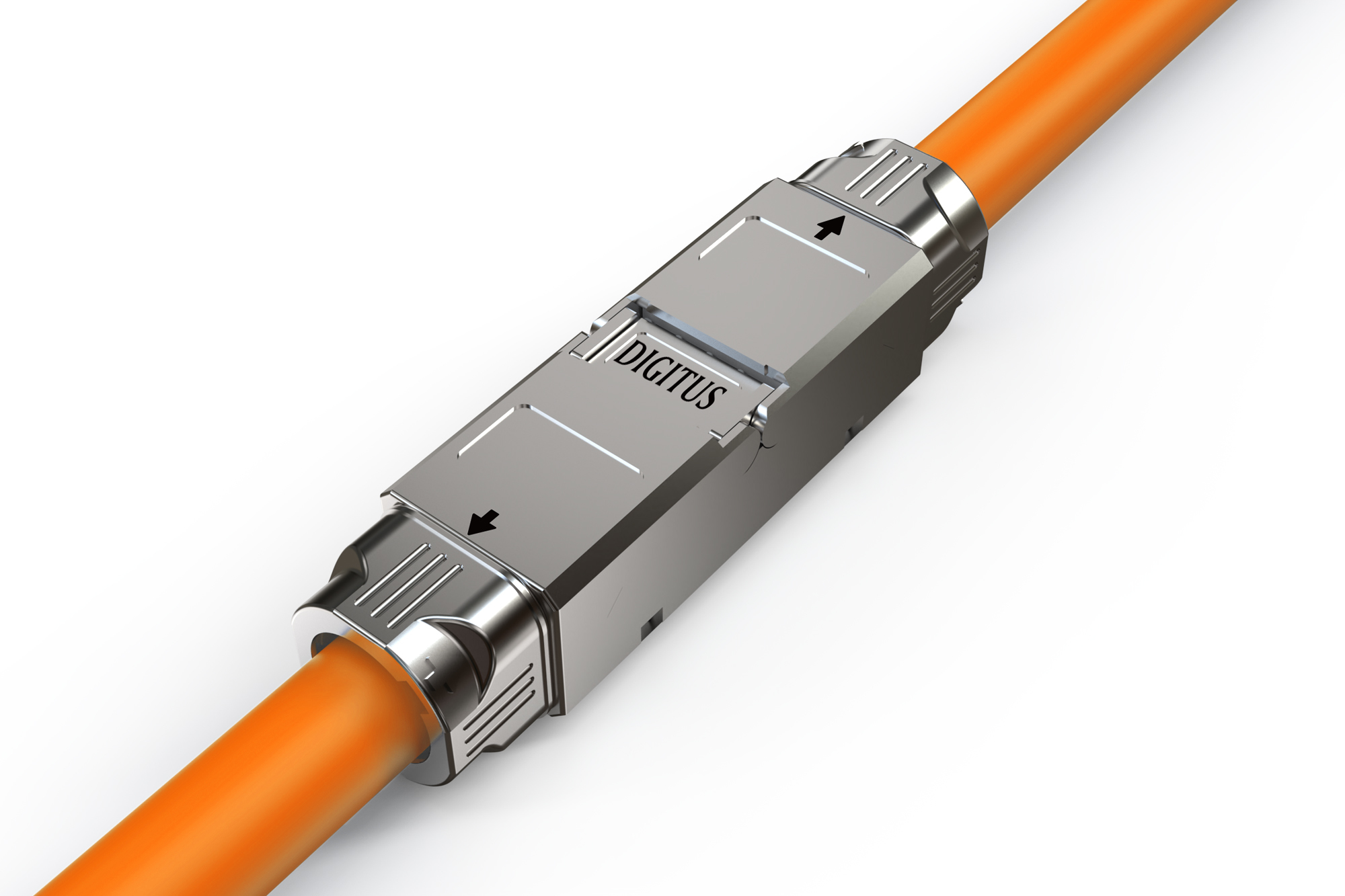

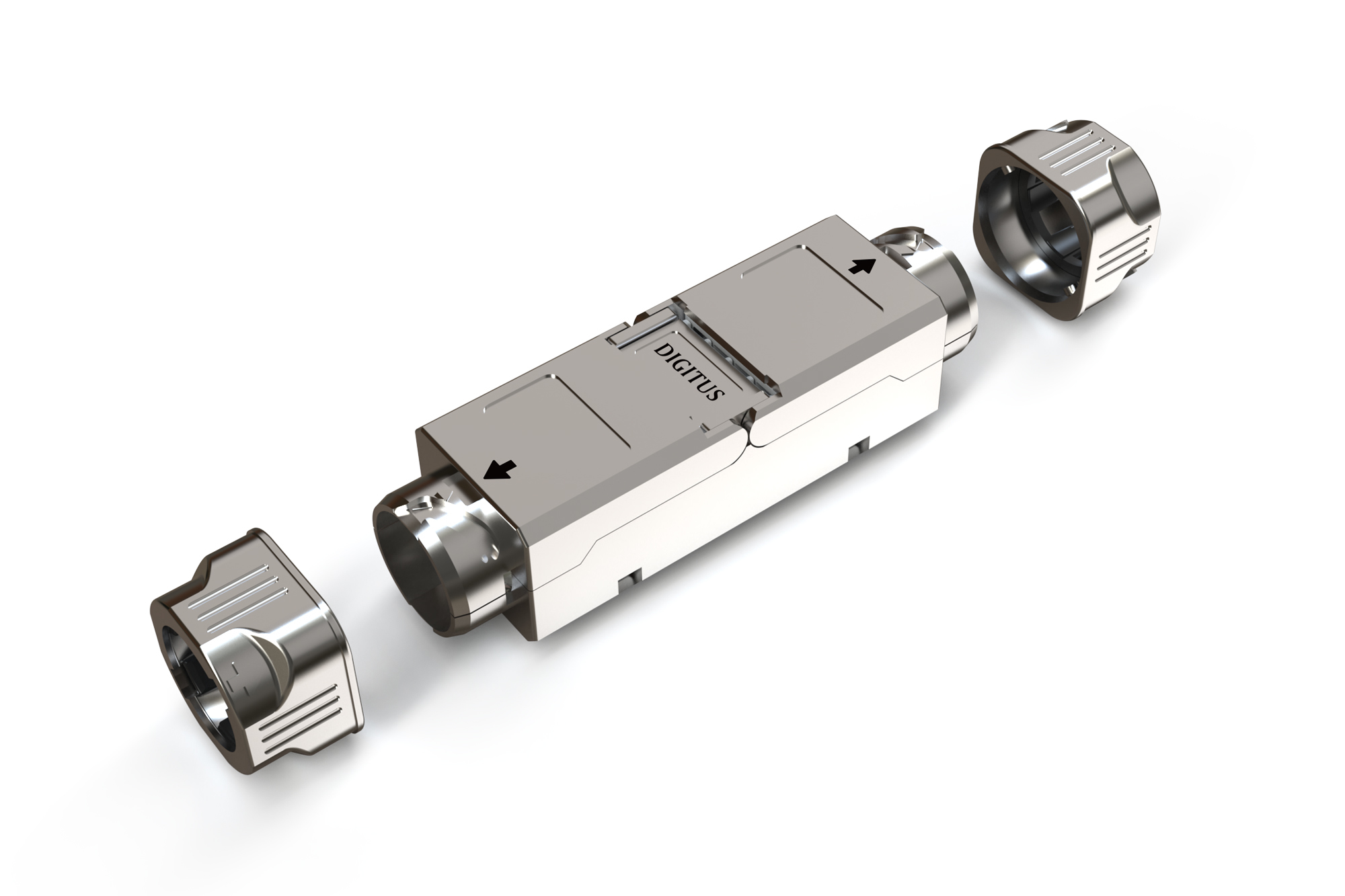

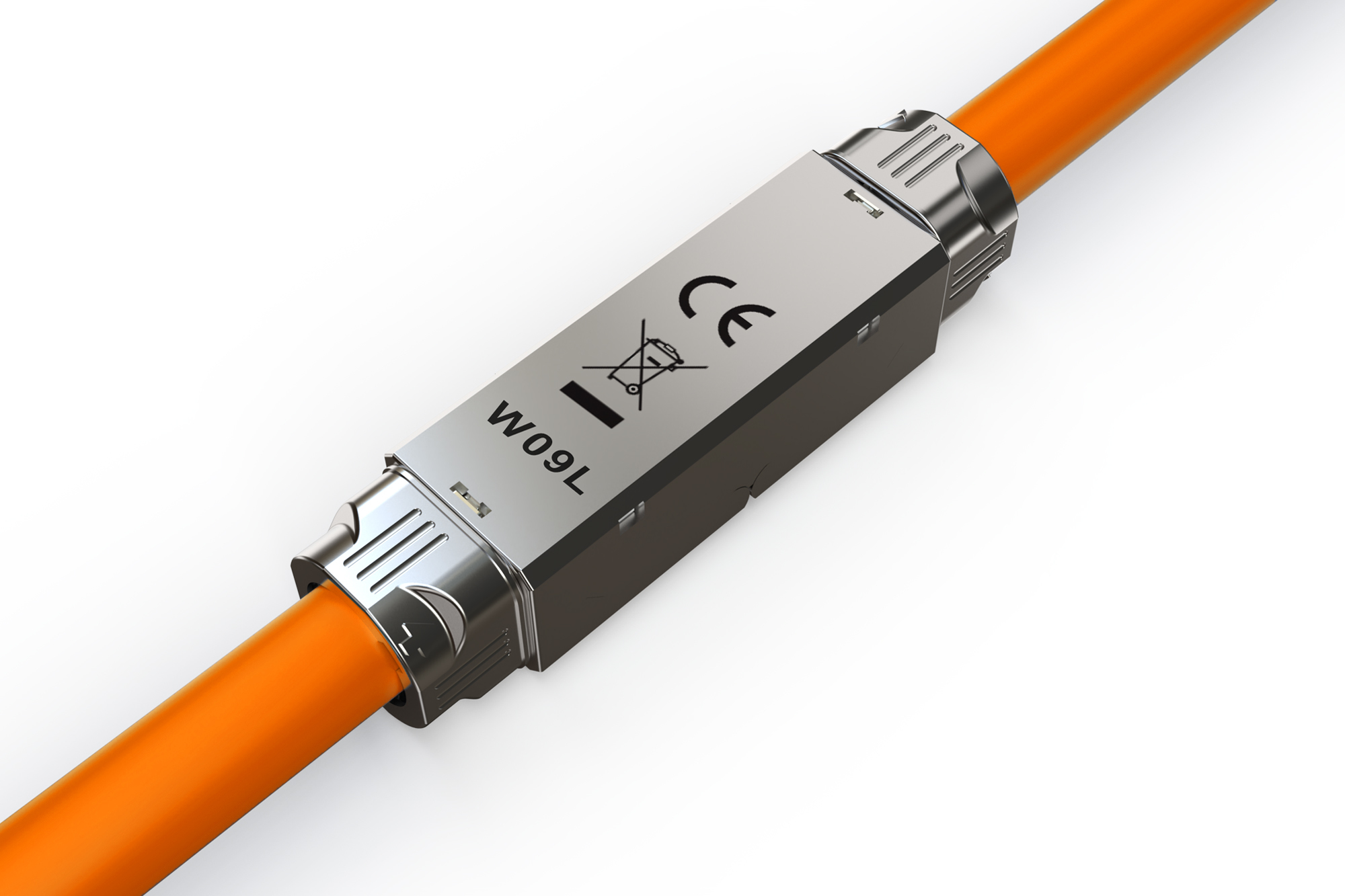

The DIGITUS® Professional CAT connector for field applications serves to connect or extend Twisted Pair cables. Robust metal case for durable, stable connection. This connector is the perfect choice when it comes to quick installation or the repair of existing cables. Assembly is possible completely without special tools and the color-coded LSA insulation-displacement connector means that wiring is easy.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	657742
Brand	Digitus
Partnr	DN-93912
EAN/UPC code	4016032458623
Product information sheet(s)
Class	Modular connector
Model	Bus (jack)
Type of connector	RJ45 8(8)
Screened	true
Category	6A (IEC)
Connection type	LSA
Special tool necessary	false
Suitable for round cable	true
Suitable for flat cable	true
Suitable for litz wire conductor	true
Suitable for solid conductors	true
Colour	Silver
Transparent	false
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
