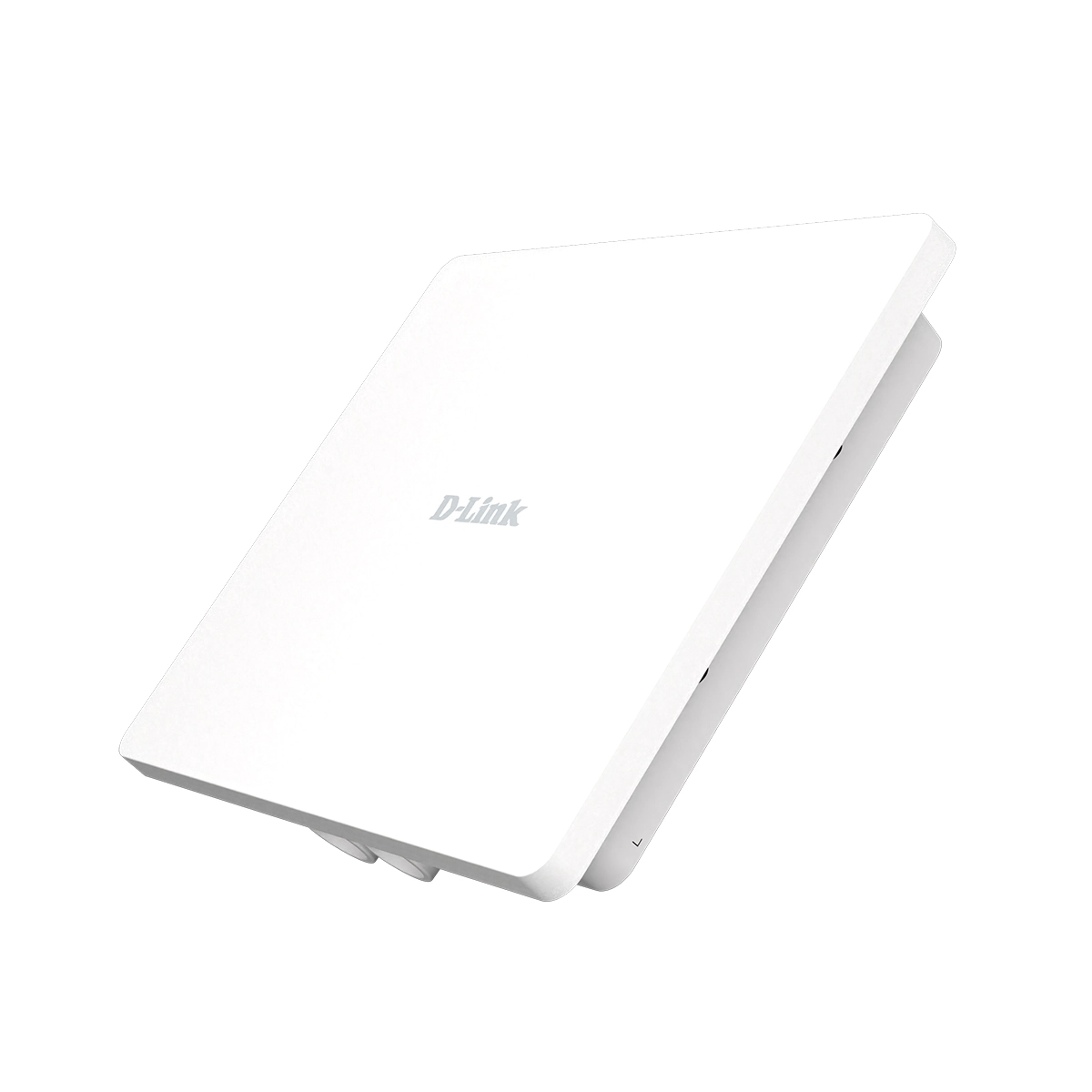

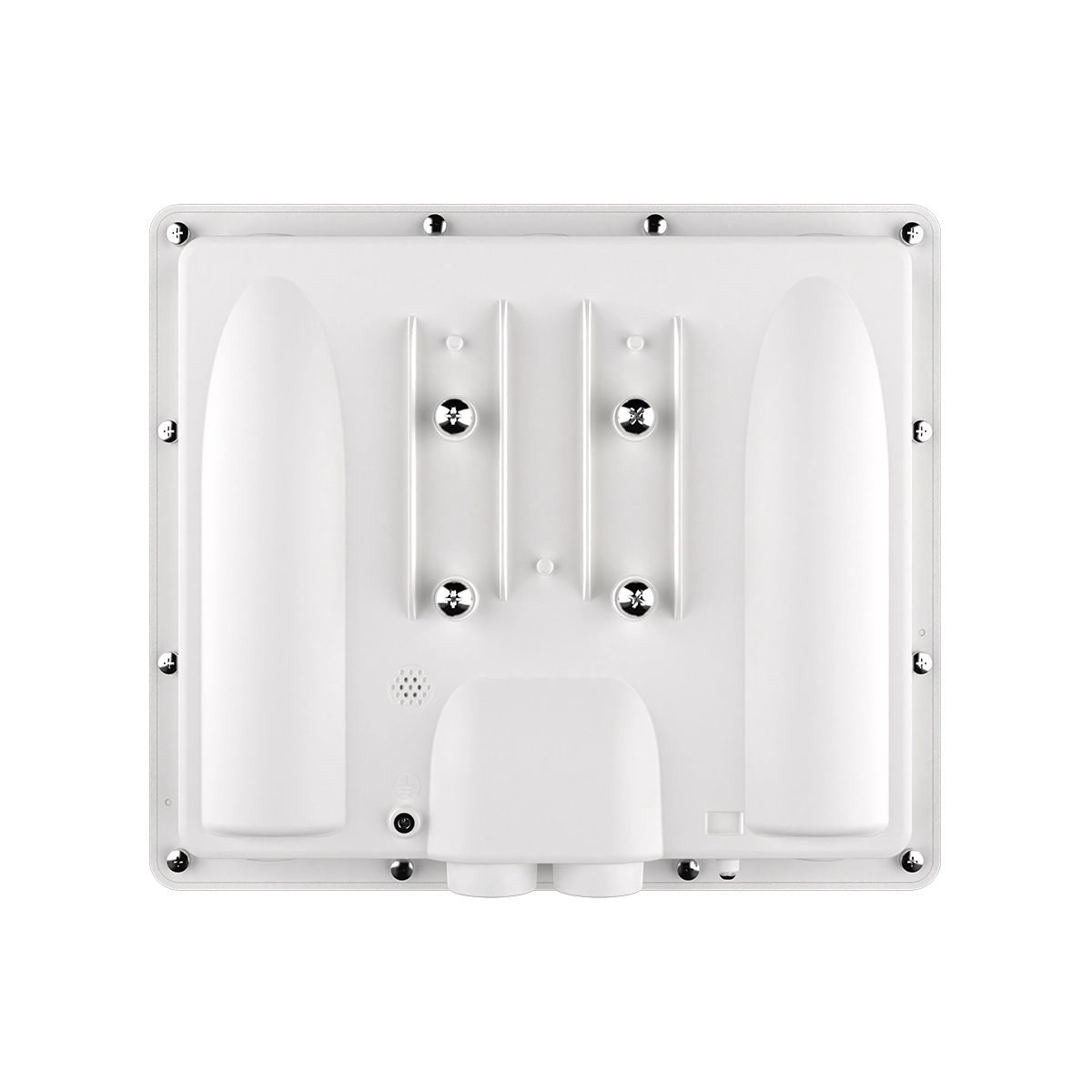

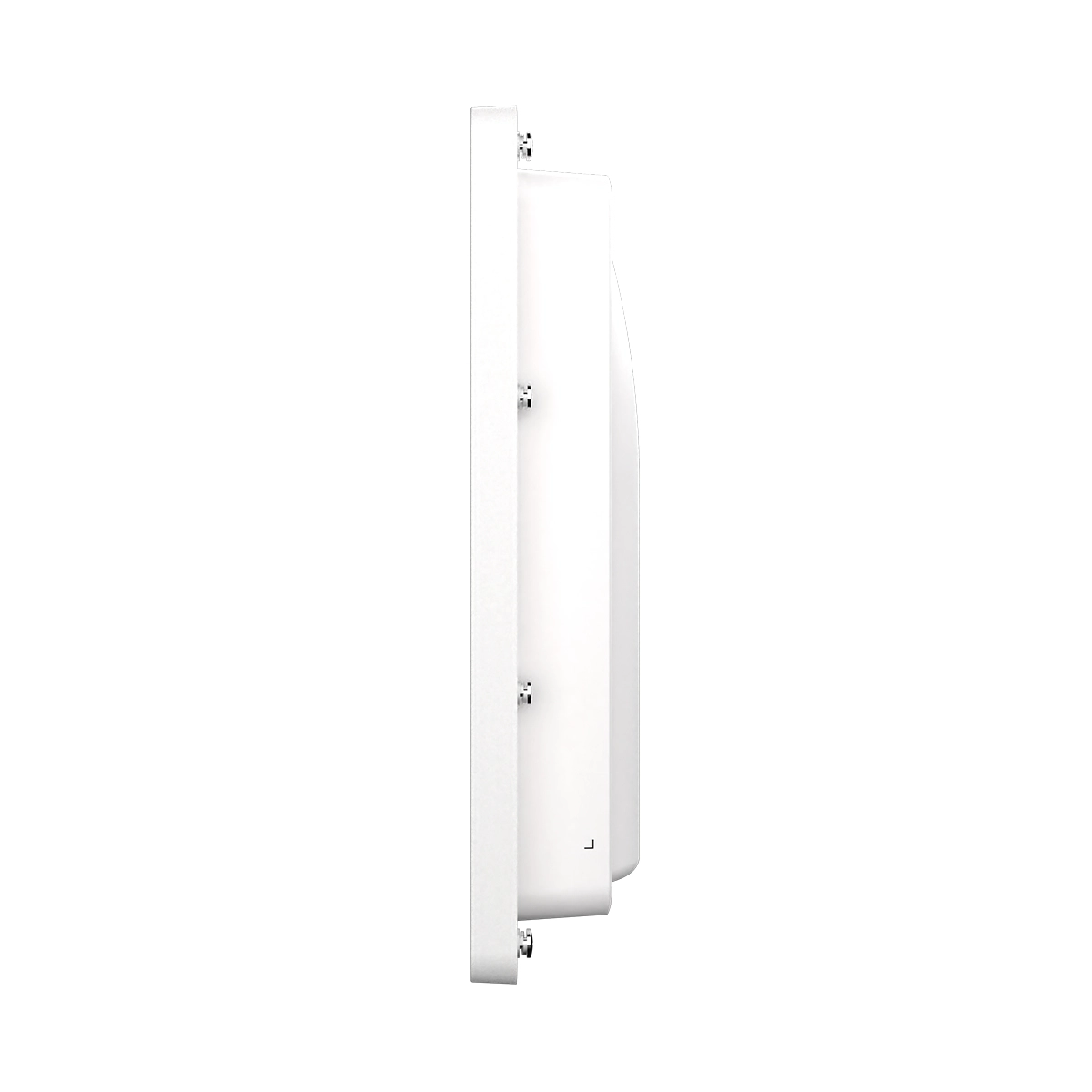

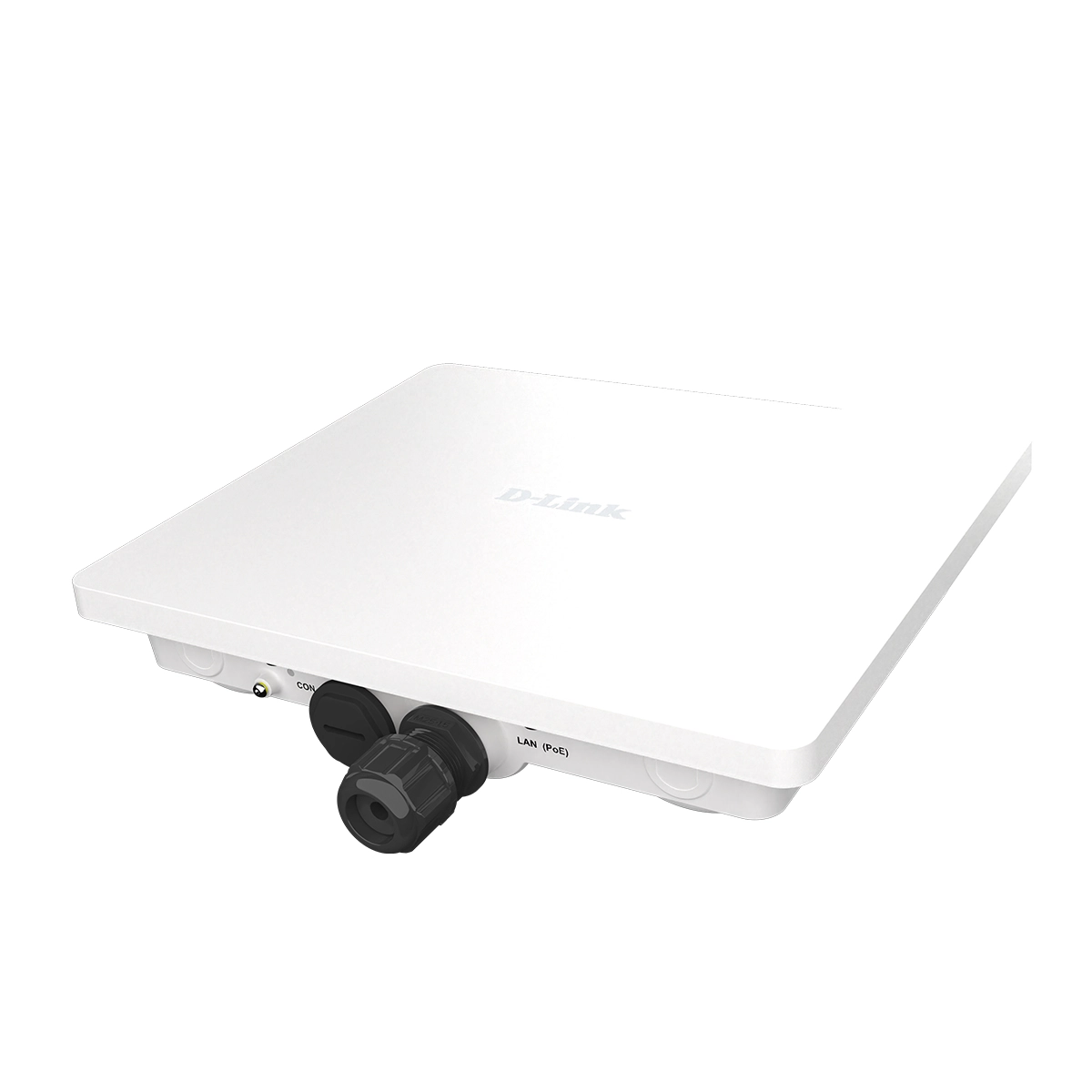

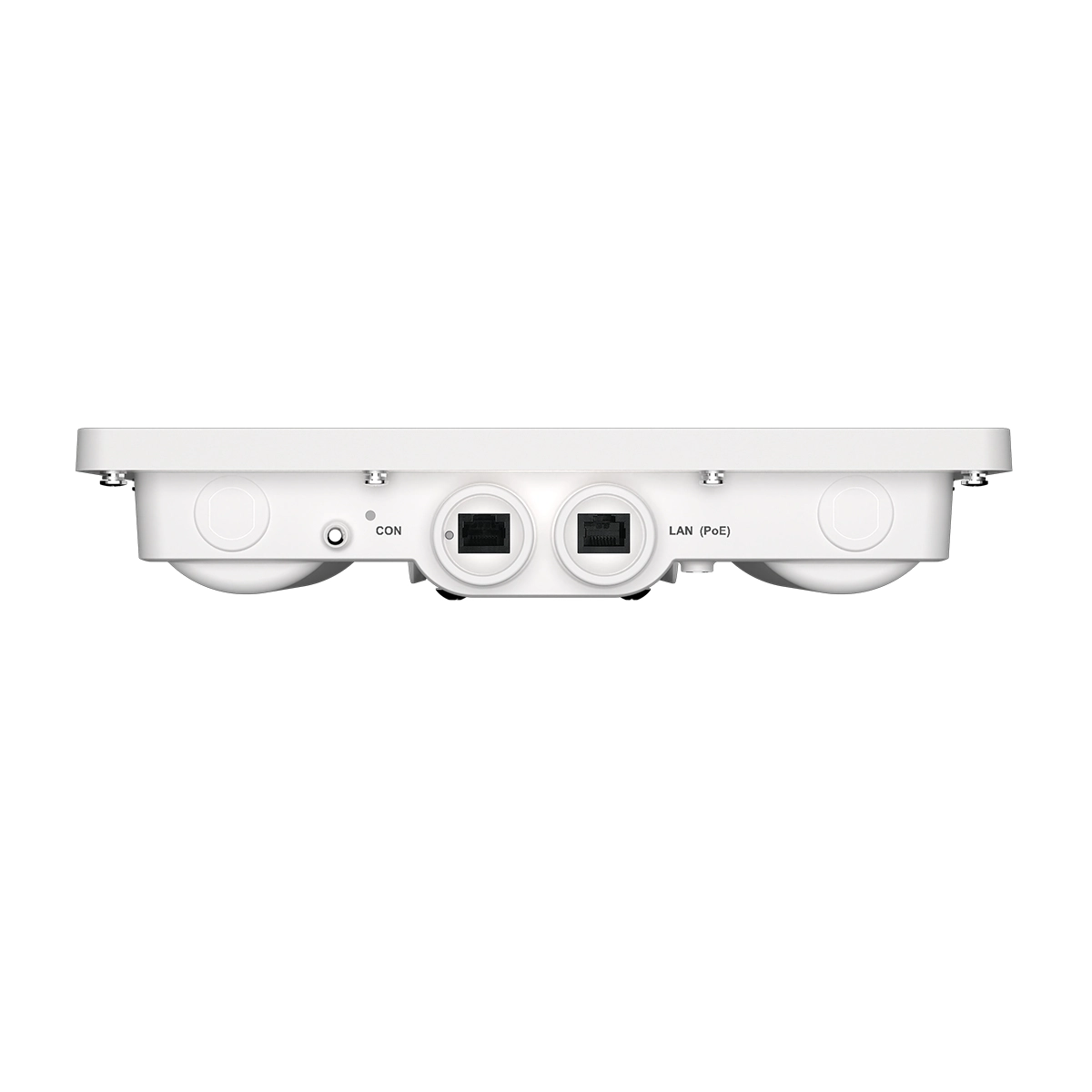

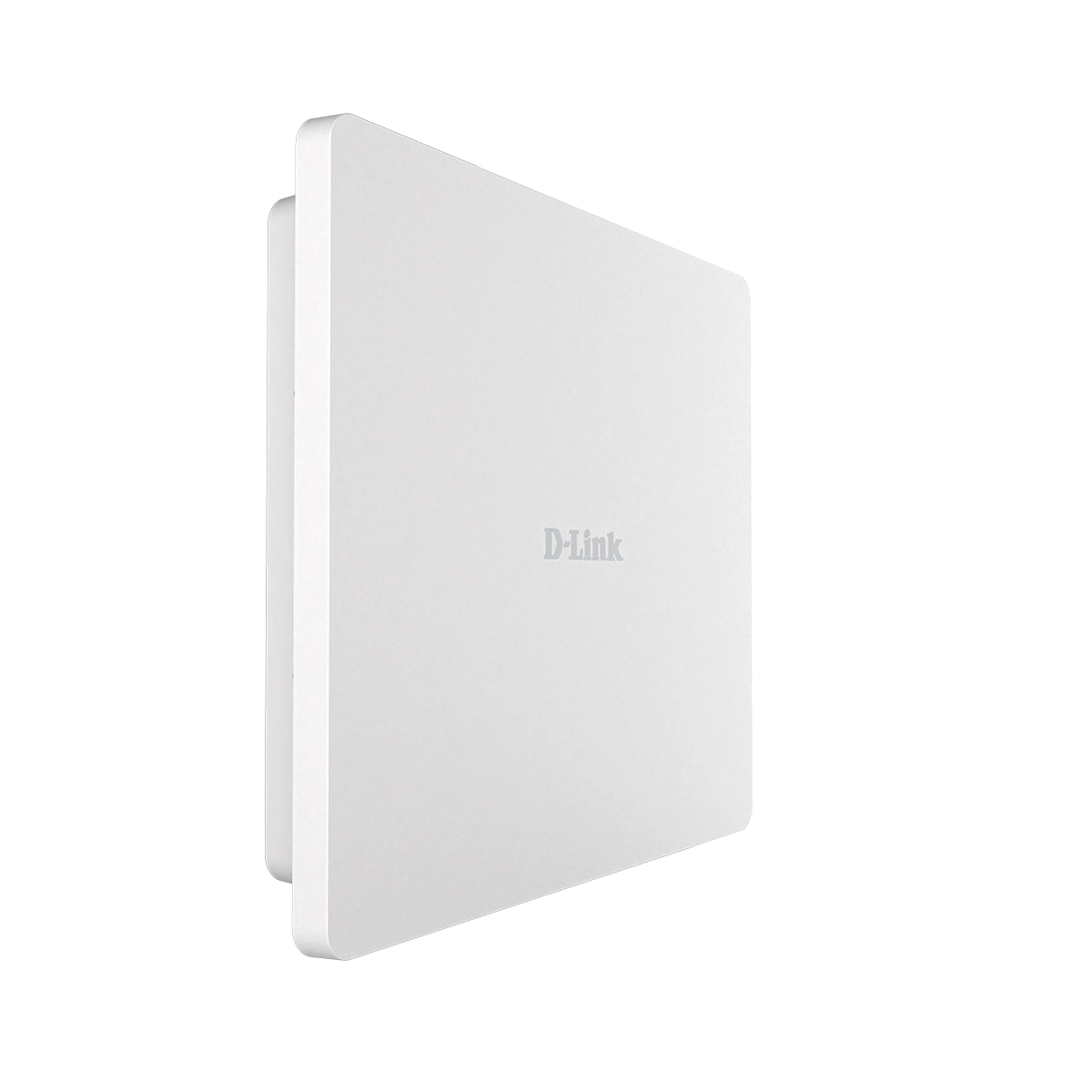

Nuclias Connect AX3000
Outdoor Access Point

The DAP-X3060OU delivers high performance Wi-Fi 6 speeds, enhanced capacity, interference-free coverage, and simple management via Nuclias Connect

Specification

Product
Product id	972954
Brand	D-Link
Partnr	DAP-X3060OU
EAN/UPC code	790069473586
Features
2.4 GHz	Y
5 GHz	Y
6 GHz	N
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
MIMO	Y
MIMO type	Multi User MIMO
Fast roaming	Y
Security
Security algorithms	64-bit WEP, 128-bit WEP, SSID, WEP, WPA, WPA2, WPA3
MAC address filtering	Y
Remote Authentication Dial-In User Service (RADIUS)	Y
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power over Ethernet (PoE)	Y
Power consumption (max)	16.7 W
Design
Placement	Wall
Product colour	White
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	7.9 dBi
Operational conditions
Operating relative humidity (H-H)	10 - 90 procent
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-30 - 65 °C
Storage relative humidity (H-H)	5 - 95 procent
Packaging content
Quantity per pack	1 stuk(s)
Weight & dimensions
Width	277 mm
Depth	50 mm
Height	240 mm
Weight	1159 g
