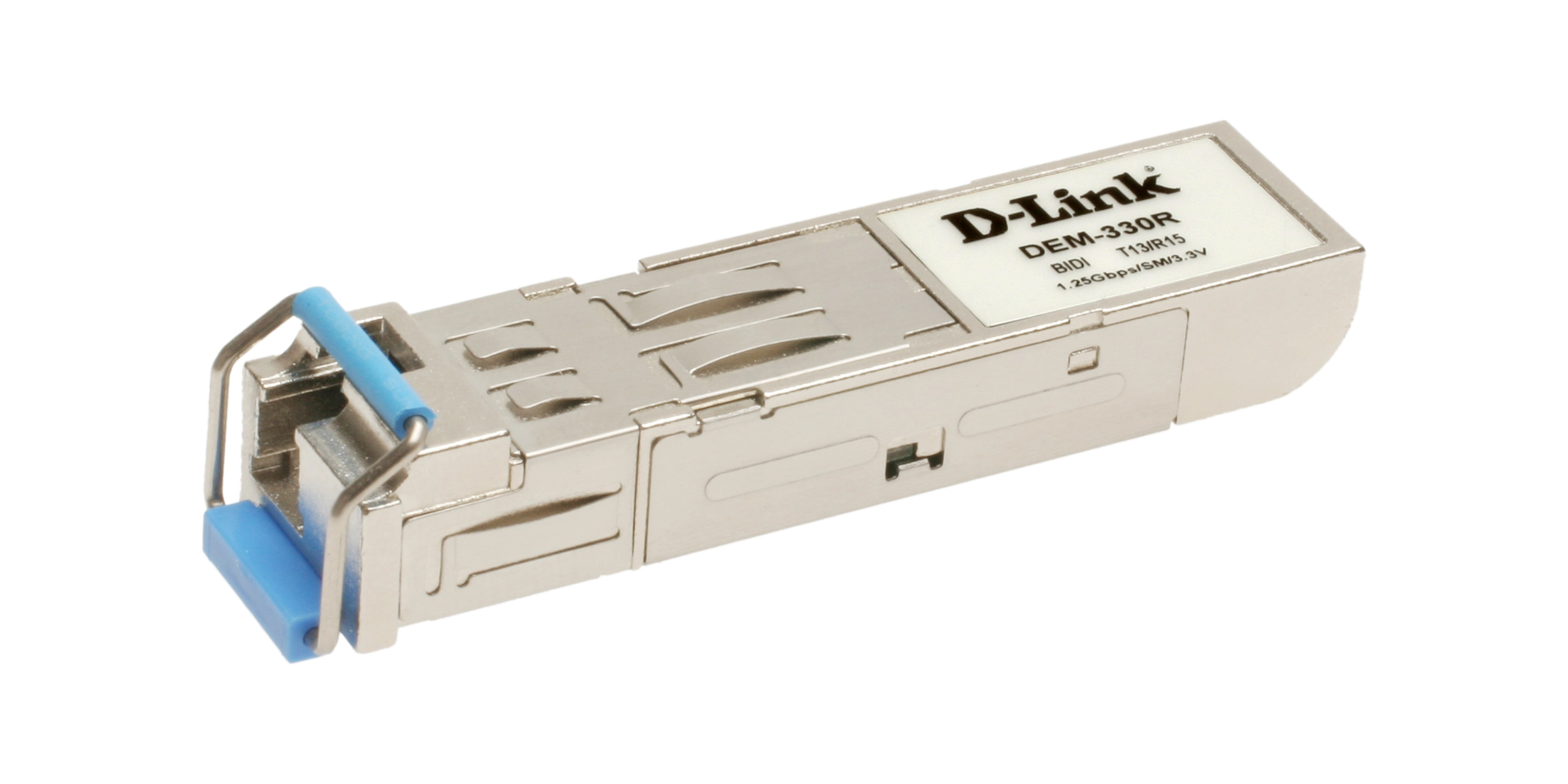

The DEM-330T/330R and DEM-331T/331R Bidirectional Gigabit SFP Fiber Transceivers are external transceivers designed for insertion in SFP (Small Form-Factor Pluggable) slots of network devices for transmission and reception of data signals on the fiber cables. These transceivers provide the Gigabit operation and physical compactness to deliver the speed, reliable long-distance data transfer, and deployment flexibility that today’s fiber networks require.

Ideal for Long Distance Application
The DEM-330T/330R and DEM-331T/331R transceivers can be used to connect together switches, servers and fiber modules on a campus or metropolitan area network (MAN). Providing up to 10 km (DEM-330T/330R) or 40 km (DEM-331T/331R) of fiber cable distance, these highly integrated transceivers offer low jitter performance for extended optical link support without any degradation in performance.

Reliable Transmission
The DEM-330T/330R and DEM-331T/331R transceivers combine transmitting and receiving signals onto one fiber strand using two wavelengths. These transceivers are used in pair. At one end, one transceiver uses one wavelength to transmit and a second wavelength to receive. At the other end, the other transceiver flips that relationship.

Standard Compliance
The DEM-330T/330R and DEM-331T/331R transceivers use standard simplex LC connectors for fiber cable
connection. They conform to industry standards and are interoperable with D-Link Gigabit switches. Hotswap capability allows network administrators to plug or unplug them from the SFP slots without having to turn off the power of the connected device.

Durable
The DEM-330T/330R and DEM-331T/331R transceivers are packed in a Small Form Pluggable (SFP) metal
housing to increase durability.

Specification

Product
Product id	1025665
Brand	D-Link
Partnr	DEM-330R
EAN/UPC code	790069473531
Network
SFP transceiver type	Fiber optic
Technical details
Fiber cable diameters supported (core/cladding)	9/125 µm
Performance
Maximum data transfer rate	1250 Mbit/s
Interface type	LC
Fiber optic connector	LC
Maximum transfer distance	10000 m
Tx wavelength (max)	1310 nm
Rx wavelength (max)	1550 nm
Link budget	18 dB
Cabling technology	1000BASE-BX-U
Features
Product colour	Silver
Hot-swap	Y
Mean time between failures (MTBF)	445890 uur
Safety	TUV, UL, FDA
Certification	FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B RoHS
Power
Input voltage	3.3 V
Weight & dimensions
Width	13.4 mm
Depth	55.5 mm
Height	11.28 mm
Weight	19.8 g
Logistics data
Quantity per pack	1 stuk(s)
