With increased PoE output and advanced Layer 2 management and security features, D‑Link’s DGS‑1210 Smart Managed Gigabit Switches provide a cost‑efficient and flexible solution for expanding any business network.

Advanced Layer 2 Management
The DGS-1210 Smart family features advanced network management accessible via the Web-based UI that equip your business with network capabilities such as VLANs, Spanning Tree Protocol (STP), link aggregation, and dual configuration files.

With powerful security features including IGMP snooping, access control lists, and port security the DGS-1210 Smart family is a versatile solution for access-edge network environments.

Fibre Uplinks
Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy‑efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.

PoE and PoE+, with budgets up to 193W
The DGS-1210 Smart Series includes a range of PoE-enabled switches for business looking to power VoIP phones, wireless access points or network cameras.

Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

Smart Energy‑Saving Design

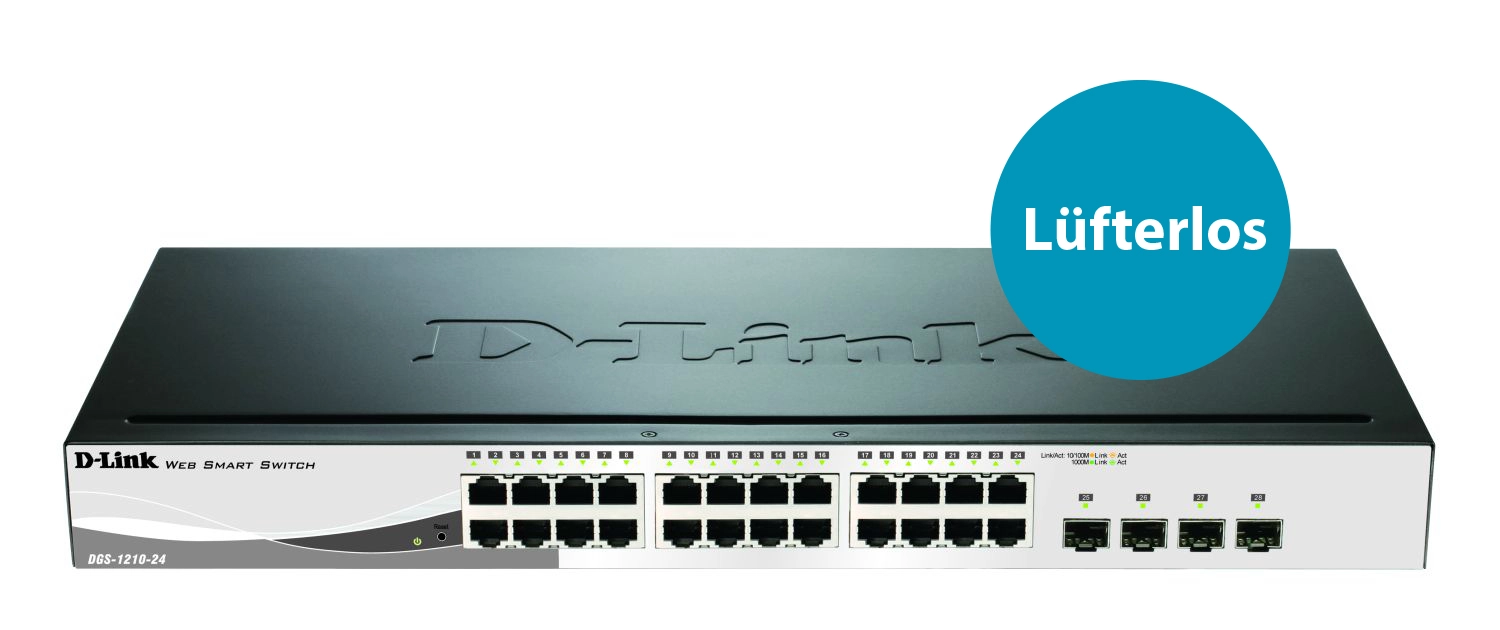

D-Link Green technology enables the DGS-1210 Smart series to save power without any sacrifices. The majority of the family utilises a fanless design, helping reduce energy usage.

Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy‑to‑use surveillance features which also enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.

Specification

Product
Product id	876377
Brand	D-Link
Partnr	DGS-1210-24/E
EAN/UPC code	790069467752
Warranty (months)	Limited-Lifetime Warranty
Data transmission
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Forwarding rate	41.7 Mpps
Store-and-forward	Y
Packet buffer memory	0.5 MB
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Cable types supported	Cat5, Cat5e
Port mirroring	Y
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Spanning tree protocol	Y
Head-of-line (HOL) blocking	Y
Broadcast storm control	Y
Link aggregation	Y
Number of VLANs	256
Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Web-based management	Y
ARP inspection	Y
System event log	Y
MIB support	1213 MIB II, 1493 Bridge MIB, 1907 SNMP v2 MIB, 1215 Trap Convention MIB, 2233 Interface Group MIB, D-Link Private MIB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	20
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	4
Power connector	DC-in jack
Security
DHCP features	DHCP client
Access Control List (ACL)	Y
IGMP snooping	Y
Weight & dimensions
Width	440 mm
Depth	140 mm
Height	44 mm
Weight	2150 g
Packaging data
Package weight	3241 g
Package width	249 mm
Package depth	493 mm
Package height	72 mm
Power
AC input voltage	100 - 240 V
Power consumption (max)	16.94 W
Multicast features
Multicast support	Y
Endurance
Mean time between failures (MTBF)	992594 uur
Design
Rack mounting	Y
Stackable	N
Form factor	1U
Product colour	Black
Certification	CE Class A, cUL, CE LVD
Operational conditions
Heat dissipation	82.23 BTU/h
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95 procent
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	0 - 95 procent
Power over Ethernet (PoE)
Power over Ethernet (PoE)	N
