Industry Standard CLI with 10G SFP+ stacking

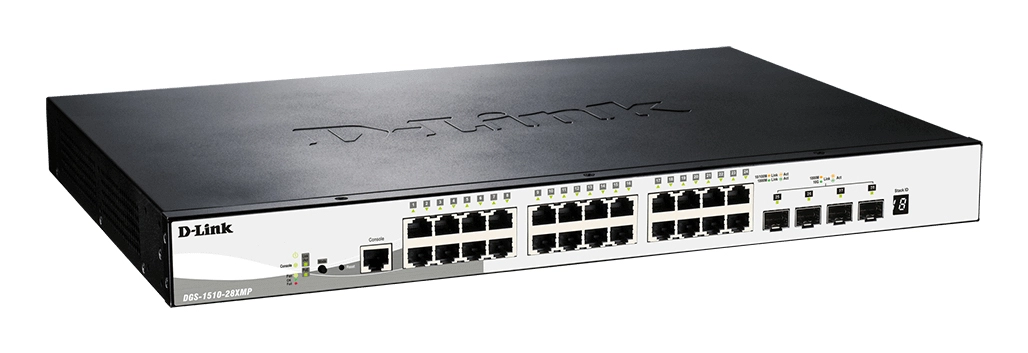

The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high bandwidth connections, an Industry Standard CLI, and PoE options make the DGS-1510 Series ideal for Small-Medium Enterprise environments.

Fully‑Featured with Layer 3 Traffic Management
The DGS-1510 family has advanced network management options, accessible via Industry Standard CLI, Serial Port Console or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, multiple firmware images, and multiple configuration files.

10G SFP+ Stacking
Create a physical stack of up to 6 units in a fault‑tolerant ring or linear topology using Direct Attach Cables or any compatible SFP+ transceivers for a total of 288 Gigabit ports. The remaining uplink ports can be used for other functions, offering 10G connectivity to core networks and servers.1

With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 family is a versatile solution for enterprise network environments.

Max PoE with budgets up to 740W2
Choose between 193W and 370W power budget options. Or utilise a total of 740W when adding a redundant power supply to the DGS-1510-52XMP.

Powerful Network Design and Management Software
The DGS-1510 Series supports D-View 8, an intelligent management platform that allows for centralized management of the core network. This extensive toolset enables administrators to easily set up and remotely manage their networks, greatly reducing switch deployment time.

Smart Energy‑Saving Design
D-Link Green technology enables the DGS-1510 series to save power without sacrificing performance. The entire series of switches feature a smart fan that adjusts fan-speed and only powers on above a certain temperature. With advanced silicon technology, the DGS-1510 series saves up to 73% of energy compared to normal switches.

Specification

Product
Product id	876392
Brand	D-Link
Partnr	DGS-1510-28XMP/E
EAN/UPC code	790069467943
Data transmission
MAC address table	16384 entries
Switching capacity	128 Gbit/s
Throughput	95.24 Mpps
Store-and-forward	Y
Number of queues	8
Jumbo frames support	Y
Jumbo frames	9216
Packet buffer memory	1.5 MB
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support	Y
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat5, Cat5e
Port mirroring	Y
Full duplex	Y
MAC address auto-learning supported	Y
Flow control support	Y
Auto-negotiation	Y
Auto MDI/MDI-X	Y
Spanning tree protocol	Y
Head-of-line (HOL) blocking	Y
Broadcast storm control	Y
Link aggregation	Y
VLAN support	Y
Virtual LAN features	Tagged VLAN, Protocol-based VLAN
Number of VLANs	4094
Management features
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Y
Traffic classification	Y
System event log	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Fiber optic connector	SFP+
Security
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Y
Access Control List (ACL) rules	768
IGMP snooping	Y
Security algorithms	802.1x RADIUS, EAP, SNMP, SSH, SSH-2, SSL/TLS
SSH/SSL support	Y
BPDU filtering/protection	Y
Authentication	MAC-based authentication, Port-based authentication
Weight & dimensions
Width	440 mm
Depth	308.5 mm
Height	44 mm
Weight	4250 g
Packaging data
Package weight	7060 g
Package width	450 mm
Package depth	510 mm
Package height	121 mm
Power
Power source	AC
Power supply included	Y
AC input voltage	100 - 240 V
Power consumption (max)	436.3 W
Multicast features
Multicast support	Y
Endurance
Mean time between failures (MTBF)	274796 uur
Design
Rack mounting	Y
Stackable	Y
Product colour	Black, Grey
LED indicators	Activity, Link, PoE, Power, Speed
Number of fans	2 ventilator(en)
Safety	cUL, CB
Operational conditions
Heat dissipation	1487.78 BTU/h
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95 procent
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	0 - 95 procent
Performance
Built-in processor	Y
Processor frequency	400 MHz
Internal memory	256 MB
Flash memory	32 MB
Harmonized System (HS) code	85176990
Technical details
Shipping (inner) case height	485 mm
Pallet height (sea)	2075 mm
Quantity per pallet (sea)	72 stuk(s)
Number of cartons per pallet (sea)	24
Pallet gross weight (sea)	561620 g
Pallet height (air)	2075 mm
Pallet width	1200 mm
Pallet length	1100 mm
Quantity per pallet (air)	72 stuk(s)
Number of cartons per pallet (air)	24
Pallet gross weight (air)	561620 g
Quantity per shipping (inner) case	3 stuk(s)
Shipping (inner) case net weight	14350 g
Shipping (inner) case length	530 mm
Shipping (inner) case width	385 mm
Shipping (inner) case weight	22630 g
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	370 W
