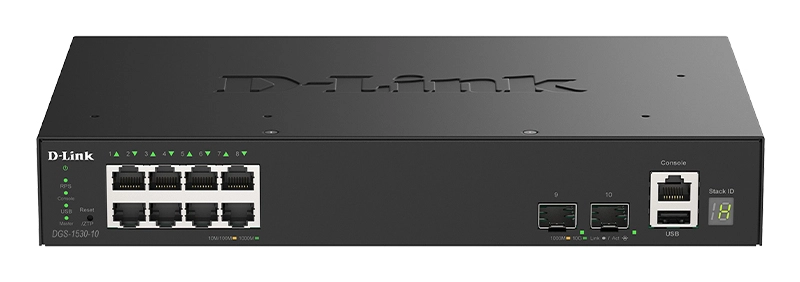

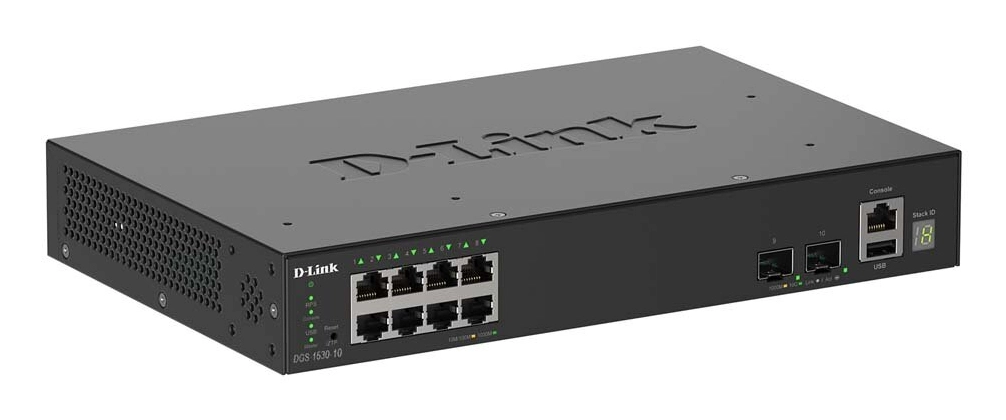

D-Link 10-Port Gigabit Stackable Smart Managed Switch with 2 x 10G SFP+ Ports. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x

Specification

Product
Product id	1003048
Brand	D-Link
Partnr	DGS-1530-10/E
EAN/UPC code	790069474644
Data transmission
MAC address table	16000 entries
Switching capacity	56 Gbit/s
Forwarding rate	41.67 Mpps
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	10240
Packet buffer memory	1.5 MB
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
10G support	Y
Port mirroring	Y
Policy-based routing	Y
Half duplex	Y
Full duplex	Y
Flow control support	Y
Auto-negotiation	Y
Spanning tree protocol	Y
Broadcast storm control	Y
Link aggregation	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
VLAN support	Y
Virtual LAN features	Port-based VLAN, Private VLAN, Voice VLAN
Number of VLANs	4096
Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Web-based management	Y
Configuring Location Settings (CLI)	Y
ARP inspection	Y
Traffic classification	Y
System event log	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	2
Console port	RJ-45
Security
DHCP features	DHCP snooping, DHCPv6 snooping
Access Control List (ACL)	Y
Access Control List (ACL) egress	1000
Access Control List (ACL) ingress	2000
IGMP snooping	Y
Authentication type	RADIUS, TACACS+
Security algorithms	SNMP, SNMPv2, SNMPv3
SSH/SSL support	Y
Loop protection	Y
BPDU filtering/protection	Y
Password protection	Y
Weight & dimensions
Width	280 mm
Depth	180 mm
Height	44 mm
Weight	1700 g
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	14.6 W
Multicast features
Multicast support	Y
Design
Stackable	Y
Product colour	Black
LED indicators	Y
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	0 - 95 procent
Power over Ethernet (PoE)
Power over Ethernet (PoE)	N
