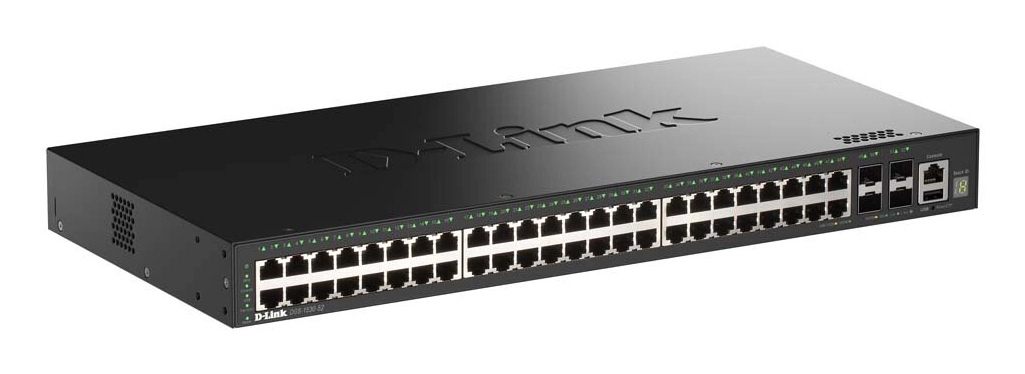

The DGS-1530 Series are part of the Layer 2 family of D-Link’s Stackable Smart Switch product line that provides wired Gigabit speeds for Metro Ethernet and campus networks. They feature a variety of ports, including 10/100/1000BASE-T RJ-45 ports, 1G SFP ports, and 10G SFP+ ports for increased network bandwidth. Surge protection, advanced Layer 2 functions, and a suite of security and management tools make the DGS-1530 Series Stackable Smart Switch ideal for Metro Ethernet and campus applications.

Product Highlights

Comprehensive Security Solution Support for Access Control Lists (ACLs), multiple user authentication methods, and IP-MAC-Port Binding ensures a secure network environment

Superior Reliability
Per-port surge protection, Ethernet Ring Protection Switching (ERPS), and redundant power supply (RPS) features all help to maximize service availability

Scalability and High Availability
Physical stacking provides agile expansion and redundancy while reliability through fault tolerant topologies ensures rock-solid connectivity

Specification

Product
Product id	995367
Brand	D-Link
Partnr	DGS-1530-52/E
EAN/UPC code	790069474521
Data transmission
MAC address table	16000 entries
Switching capacity	176 Gbit/s
Forwarding rate	130.95 Mpps
Store-and-forward	Y
Jumbo frames support	Y
Packet buffer memory	1.5 MB
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
10G support	Y
Port mirroring	Y
Policy-based routing	Y
Full duplex	Y
Flow control support	Y
Auto-negotiation	Y
Auto MDI/MDI-X	Y
Spanning tree protocol	Y
Broadcast storm control	Y
Link aggregation	Y
Ethernet LAN data rates	10, 1000, 100 Mbit/s
VLAN support	Y
Number of VLANs	4096
Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Web-based management	Y
Configuring Location Settings (CLI)	Y
ARP inspection	Y
Traffic classification	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Console port	RJ-45
USB Type-A ports quantity	1
USB 2.0 ports quantity	1
Security
Access Control List (ACL)	Y
Access Control List (ACL) egress	1000
Access Control List (ACL) ingress	2000
IGMP snooping	Y
Authentication type	RADIUS, TACACS+
Security algorithms	SNMP, SNMPv2, SNMPv3
MAC address filtering	Y
SSH/SSL support	Y
Loop protection	Y
Password protection	Y
Weight & dimensions
Width	440 mm
Depth	210 mm
Height	44 mm
Weight	3200 g
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	44.1 W
Multicast features
Multicast support	Y
Endurance
Mean time between failures (MTBF)	330520 uur
Design
Rack mounting	Y
Stackable	Y
Product colour	Black
LED indicators	Y
Number of fans	2 ventilator(en)
Operational conditions
Heat dissipation	150.38 BTU/h
Storage relative humidity (H-H)	0 - 95 procent
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	0 - 95 procent
Performance
Noise level	54.7 dB
Power over Ethernet (PoE)
Power over Ethernet (PoE)	N
