5G SA & NSA​
Leverage flexible 4G/5G dual-mode compatibility to adapt seamlessly to diverse carrier networks.

Wi-Fi 6 AX1800
Enable high-speed in-vehicle Wi-Fi for seamless passenger and Wi-Fi equipments access and streamlined operations. ​

Rugged M12 Connectors
Industrial-rated locking threads ensure on-board connections are protected from harsh elements.

Rail Related Certified
Compliant with EN45545, EN50155, and EN50121-3-2 to ensure reliability and safety in rail transportation. ​

GPS Location
Real-time tracking enables routing services to minimize travel time and optimize fleet efficiency.

Wide Voltage Input Range
Safely accepts power input from various on-board power sources for convenient installation. ​

​Enhanced Onboard Telematics and Infotainment

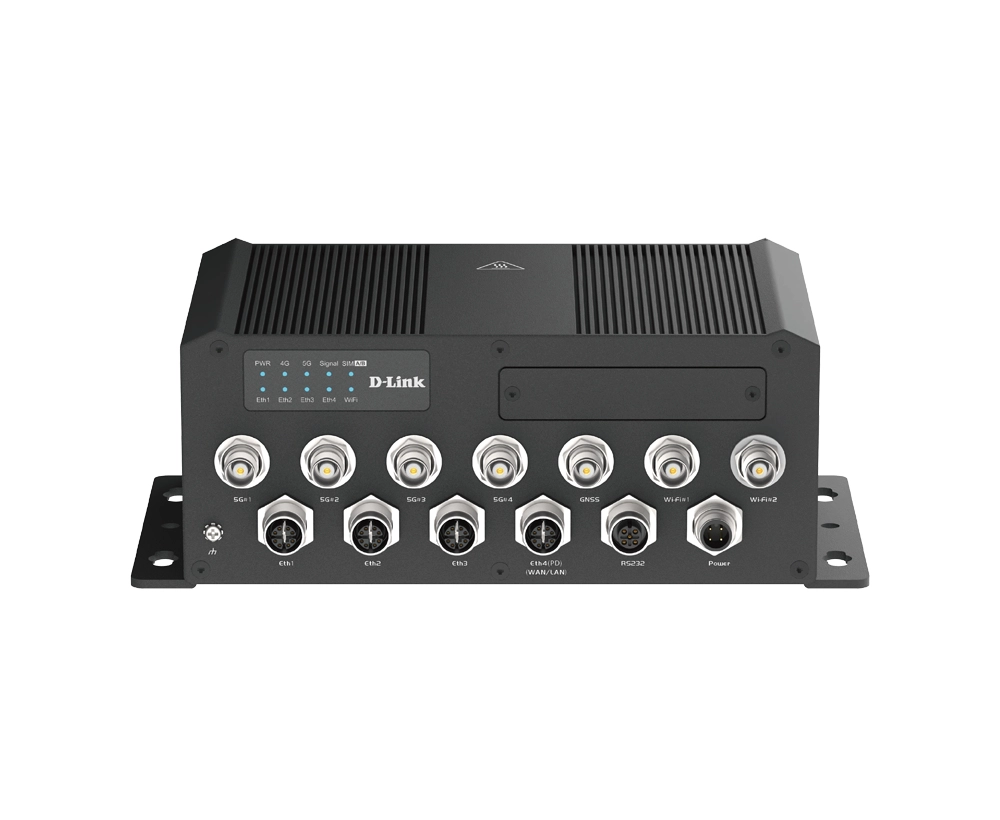

The DTM-570-GS 5G Transit Gateway empowers rail transport with advanced connectivity, linking onboard RS232 and Ethernet devices to the Internet via a robust 5G network. This setup not only facilitates real-time monitoring for passenger safety through surveillance systems but also ensures seamless operation of railway onboard systems. Additionally, it delivers precise station arrival notifications on the digital signage, enhancing the rail passenger experience. ​

Optimize Railway Operations with Location-Based Services​
The DTM-570-GS enhances railway operations with precise GPS location positioning, enabling effective real-time asset utilization. This gateway supports operators by offering detailed insights into the location and mileage of trains, facilitating optimal routing services that assure punctuality and enhance efficiency through timely service. ​

Robust Design for Rail Application

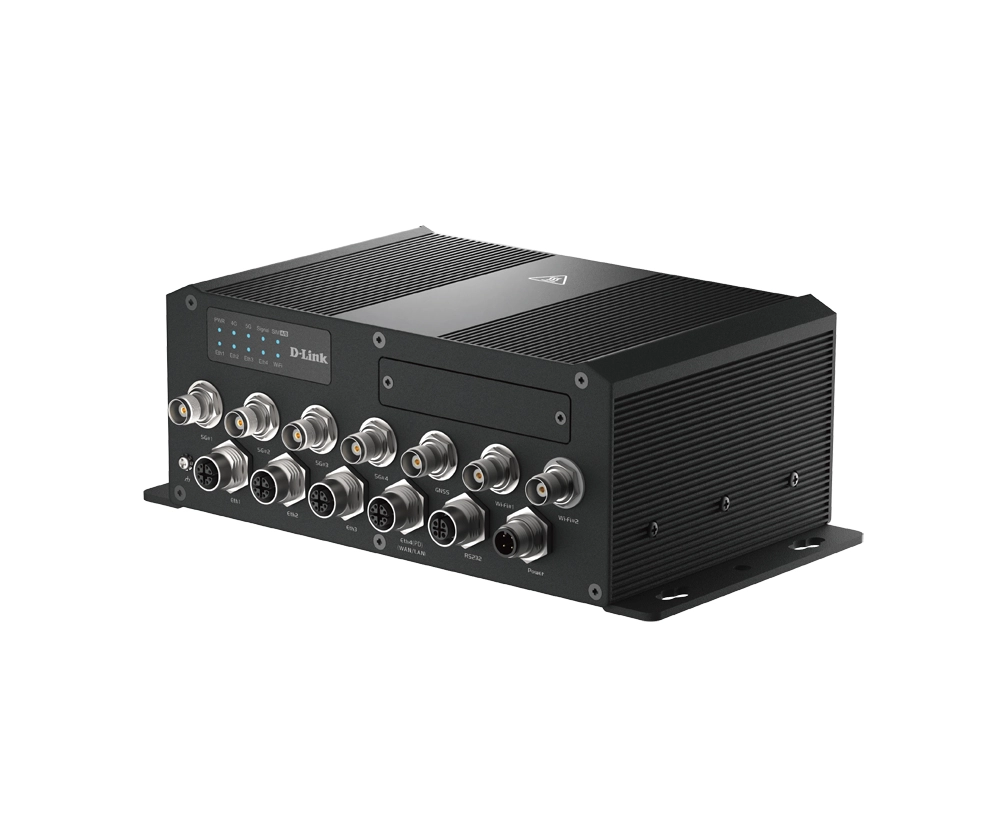

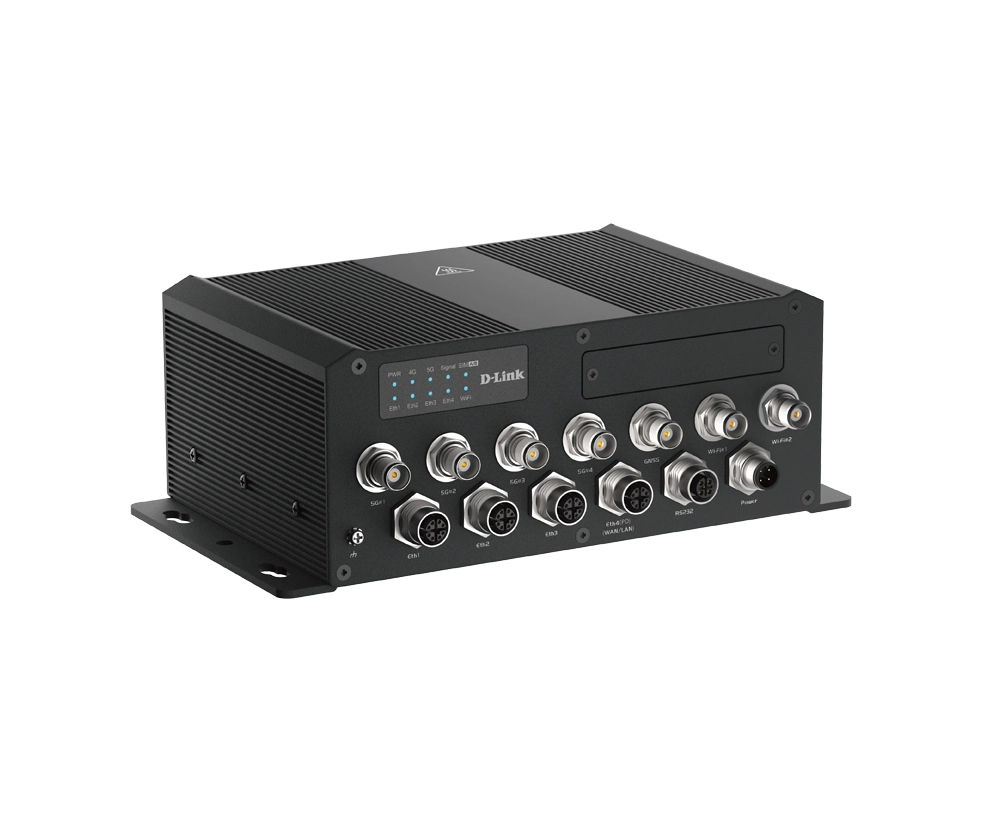

The DTM-570-GS 5G Transit Gateway is engineered to withstand the rigors of rolling stock environments, meeting mandatory requirements of EN45545, EN50155, and EN50121-3-2 rail-related standards. Its robust design includes industrial-rated M12 connectors, a corrosion-resistant zinc-plated steel casing, and wide voltage input range. This ensures reliable and stable M2M connectivity, even under extreme conditions of movement, temperature, and humidity, making it ideal for demanding rail applications where reliable performance is critical.

Specification

Product
Product id	1003059
Brand	D-Link
Partnr	DTM-570-GS
EAN/UPC code	790069480713
Design
Device type	Cellular network gateway
Product colour	Black
Reset button	Y
LED indicators	Y
Ethernet LAN features
Ethernet LAN	Y
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
DHCP server	Y
Wireless LAN features
Wi-Fi	Y
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rates supported	574, 1201 Mbit/s
Mobile network
Data network	4G, 5G, LTE
4G standard	LTE
5G standard	Sub6 NSA, Sub6 SA
Number of SIM cards	2
Ports & interfaces
USB port	Y
USB 2.0 ports quantity	1
Serial ports quantity	1
Serial interface
Serial interface type	RS-232
Security
Security algorithms	AES, WPA2, WPA2-PSK, WPA3-Enterprise, WPA, WPA3-SAE, WPA-PSK
Network address translation (NAT)	Y
Firewall	Y
DMZ support	Y
Port forwarding	Y
Antenna
Antenna type	External
Antennas quantity	7
Power
Power source type	DC
Input voltage	18 - 75 V
Operational conditions
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 95 procent
Weight & dimensions
Width	207.4 mm
Depth	135 mm
Height	86 mm
