Plug and Play
Simple plug and play installation with auto-MDI/MDIX crossover on all ports

Multi-Port FE Connectivity
Four Fast Ethernet LAN ports to connect multiple devices for general M2M applications.

SMS Event Management
Facilitate remote management via SMS, minimizing staff exposure to hazardous environments.

Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.

Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.

Centralized Management
Conveniently manage devices from anywhere via the D-ECS management platform.

Optimize Smart Parking with 4G LTE Connectivity

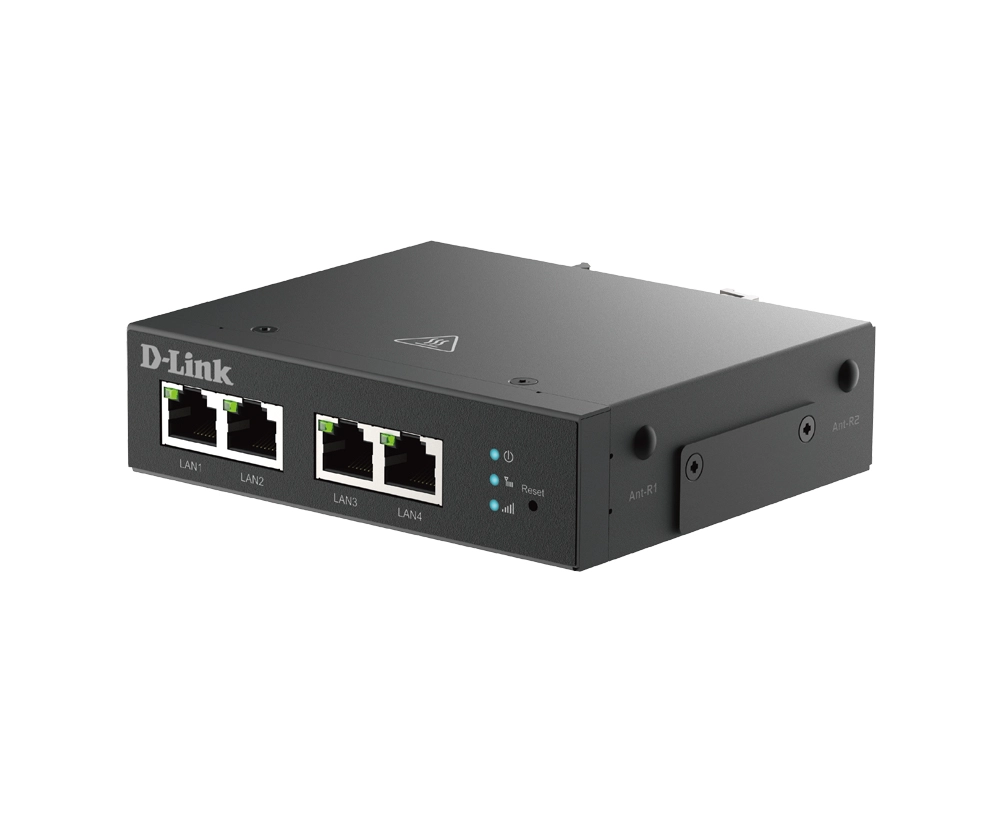

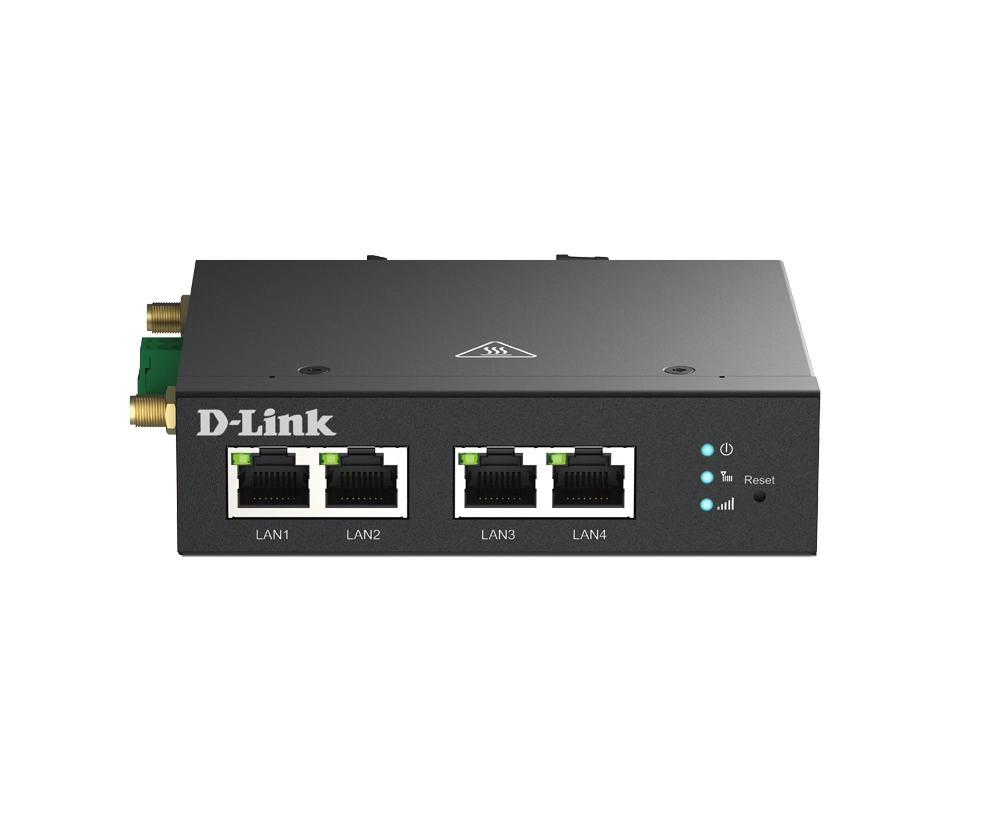

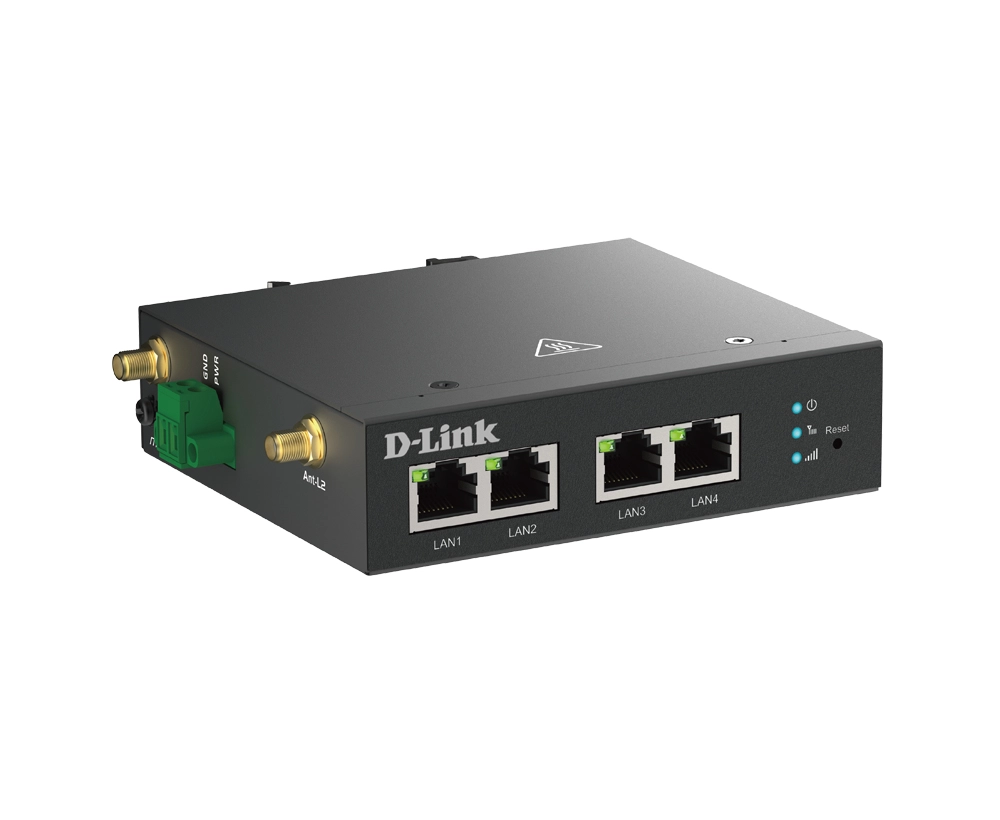

The DWM-314-T 4G Multi-Connect Modem enhances smart parking solutions with uninterrupted 4G LTE connectivity, facilitating real-time data transmission to alleviate traffic congestion and increase parking efficiency. This modem features a built-in 4-port Gigabit switch, minimizing the extra power supply wires and the need for additional equipment, reducing extra switch cost and installation complexity. Secure VPN technology protects vehicle information and parking fee transactions, ensuring robust security for both drivers and parking management.

Plug & Play for Easy Installation
Simply insert a Nano-SIM card (4FF) and power up; the DWM-314-T instantly connects your M2M devices to the robust 4G LTE cellular network. This modem’s rugged, compact design is perfect for any setting, including harsh environments, offering flexible wall and DIN-rail mounting options. Designed for effortless, real-time remote access, it provides reliable long-distance connectivity ideal for various applications.

Robust Build Quality
The industrial-grade casing provides reliable high-speed connectivity in extreme conditions. The corrosion-resistant zinc-plated steel case with wide operating temperature range and humidity tolerance mean that the DWM-314-T is ready for the most demanding M2M applications in virtually any environment.

Specification

Product
Product id	1003062
Brand	D-Link
Partnr	DWM-314-T
EAN/UPC code	790069476686
Design
Device type	Cellular network router
Product colour	Black
Mounting	DIN-rail
Reset button	Y
LED indicators	Y
Ethernet LAN features
Ethernet LAN	Y
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10, 100 Mbit/s
DHCP server	Y
Wireless LAN features
Wi-Fi	N
Mobile network
Data network	4G
4G standard	LTE
Number of SIM cards	1
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
Security
Security algorithms	SSH
Network address translation (NAT)	Y
Firewall	Y
Port forwarding	Y
Performance
Certification	CE; UKCA
Management features
Web-based management	Y
Antenna
Antenna type	External
Antenna connector type	SMA
Antennas quantity	2
Power
Power source type	DC
Input voltage	9 - 36 V
Operational conditions
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 95 procent
Storage relative humidity (H-H)	0 - 95 procent
Weight & dimensions
Width	115 mm
Depth	99 mm
Height	31 mm
