5G SA & NSA
Leverage flexible 4G/5G dual-mode compatibility to adapt seamlessly to diverse carrier networks.

Dual-SIM Failover
Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.

Ethernet & 5G Redundancy
Seamless failover between Ethernet WAN and 5G for reliable connectivity.

Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.

Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.

Wi-Fi 6 AX1800
Drive Wi-Fi 6 to cover various portable and IoT device networking services.

Carrier Diversity and Network Redundancy

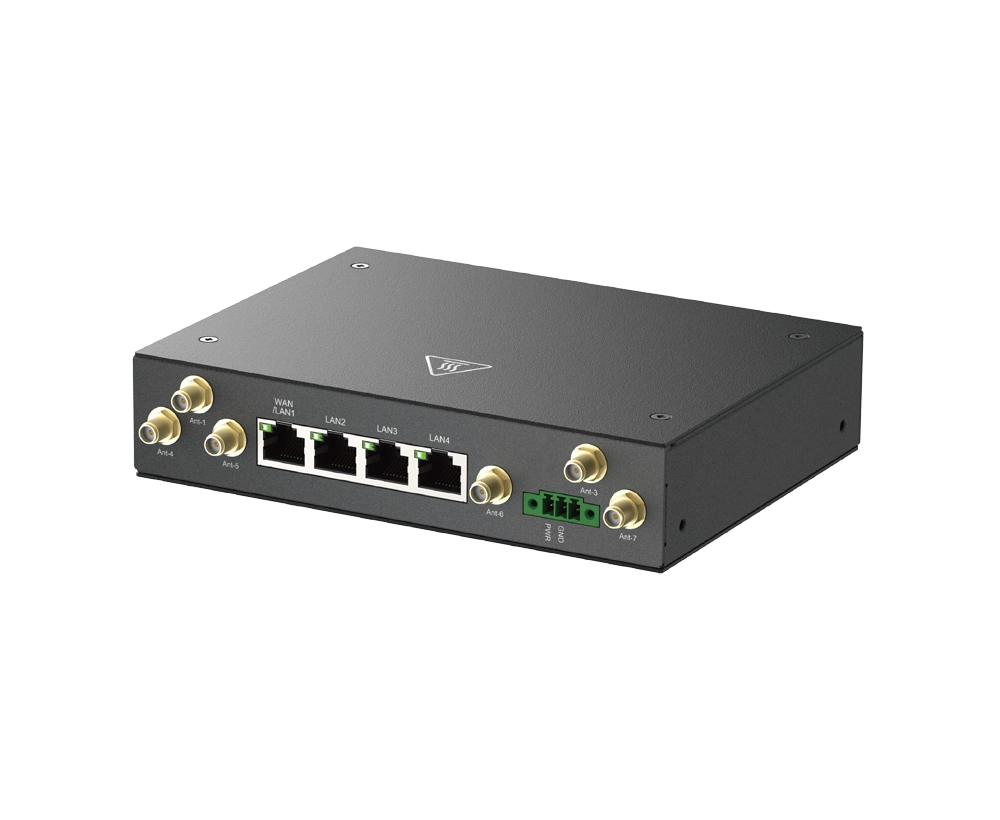

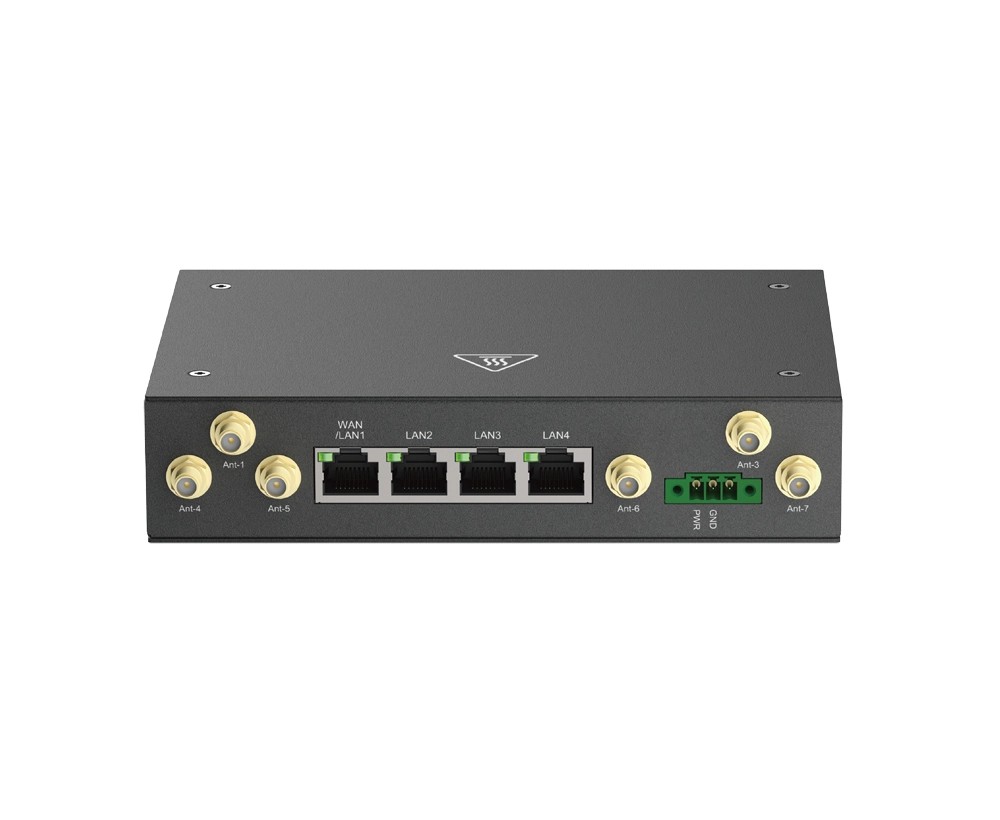

The DWM-550-G 5G M2M Router ensures continuous service with Dual SIM (Nano-SIM 4FF) support for enhanced carrier diversity and network redundancy. Reliable connectivity even in locations with limited coverage is now possible. Additionally, it includes four LAN ports, one configurable as a WAN, giving you flexible options to seamlessly switch between Ethernet WAN and 5G connections, ensuring you always have the best network access.

Secure Your Network with VPN
The DWM-550-G 5G M2M Router boosts network security with robust VPN support, offering protocols such as IPSec, OpenVPN, PPTP, L2TP, GRE and WireGuard. These features enable encrypted connections, versatile tunneling, and secure remote access to protect sensitive data effectively. Ideal for retail operations, small shops, pop-up booths, and smart parking systems, the DWM-550-G ensures that financial transactions and customer information are securely managed and transmitted.

Robust Build Quality
The DWM-550-G is designed to maximize M2M connection reliability and availability, featuring a corrosion-resistant zinc-plated steel casing, wide voltage input range, wide operating temperature range and humidity tolerance, making it suitable for the most demanding M2M applications in virtually any environment.

Specification

Product
Product id	1003065
Brand	D-Link
Partnr	DWM-550-G
EAN/UPC code	790069475290
Design
Device type	Cellular network router
Product colour	Black
Reset button	Y
LED indicators	Y
Ethernet LAN features
Ethernet LAN	Y
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
DHCP server	Y
Wireless LAN features
Wi-Fi	Y
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rates supported	574 Mbit/s
Mobile network
Data network	4G, 5G, LTE
4G standard	LTE
5G standard	Sub6 NSA, Sub6 SA
Number of SIM cards	2
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
Security
Security algorithms	SNMP, SNMPv2, SNMPv3
Network address translation (NAT)	Y
Firewall	Y
DMZ support	Y
Port forwarding	Y
Antenna
Antenna type	External
Antenna connector type	SMA
Antennas quantity	6
Power
Power source type	DC
Input voltage	12 - 36 V
Operational conditions
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 95 procent
Weight & dimensions
Width	160 mm
Depth	125 mm
Height	35 mm
