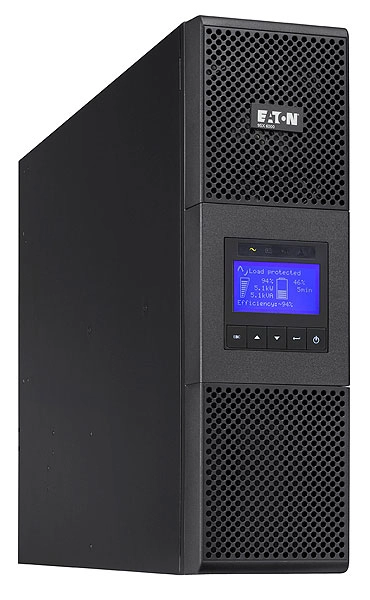

Eaton 9SX UPS, 5000 VA, 4500 W, Input: Hardwired, Tower.

Specification

Product
Product id	667849
Brand	Eaton (v/h MGE)
Partnr	9SX5KI
EAN/UPC code	743172091000
Power
Input frequency	40 - 70 Hz
Technical details
Compliance certificates	CE
Features
UPS topology	Double-conversion (Online)
Output power capacity	5 VA
Output power	4500 W
Waveform	Sine
Input operation voltage (min)	176 V
Input operation voltage (max)	276 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Number of input phases	1
Number of output phases	1
Efficiency	94.2 procent
Input power factor	99
Output power factor	0.9
Output voltage Total Harmonic Distortion (THD)	3 procent
Noise level	46 dB
Auto power off	Y
Ports & interfaces
AC outlet types	Hardwire
USB port	Y
Serial interface	Y
Serial interface type	RS-232
Remote Power Off (RPO)/Remote On-Off (ROO) connector	Y
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	7 Ah
Battery voltage	12 V
Hot-swap battery	Y
Design
Form factor	Tower
Product colour	Black
Display type	LCD
Certification	IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 96 procent
Operating altitude	0 - 3000 m
Packaging data
Cables included	Serial, USB cable
Quick installation guide	Y
Weight & dimensions
Width	244 mm
Depth	542 mm
Height	575 mm
Weight	65500 g
Logistics data
Quantity per pack	1 stuk(s)
Other features
Nominal input voltage	230 V
Nominal output voltage	230 V
