Power distribution
The no hassle solution for improving availability and adding flexibility for single phase UPSs.

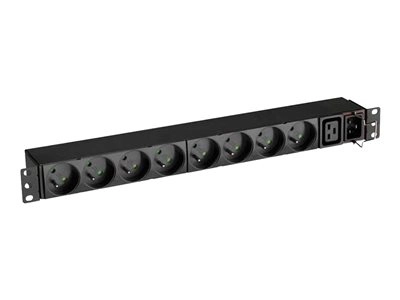

Eaton FlexPDU
Having the right connectors just where you need them
- FlexPDUs (Power Distribution Units) are flexible mounting multiway socket blocks for easy connection of multiple loads either as free-standing or on rack-mounted UPSs
- FlexPDUs have a large number of sockets (8 French sockets, 6 BS sockets or 12 IEC 10 A sockets) which fit into a very compact unit (1U - 19”)
- FlexPDUs are easy to implement into any type of installation: they can be rack mounted horizontally (1U) or vertically or directly onto all Eaton RT format (rack/tower) UPSs Eaton HotSwap MBP
- High availability for all UPSs up to 11 kVA.
- HotSwap MBP provides a maintenance bypass for all UPSs. UPSs can be hot swapped or upgraded without interrupting the power supply.
- HotSwap MBP are available with multiple power ratings:
3000 VA, 6000 VA, 11000 VA, 11000 VA (3 ph Input).
- HotSwap MBP provides compatibility with any UPS now and in the future from Eaton or any other supplier
- The HotSwap MBP 3000 VA is available with different output connectors: French, British, IEC or terminal blocks (Hard-Wired version).
- When used with a 9PX or 9SX the HotSwap MBP 6000 VA and above are providing information on the Bypass status through the UPS LCD screen.
- HotSwap MBP units can be installed as required; at the back, side, top of the UPSs, or rack-mounted.

Specification

Product
Product id	541209
Brand	Eaton (v/h MGE)
Partnr	EFLX8F
EAN/UPC code	3553340684241
Warranty (months)	24 months
Design
PDU types	Basic
Type	Single-phase
Form factor	Rackmount
Rack mounting	Y
Rack capacity	1U
Mounting	Horizontal/Vertical
Cable colour	Black
Ports & interfaces
AC outlets quantity	9 AC-uitgang(en)
Power plug	C20 coupler
AC outlet types	Type E
Master AC outlets quantity	8
Power
Nominal output voltage	230 V
AC input frequency	50/60 Hz
Maximum current	13 A
Load capacity	3000 VA
Maximum power	3000 W
Weight & dimensions
Width	483 mm
Depth	80 mm
Dimensions (WxDxH)	483 x 80 x 44 mm
Height	44 mm
Weight	1600 g
Package weight	9500 g
Packaging content
Rack mount kit	Y
Technical details
Nominal input voltage	230 V
Sustainability certificates	RoHS
Maximum input current per phase	13 A
Output connections	8 x Type E
Certification	CE
Product colour	Black
Operational conditions
Operating temperature (T-T)	0 - 45 °C
