Meter the Input, branch, individual outlets & IT equipment across A and B feed

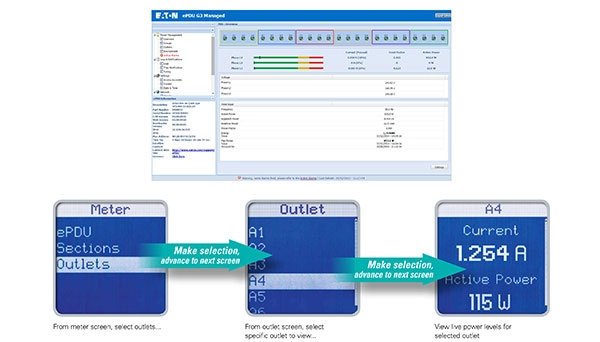

ePDU G3 Metered Outlet models allow device level metering over multiple power feeds, and includes kWh, peak power and current draw. Clearly view and understand the consumption of individual devices powered over A and B feeds and see available power. Metered Outlet units have no switching. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.

Specification

Product
Product id	497525
Brand	Eaton (v/h MGE)
Partnr	EMOB04
EAN/UPC code	3553340698026
Warranty (months)	2 years
Design
PDU types	Metered
Rack capacity	0U
Mounting	Vertical
Display	LCD
Ports & interfaces
AC outlets quantity	24 AC-uitgang(en)
Power plug	IEC 60309
AC outlet types	C13 coupler, C19 coupler
Features
LED indicators	Y
Power
AC input frequency	50 Hz
Maximum current	16 A
Weight & dimensions
Dimensions (WxDxH)	53 x 1604 x 52 mm
Technical details
Nominal input voltage	230 V
Sustainability certificates	RoHS
Cable length	3 m
Output connections	20 x C13 & 4 x C19
Certification	CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011 IEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010 EN 55024:2010 ISO 9001:2008 / ISO 14001:2004
Product colour	Black
