Meter the Input, branch, individual outlets & IT equipment across A and B feed

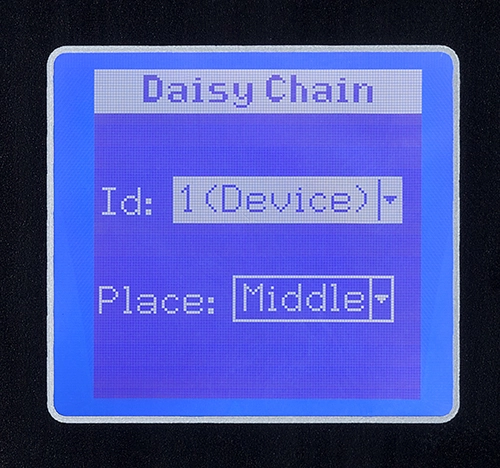

ePDU G3 Metered Outlet models allow device level metering over multiple power feeds, and includes kWh, peak power and current draw. Clearly view and understand the consumption of individual devices powered over A and B feeds and see available power. Metered Outlet units have no switching. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.

Specification

Product
Product id	630049
Brand	Eaton (v/h MGE)
Partnr	EMOH28
EAN/UPC code	3553340696213
Warranty (months)	2 years
Design
PDU types	Metered
Type	Single-phase
Rack capacity	1U
Mounting	Horizontal
Display	LCD
Ports & interfaces
AC outlets quantity	8 AC-uitgang(en)
Power plug	C20 coupler
AC outlet types	C13 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Features
LED indicators	Y
Management features
Monitoring	Voltage
Supported network protocols	HTTP, HTTPS, SSL, FTP, SMTP, DNS, DHCP, LDAP, RADIUS
Management protocols	SNMP, Telnet
Firmware upgradeable	Y
Firmware upgradeable via	Network, USB
Power
AC input frequency	50 Hz
Maximum current	16 A
Maximum power	4000 W
Weight & dimensions
Dimensions (WxDxH)	445 x 203 x 43 mm
Weight	3200 g
Package weight	5600 g
Packaging data
Package width	375 mm
Package depth	570 mm
Package height	195 mm
Technical details
Nominal input voltage	230 V
Sustainability certificates	RoHS
Cable length	3 m
Certification	CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011 IEC 60950-1, EN 61000-6-2:2005 EN 50581 : 2012, REACH, WEEE ISO 9001:2008 / ISO 14001:2004
Product colour	Black
