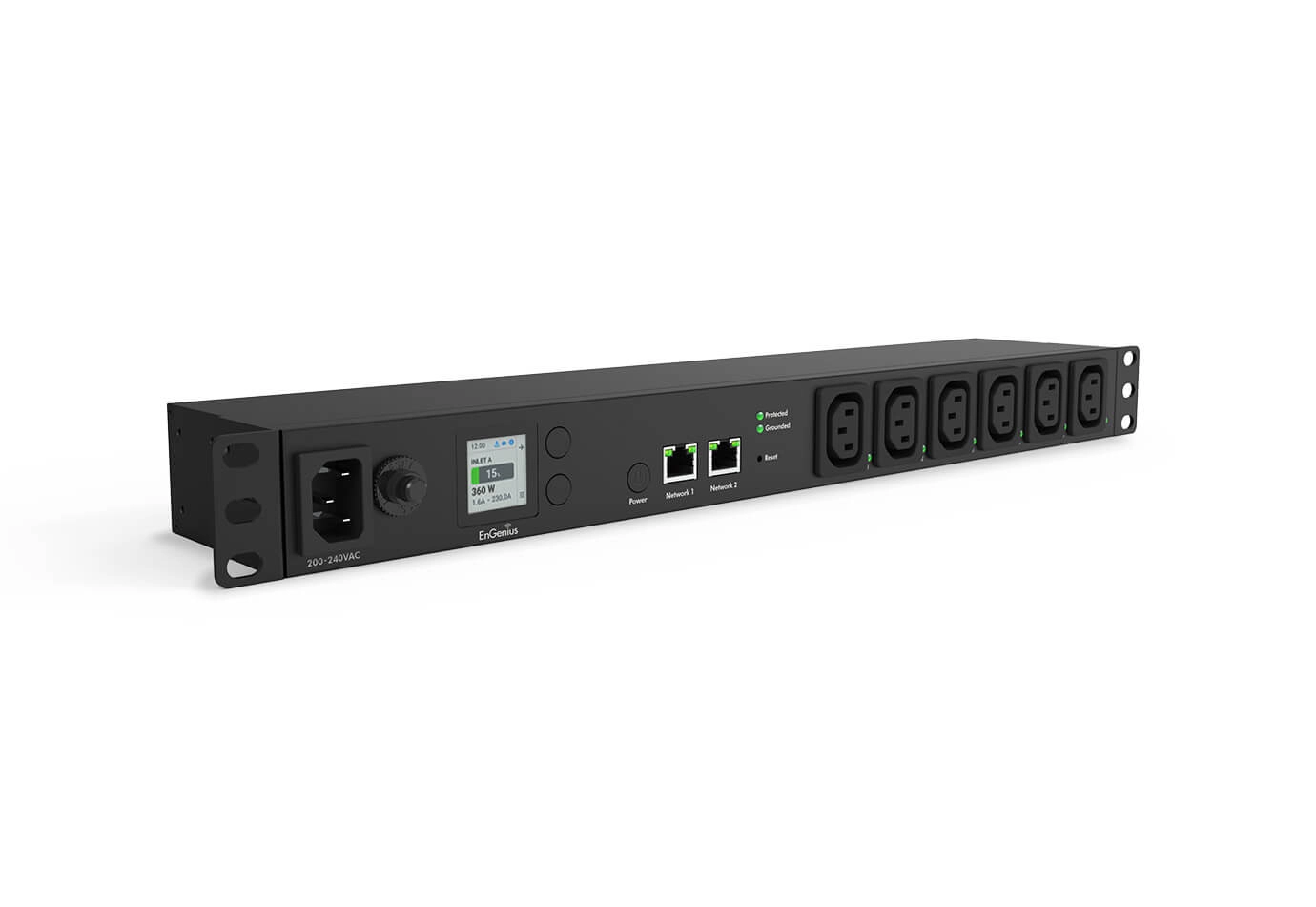

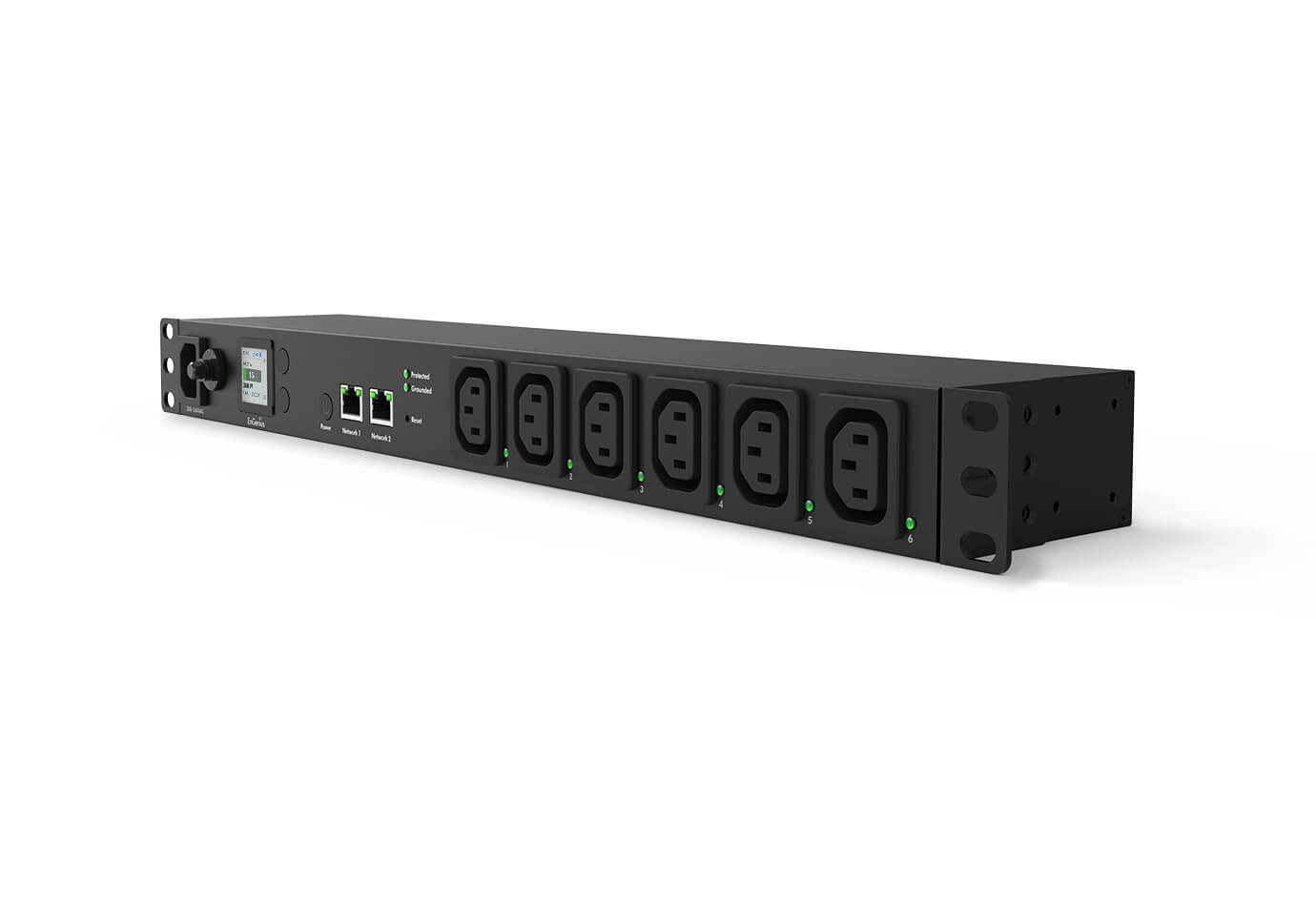

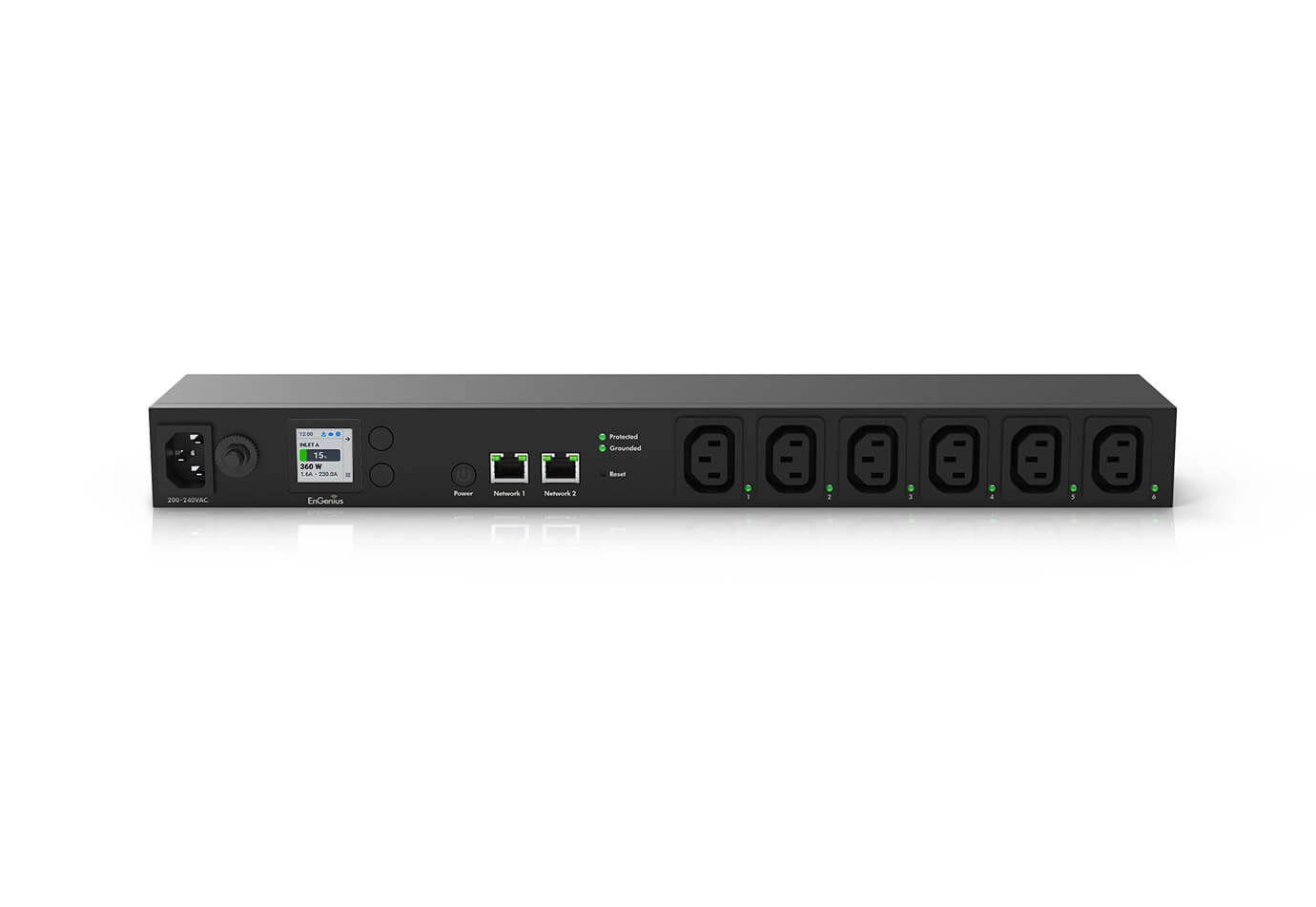

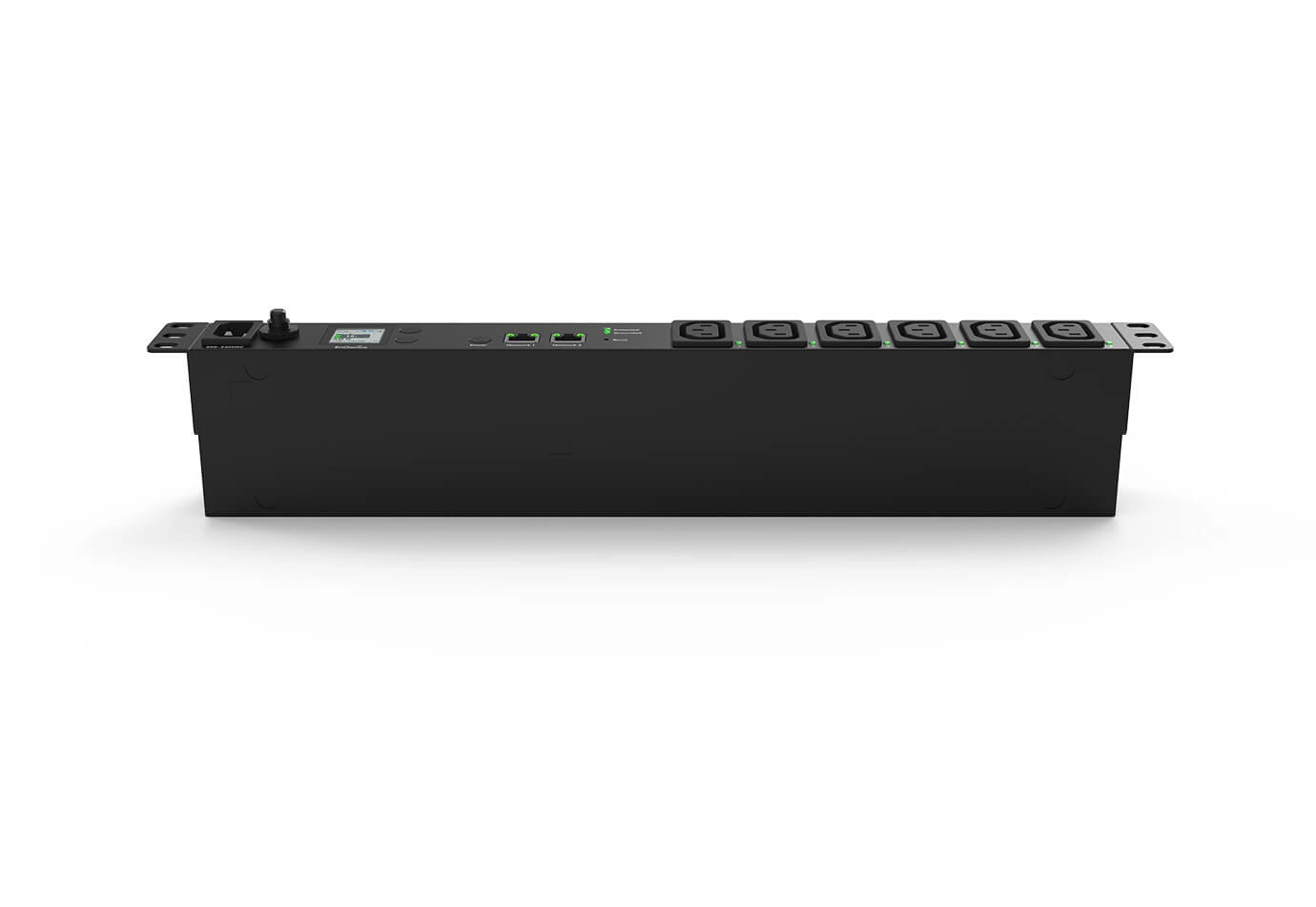

The EnGenius Cloud Managed 1U 10A Smart PDU with 6 IEC-C13, PDU 6P 10A 200-240V (ECP106-INT) serves as a cloud-based power management solution for diverse applications. It facilitates remote and local control, efficient energy management, and advanced surge protection. Additionally, it offers unified management for all EnGenius devices, simplifying maintenance and troubleshooting by enabling power cycling of multiple devices.

Specification

Product
Product id	987838
Brand	EnGenius
Partnr	ECP106-INT
EAN/UPC code	4711488351732
Design
PDU types	Managed
Rack capacity	1U
Display	LCD
On/off switch	Y
Illuminated on/off switch	Y
Ports & interfaces
AC outlets quantity	6 AC-uitgang(en)
AC outlet types	C13 coupler
Ethernet LAN (RJ-45) ports	2
Features
Reset button	Y
LED indicators	Y
Surge protection	Y
Cable type	CEE 7-VII
Management features
Monitoring	Power
Power
AC input frequency	50/60 Hz
Maximum current	10 A
Output voltage	200 - 240 V
Block 1 output current	12 A
Power protection features	Surge protection
Maximum power	2400 W
Circuit breaker	Y
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Y
Weight & dimensions
Width	440 mm
Depth	85 mm
Height	44 mm
Weight	1124 g
Technical details
Nominal input voltage	200 - 240 V
Cable length	1.83 m
Compliance certificates	CE, RCM, RoHS, WEEE
Input connection type	H05VV-F 3G
Product colour	Black
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	5 - 95 procent
Storage relative humidity (H-H)	5 - 95 procent
