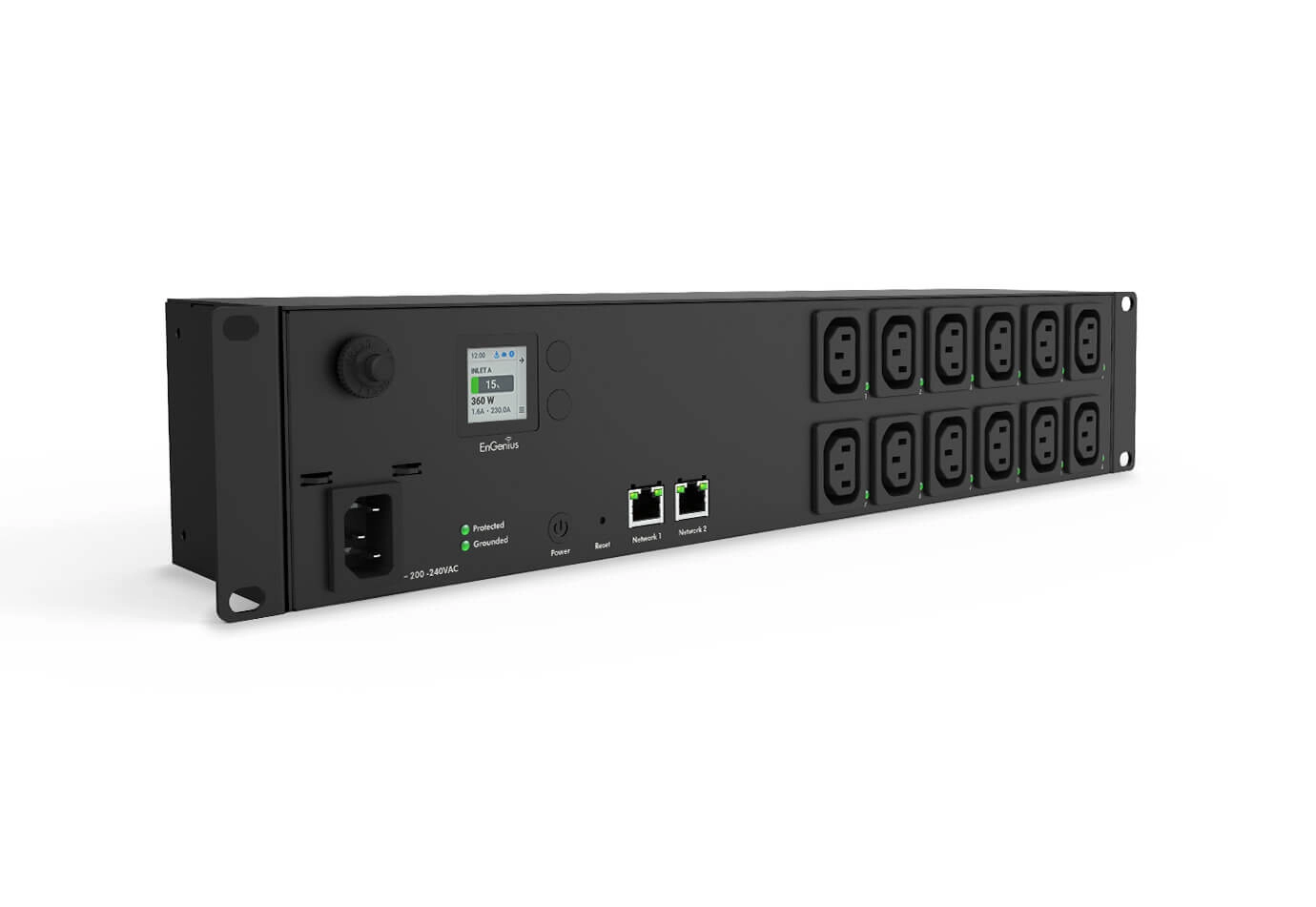

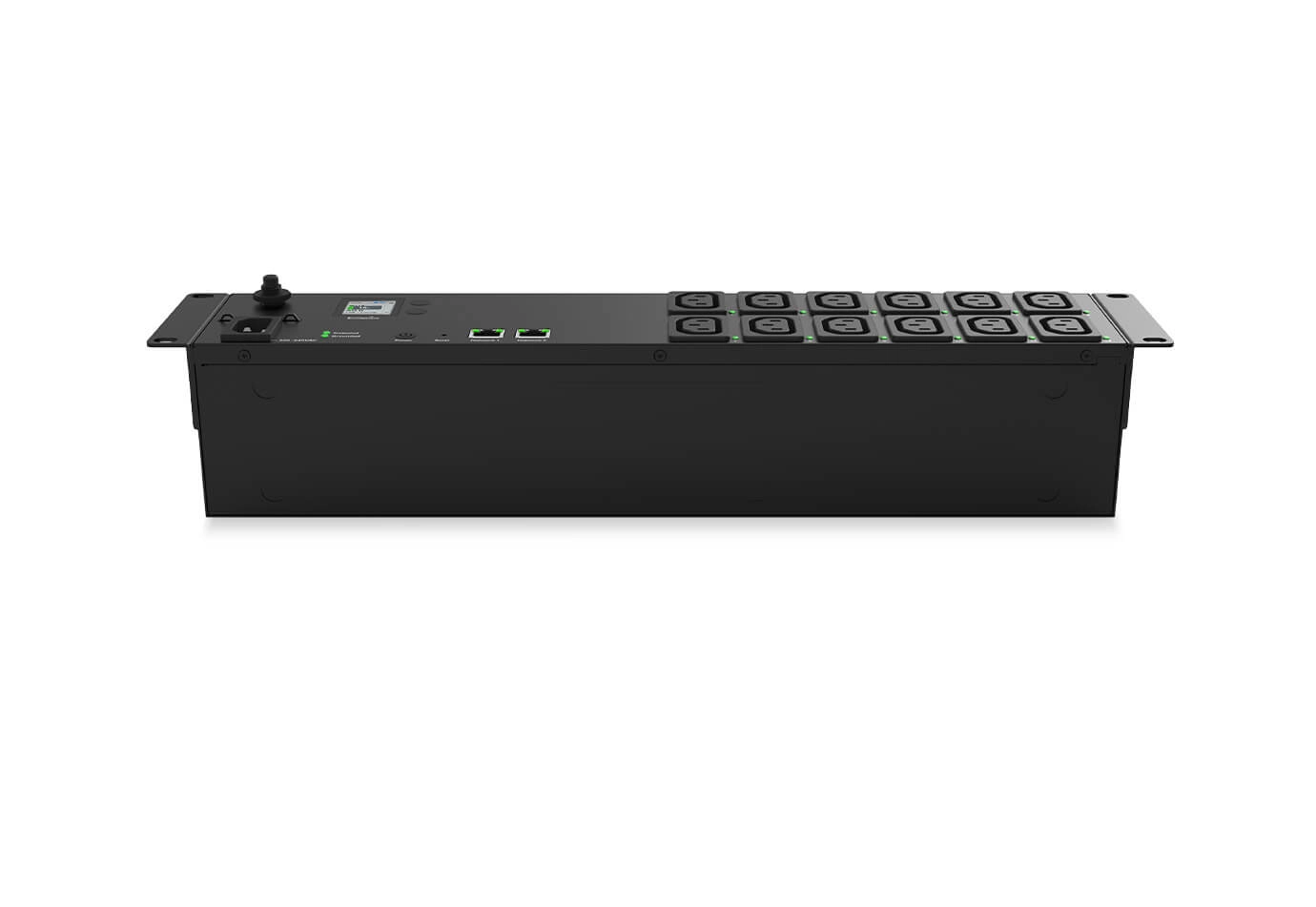

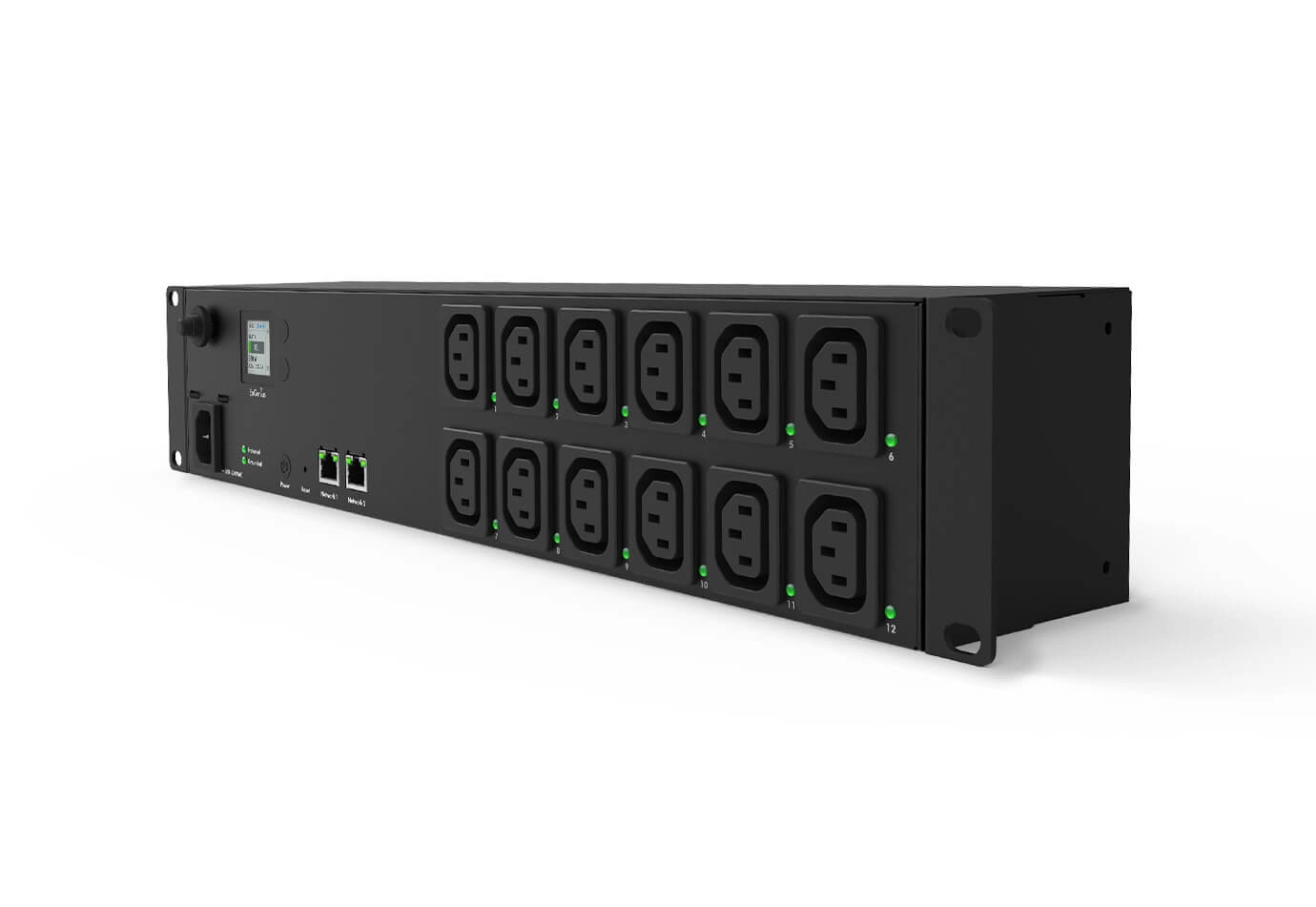

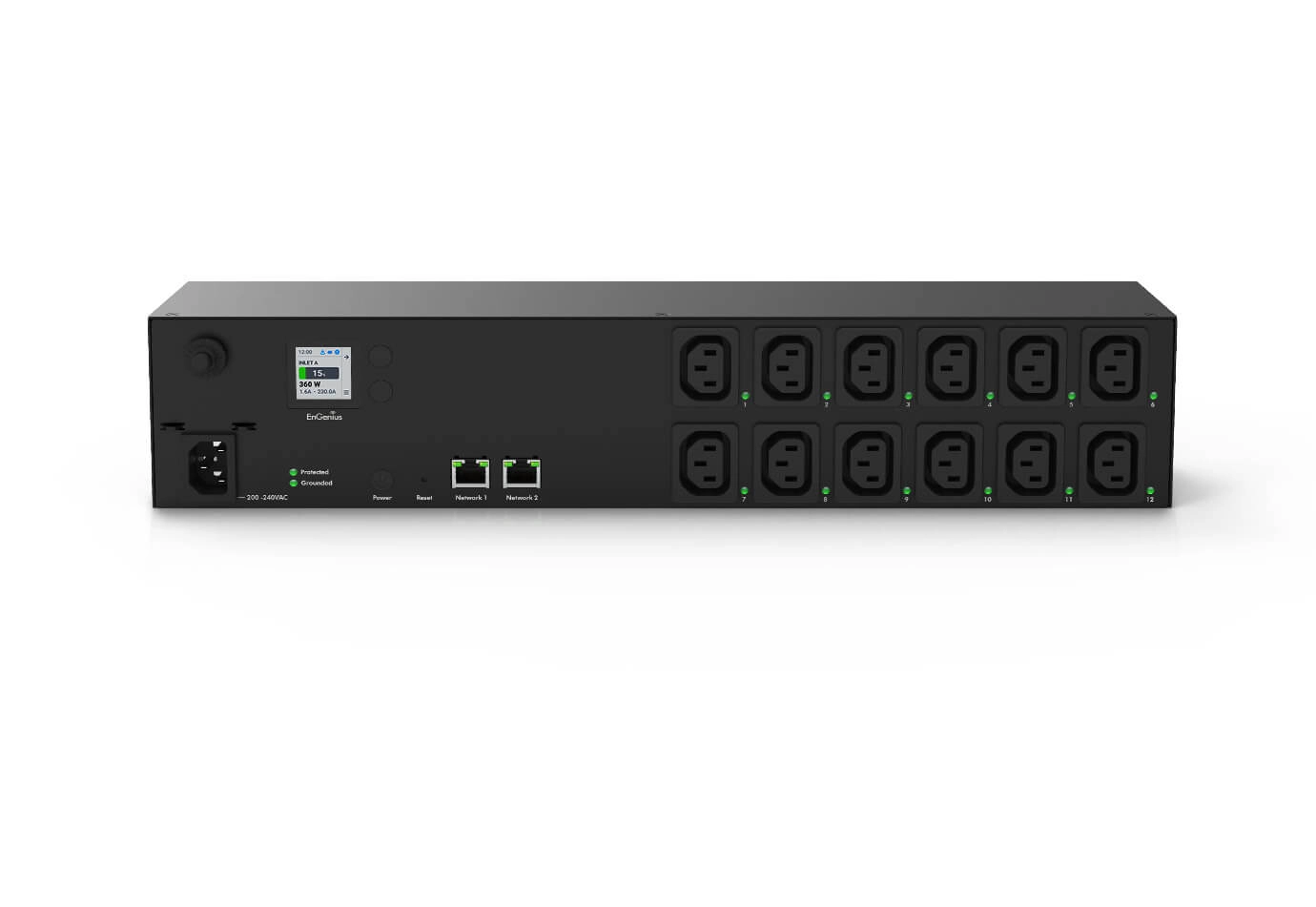

The EnGenius Cloud Managed 2U 10A Smart PDU with 12 IEC-C13, PDU 12P 10A 200-240V (ECP212-INT) serves as a cloud-based power management solution for diverse applications. It facilitates remote and local control, efficient energy management, and advanced surge protection. Additionally, it offers unified management for all EnGenius devices, simplifying maintenance and troubleshooting by enabling power cycling of multiple devices. Function

Specification

Product
Product id	987839
Brand	EnGenius
Partnr	ECP212-INT
EAN/UPC code	4711488351725
Design
PDU types	Managed
Rack capacity	2U
Housing material	SECC
Display	LCD
On/off switch	Y
Illuminated on/off switch	Y
Ports & interfaces
AC outlets quantity	12 AC-uitgang(en)
AC outlet types	C13 coupler
Ethernet LAN (RJ-45) ports	2
Features
Reset button	Y
LED indicators	Y
Surge protection	Y
Cable type	CEE 7-VII
Management features
Monitoring	Power
Power
AC input frequency	50/60 Hz
Maximum current	10 A
Output voltage	200 - 240 V
Block 1 output current	12 A
Power protection features	Surge protection
Maximum power	2400 W
Circuit breaker	Y
Weight & dimensions
Width	440 mm
Depth	10.9 mm
Height	88 mm
Weight	2460 g
Technical details
Nominal input voltage	200 - 240 V
Cable length	1.83 m
Compliance certificates	CE, RCM, RoHS, WEEE
Input connection type	H05VV-F 3G
Product colour	Black
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	5 - 95 procent
Storage relative humidity (H-H)	5 - 95 procent
