EnGenius EOC655 Wi-Fi 6 2x2 outdoor bridge boasts dual 5GHz radios that can reach speeds of up to 2Gbps. Its IP67 rating ensures reliable performance even in harsh outdoor conditions. Equipped with built-in GPS, the EOC series ensures precise device placement and effective network mapping. This is crucial for PtP/PtMP setups, asset management, and network integration through auto-discovery features. The system prioritizes security by utilizing AES-256 encryption and providing optional FIPS-140-2 compliance for reliable and secure communication. With the SkyPoint NMS, you can enjoy comprehensive web-based monitoring and management while auto-provisioning enables efficient large-scale deployments.

Specification

Product
Product id	987878
Brand	EnGenius
Partnr	EOC655
EAN/UPC code	4711488350216
Warranty (months)	1 Year
Data transmission
Maximum data transfer rate	2500 Mbit/s
Antenna
Antenna design	Internal & external
Antenna connector type	N-type
Wireless LAN features
Wi-Fi	Y
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Network
Ethernet LAN	Y
Ethernet LAN interface type	2.5 Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Networking standards	IEEE 802.11e, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Ports & interfaces
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	2
Management features
Management protocols	SNMP v1, v2c, v3
Features
Product type	Network bridge
Product colour	White

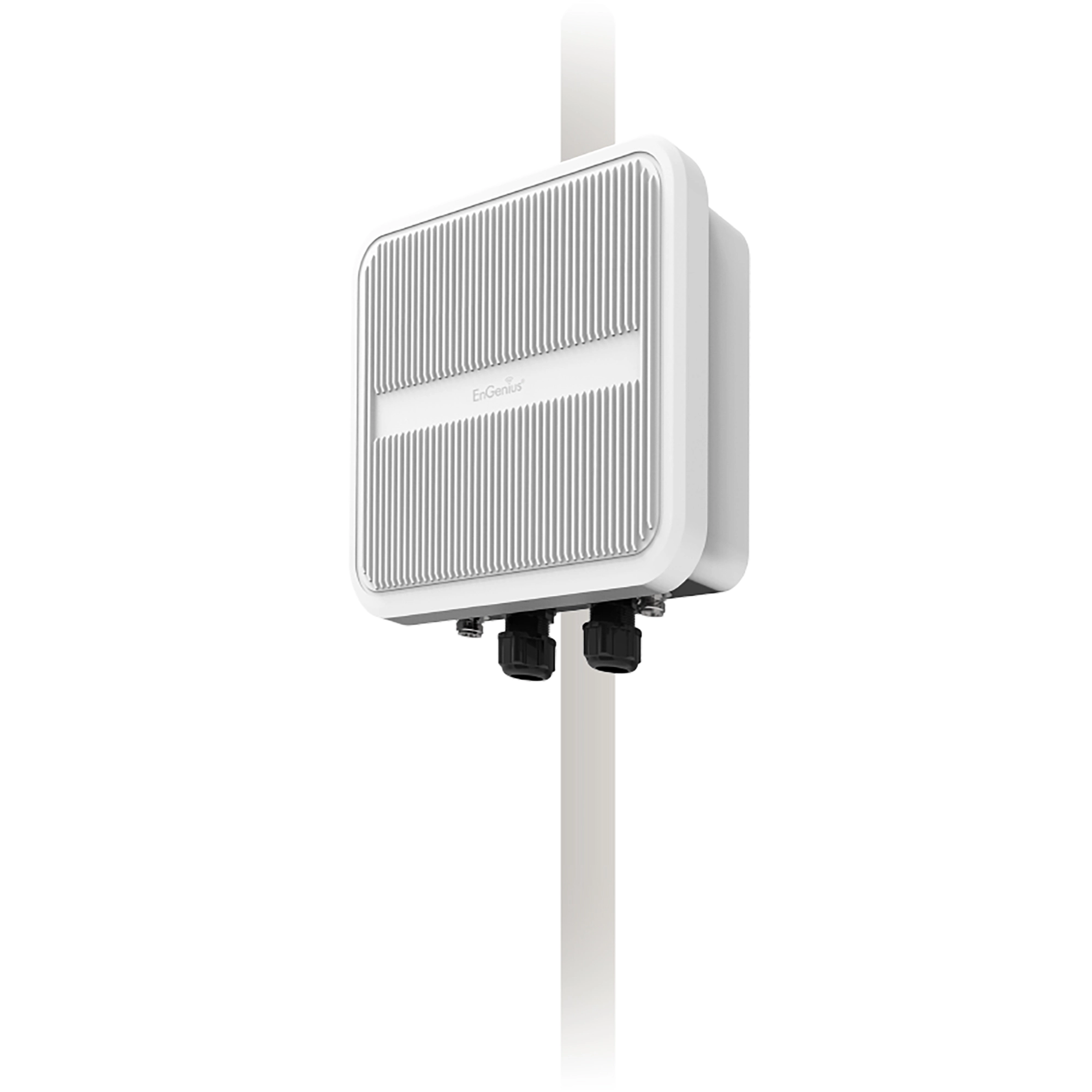

Mounting type	Pole
International Protection (IP) code	IP67
Internal memory	1024 MB
Processor family	ARM Cortex
Processor manufacturer	Qualcomm
Mean time between failures (MTBF)	100000 uur
Power
Power source type	PoE
Power consumption (max)	21 W
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	-30 - 80 °F
Operating relative humidity (H-H)	0 - 90 procent
Storage relative humidity (H-H)	0 - 90 procent
Certificates
Certification	FCC, CB, RoHS, WEEE
Weight & dimensions
Width	267 mm
Depth	227 mm
Height	82 mm
Weight	1840 g
Other features
Warranty period	1 jaar
Processor
Processor model	Cortex-A53
Processor frequency	1 MHz
Packaging content
Packaging content	1 – EOC655 Outdoor Wireless 1 – PoE Injector 1 – Power Cord 1 – Pole Mount Brackets 1 – Pole Mount Strap 1 – Ethernet Cable Cat5e 1.5 mts 1 – Grounding Cable 1.8 mts
Packaging data
Package width	314 mm
Package depth	159 mm
Package height	450 mm
Package weight	3990 g
Quantity per pack	1 stuk(s)
