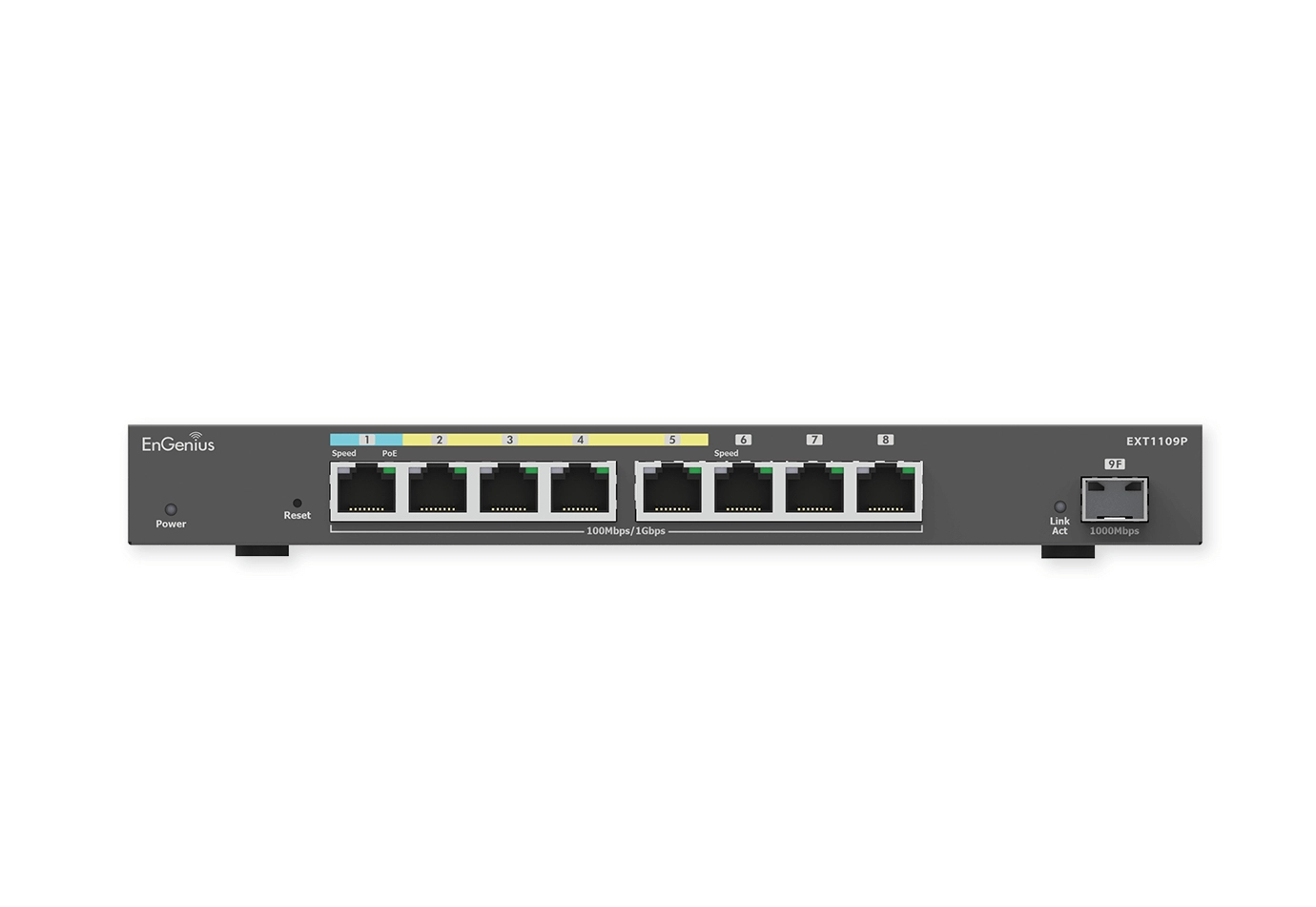

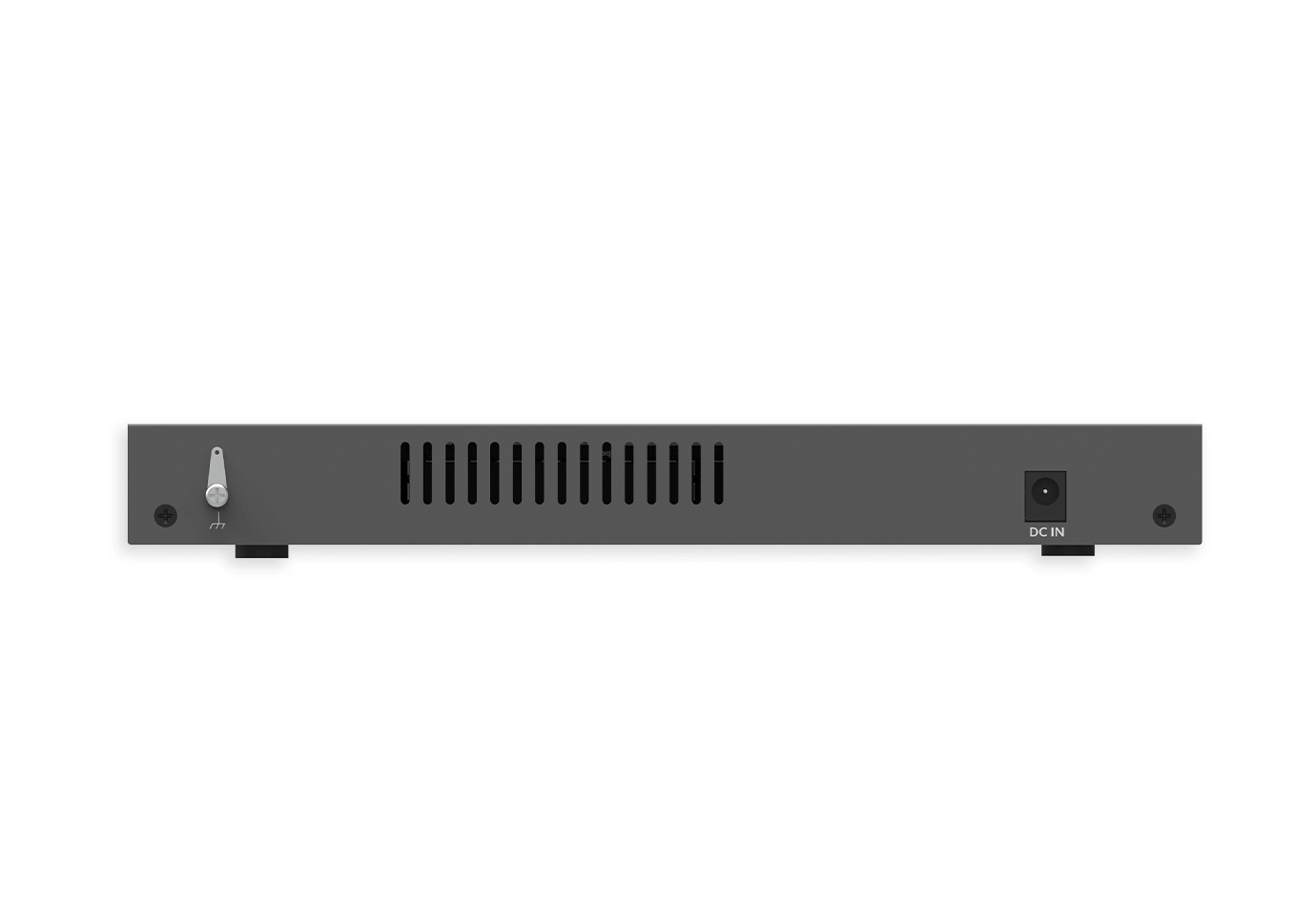

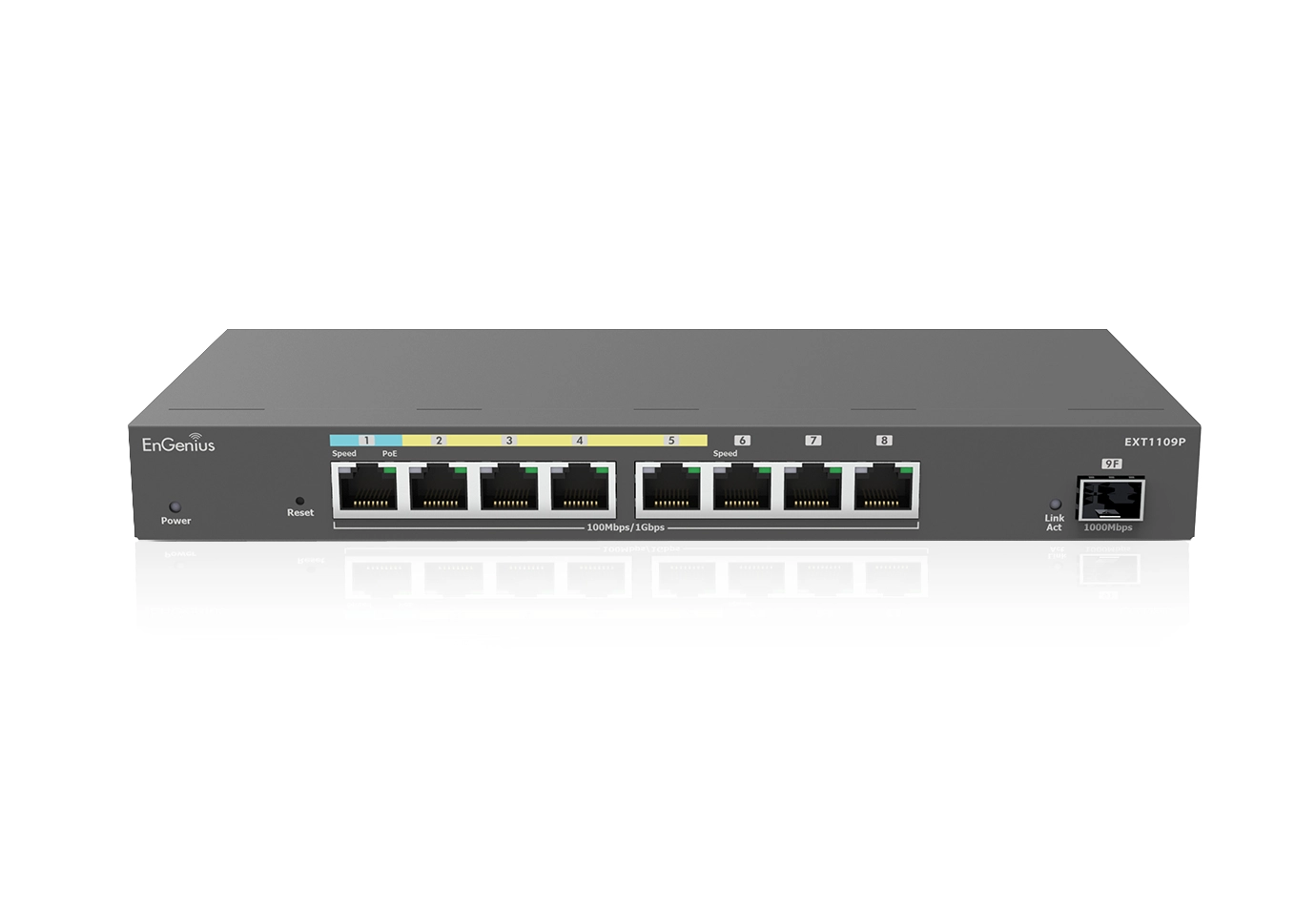

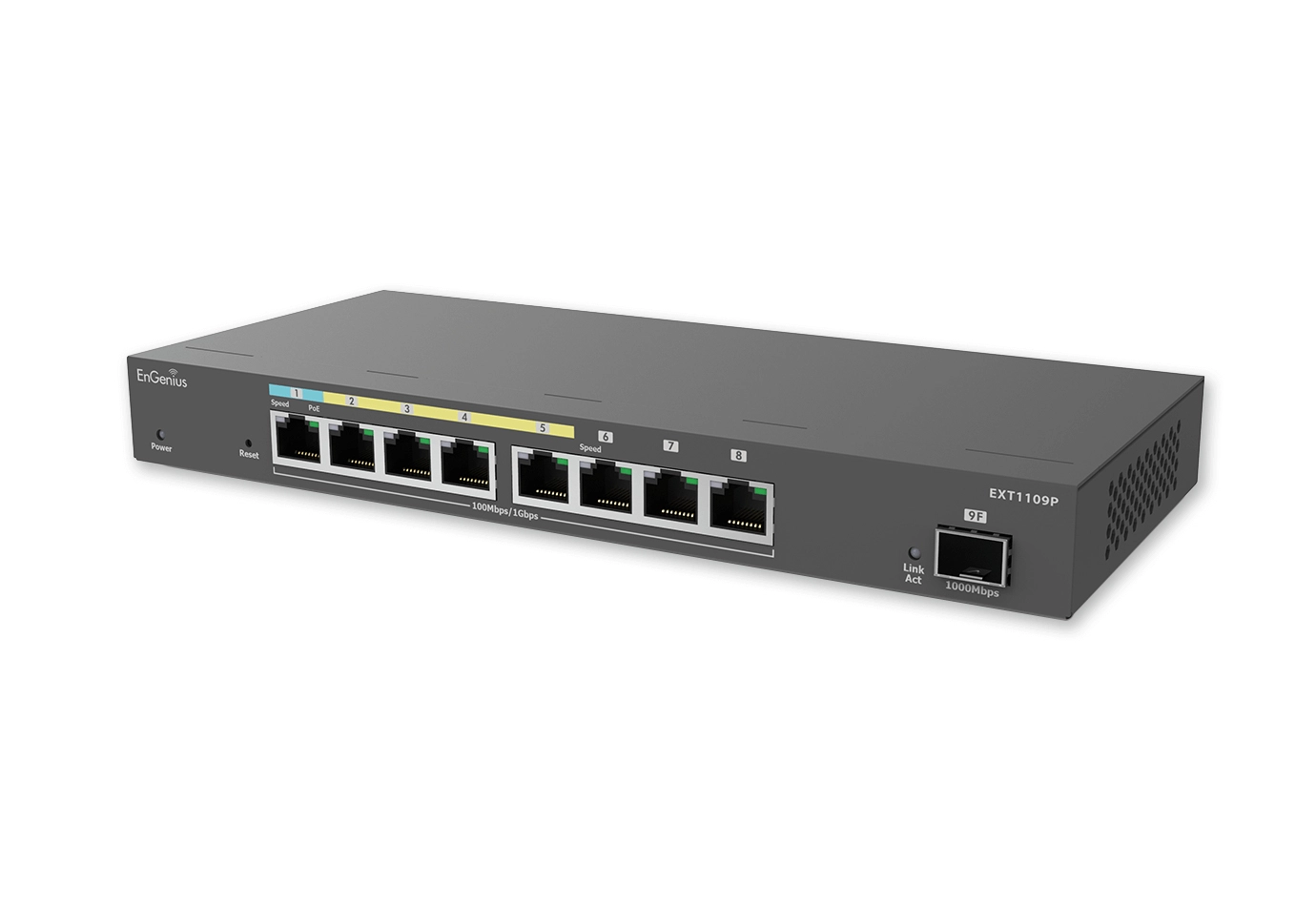

EnGenius Switch Extender, EXT1109P is a reliable 4-Port GE PoE, 1-Port GE PD PoE, 3 GE Ports and 1 SFP slot switch that excels in diversifying network expansion. Its SFP interface extends data transmission beyond the traditional 100-meter RJ45 limit, ensuring robust network performance. Its optimized Voice-VLAN feature, zero-touch provisioning, and easy-to-use cloud-based management provide SMBs with a hassle-free network solution.

Extend Your Network Beyond 100 Meters: Beyond RJ45’s Limitations

Expand network coverage beyond 100 meters effectively with an advanced SFP interface, ensuring extended reach without compromising performance.

Enhancing Network Efficiency: Advanced Built-in Switch Capabilities

Maximize network efficiency with built-in switch features: VLAN for streamlined data management, IGMP Snooping for multicast traffic optimization, and RSTP for enhanced network resilience, all ensuring optimal performance across various applications.

Specification

Product
Product id	987913
Brand	EnGenius
Partnr	EXT1109P
EAN/UPC code	4711488350100
Data transmission
MAC address table	8000 entries
Switching capacity	18 Gbit/s
Jumbo frames support	Y
Jumbo frames	10000
Network
Networking standards	IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
10G support	N
Copper ethernet cabling technology	100BASE-TX, 1000BASE-T
Spanning tree protocol	Y
VLAN support	Y
Virtual LAN features	Port-based VLAN, Voice VLAN
Management features
Switch layer	L2
Quality of Service (QoS) support	Y
Cloud-managed	Y
System event log	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Fiber ports quantity	1
Fiber optic connector	SFP
Security
IGMP snooping	Y
Queue scheduling algorithms	Weighted Round Robin (WRR)
Weight & dimensions
Width	105 mm
Depth	240 mm
Height	27 mm
Weight	620 g
Power
Power source	DC/PoE
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Multicast features
Multicast support	Y
Design
Rack mounting	N
Product colour	Grey
LED indicators	Activity, Link, PoE, Power
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 procent
Performance
Flash memory	32 MB
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	5
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	90 W
