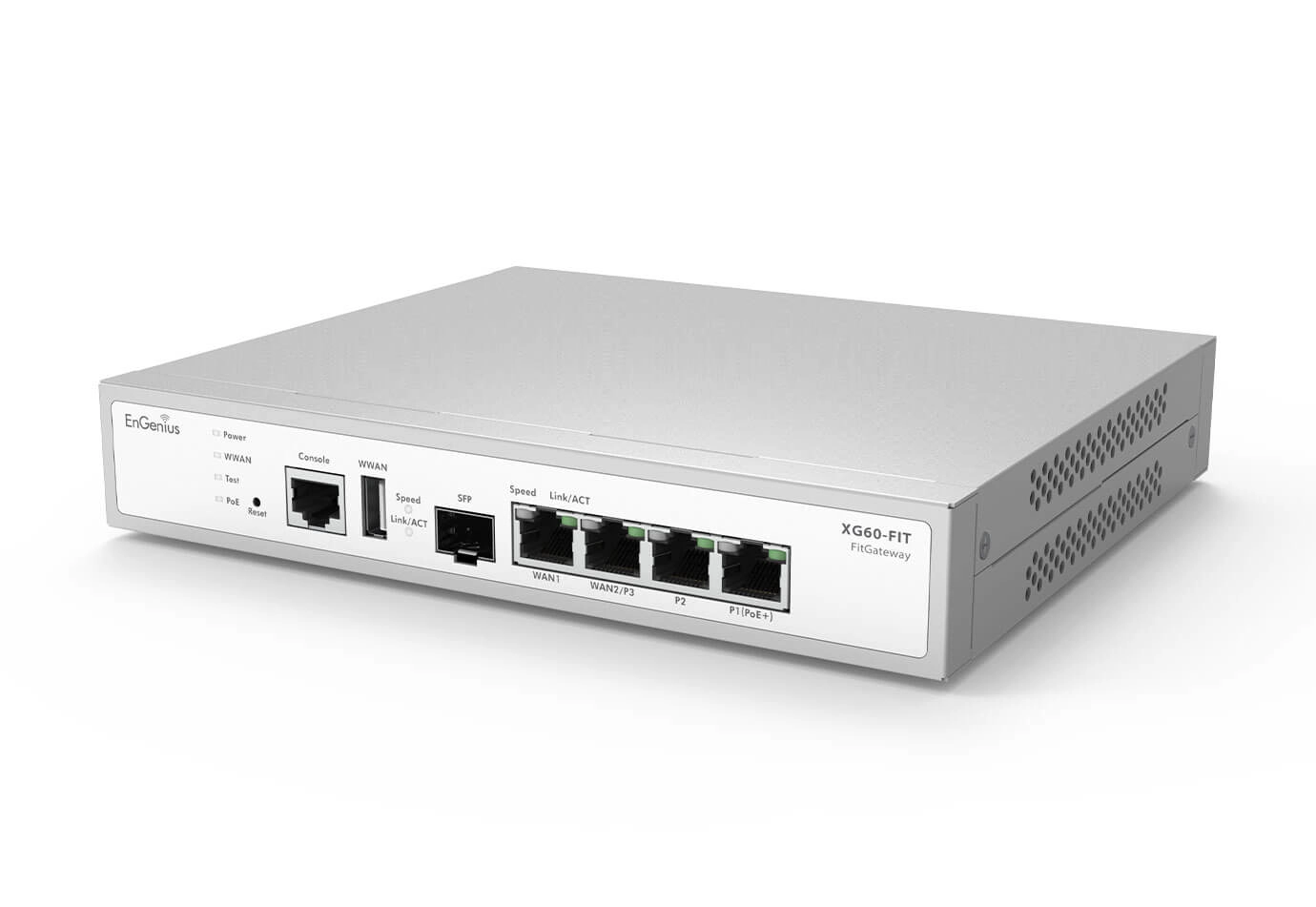

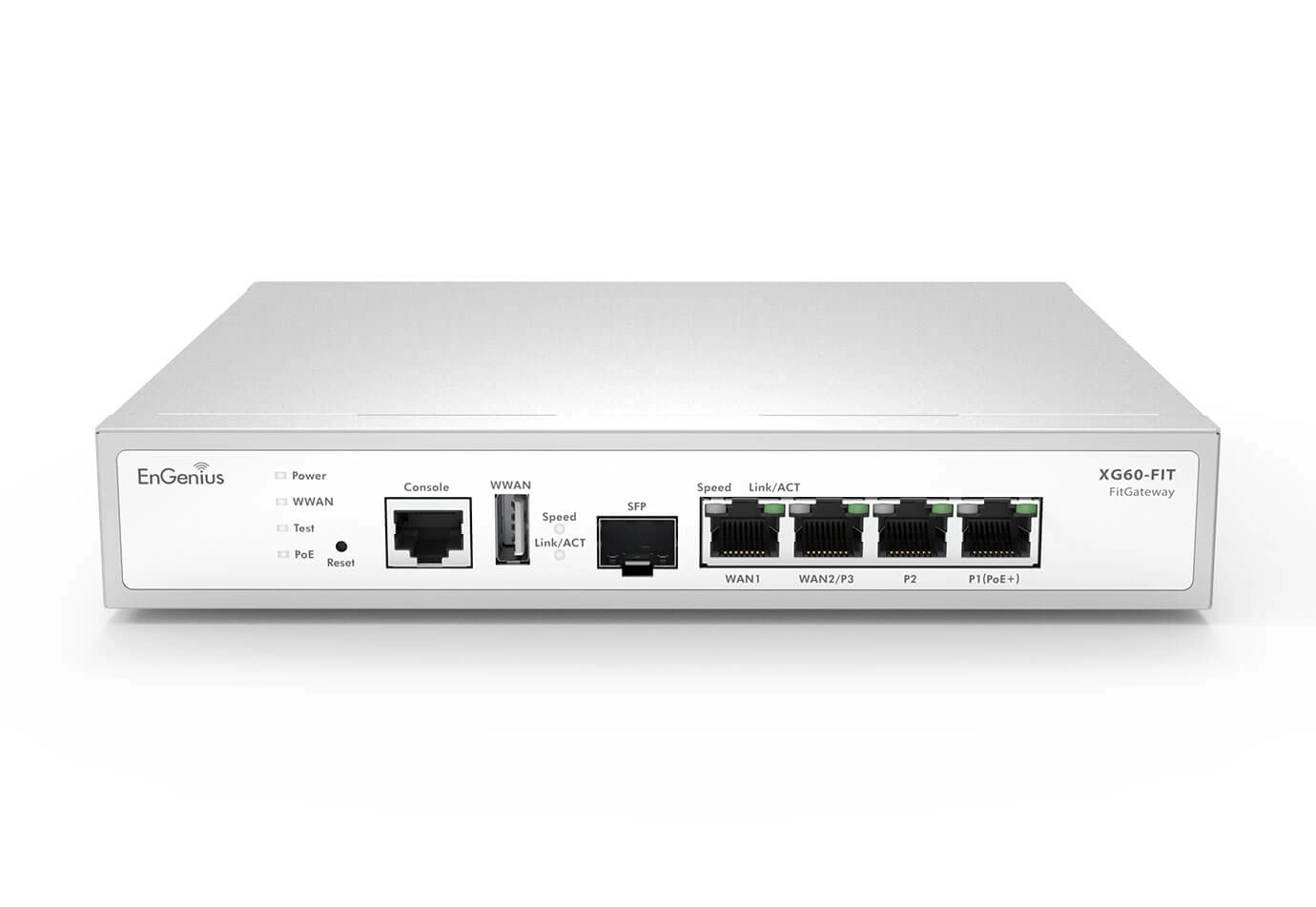

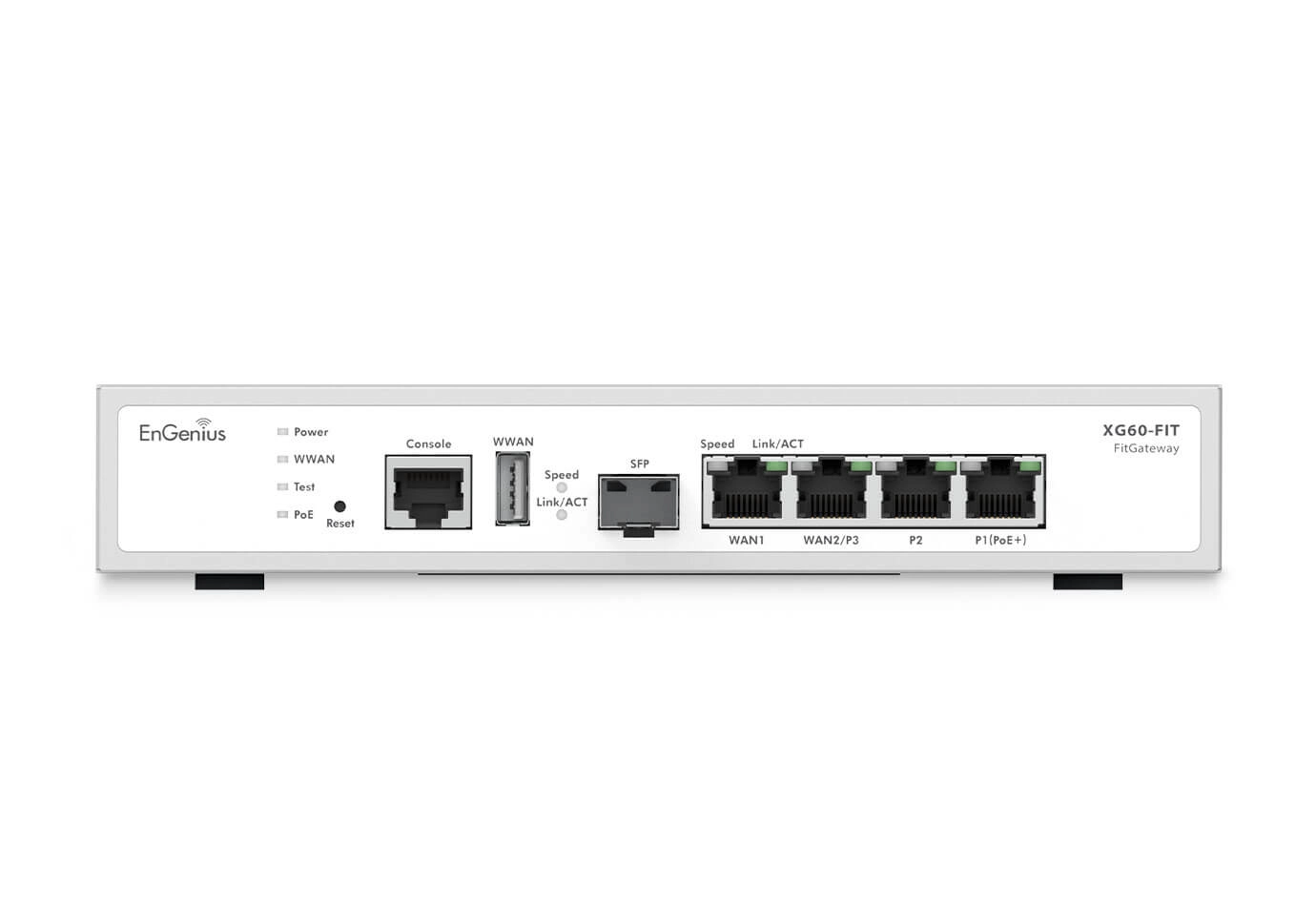

EnGenius FitXpress Gateway with 4x Gigabit (1 PoE+) Ethernet ports and 1 SFP

EnGenius FitXpress Gateway XG60-FIT provides a high-performance network solution with advanced features, including load balancing, dual-WAN, and site-to-site VPN. The product offers unified management through FitXpress, allowing for easy configuration and management from anywhere. It offers a comprehensive end-to-end solutionfor businesses seeking to enhance their network performance and security.

Specification

Product
Product id	987925
Brand	EnGenius
Partnr	XG60-FIT
EAN/UPC code	4713361936494
Technical details
Rack mounting	N
Data transmission
Firewall throughput	3000 Mbit/s
VPN throughput	900 Mbit/s
Firewall throughput	3 Gbit/s
VPN throughput	0.9 Gbit/s
Performance
Built-in processor	Y
Processor frequency	2.1 MHz
Reset button	Y
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
VPN tunnels quantity	100
Number of users	50 gebruiker(s)
Static route	Y
Point-to-point protocol over Ethernet (PPPoE)	Y
Active TCP connections (max)	1000000
DHCP server	Y
Port forwarding	Y
Management features
LED indicators	Y
Ports & interfaces
Connectivity technology	Wired
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	4
Ethernet LAN data rates	10, 100, 1000 Mbit/s
WAN connection	Ethernet (RJ-45)
SFP module slots quantity	1

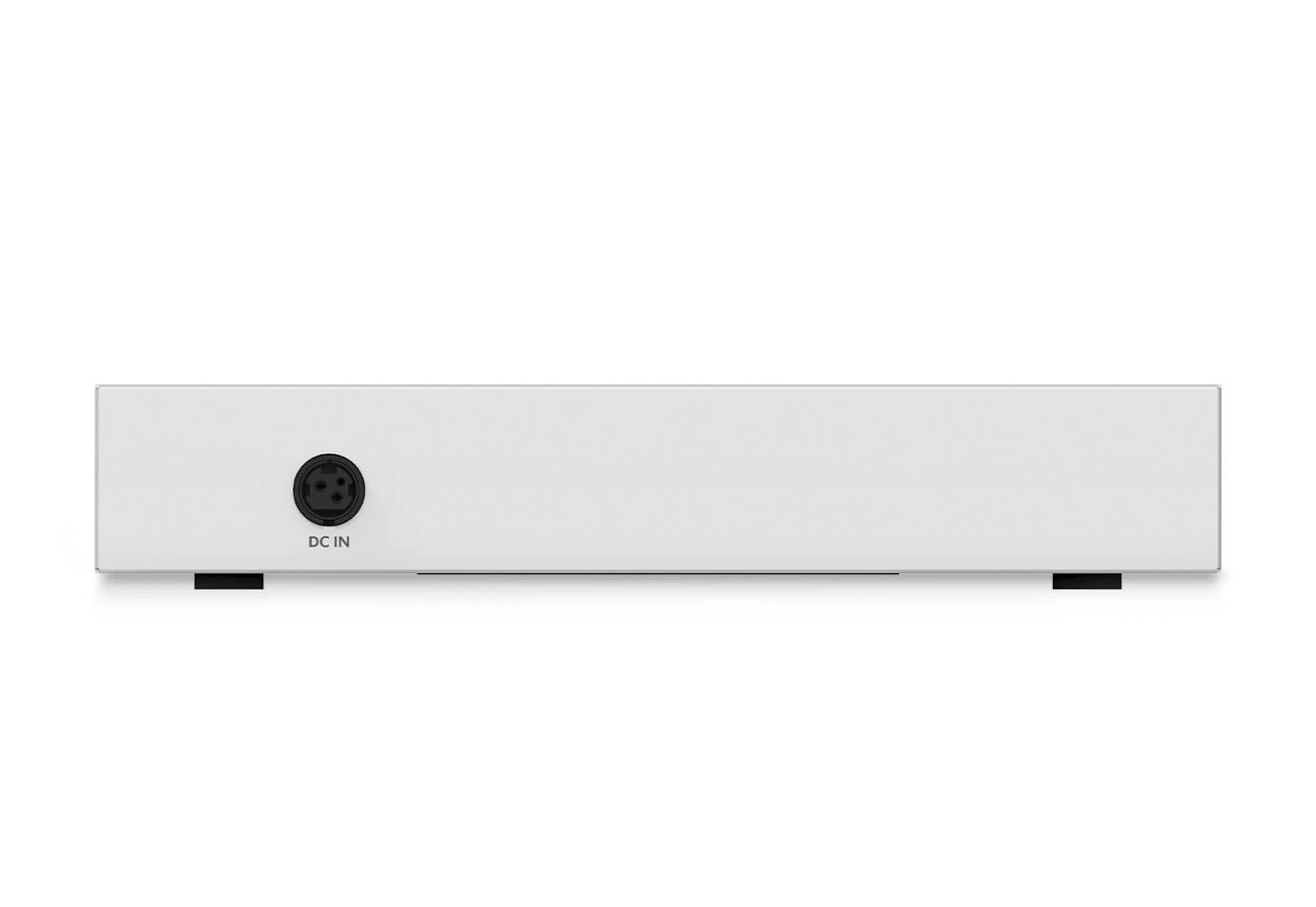

DC-in jack	Y
Memory
Internal memory	4096 MB
Storage
Flash memory	8000 MB
Certificates
Certification	FCC Part 15 (Class B) IC CE EMC CB UL
Power
Input current	1.2 A
DC input voltage	54 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 procent
Weight & dimensions
Width	210 mm
Depth	179.5 mm
Height	35 mm
Packaging content
Quick start guide	Y
