Compact and lightweight
The reduced weight and size means the projector is easier to store, transport and install, saving on warehouse space as well as labour and delivery costs.

Outstanding image quality
This high lumens, 3LCD projector offers WUXGA resolution with 4K enhancement and HDR for rich textures and sharper images.

Flexibility
The EB-PU2116W's functionality enables simple installation, stacking, lens flexibility and control. It includes in-built processing for PC-free stacking which means two supported projectors can be stacked to double the brightness without the need for external computerware.

Reliability
Includes improved dustproofing as the hermetically sealed optical engine, and laser light source unit, prevent dust contamination to ensure enhanced durability.

Specification

Product
Product id	967836
Brand	Epson
Partnr	V11HA64940
EAN/UPC code	8715946703176
Warranty (months)	36 months
Projector
Projector brightness	16000 ANSI lumens
Projection technology	3LCD
Projector native resolution	WUXGA (1920x1200)
Contrast ratio (typical)	2000:1
Native aspect ratio	16:10
Smart projector	N
Number of colours	1.07 billion colours
Projector brightness (economic mode)	11200 ANSI lumens
Colour light output	16000 ANSI lumens
White light output	16000 ANSI lumens
Keystone correction, horizontal	18 °
Keystone correction, vertical	60 °
Matrix size	1.03 "
Heat dissipation	3682 BTU/h
Light source
Light source type	Laser
Service life of light source	20000 uur
Service life of light source (economic mode)	30000 uur
Light source brightness	16000 lm
Lens system
Focus	Auto
Focal length range	varies by lens mm
Zoom capability	Y
Zoom type	Auto
Zoom ratio	1.6:1
Throw ratio	0.35 - 7.41:1
Vertical lens shift range	-60 - 60 procent
Lens position memory	10
Interchangeable lens	Y
Video
Full HD	Y
3D	N
Video processing	10 Bit
Video colour modes	Cinema, Dynamic, Natural, Presentation, DICOM simulation mode, Multi-projection, BT.709

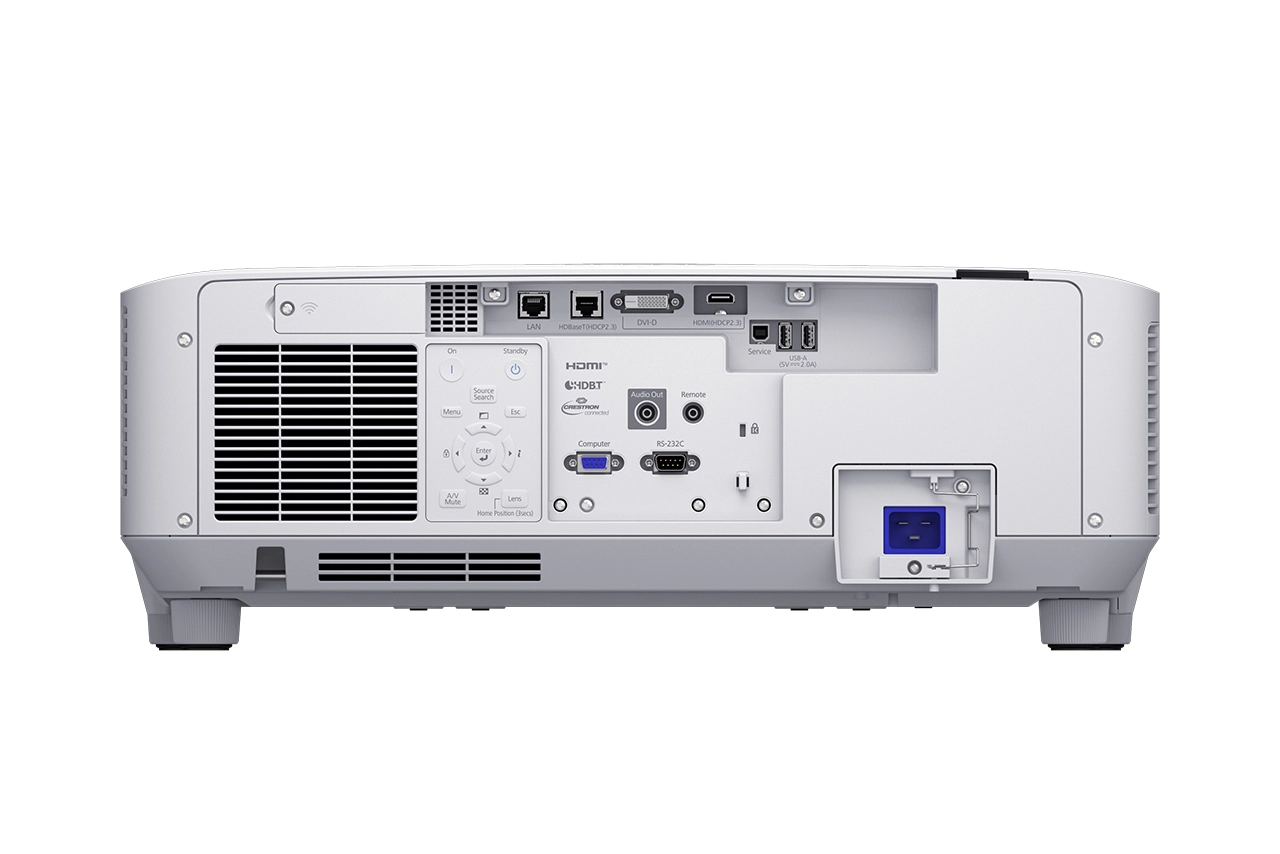

Ports & interfaces
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DVI port	Y
HDBaseT port	Y
USB 2.0 ports quantity	2
Service port type	USB Type-B
USB 2.0 Type-A ports quantity	2
Serial interface type	RS-232C
AC (power) in	Y
Network
Smart TV	N
Ethernet LAN	Y
Wi-Fi	Y
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Storage
Card reader integrated	N
Technical details
On Screen Display (OSD)	Y
Features
Interactive	N
Noise level	38 dB
Noise level (economic mode)	34 dB
Projection modes	Ceiling
High Dynamic Range (HDR) supported	Y
Country of origin	China
Password protection	Y
Multimedia
Built-in speaker(s)	N
Design
Product type	Large venue projector
Product colour	White
Placement	Ceiling, Desktop, Flying frame
Cable lock slot type	Kensington
Cable lock slot	Y
Display
Built-in display	N
Power
Power source	AC
Power consumption (typical)	1083 W
Power consumption (standby)	0.4 W
Power consumption (economy mode)	773 W
AC input voltage	200-240 V
AC input frequency	50 - 60 Hz
Supplier features
Harmonized System (HS) code	85286200
Software
Software support	via: AMX, Crestron (Network), Extron
Operational conditions
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Weight	24300 g
Width	586 mm
Depth	492 mm
Height	218 mm
Packaging content
Handheld remote control	Y
Batteries included	Y
WLAN adapter included	Y
Warranty card	Y
Manual	Y
Cables included	AC
Packaging content	Cable cover, Lens connector cap, Power cable, Remote control incl. batteries, User manual, Warranty document
Bundled software	Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management, Epson Projektor Professional Tool
Logistics data
Quantity per pack	1 stuk(s)
Other features
Supported network protocols	HTTPS, IPv6, SNMP, ESC/VP. net, PJLink
