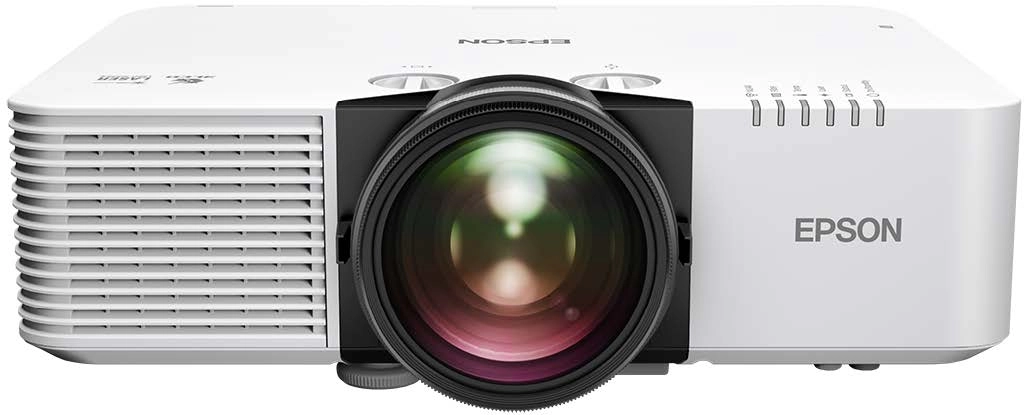

Designed for compact spaces, the EB-L690SU short-throw offers 6, 200 lumens of bright WUXGA resolution, HDR and advanced installation features. It provides up to 30, 000 hours of maintenance-free projection in Eco mode, lens shift, 1.7x zoom and 10W speakers. Ideal for professional applications with flexible control options via HDBaseT, LAN, and wireless.

Spectacular short throw professional projector
Create stunning, shadow-free presentations in compact spaces with a short throw ratio of 0.79–1.36:1, built-in lens shift and WUXGA resolution. Featuring 1.7x optical zoom, corner focus and display sizes up to 400", this high-performance display is ideal for sports simulators, visitor attractions, retail and more. Its compact design, low noise and sleek white chassis deliver bright, vibrant, crystal-clear images, even in well-lit environments, ensuring exceptional visuals.

Flexible installation for professional setups
Designed for easy installation, the EB-L690SU can be quickly configured to deliver optimal performance in any room layout. Features such as lens shift, horizontal and vertical keystone correction, and 360° projection ensure precise image positioning. Options like split-screen capabilities, edge blending, and geometry correction, along with the optional ELPEC01 camera and Epson Projector Professional Tool, provide fast setup and calibration, offering flexibility for complex installations.

Smart control for seamless experience
Enhance usability with NFC for easy large-scale rollouts using the Epson Projector Config Tool. The user-friendly OSD menu simplifies navigation, while Epson’s EPMC cloud monitoring allows effortless remote management. Fully compatible with Crestron XiO Cloud, it offers centralised control, and OTA firmware updates ensure the display remains up-to-date for a seamless experience.

Peace of mind with high durability and support
Engineered for long-lasting performance, the EB-L690SU features fit-and-forget laser technology, backed by a 3-year warranty. It minimises maintenance needs, reduces downtime, and offers peace of mind with Epson’s renowned after-sales support.

Environmentally friendly design
Built with sustainability in mind, our projectors are manufactured using 100% renewable electricity and packaged in 100% recyclable cardboard. With low maintenance and energy consumption and benefits from end-of-life recycling and energy recovery services across Europe.

Stream and share easily
With Apple AirPlay 2 and Miracast connectivity, sharing content is quick and simple - users can wirelessly mirror their device screens to the display for seamless collaboration. The USB-A port also enables PC-free streaming, while additional options like HDBaseT and HDMI daisy-chaining further enhance flexibility.

Specification

Product
Product id	994052
Brand	Epson
Partnr	V11HB31040
EAN/UPC code	8715946738000
Warranty (months)	3 years
Projector
Projector brightness	6200 ANSI lumens
Projection technology	3LCD
Projector native resolution	WUXGA (1920x1200)
Contrast ratio (typical)	5000000:1
Native aspect ratio	16:10
Supported aspect ratios	16:10, 16:6, 21:9
Screen size compatibility	60 - 400 "
Projection distance	1.02 - 11.89 m
Projection distance (wide)	1 - 7 m
Projection distance (tele)	1.8 - 11.9 m
Number of colours	1.07 billion colours
Projector brightness (economic mode)	4340 ANSI lumens
Keystone correction, horizontal	-30 - 30 °
Keystone correction, vertical	-30 - 30 °
Light source
Light source type	Laser
Service life of light source	20000 uur
Service life of light source (economic mode)	30000 uur
Lens system
Focus	Manual
Focal length range	11.6 - 19.9 mm
Aperture range (F-F)	1.7 - 2.1
Zoom capability	Y
Zoom type	Manual
Zoom ratio	1.2:1
Throw ratio	0.79 - 1.36:1
Horizontal lens shift range	-20 - 20 procent
Vertical lens shift range	-50 - 50 procent
Video
Analog signal format system	Not supported
Full HD	Y
3D	N
Video colour modes	Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation
Ports & interfaces
HDMI ports quantity	2
DVI port	N
HDBaseT port	Y
USB 2.0 ports quantity	3
USB 2.0 Type-A ports quantity	2
USB 2.0 Type-B ports quantity	1
Serial interface type	RS-232C
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100 Mbit/s
Wi-Fi	Y
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Miracast	Y
Apple AirPlay 2 support	Y
Storage
Card reader integrated	N
Technical details
On Screen Display (OSD)	Y
Warranty period	3 jaar
Features
Interactive	N
Noise level	34 dB
Noise level (economic mode)	25 dB
HDCP	Y
Preset modes	Cinema, Dynamic, Presentation
HDCP version	2.3
Password protection	Y
Multimedia
Built-in speaker(s)	Y
RMS rated power	10 W
Design
Product type	Short throw projector
Market positioning	Education
Product colour	White
Placement	Ceiling, Desktop
Cable lock slot type	Kensington
Cable lock slot	Y
Display
Built-in display	Y
Display	LCD
Display diagonal	0.67 inch
Power
Power source	AC
Power consumption (typical)	336 W
Power consumption (standby)	0.4 W
Power consumption (max)	399 W
Power consumption (economy mode)	233 W
AC input frequency	50/60 Hz
AC adapter output voltage	100 - 240 V
Operational conditions
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Weight	8900 g
Width	440 mm
Depth	362 mm
Height	151 mm
Packaging content
Handheld remote control	Y
Batteries included	Y
Cables included	Power
Other features
RS-232C	Y
Supported network protocols	HTTPS, SNMP, ESC/VP. net, PJLink
