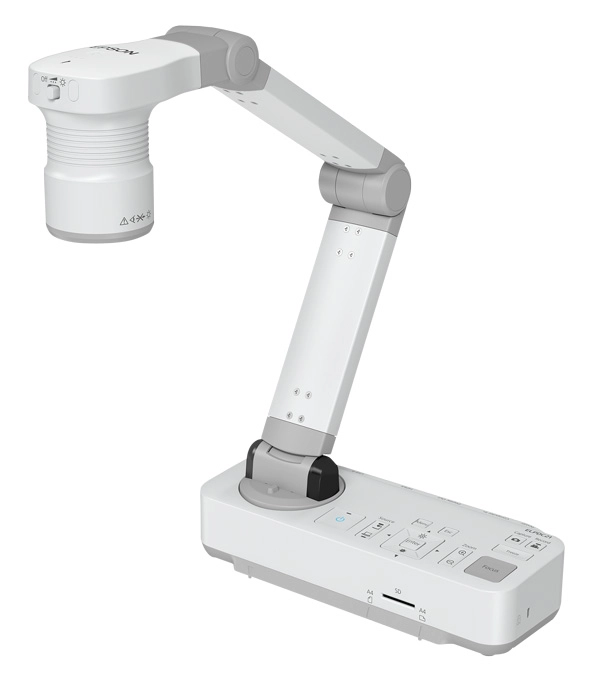

Visualiser - ELPDC13 - Desktop type


Not in stock
€ 542,75
€ 656,72 incl 21% VAT
Bring lessons to life with this user-friendly document camera and share pictures and objects in Full HD on a large screen for the benefit of the whole class. Bursting with a range of clever features and functionality, teachers can create a dynamic environment to enhance student learning. Benefitting from a lightweight and portable design, it is easy to transport between classrooms.

Highlight the finest detail

This document camera is ideal when clear magnification is required, for example when studying historical texts. A 12x optical zoom plus 10x digital zoom and built-in LED light will ensure even intricate detail can be seen. Ideal for science lessons, minute objects can be displayed on a large screen thanks to a microscope attachment.

Display in Full HD

Display images and 3D objects in Full HD with incredible detail for the whole class to see. Thanks to a large A3 shooting area, two full pages from a textbook can be displayed. Smooth video streaming is achieved with impressive clarity and without motion blur at 30 frames per second.

Added flexibility

Live images and video content, including that stored on a SD card, can be output to multiple displays thanks to parallel video output. Thanks to split-screen functionality, teachers can present two pieces of content side-by-side to help highlight teaching points, such as plant and animal growth. Teachers can maintain student engagement by operating the document camera directly from the projected image at the front of the classroom, including starting and stopping video recordings.

Portable and lightweight

A lightweight and portable design and included soft carry case makes it easy to move between classrooms. With a Kensington lock and security bar, schools and education establishments can have added peace of mind when the camera is unattended or not in use.


Product id 535087
Brand Epson
Partnr V12H758040
EAN/UPC code 8715946610122
Warranty (months) 60 months
Effective sensor resolution 2 MP
Optical sensor size 1/2.7 "
Sensor type CMOS
Supported graphics resolutions 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA)
Maximum frame rate 30 fps
White balance Auto
Light exposure modes Auto
Image freeze Y
Light source LED
Lens system
Auto focus Y
Digital zoom 10 x
Shooting area (WxD) 297 x 420 mm
Optical zoom 12 x
Ports & interfaces
Interface USB 1.1
USB connector type USB Type-B
VGA (D-Sub) input ports 1
VGA (D-Sub) output ports 1
DC-in jack Y
Parallel connector Y
Technical details
Document size (max) A3
Product colour Grey, White
Display modes Microscope
Split screen Y
Image formats supported JPG
Zoom capability Y
Image viewer Y
Image quality adjustment Brightness, Contrast
Country of origin Philippines
Focus Auto
Bundled software Easy Interactive Tools, TWAIN-Treiber für Epson Dokumentenkamera (für Windows)
Lamps quantity 2 lampen
Lamp type LED
Built-in microphone Y
Cable lock slot Y
Compatible operating systems Mac OS 10.7. x, Mac OS 10.8. x, Mac OS 10.9. x, Mac OS X, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Cable lock slot type Kensington
Output resolutions SXGA (1280*1024)/XGA (1024*768)/WXGA 16:10 (1280*800)/WXGA 16:9 (1360*768)/1080p (1920*1080), 480p/720p/1080p
Photo effects Black&White
Card reader integrated Y
Compatible memory cards SD
Maximum memory card size 32 GB
Power supply type AC
Power consumption (typical) 13 W
Power consumption (standby) 0.5 W
AC input voltage 100-240 V
AC input frequency 50 - 60 Hz
Weight & dimensions
Width 270 mm
Depth 317 mm
Height 447 mm
Weight 2600 g
System requirements
Windows operating systems supported Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Mac compatibility Y
Mac operating systems supported Mac OS X 10.0 Cheetah, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Packaging content
AC adapter included Y
Manual Y
Carrying case Y
Software CD Y
Cables included AC
Packaging data
Quantity per pack 1 stuk(s)
Package width 235 mm
Package depth 445 mm
Package height 173 mm
Package weight 4840 g
Logistics data
Quantity per pallet 66 stuk(s)
Pallet width (UK) 1000 mm
Pallet length (UK) 1200 mm
Quantity per pallet (UK) 110 stuk(s)
Quantity per pallet layer (UK) 10 stuk(s)
Quantity per pallet layer 6 stuk(s)
Pallet height 2680 mm
Pallet width 800 mm
Pallet length 1200 mm
Pallet height (UK) 2680 mm
