USB Port Replicator PR09


Fujitsu Technology Solutions
Sold out
The new FUJITSU USB Port Replicator PR09 is the perfect solution for shared desk environments within a hyperconnected world. It connects your mobile system to your main peripherals with a single USB plug. This Port Replicator is equipped with the most powerful DisplayLink chipset supporting high performance video streaming with Dualhead-DisplayPort.
Highest data throughput is guaranteed due to an USB Type-C based Gen2 Hub-Controller enabling up to 10Gbit/s data streaming. The newest version of USB Power Delivery chipset (PD3.0) provides powerful charging during your workday.


Product id 596351
Brand Fujitsu Technology Solutions
Partnr S26391-F6007-L500
EAN/UPC code 4057185642316

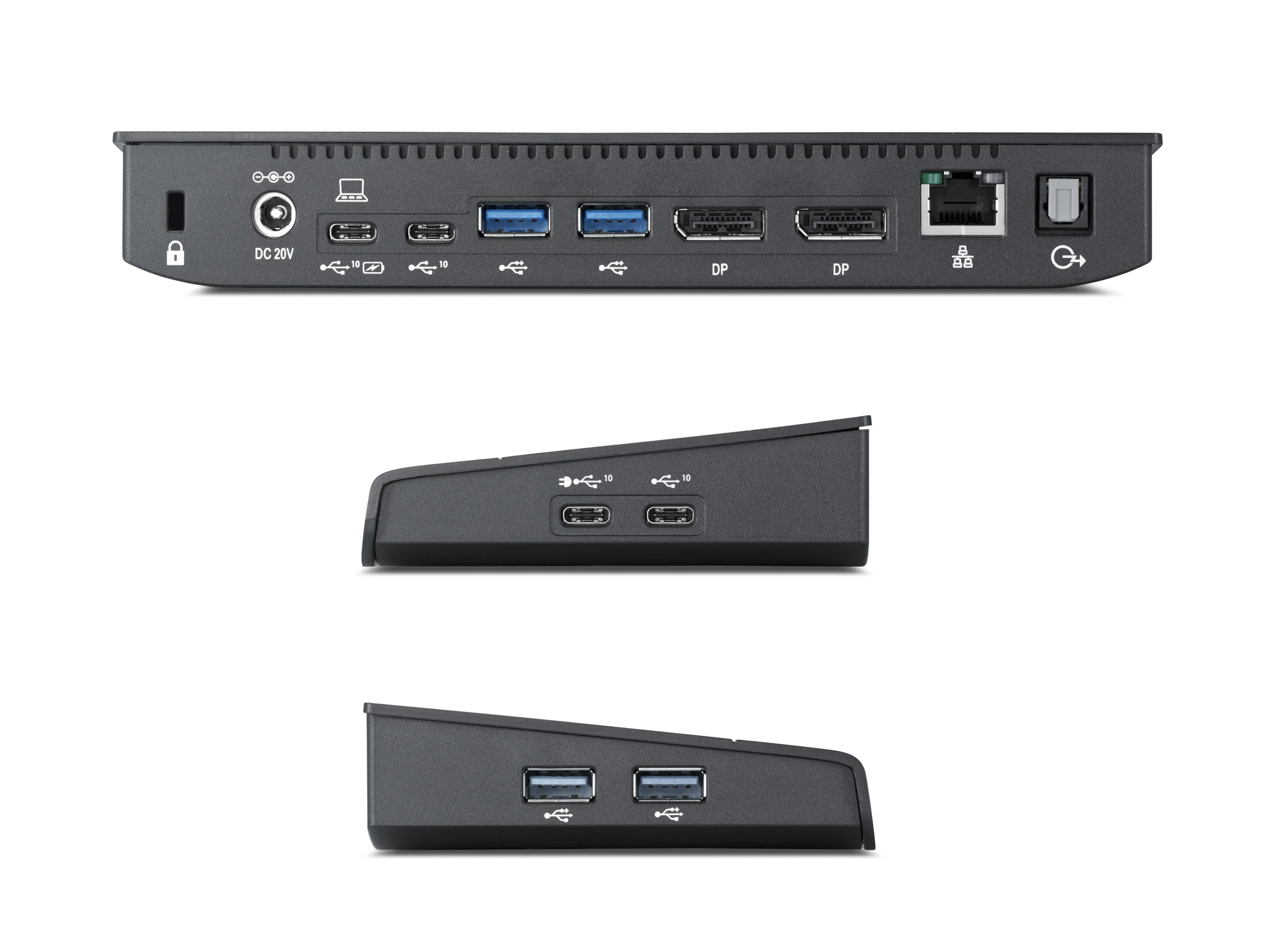

Ports & interfaces
Connectivity technology Wired
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 4
DisplayPorts quantity 2
S/PDIF out port Y
DC-in jack Y
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10, 100, 1000 Mbit/s
Product colour Black
Card reader integrated N
Cable lock slot Y
Cable lock slot type Kensington
Brand compatibility Fujitsu
LED indicators Y
Power source type AC, DC
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power supply type External
Output current 6 A
Output voltage 20 V
Power consumption (max) 120 W
Power consumption (typical) 82 W
Windows operating systems supported Y
Weight & dimensions
Width 200 mm
Depth 97.6 mm
Height 29 mm
Weight 340 g
Packaging content
Quick start guide Y
AC adapter included Y
Cables included AC, USB Type-C
Operational conditions
Operating temperature (T-T) 5 - 35 °C
Storage temperature (T-T) 5 - 45 °C
Operating relative humidity (H-H) 10 - 85 procent
Technical details
Sustainability certificates RoHS
