High Quality 100% Japanese Capacitors
All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

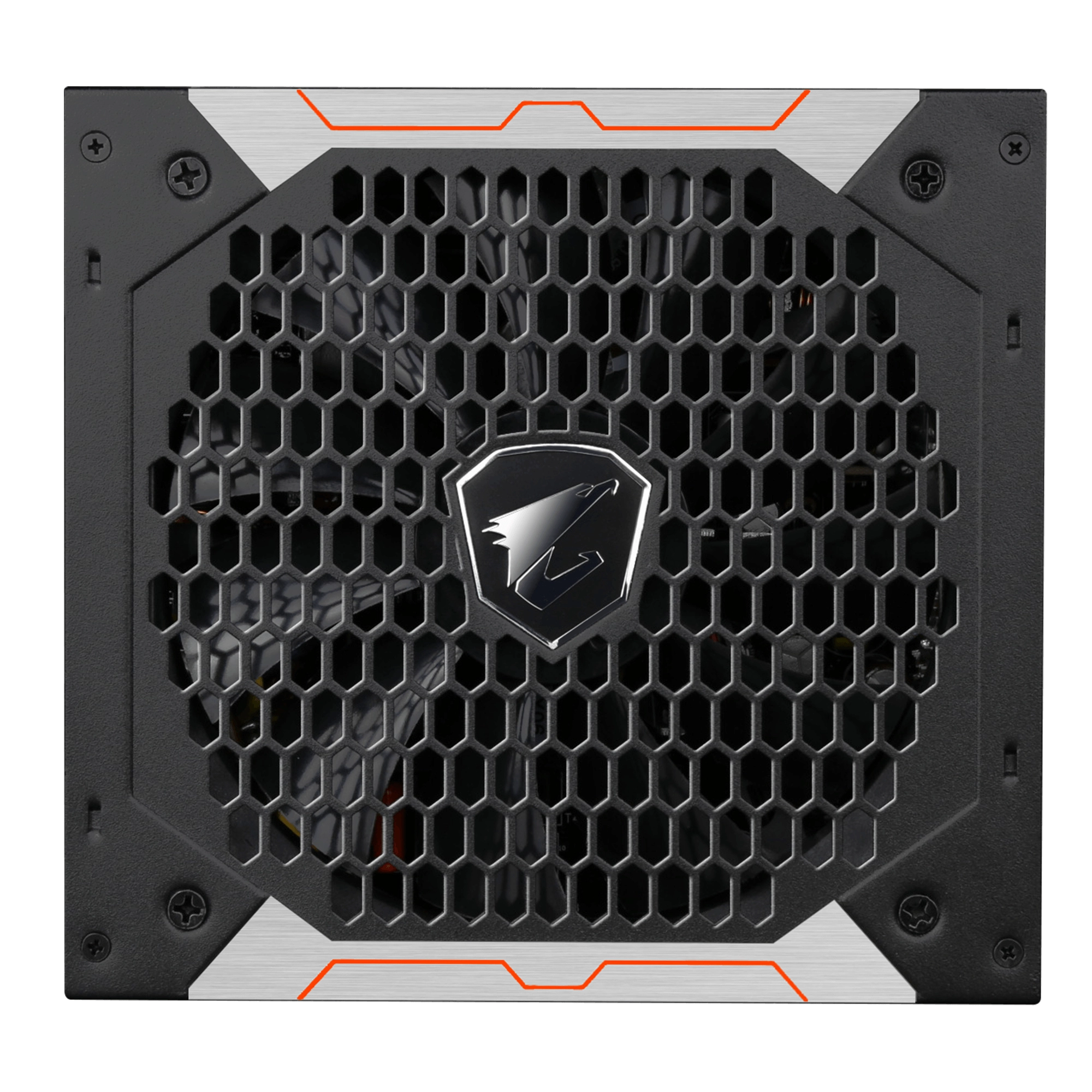

135mm Smart Fan
Fan speed will be adjusted according to the system load. And the fan will stop when the system is idle or under low load (less than 20% load). The 2 ball bearing structure provides longer life time.

2 ball bearing is the most durable fan construction with a durability of over 50, 000 hours. The life of the 2 ball bearing is more than 5 years.

80 Plus Gold Certified
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

Single +12V Rail
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

Protection
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

Specification

Product
Product id	1011200
Brand	Gigabyte
Partnr	28200-AP85GM-1EUR
EAN/UPC code	4719331550912
Endurance
Mean time between failures (MTBF)	100000 uur
Power
Total power	850 W
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Input current	10 A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	846 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	70.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power Good signal delay range	100 - 150 ms
Efficiency	90 procent
Hold time	16 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

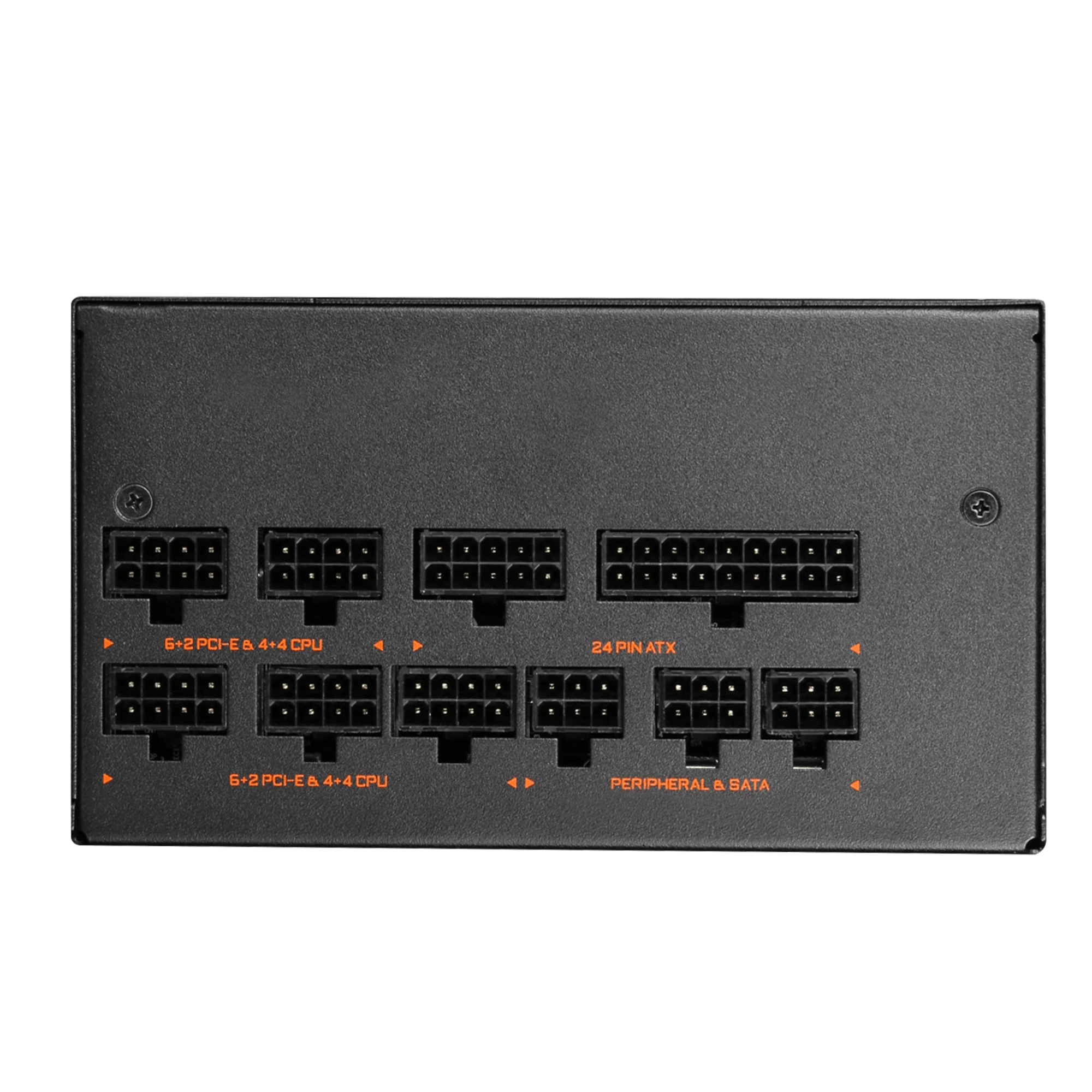

Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	650 mm
Number of SATA power connectors	6
SATA power cable length	450, 550, 650, 750 mm
Peripheral (Molex) power connectors (4-pin)	6
EPS power connector (8-pin)	Y
PCI Express power connectors (6+2 pin)	6
CPU power connector (4+4 pin)	Y
ATX power connector (20+4 pin)	Y
Floppy disk drive connector	Y
Floppy drive power connector	2
PCI Express connector	Y
Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	2.31
Design
Product colour	Black
Fan diameter	135 mm
Number of fans	1 ventilator(en)
Fan location	Top

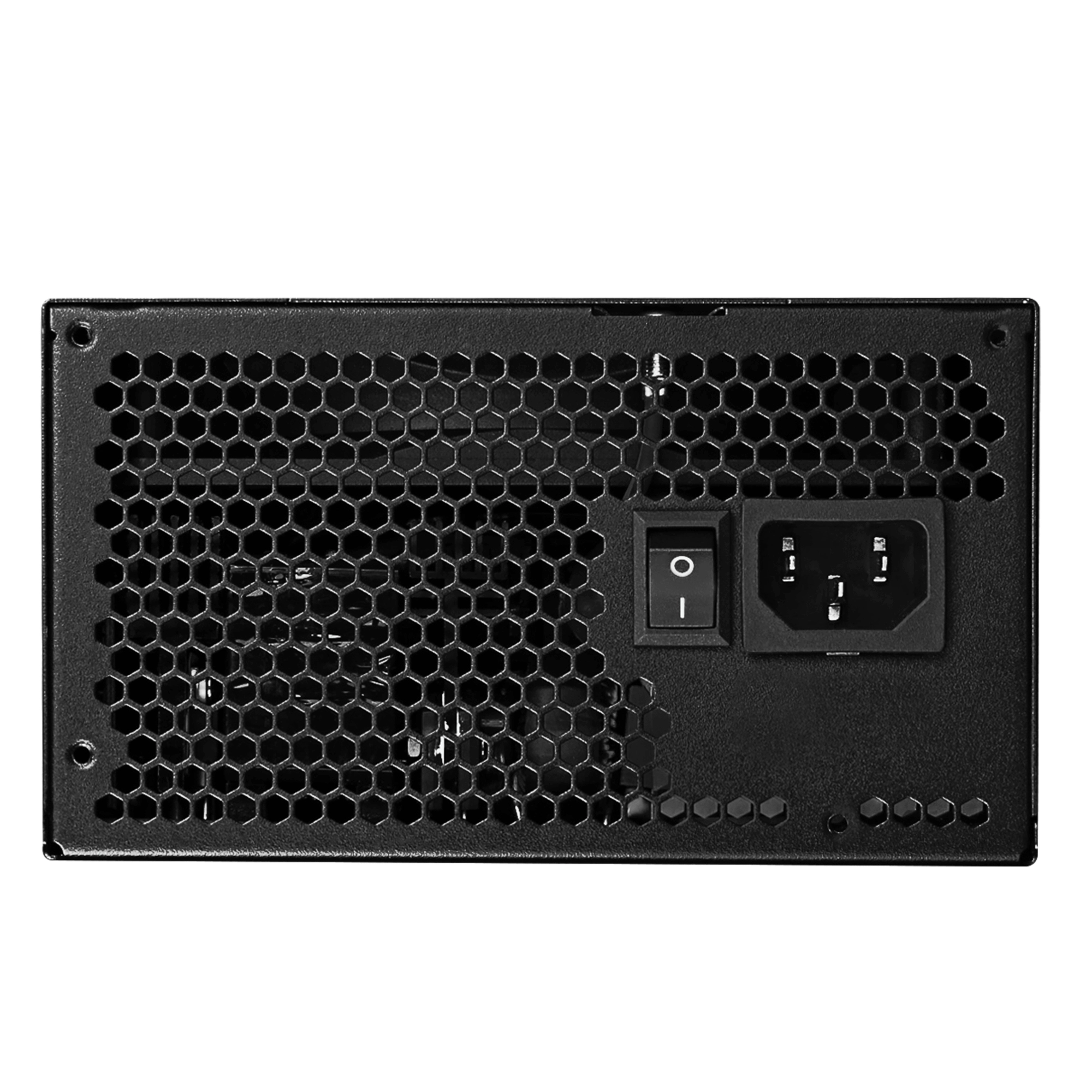

On/off switch	Y
Weight & dimensions
Width	150 mm
Depth	160 mm
Height	86 mm
Packaging data
Package type	Box
Other features
Harmonized System (HS) code	84733020
