2nd Generation Intel® Xeon® Scalable Family Ready
GIGABYTE’s servers are fully ready to support the second generation of Intel® Xeon® Scalable Family processors, codenamed “Cascade Lake”, which bring the following major enhancements:

Intel® Optane™ Persistent Memory: Built-in support for this revolutionary new product based on Intel’s 3D Xpoint technology
Overall Performance: Higher CPU frequencies, improved turbo profiles vs. prior-gen Intel Xeon Scalable processors
Increased DDR4 Memory Speed & Capacity: Up to 2933MHz (1 DIMM per channel on some SKUs), 16Gb based DIMM supported
Intel Deep Learning Boost: Significantly accelerates inference performance for deep learning workloads optimized to use VNNI (Vector Neural Network Instructions)
Security: Hardware mitigations for Meltdown / Spectre security vulnerabilities

Intel® Xeon® Scalable Family Processors
GIGABYTE’s Intel® Xeon® Scalable Processor family servers are available in dual socket configurations, and are compatible with the full family* of different SKUs (Bronze, Silver, Gold and Platinum) that are workload optimized to support different applications, from enterprise IT database, cloud and storage to the most high-demand HPC workloads.

Intel® Optane™ Persistent Memory Ready
GIGABYTE’s second generation Intel® Xeon® Scalable family servers come ready to support Intel® Optane™ Persistent Memory, a revolutionary new product that re-defines traditional memory & storage architectures by enabling a large persistent memory tier between DRAM and SSDs, that’s higher capacity than DRAM and faster than SSDs, enabling the user to bring more data closer to the CPU for faster time for insight.

Optane Persistent Memory Modules (“PMem”) integrate seamlessly into existing DDR4 DIMM slots, and use Intel’s 3D Xpoint memory technology, which unlike DRAM retains data after power is removed. The modules will be available in capacities up to 512GB – a massive increase compared to the current maximum 128GB of industry-leading DDR4 memory sticks – and can be addressed by the OS or application either as memory (Memory Mode) or storage (Application Direct Mode).

Specification

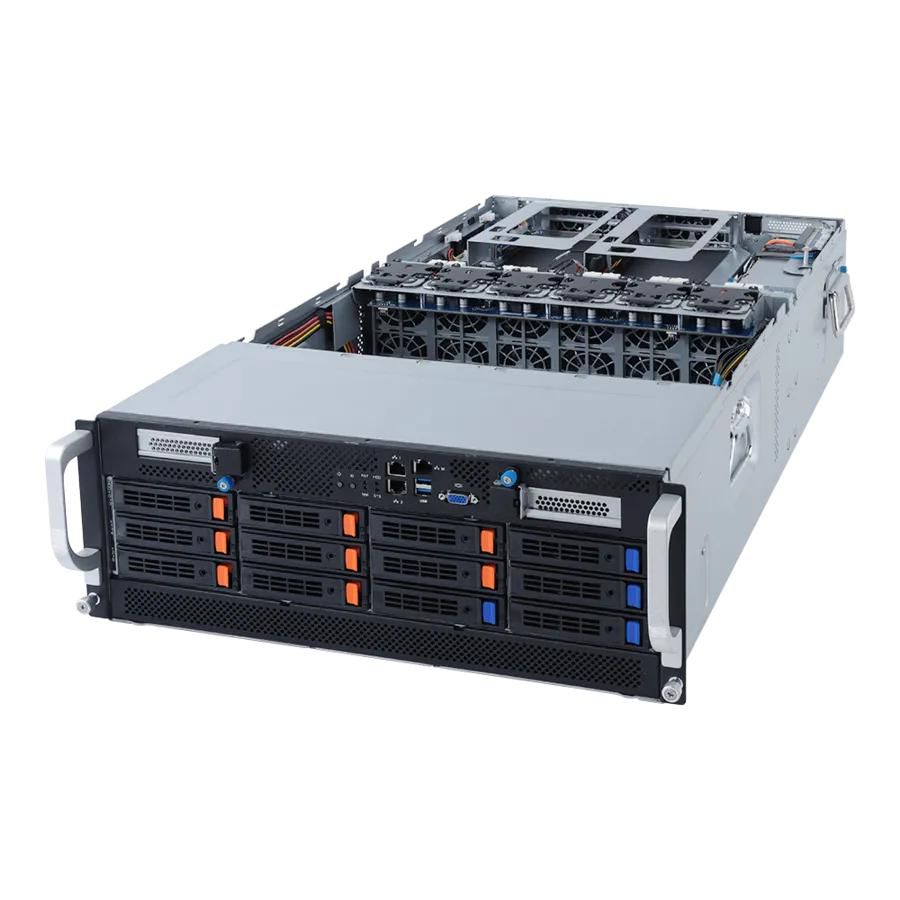

Product
Product id	841095
Brand	Gigabyte
Partnr	6NG492Z51MR-00
EAN/UPC code	4719331600402
Processor
Processor socket	LGA 3647 (Socket P)
Processor manufacturer	Intel
Processor family	Intel Xeon
Number of processors supported	2
Memory
Number of DIMM slots	32
Supported memory types	DDR4-SDRAM
Supported RDIMM clock speeds	2933, 3200 MHz
Supported UDIMM clock speeds	3200 MHz
Storage
Number of storage drives supported	12
Hot-swap HDD bays	Y
Number of 3.5" bays	12
Storage drive sizes supported	3.5 "
Supported storage drive interfaces	Serial ATA III, Serial Attached SCSI (SAS)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	3
VGA (D-Sub) ports quantity	1
Expansion slots
PCI Express x16 slots	13
Features
Compatible operating systems	Windows Server 2016 (X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) or later Red Hat Enterprise Linux 8.0 ( x64) or later Red Hat Enterprise Linux 9.0 (x64) or later SUSE Linux Enterprise Server 12 SP4 ( x64) or later SUSE Linux Enterprise Server 15 SP1 ( x64) or later Ubuntu 16.04.6 LTS (x64) or later Ubuntu 18.04.3 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.5 EP15 or later VMware ESXi 6.7 Update3 or later VMware ESXi 7.0 or later VMware ESXi 8.0 or later Citrix Hypervisor 8.1.0 or later
Design
Number of fans	16 ventilator(en)
Power
Power supply	2200 W
Number of main power supplies	3
Redundant power supply (RPS) support	Y
Number of redundant power supplies supported	3
Number of redundant power supplies installed	3
AC input voltage	200 - 240 V
DC output current (+12 V)	178 A
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 35 procent
Storage relative humidity (H-H)	20 - 95 procent
Weight & dimensions
Width	448 mm
Depth	880 mm
Height	176 mm
Packaging data
Package width	1109 mm
Package depth	609 mm
Package height	606 mm
