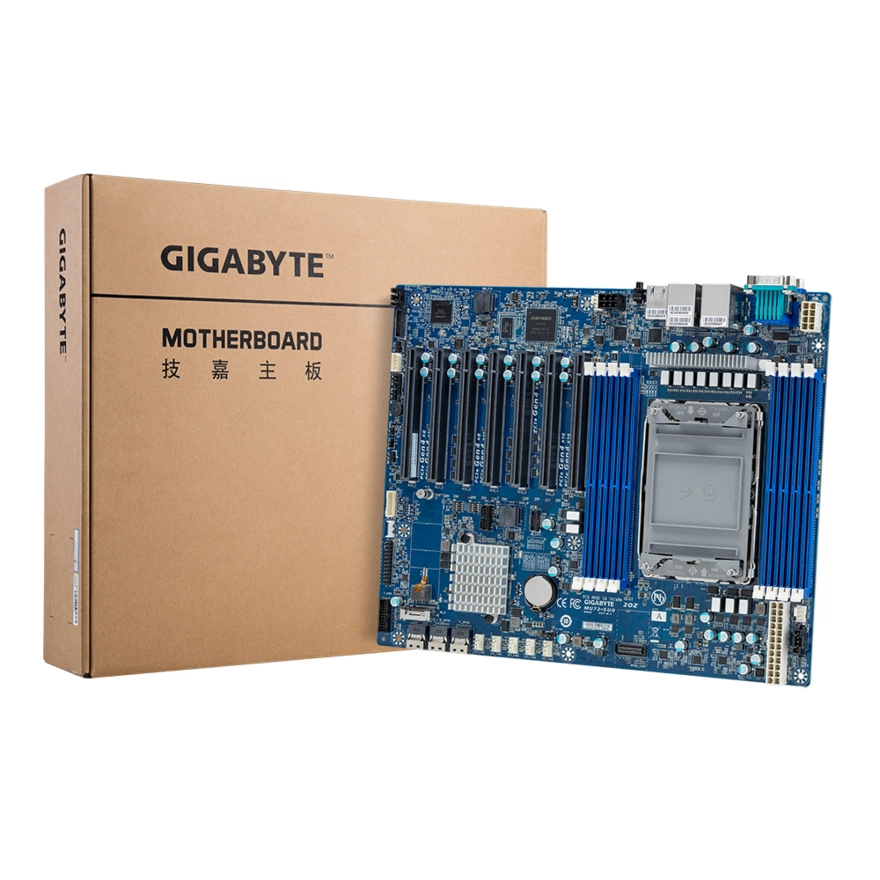

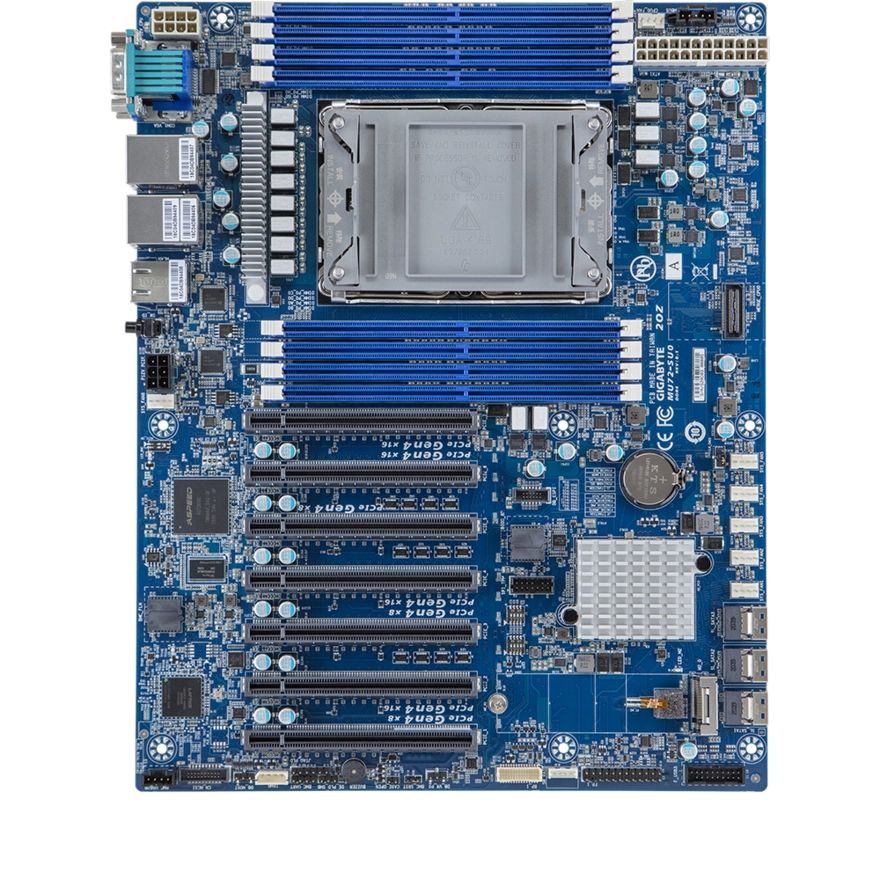

3rd Gen Intel® Xeon Scalable Processors – “Ice Lake”
GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data center with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimized, memory configurations.

Specification

Product
Product id	816398
Brand	Gigabyte
Partnr	9MU72SU0MR-00
EAN/UPC code	4719331822934
Processor
Processor manufacturer	Intel
Processor socket	LGA 4189
Compatible processor series	Intel Xeon W
Intel Xeon series	W3300
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	8
ECC сompatibility	ECC
Supported memory clock speeds	2666, 2933, 3200 MHz
Maximum internal memory	128 GB
Supported memory clock speed (max)	3200 MHz
Storage controllers
Supported storage drive interfaces	SATA III
Number of HDDs supported	12
Number of storage drives supported	13
RAID levels	0, 1, 5, 10
RAID support	Y
Graphics
On-board graphics adapter model	Aspeed AST2600
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	12
Total number of SATA connectors	12
CD/AUX audio in	N
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	N
Chassis intrusion connector	Y
EPS power connector (8-pin)	Y
Serial port headers	1
Parallel connector	N
TPM connector	Y
Number of COM connectors	N

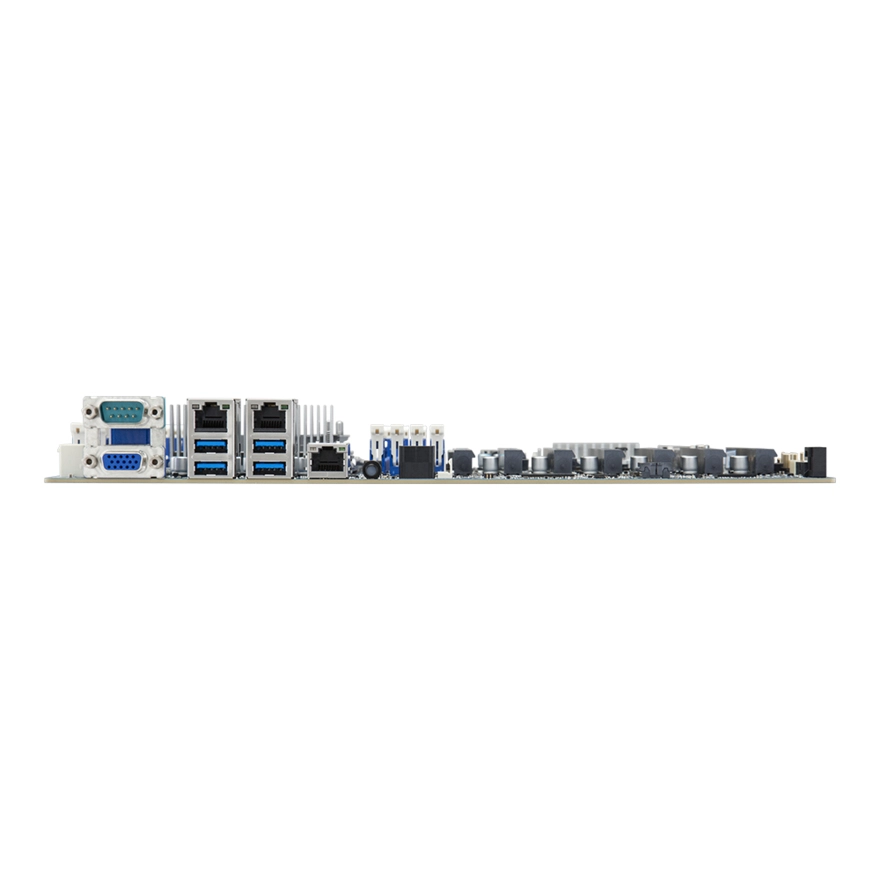

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	2
PS/2 ports quantity	1
VGA (D-Sub) ports quantity	1
Microphone in	N
Serial ports quantity	1
Network
Ethernet LAN	Y
Ethernet interface type	Gigabit Ethernet
Wi-Fi	N
Features
Component for	Server
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel C621A
Expansion slots
PCI Express x4 slots	1
PCI Express x4 (Gen 2. x) slots	1
PCI Express x16 (Gen 3. x) slots	1
Number of M.2 (M) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	3.0
BIOS
Clear CMOS button	N
Processor special features
Trusted Platform Module (TPM)	Y
Operational conditions
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	8 - 80 procent
Storage relative humidity (H-H)	20 - 95 procent
Packaging data
Package width	360 mm
Package depth	330 mm
Package height	80 mm
Weight & dimensions
Width	304 mm
Depth	244 mm
Packaging content
Cables included	SATA
User guide	Y
Other features
PCI Express x8 (Gen 3. x) slots	1
Supported LRDIMM clock speeds	1600, 1866, 2133 MHz
Maximum LRDIMM memory	128 GB
Azalia Digital Header (ADH) connector	N
Number of processors supported	1
CF card connector	N
Number of DIMM slots	12
