Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specification

Product
Product id	985854
Brand	Gigabyte
Partnr	A520M K V2
EAN/UPC code	4719331852771
Warranty (months)	3 years
Processor
Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Supported processor sockets	Socket AM4
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & non-ECC
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4800, 5100 MHz
Maximum internal memory	64 GB
Supported memory clock speed (max)	5100 MHz
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	5
RAID levels	0, 1, 10
RAID support	Y
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 Pixels
HDCP	Y
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Y
Front panel connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Chassis intrusion connector	Y
EPS power connector (8-pin)	Y
TPM connector	Y
12V power connector	Y

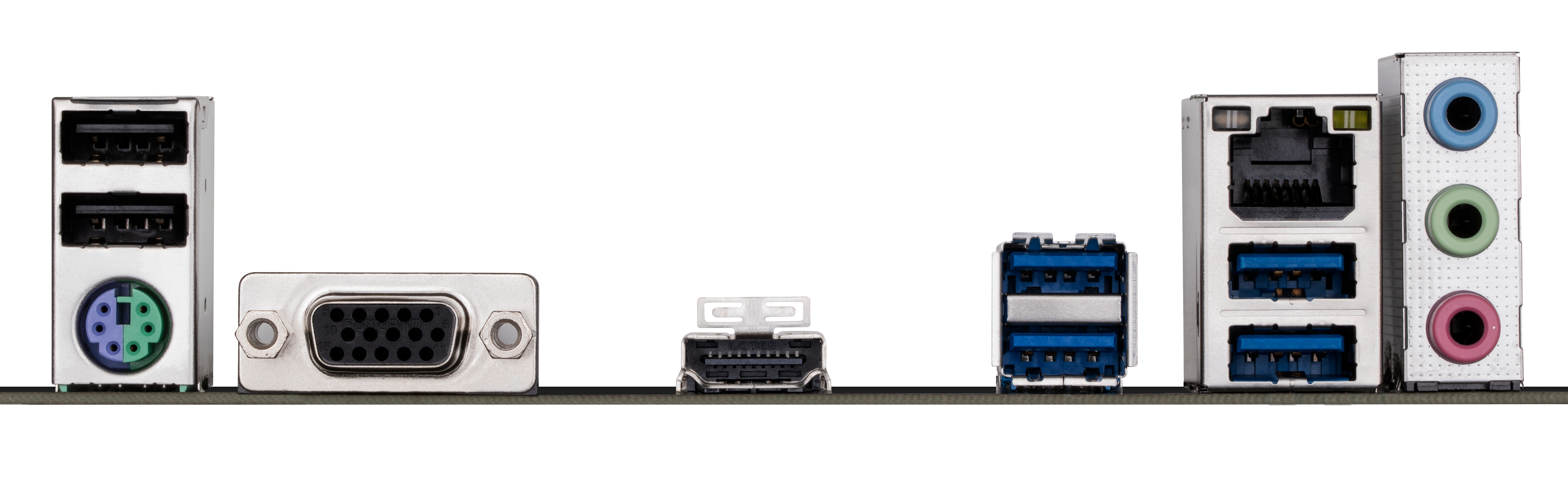

Rear panel I/O ports
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	3
Microphone in	Y
USB connector type	USB Type-A
Network
Ethernet LAN	Y
Ethernet interface type	Gigabit Ethernet
Wi-Fi	N
Features
Component for	PC
Motherboard form factor	Micro ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
Audio output channels	7.1 kanalen
PC health monitoring	FAN, Temperature, Voltage
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 slots	1
PCI Express x16 slots	1
Number of M.2 (M) slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
ACPI version	5.0
Clear CMOS jumper	Y
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Packaging data
Package width	265 mm
Package depth	235 mm
Package height	52 mm
Battery
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Logistics data
Country of origin	China
Quantity per shipping (inner) case	1 stuk(s)
Weight & dimensions
Width	233 mm
Depth	198 mm
Height	35 mm
Packaging content
Cables included	SATA
Batteries included	Y
Bundled software	Norton Internet Security
Technical details
Warranty period	3 jaar
Other features
Package weight	675 g
