Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specification

Product
Product id	686663
Brand	Gigabyte
Partnr	B550M DS3H
EAN/UPC code	4719331809416
Warranty (months)	3 years
Processor
Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processor series	AMD Ryzen 3000 Series
Maximum number of SMP processors	1
Supported processor sockets	Socket AM4
Maximum internal memory supported by processor	128 GB
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & non-ECC
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3333, 3600, 4000, 4400, 4600, 4733 MHz
Maximum internal memory	128 GB
Supported memory clock speed (max)	4733 MHz
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III
Number of HDDs supported	4
Number of storage drives supported	6
RAID levels	0, 1, 10
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 Pixels
HDCP	Y
DirectX version	12.0
Discrete graphics support	Y
Internal I/O
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Total number of SATA connectors	4
Front panel audio connector	Y
Front panel connector	Y
ATX Power connector (24-pin)	Y
Power fan connector	Y
CPU fan connector	Y
Number of chassis fan connectors	2
EPS power connector (8-pin)	Y
Serial port headers	1
TPM connector	Y
12V power connector	Y
RGB LED pin header	Y

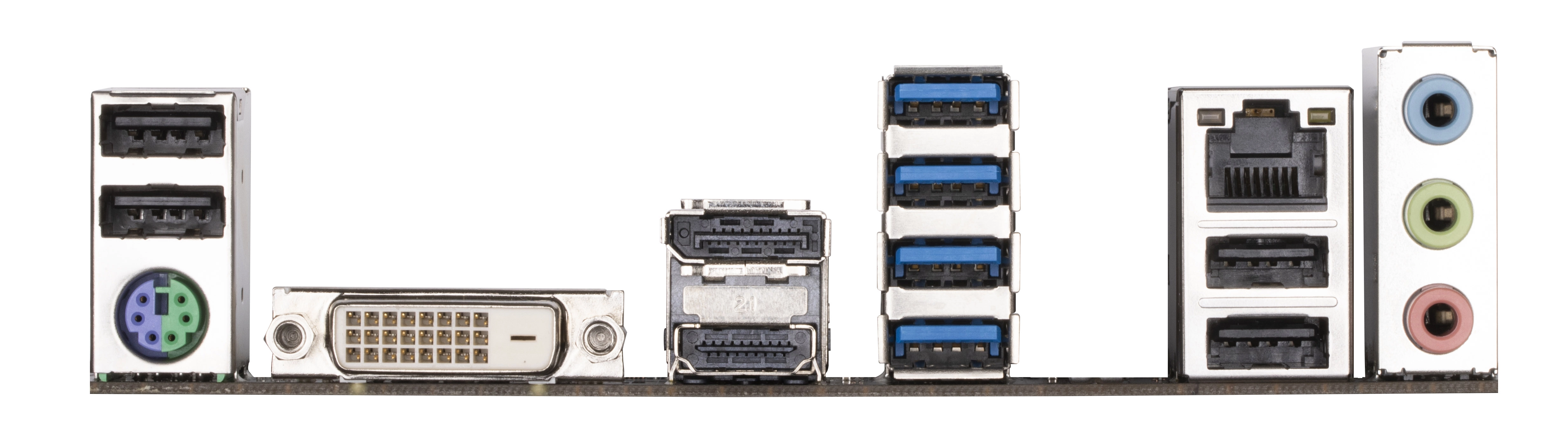

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DVI-D ports quantity	1
Headphone outputs	1
Microphone in	Y
USB connector type	USB Type-A
Network
Ethernet LAN	Y
Ethernet interface type	Gigabit Ethernet
Wi-Fi	N
Features
Component for	PC
Motherboard form factor	Micro ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Audio chip	Realtek ALC887
Audio output channels	7.1 kanalen
PC health monitoring	FAN, Temperature, Voltage
Product colour	Brown
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Harmonized System (HS) code	84733020
Expansion slots
PCI Express x1 (Gen 3. x) slots	1
PCI Express x16 slots	2
PCI Express x16 (Gen 4. x) slots	1
Number of M.2 (M) slots	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Y
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Packaging data
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Battery
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Logistics data
Country of origin	China
Quantity per shipping (inner) case	1 stuk(s)
Weight & dimensions
Width	244 mm
Depth	244 mm
Height	35 mm
Packaging content
Cables included	SATA
Batteries included	Y
Drivers included	Y
Bundled software	Norton Internet Security (OEM) Realtek 8118 Gaming LAN Bandwidth Control Utility
Technical details
Warranty period	3 jaar
Other features
Weight	630 g
Package weight	927 g
