16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
Equipped with two PCIe 16pin to PCIe 16pin connectors, it supports up to two high-end graphics cards simultaneously, providing each card with a robust 600W power supply to meet demanding high-performance computing needs. Additionally, it features two two 8pin to PCIe 16pin connectors, enabling simultaneous support for four PCIe Gen 5.0 graphics cards, with each card receiving an independent 300W power supply to fully satisfy multi-card computing requirements.

Specification

Product
Product id	1010082
Brand	Gigabyte
Partnr	GP-UD1600PM PG5
EAN/UPC code	4719331555047
Warranty (months)	24 months
Endurance
Mean time between failures (MTBF)	100000 uur
Power
Total power	1600 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	15 - 7.5 A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	150 W
Combined power (+12V)	1600 W
Combined power (+5V)	150 W
Combined power (-12V)	9.6 W
Combined power (+5Vsb)	17.5 W
Max output current (+3.3V)	30 A
Max output current (+12V)	133.3 A
Max output current (+5V)	30 A
Max output current (-12V)	0.8 A
Max output current (+5Vsb)	3.5 A
Power Good signal delay range	100 - 150 ms
Efficiency	92 procent
Hold time	16 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

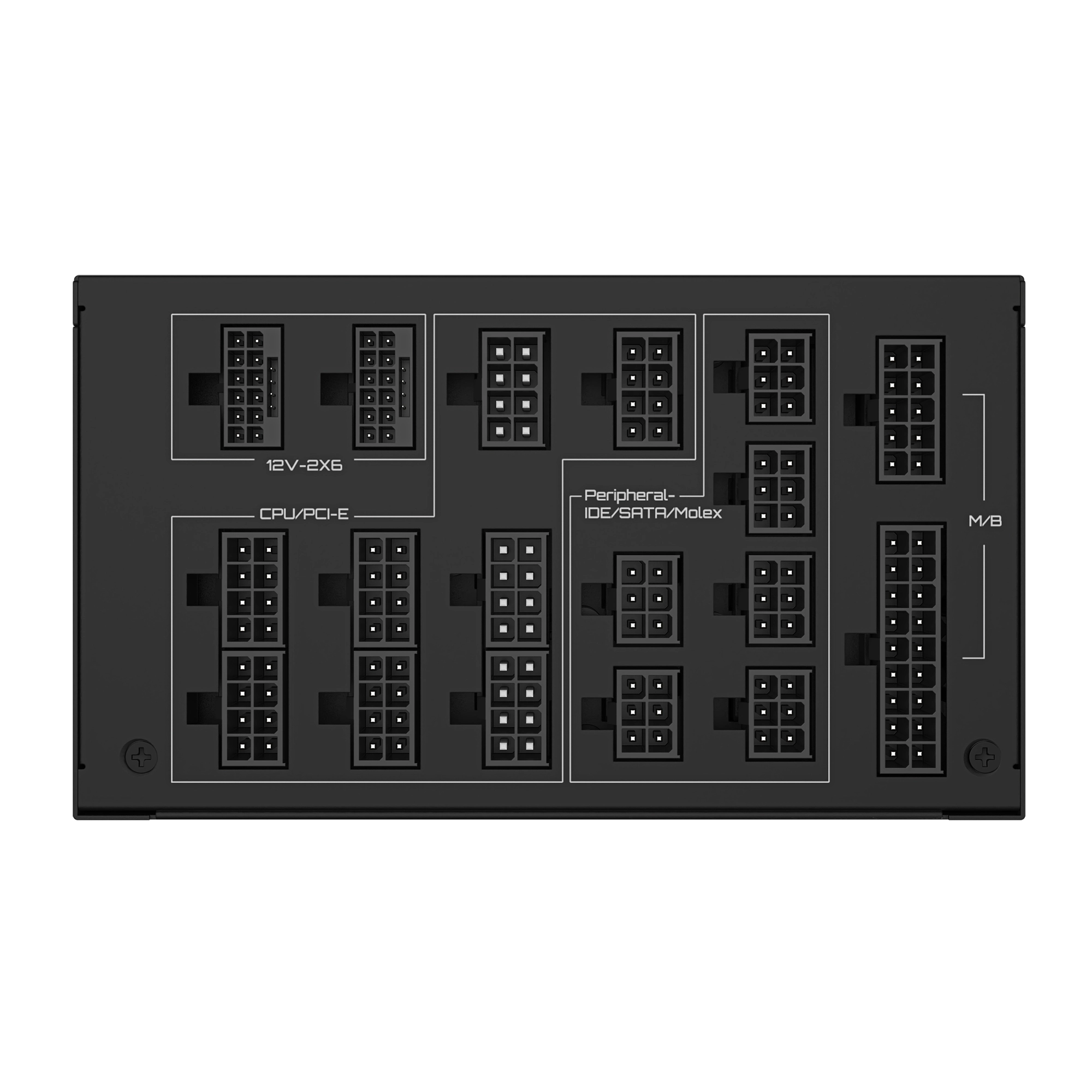

Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	610 mm
Number of SATA power connectors	16
SATA power cable length	150, 650 mm
Peripheral (Molex) power connectors (4-pin)	6
EPS power connector (4+4 pin)	Y
PCI Express power connectors (6+2 pin)	8
CPU power connector (4+4 pin)	Y
ATX power connector (20+4 pin)	Y
PCI Express connector	Y
Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
ATX version	3.1
Bearing technology	DBB
Design
Product colour	Black
Cooling type	Active

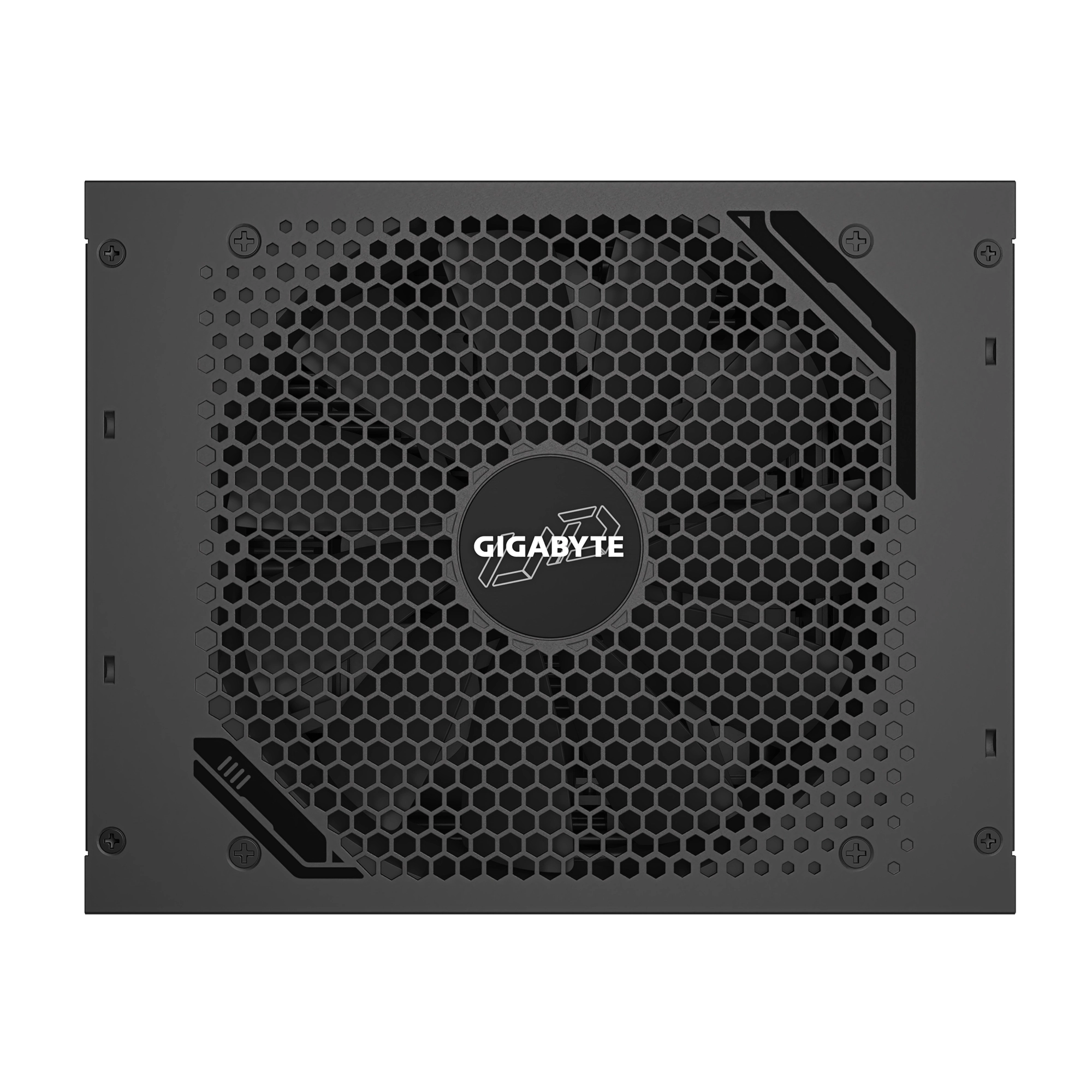

Fan diameter	120 mm
Number of fans	1 ventilator(en)
Fan location	Top

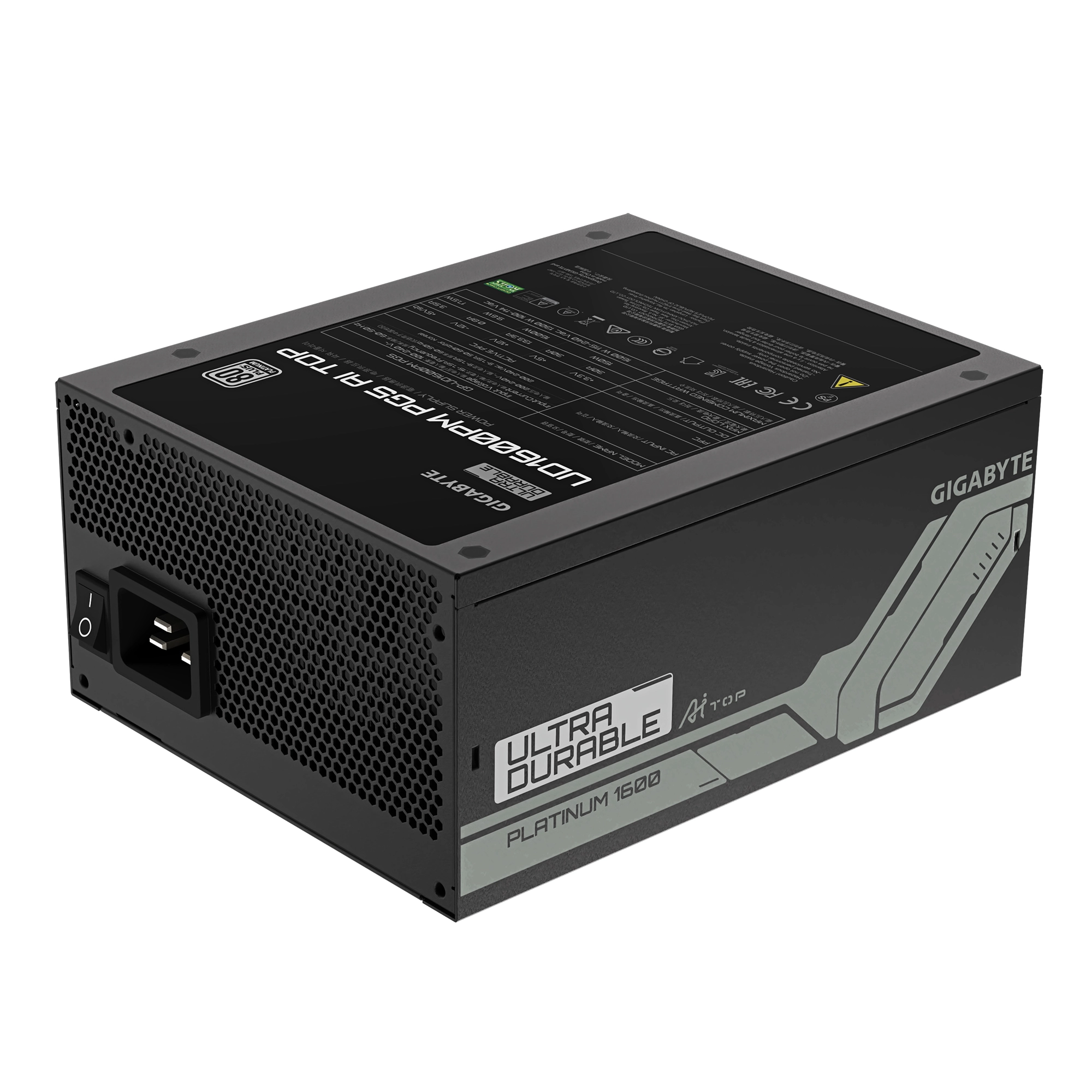

On/off switch	Y
Technical details
Warranty period	10 jaar
Weight & dimensions
Width	150 mm
Depth	190 mm
Height	86 mm
Weight	5300 g

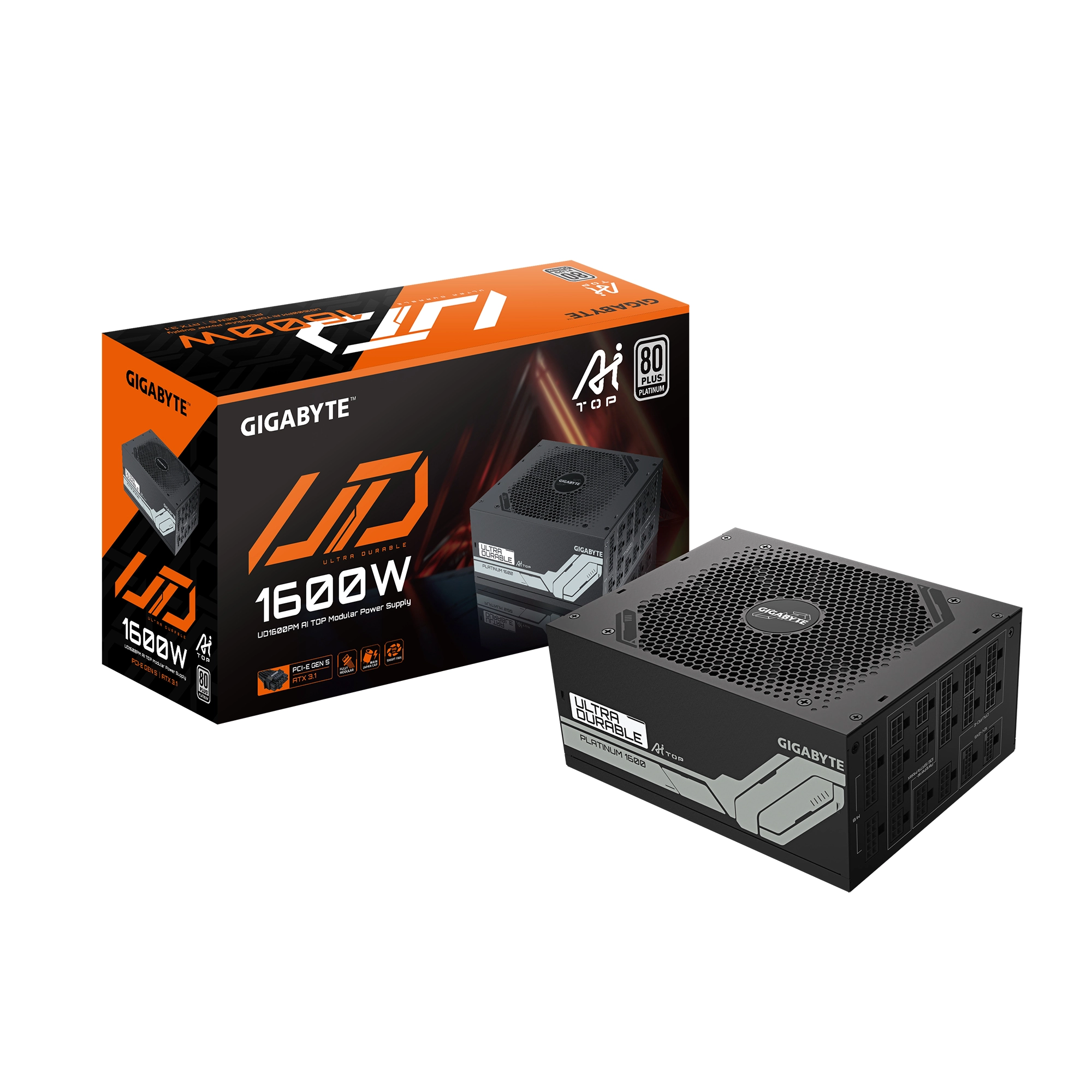

Packaging data
Package width	410 mm
Package depth	219 mm
Package height	145 mm
Package weight	5575 g
Package type	Box
