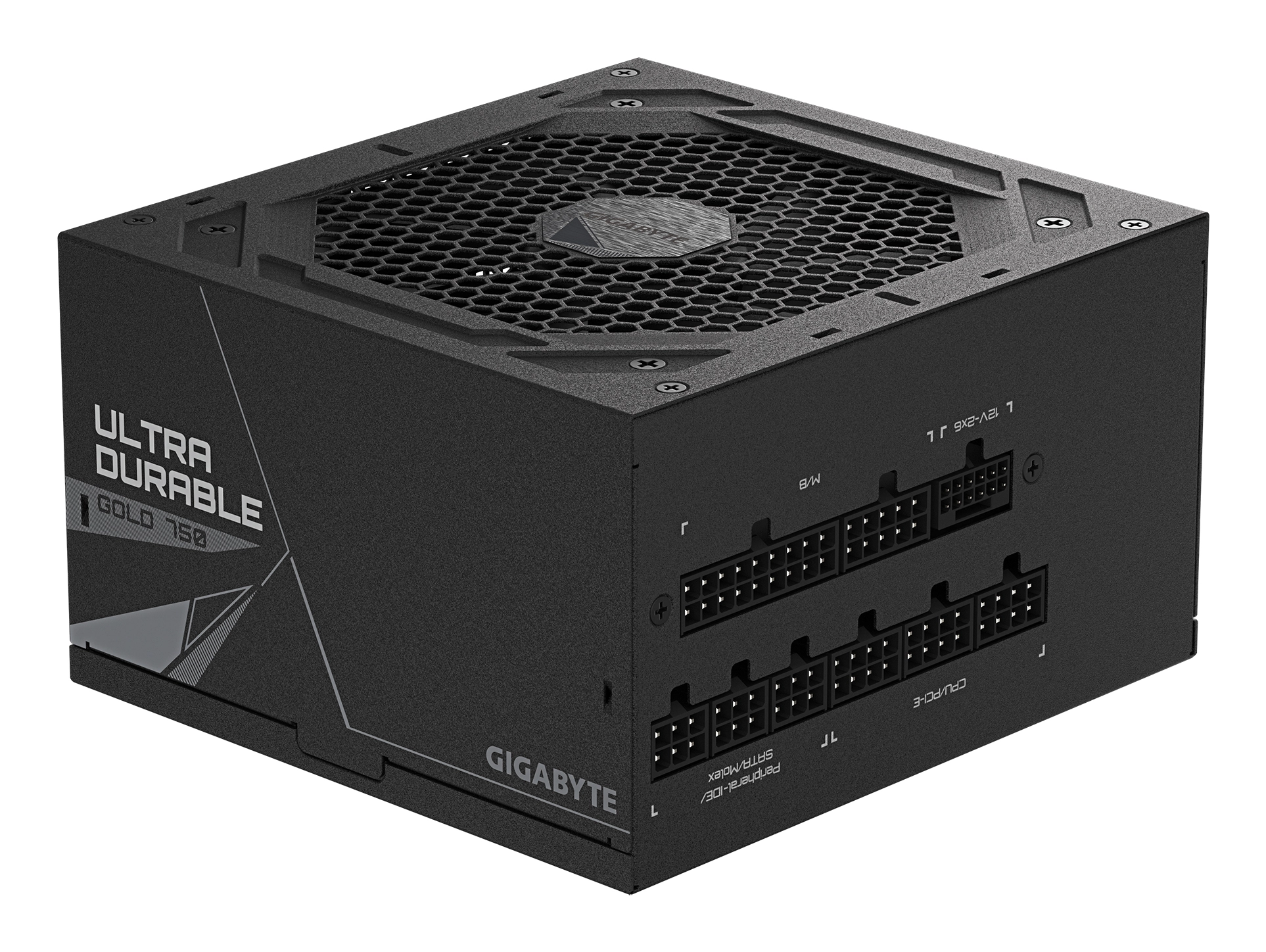

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

Specification

Product
Product id	1010221
Brand	Gigabyte
Partnr	GP-UD750GM PG5 V2
EAN/UPC code	4719331555870
Warranty (months)	5 years
Endurance
Mean time between failures (MTBF)	100000 uur

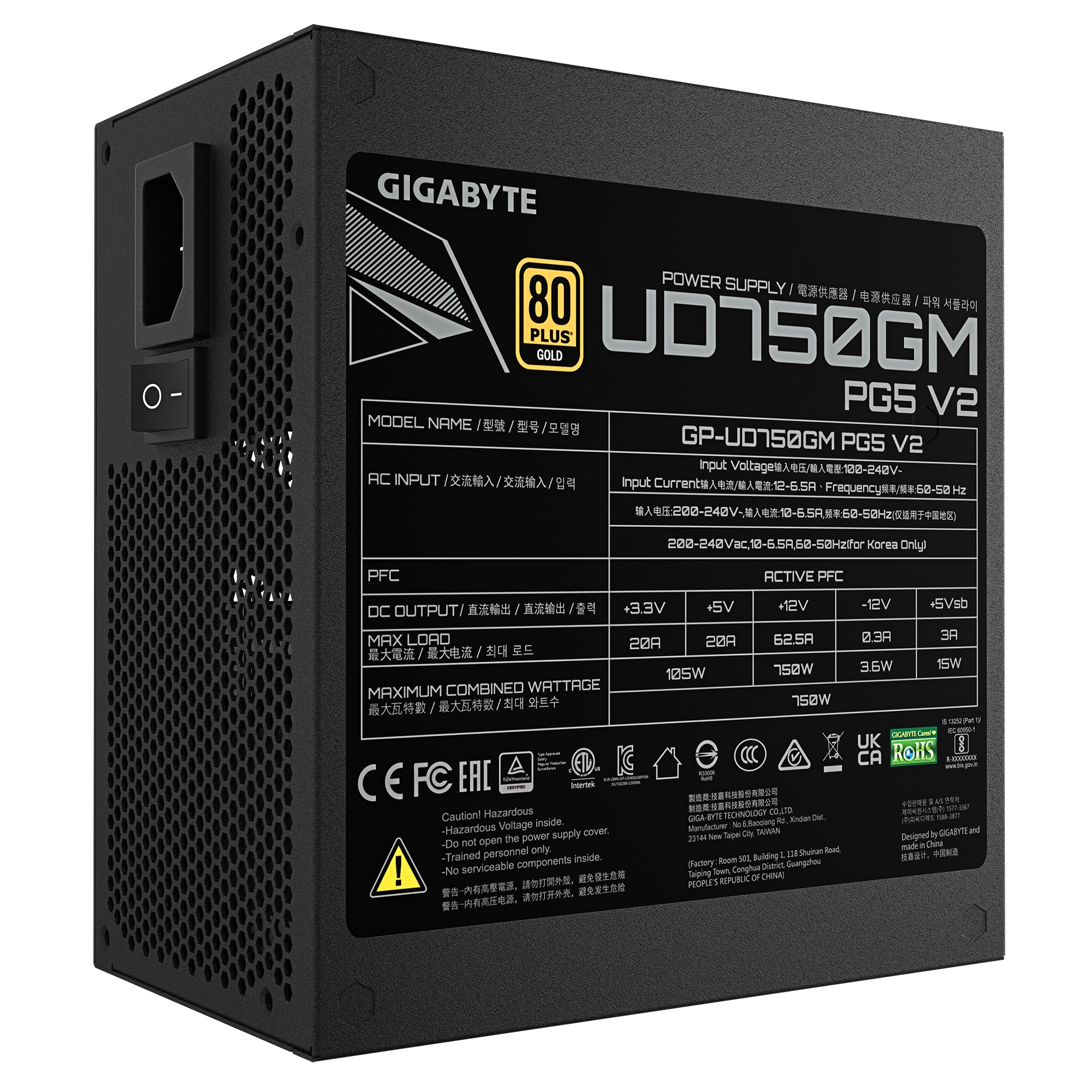

Power
Total power	750 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	12 - 6.5 A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	105 W
Combined power (+12V)	750 W
Combined power (+5V)	105 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Efficiency	90 procent
Hold time	16 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

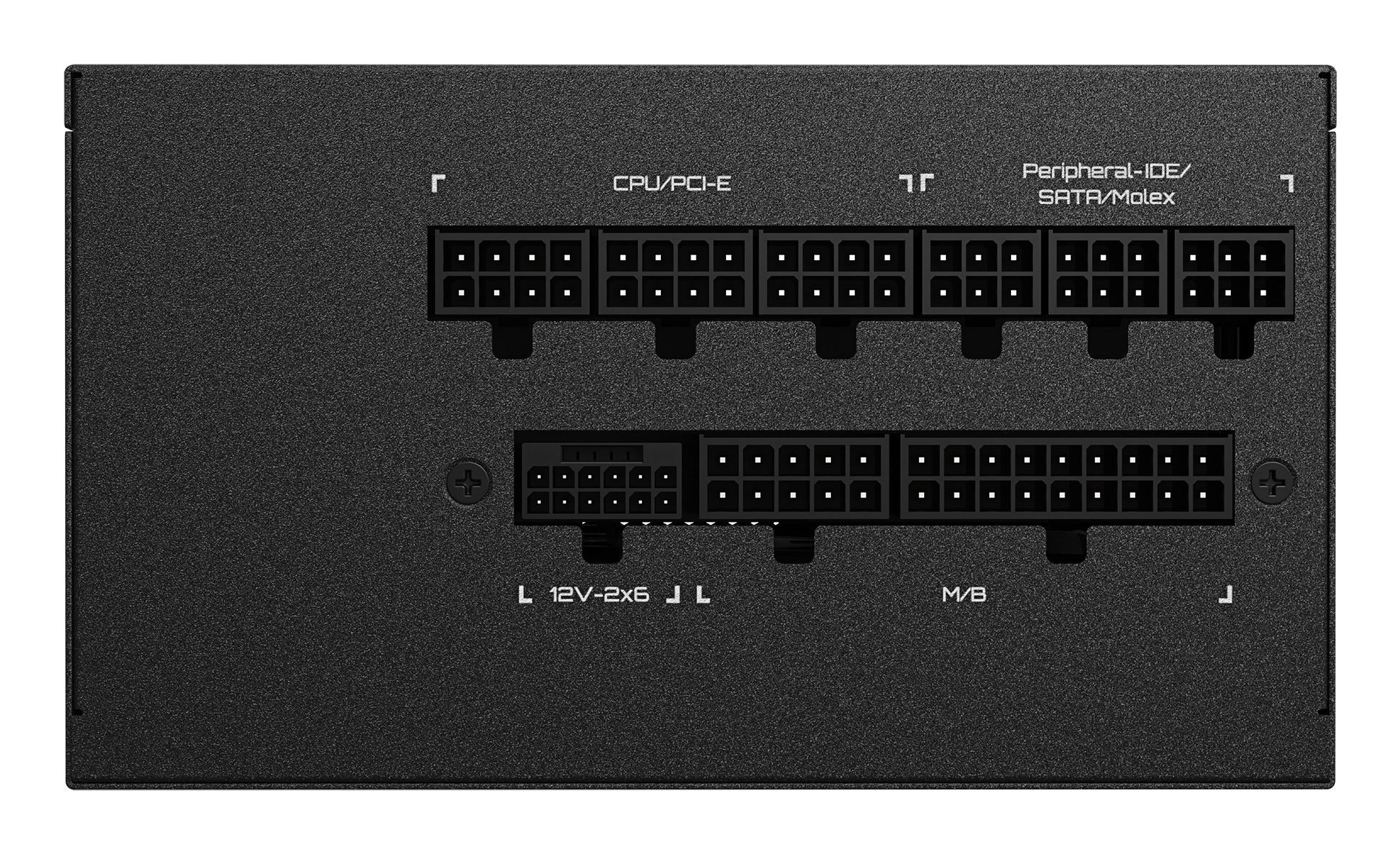

Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	610 mm
Number of SATA power connectors	8
SATA power cable length	150, 600 mm
Peripheral (Molex) power connectors (4-pin)	3
Peripheral (Molex) power cable length	150, 500 mm
PCI Express power connectors (6+2 pin)	4
PCI Express power cable length	600 mm
PCI Express power connectors (12+4 pin) cable length	700 mm
CPU power connector (4+4 pin)	Y
CPU power cable length	650 mm
PCI Express power connectors (12+4 pin)	1
Floppy drive power connector	1
PCI Express connector	Y
Cabling type	Fully-Modular
Number of EPS connectors	2
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	3.1
Bearing technology	HYB
Design
Product colour	Black
Cooling type	Active

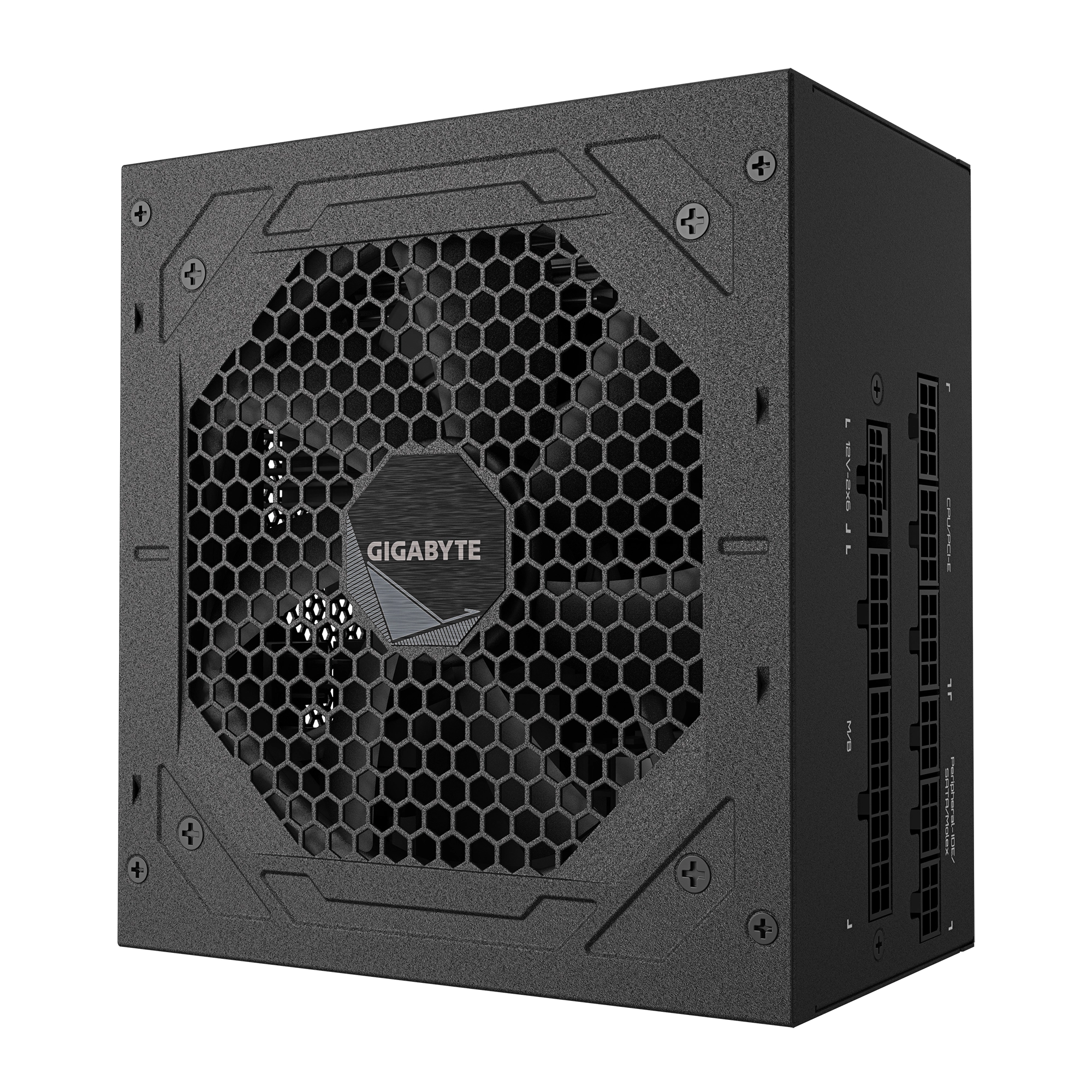

Fan diameter	120 mm
Number of fans	1 ventilator(en)

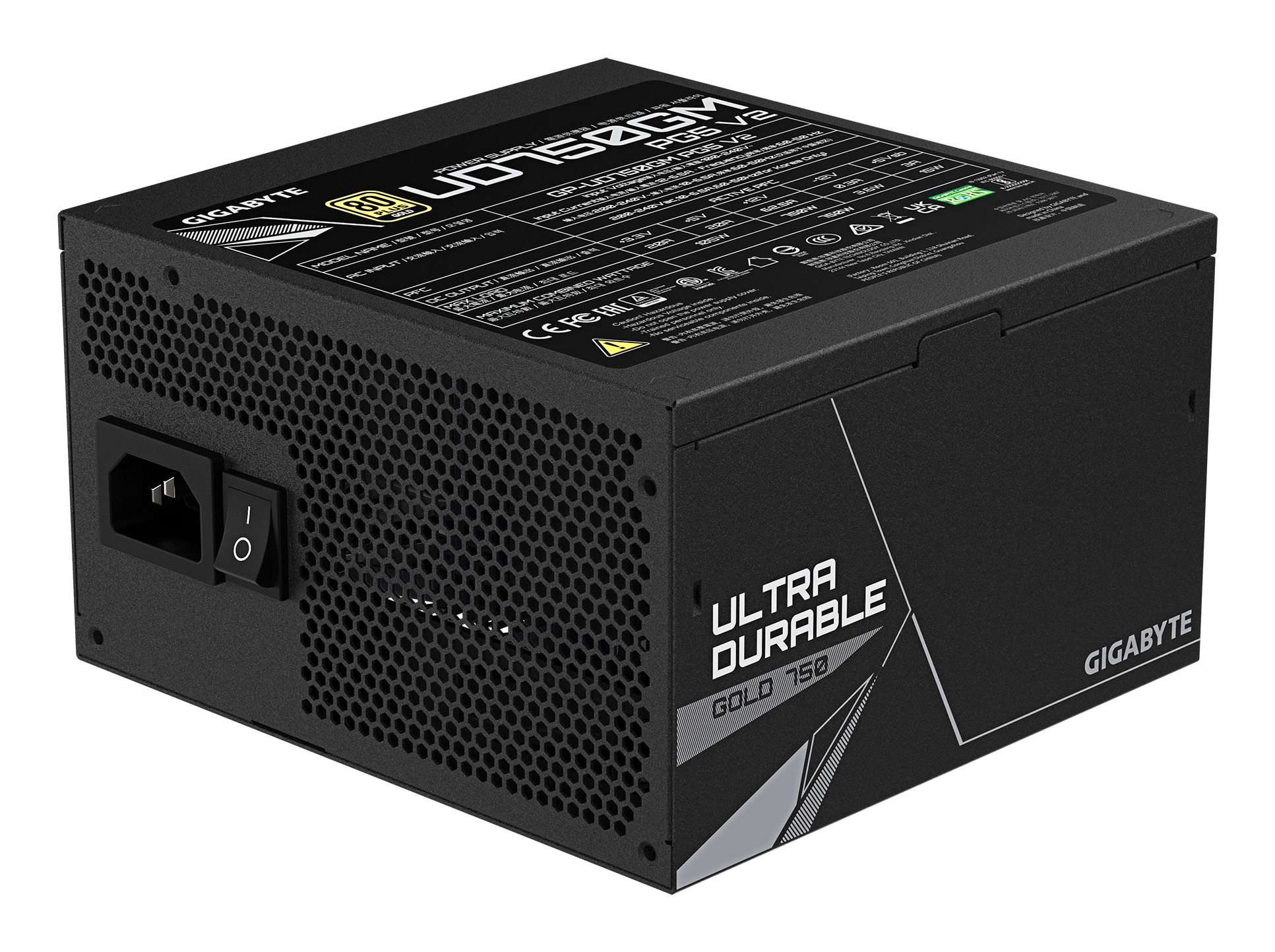

On/off switch	Y
Technical details
Warranty period	5 jaar
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Weight	2340 g
Packaging data
Package width	618 mm
Package depth	269 mm
Package height	211 mm
Package weight	2500 g

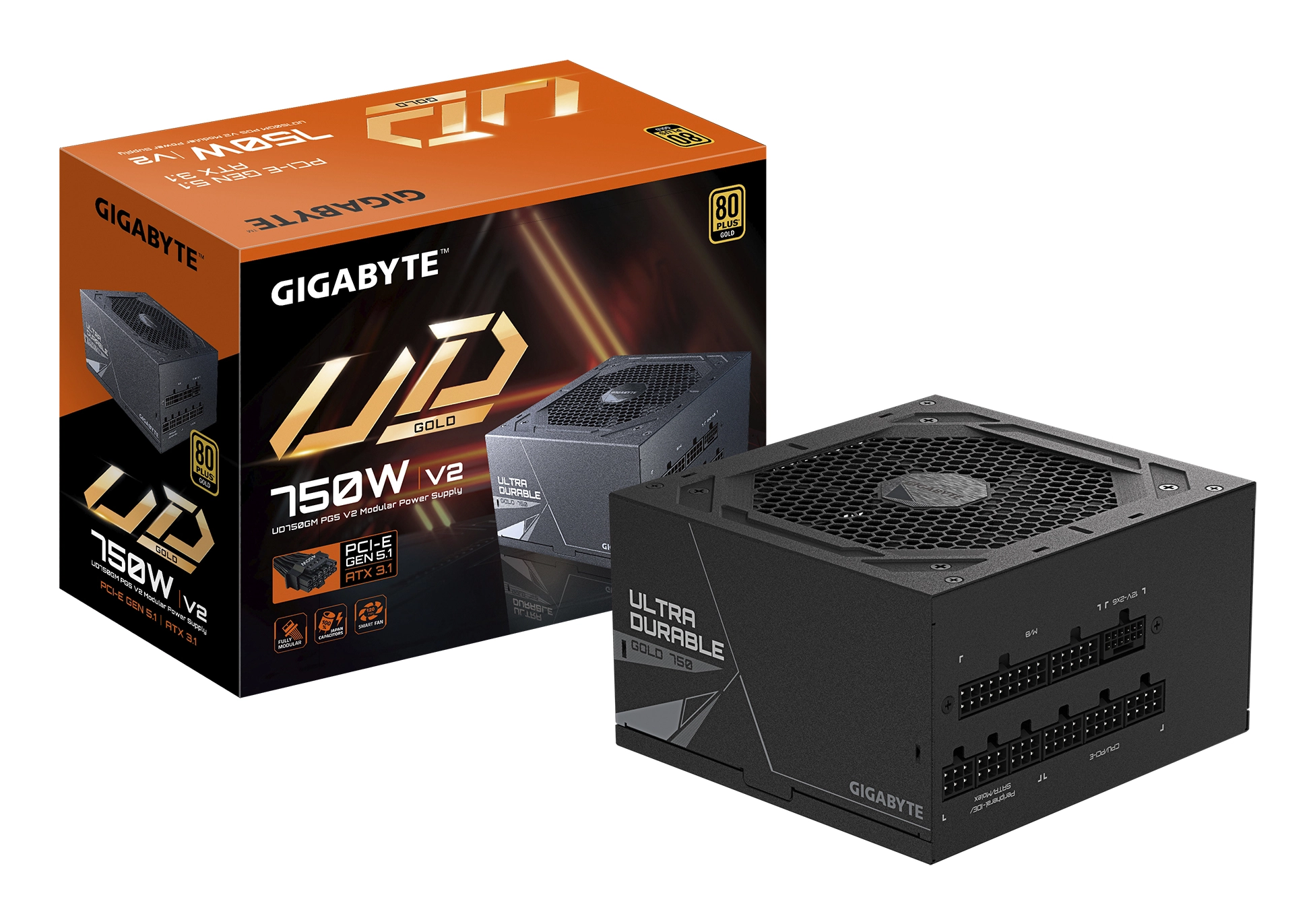

Package type	Box
