TURBO FAN COOLING SYSTEM
GIGABYTE TURBO is ideal for multi-graphic cards with a space-restricted chassis. The metal cover with the indented design and 80mm blower fan allows for larger airflow intake. With a vapor chamber direct touch GPU, copper heat sink, heat pipe and blower fan, it provides better heat dissipation.

THE OPTIMIZED AIRFLOW
The inward-indented design on the cover makes room for the intake fan to breathe even when closely stacked to the adjacent card, allowing greater airflow and efficient heat dissipation within the limited space.

All COPPER COOLING & METAL FRAME
The vapor chamber, heat pipe, and heat sink, all made of copper, have superior thermal efficiency for rapidly dissipating heat from the GPU. The extended heat pipe can also help to take heat away from the cores. The black metal frame further dissipates heat from other critical components, enhancing overall cooling efficiency.

DOUBLE BALL BEARING
The double ball bearing structure has better heat endurance and efficiency than sleeve structure.

BUILT STRONG
EXTREME DURABILITY
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

AEROSPACE-GRADE PCB COATING
Dust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion.
Moisture resistant - prevents unwanted conduction paths and board damage.
Corrosion resistant - protects from salt spray, humidity, and corrosion.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

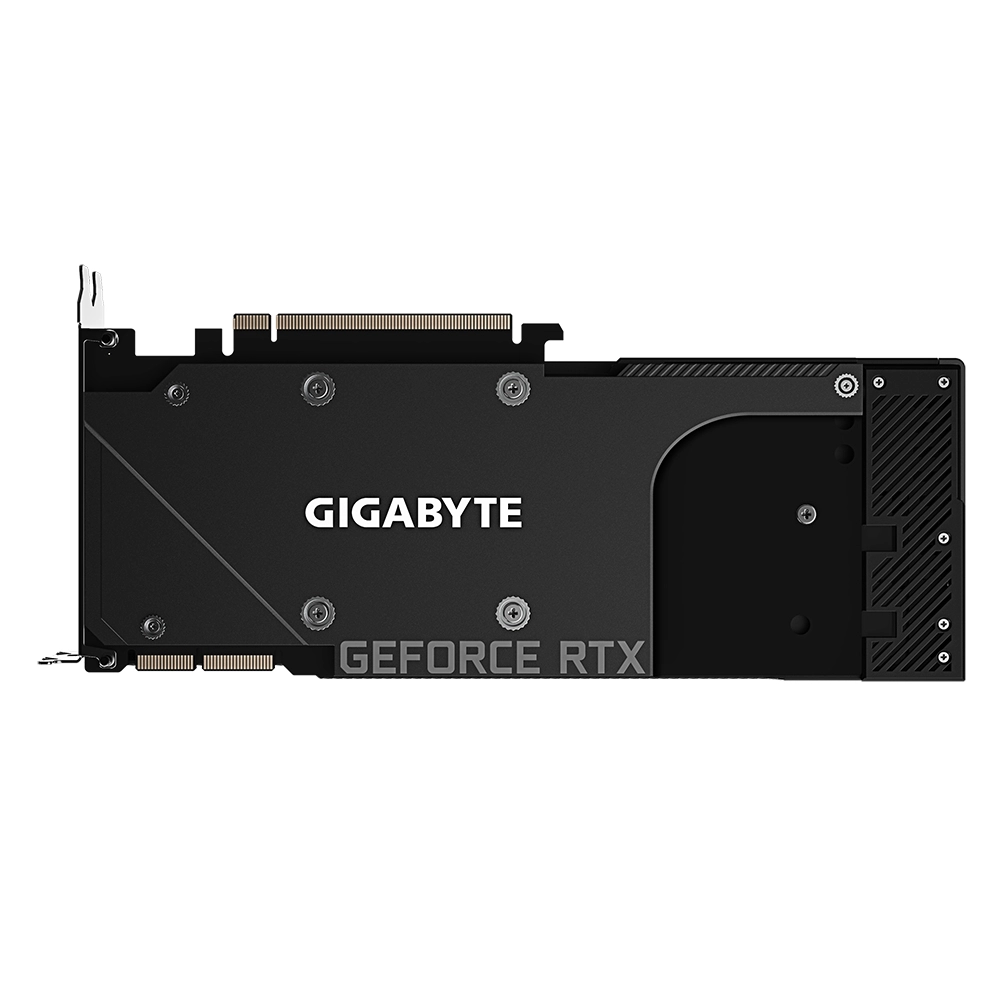

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

NVIDIA NVLINK SUPPORT
Support for NVIDIA NVLink (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in your gaming.

IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.

AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

Specification

Product
Product id	699867
Brand	Gigabyte
Partnr	GV-N3090TURBO24GD
EAN/UPC code	4719331307714
Processor
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 3090
Maximum resolution	7680 x 4320 Pixels
CUDA	Y
CUDA cores	10496
Processor frequency	1695 MHz
Maximum displays per videocard	4
FireStream	N
Parallel processing technology support	2-Way NVLink
Memory
Discrete graphics adapter memory	24 GB
Graphics adapter memory type	GDDR6X
Memory bus	384 Bit
Memory clock speed	19500 MHz
Memory bandwidth (max)	936 GB/s

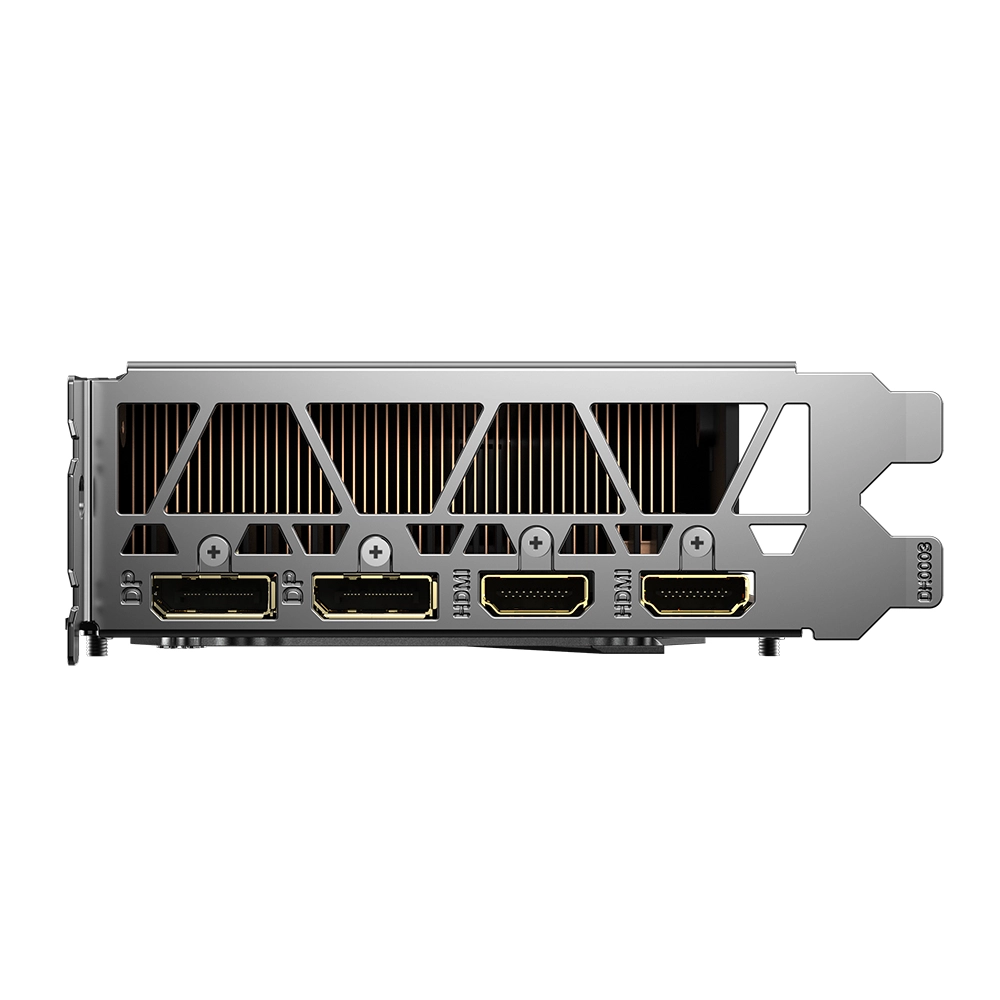

Ports & interfaces
Interface type	PCI Express x16 4.0
HDMI ports quantity	2
DisplayPorts quantity	2
HDMI version	2.1
DisplayPort version	1.4a
Performance
TV tuner integrated	N
DirectX version	12.0
OpenGL version	4.6
HDCP	Y
Dual Link DVI	N
NVIDIA G-SYNC	Y
Design
Cooling type	Active
Number of fans	1 ventilator(en)
Product colour	Black
Power
Minimum system power supply	750 W
Supplementary power connectors	2x 8-pin
Technical details
Harmonized System (HS) code	84733020
Weight & dimensions
Weight	111 g
Depth	40 mm
Length	267 mm
Height	111 mm
Packaging data
User guide	Y
Package type	Box
