WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, composite copper heat pipes that directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

Optimized Thermal Module
The pure copper heat pipe makes direct contact with the GPU to facilitate enhanced heat transfer to the heatsink, optimizing the cooling efficiency of the graphics card.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specification

Product
Product id	1011548
Brand	Gigabyte
Partnr	GV-N4060GAMING-OC-8GD
EAN/UPC code	4719331313692
Processor
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 4060
Maximum resolution	7680 x 4320 Pixels
CUDA	Y
CUDA cores	3072
Processor frequency	2550 MHz
Maximum displays per videocard	4
Parallel processing technology support	Not supported
Memory
Discrete graphics adapter memory	8 GB
Graphics adapter memory type	GDDR6
Memory bus	128 Bit
Data transfer rate	17 Gbit/s

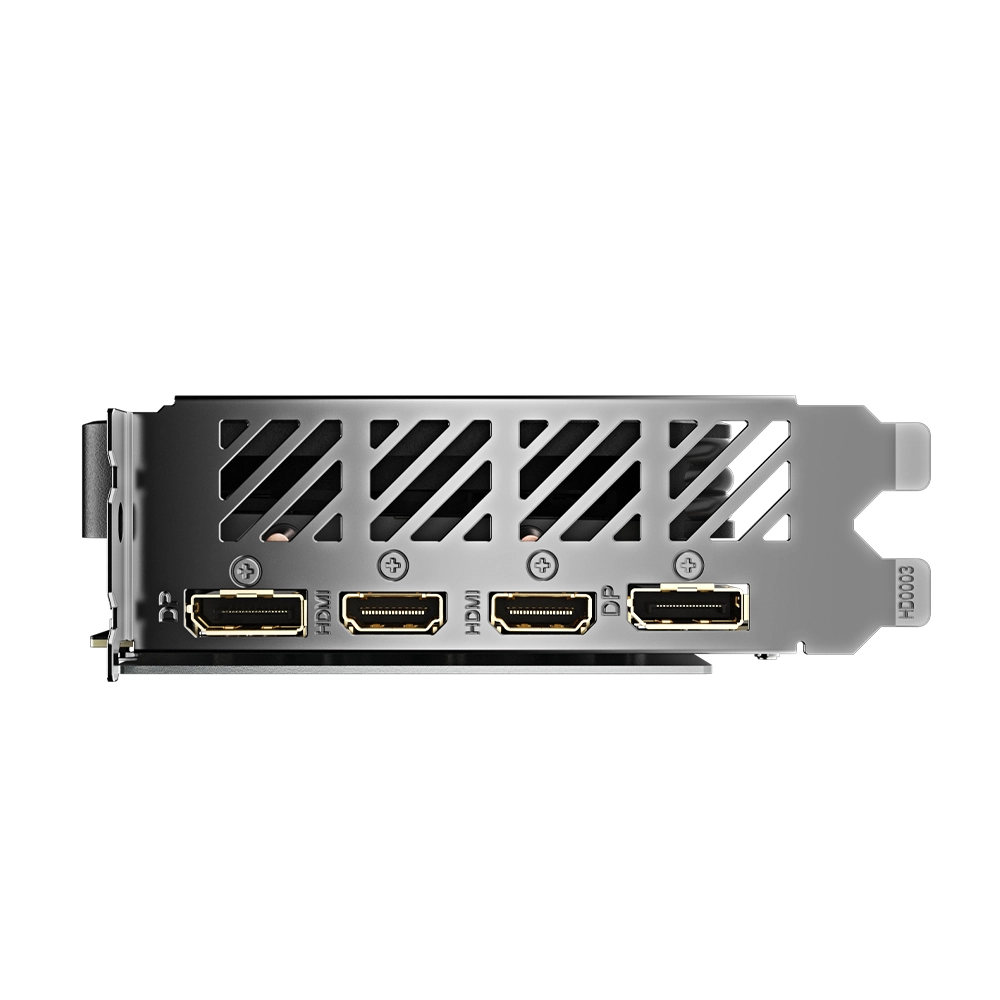

Ports & interfaces
Interface type	PCI Express 4.0
HDMI ports quantity	2
DisplayPorts quantity	2
HDMI version	2.1a
DisplayPort version	1.4a
Performance
TV tuner integrated	N
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Y
Dual Link DVI	N
NVIDIA G-SYNC	Y
AMD FreeSync	N
Design
Cooling type	Active
Cooling technology	Gigabyte WATERFORCE
Number of fans	3 ventilator(en)
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Black
Power
Minimum system power supply	450 W
Supplementary power connectors	1x 8-pin
Packaging content
Quick installation guide	Y
Weight & dimensions
Depth	40 mm
Length	281 mm
Height	114 mm
Packaging data
Package type	Box
