WINDFORCE 3X COOLING SYSTEM

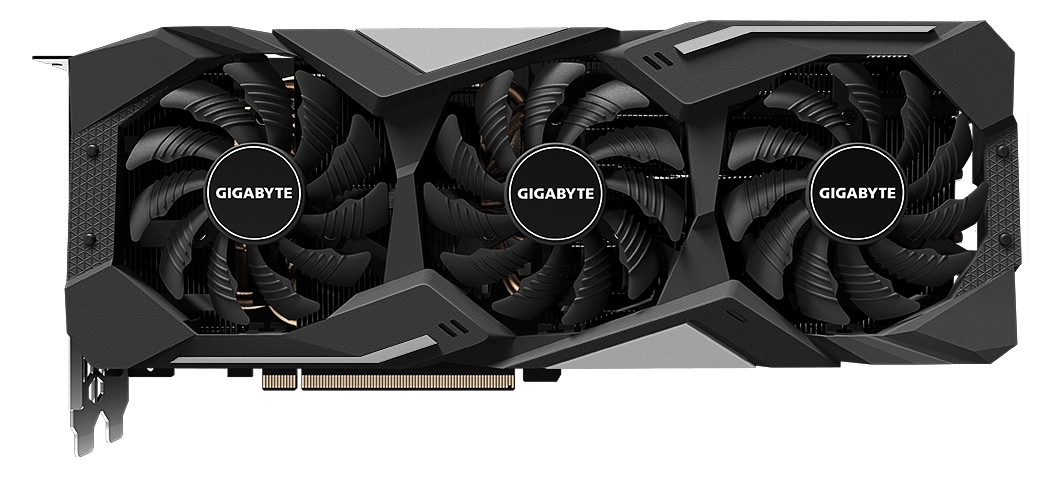

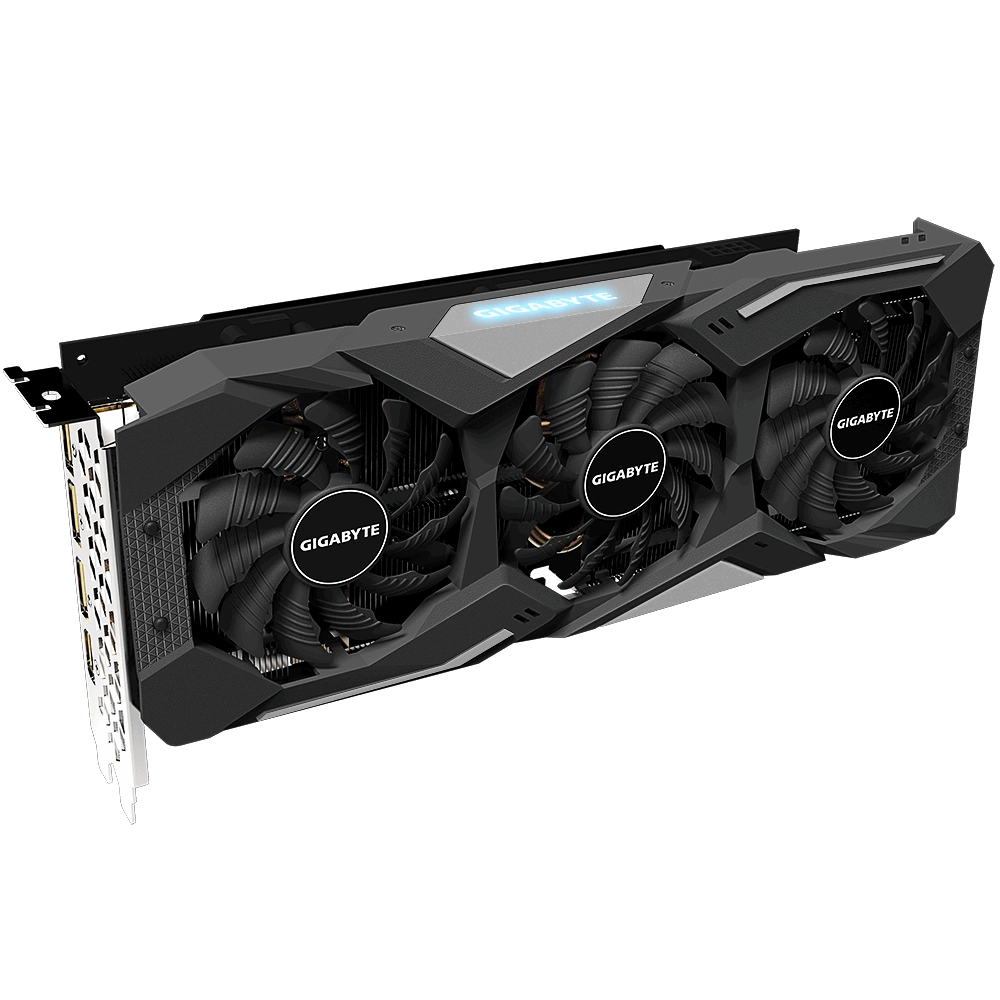

The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 5 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

HEAT PIPES DIRECT TOUCH GPU
The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.

COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.

GAME IN STYLE
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

Specification

Product
Product id	660422
Brand	Gigabyte
Partnr	GV-R57GAMING OC-8GD
EAN/UPC code	4719331305406
Processor
Graphics processor family	AMD
Graphics processor	Radeon RX 5700
Maximum resolution	7680 x 4320 Pixels
CUDA	N
Processor frequency	1565 MHz
Processor boost clock speed	1750 MHz
Maximum displays per videocard	4
Memory
Discrete graphics adapter memory	8 GB
Graphics adapter memory type	GDDR6
Memory bus	256 Bit
Memory clock speed	14000 MHz
Memory bandwidth (max)	448 GB/s
Ports & interfaces
Interface type	PCI Express x16 3.0
HDMI ports quantity	1
DisplayPorts quantity	3
HDMI version	2.0b
DisplayPort version	1.4
Performance
DirectX version	12.0
OpenGL version	4.6
Dual Link DVI	N
Design
Cooling type	Active
Number of fans	3 ventilator(en)
Illumination	Y
Illumination colour	Multi
Product colour	Black
Power
Minimum system power supply	300 W
Supplementary power connectors	1x 8-pin
Weight & dimensions
Depth	279.85 mm
Height	49.55 mm
Width	114.35 mm
Packaging data
Drivers included	Y
Manual	Y
Package type	Box
