Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specification

Product
Product id	985862
Brand	Gigabyte
Partnr	H610I
EAN/UPC code	4719331855222
Warranty (months)	3 years
Processor
Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G
Supported processor sockets	LGA 1700
Maximum internal memory supported by processor	64 GB
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & non-ECC
Supported memory clock speeds	5600, 5200, 4800, 4400 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Maximum internal memory	64 GB
Supported memory clock speed (max)	5600 MHz
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	1
Number of storage drives supported	5
Graphics
Parallel processing technology support	Not supported
Graphics adapter family	Intel
Graphics adapter	HD Graphics
Maximum resolution	4096 x 2304 Pixels
HDCP	Y
Internal I/O
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Y
Front panel connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	2
Chassis intrusion connector	Y
Serial port headers	1
TPM connector	Y
12V power connector	Y
RGB LED pin header	Y

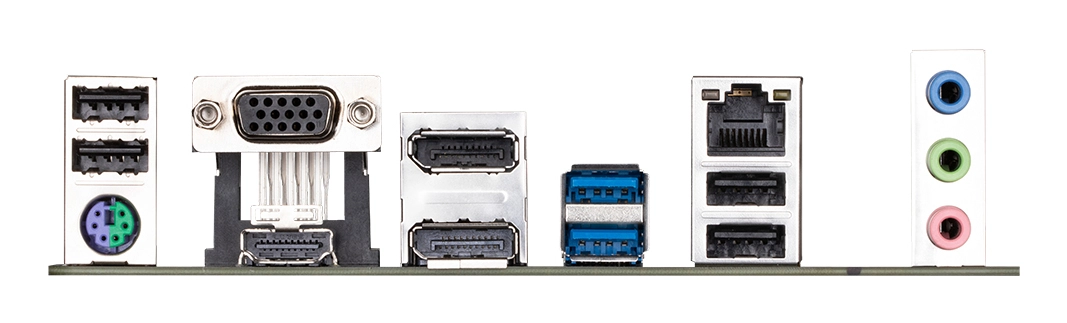

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	2
DisplayPort version	1.2
Headphone outputs	3
Microphone in	Y
USB connector type	USB Type-A
Network
Ethernet LAN	Y
Ethernet interface type	Gigabit Ethernet
Wi-Fi	N
Features
Component for	PC
Motherboard form factor	Mini ITX
Motherboard chipset family	Intel
Motherboard chipset	Intel H610 Express
Audio chip	Realtek ALC897
Audio output channels	7.1 kanalen
PC health monitoring	FAN, Temperature, Voltage
Product colour	Black
Power source type	ATX
Cooling type	Active
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x16 slots	1
Number of M.2 (M) slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Y
Clear CMOS button	Y
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Packaging data
Package width	222 mm
Package depth	180 mm
Package height	65 mm
Battery
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Logistics data
Country of origin	China
Quantity per shipping (inner) case	1 stuk(s)
Weight & dimensions
Width	170 mm
Depth	170 mm
Height	35 mm
Packaging content
Cables included	SATA
Batteries included	Y
Bundled software	Norton Internet Security (OEM version), LAN bandwidth management software
Technical details
Warranty period	3 jaar
Other features
Package weight	590 g
