Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specification

Product
Product id	985919
Brand	Gigabyte
Partnr	H610M D3W DDR4
EAN/UPC code	4719331865245
Warranty (months)	3 years
Processor
Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel Celeron, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel Pentium
Supported processor sockets	LGA 1700
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & non-ECC
Supported memory clock speeds	2133, 2400, 2666, 2933, 3000, 3200 MHz
Maximum internal memory	64 GB
Supported memory clock speed (max)	3200 MHz
Unbuffered memory	Y
Maximum internal memory per slot	32 GB
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	5
Graphics
Parallel processing technology support	Not supported
DirectX version	12.0
Internal I/O
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
Front panel audio connector	Y
Front panel connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	2
Number of CPU fan connectors	1
EPS power connector (8-pin)	Y
Serial port headers	1
Number of EPS power connectors (8-pin)	1
TPM connector	Y

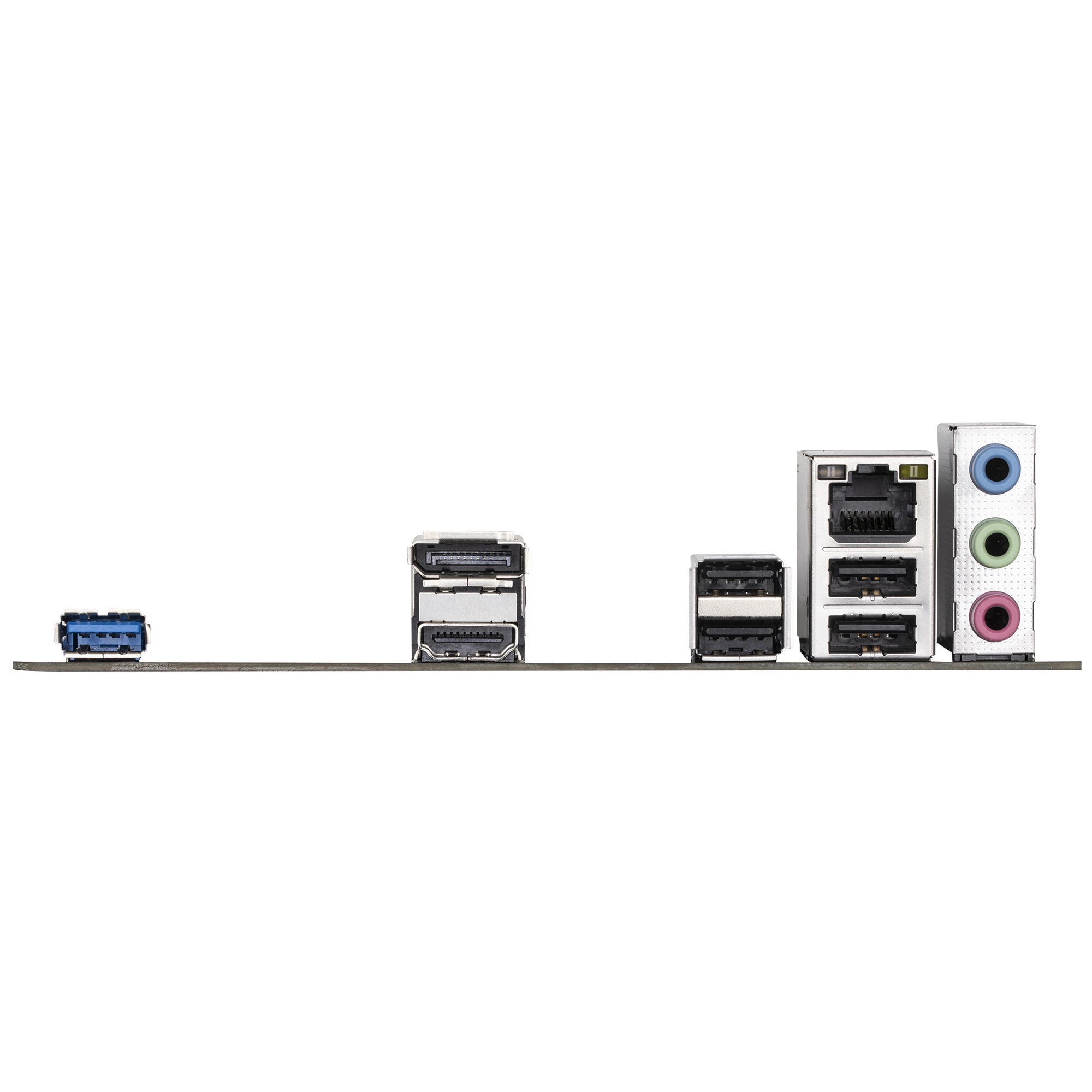

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.2
Microphone in	Y
Line-in	Y
Network
Ethernet LAN	Y
Ethernet interface type	Gigabit Ethernet
LAN controller	Realtek RTL8111H
Wi-Fi	N
Features
Component for	PC
Motherboard form factor	Micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Audio chip	Realtek ALC897
Audio output channels	7.1 kanalen
PC health monitoring	FAN, Temperature, Voltage, Water cooling
Product colour	Grey
Power source type	ATX
Windows operating systems supported	Windows 10, Windows 11
Expansion slots
PCI Express x1 (Gen 3. x) slots	1
PCI Express x16 (Gen 4. x) slots	1
Number of M.2 (M) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	3.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
ACPI version	5.0
Clear CMOS jumper	Y
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Packaging data
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Battery
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Logistics data
Country of origin	China
Quantity per shipping (inner) case	1 stuk(s)
Weight & dimensions
Width	244 mm
Depth	220 mm
Height	35 mm
Packaging content
Batteries included	Y
Screws included	Y
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Technical details
Warranty period	3 jaar
Other features
Weight	770 g
Package weight	800 g
