Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specification

Product
Product id	985878
Brand	Gigabyte
Partnr	H610M S2H V3 DDR4
EAN/UPC code	4719331859732
Warranty (months)	3 years
Processor
Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Supported processor sockets	LGA 1700
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & non-ECC
Supported memory clock speeds	2133, 2400, 2666, 2933, 3000, 3200 MHz
Maximum internal memory	64 GB
Supported memory clock speed (max)	3200 MHz
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	5
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2304 Pixels
HDCP	Y
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Total number of SATA connectors	4
Front panel audio connector	Y
Front panel connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Chassis intrusion connector	Y
Number of CPU fan connectors	1
EPS power connector (8-pin)	Y
Serial port headers	1
Number of EPS power connectors (8-pin)	1
TPM connector	Y
12V power connector	Y
RGB LED pin header	Y
Number of RGB LED pin headers	1

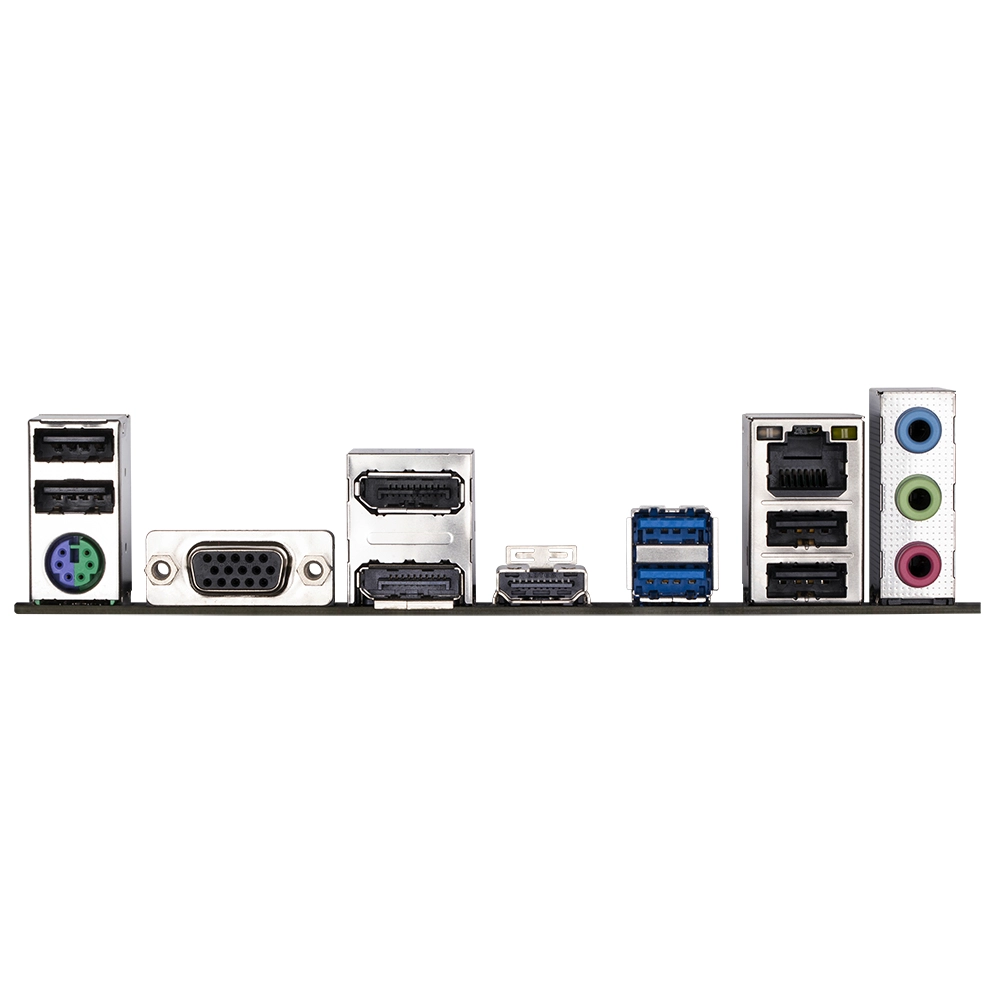

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	1.2
Microphone in	Y
Line-in	Y
USB connector type	USB Type-A
Network
Ethernet LAN	Y
Ethernet interface type	Gigabit Ethernet
Wi-Fi	N
Features
Component for	PC
Motherboard form factor	Micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel H610 Express
Audio output channels	7.1 kanalen
PC health monitoring	FAN, Temperature, Voltage, Water cooling
Product colour	Black
Power source type	ATX
Cooling type	Active
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3. x) slots	1
PCI Express x16 (Gen 4. x) slots	1
Number of M.2 (M) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	3.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
ACPI version	5.0
Clear CMOS jumper	Y
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Battery
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Logistics data
Country of origin	China
Quantity per shipping (inner) case	1 stuk(s)
Weight & dimensions
Width	223 mm
Depth	193 mm
Height	35 mm
Packaging content
Batteries included	Y
Bundled software	Norton Internet Security (OEM version) LAN bandwidth management software
