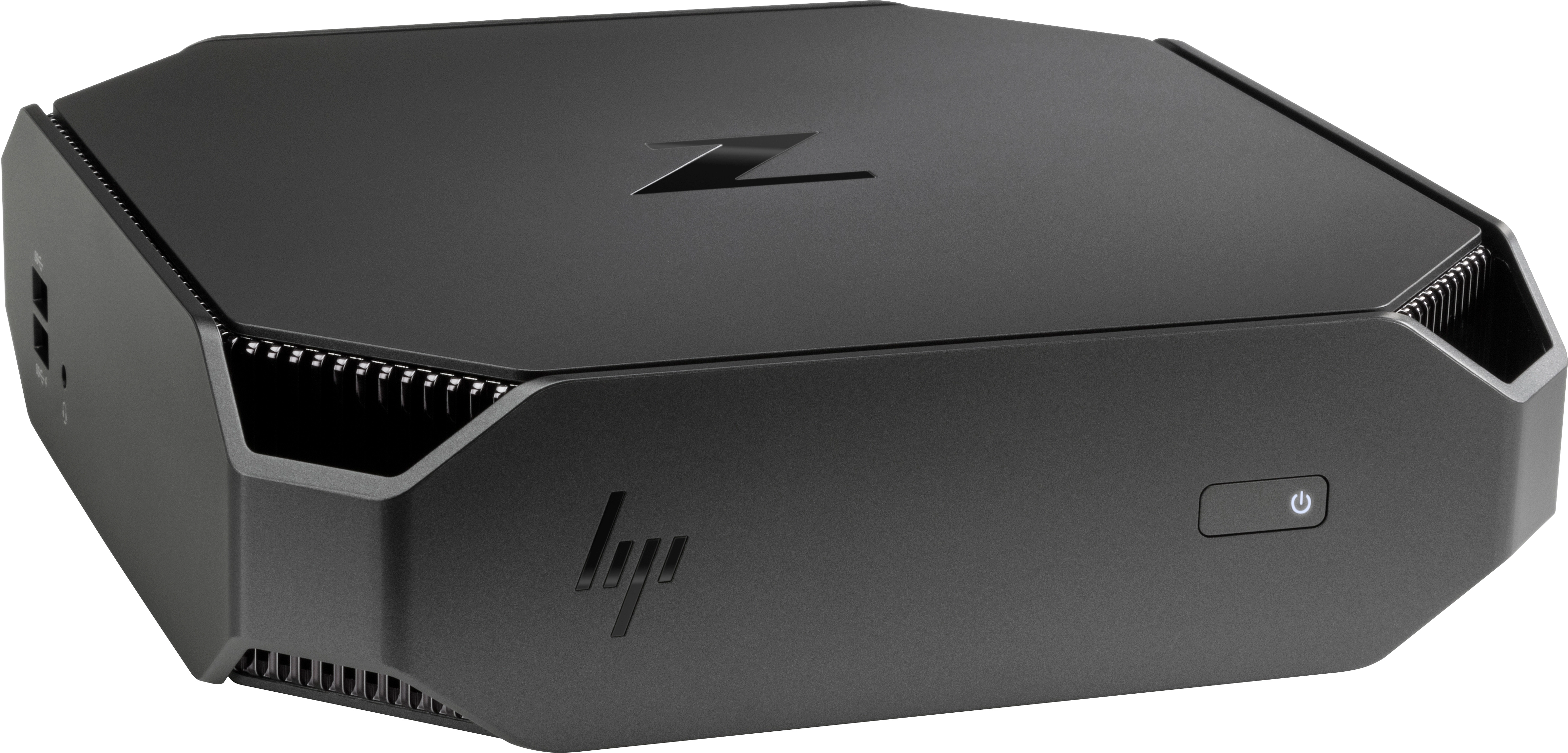

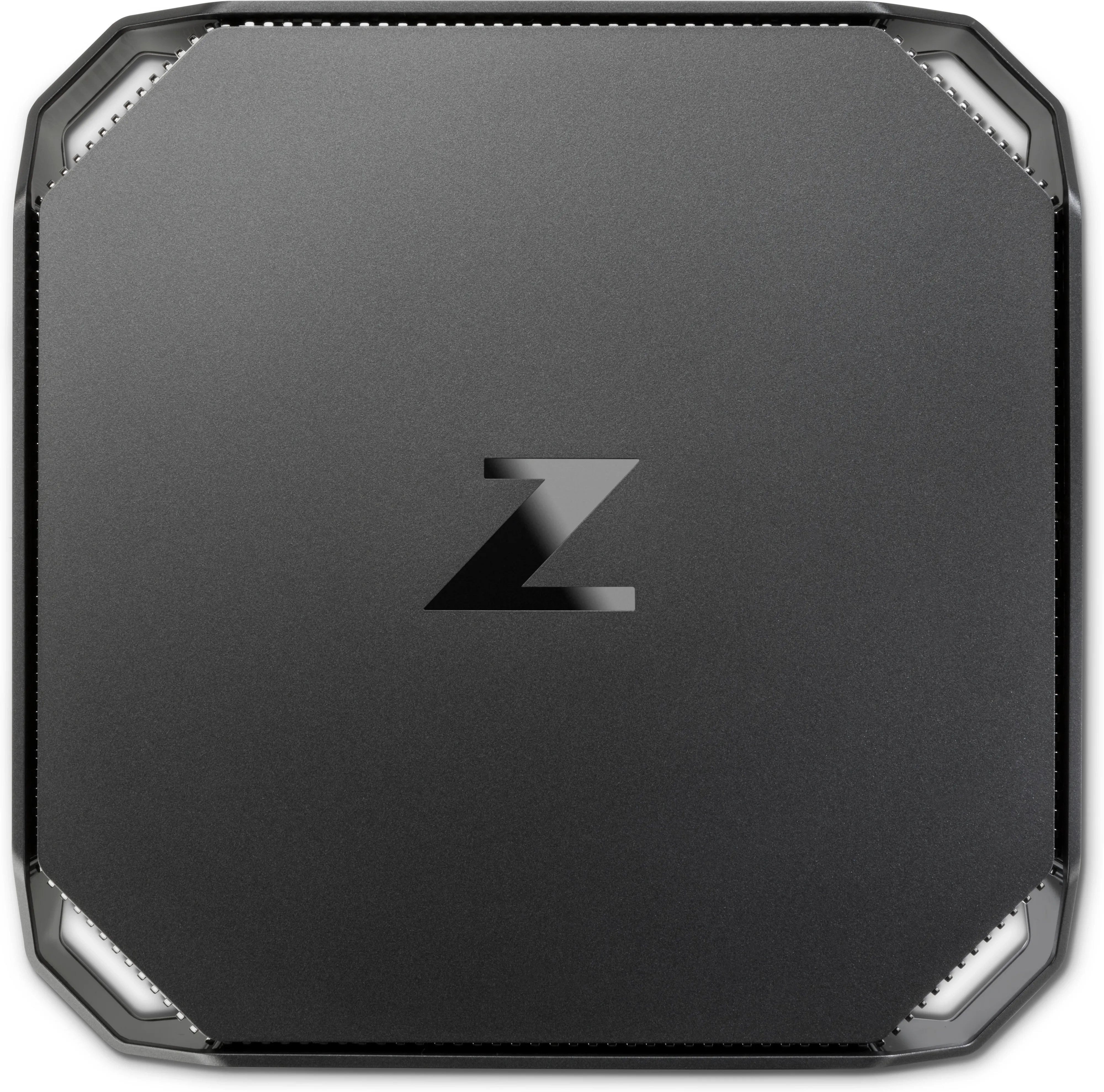

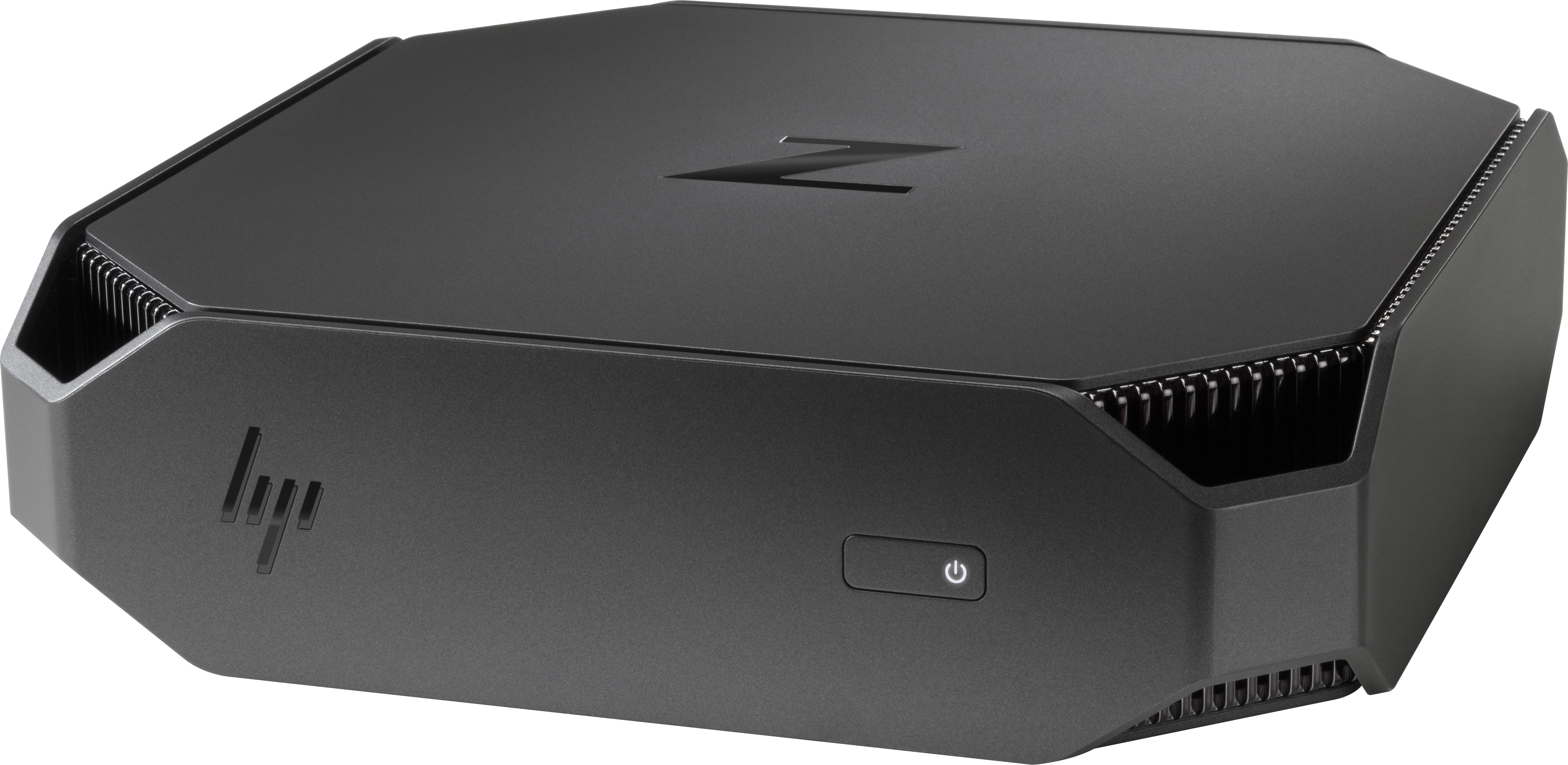

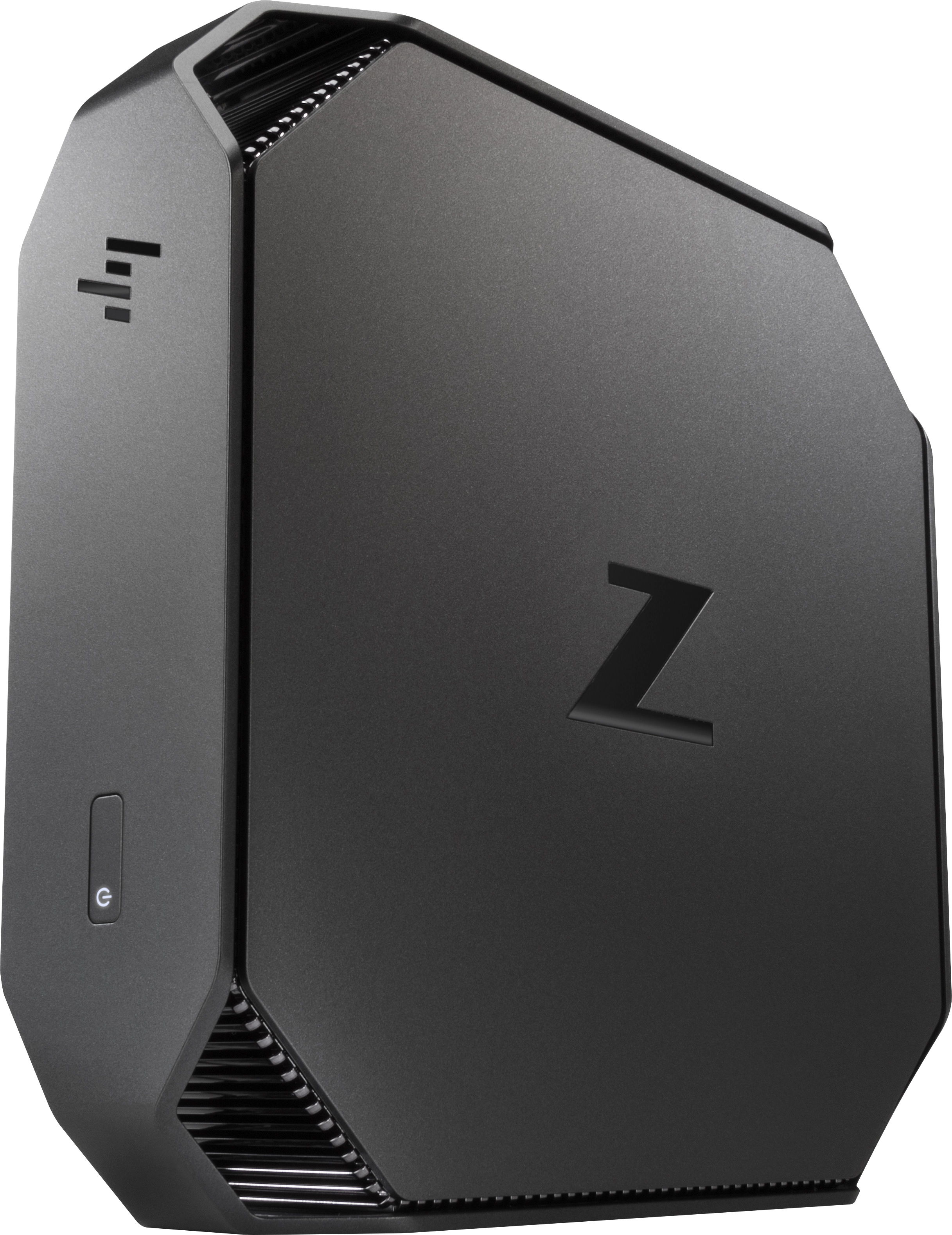

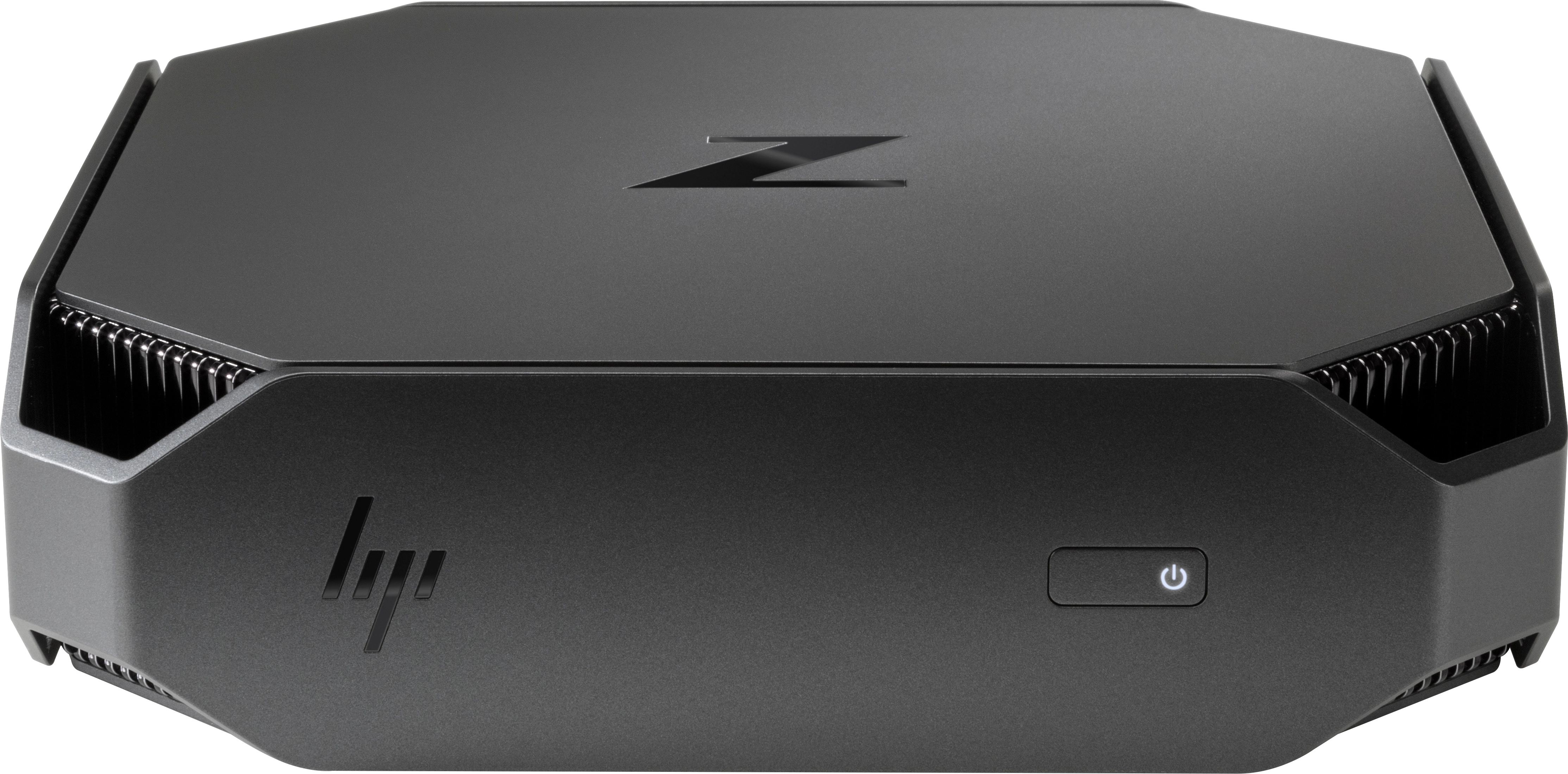

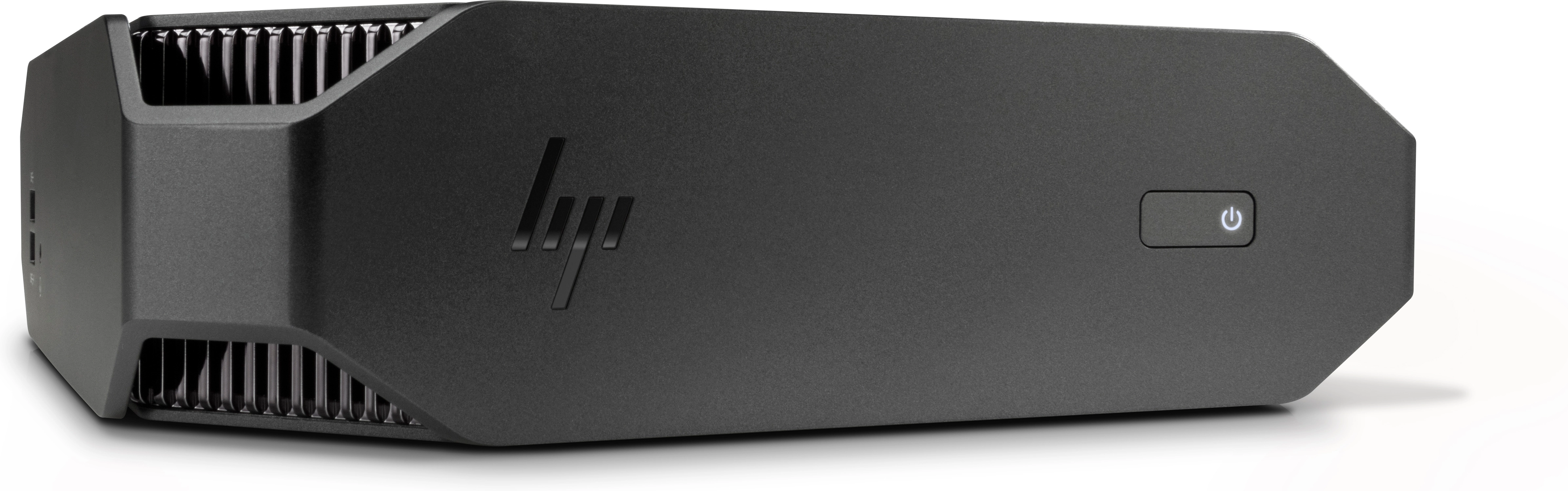

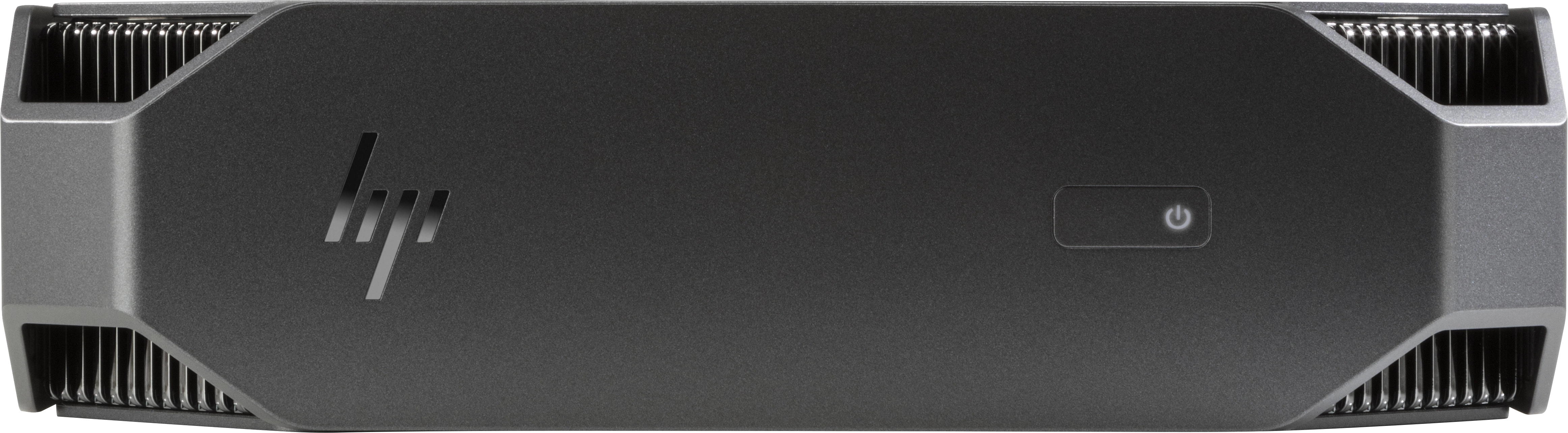

HP's most powerful mini workstation
Get next-level performance with a remarkably small and versatile device that can handle single and multi-threaded software. With the ability to support the latest technology and workforce demands, it's the obvious choice for the modern workplace.

Specification

Product
Product id	620874
Brand	Hewlett Packard
Partnr	5HZ76EA#ABB
EAN/UPC code	193424118649
Warranty (months)	3 year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
Processor
Processor manufacturer	Intel
Processor family	Intel Core i7
Processor generation	Intel Core i7-8xxx
Processor model	i7-8700
Processor cores	6
Processor frequency	3.2 GHz
Processor boost frequency	4.6 GHz
Processor socket	LGA 1151 (Socket H4)
Processor cache	12 MB
Processor cache type	Smart Cache
Processor threads	12
System bus rate	8 GT/s
Bus type	DMI3
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-8700 Desktop Series
Thermal Design Power (TDP)	65 W
Processor codename	Coffee Lake
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express slots version	3.0
PCI Express configurations	1x16, 1x8+2x4, 2x8
Number of processors installed	1
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s
ECC supported by processor	N
Memory
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Memory clock speed	2666 MHz
Memory channels	Dual-channel
Storage
Total storage capacity	512 GB
Optical drive type	N
Card reader integrated	N
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
Graphics
Discrete graphics adapter	Y
On-board graphics adapter	Y
Discrete graphics adapter model	NVIDIA Quadro P1000
Discrete graphics memory type	GDDR5
Discrete graphics adapter memory	4 GB
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel UHD Graphics 630
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter dynamic frequency (max)	1200 MHz
On-board graphics adapter base frequency	350 MHz
On-board graphics adapter ID	0x3E92
On-board graphics adapter DirectX version	12.0
On-board graphics adapter OpenGL version	4.5
Number of execution units	24
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	N

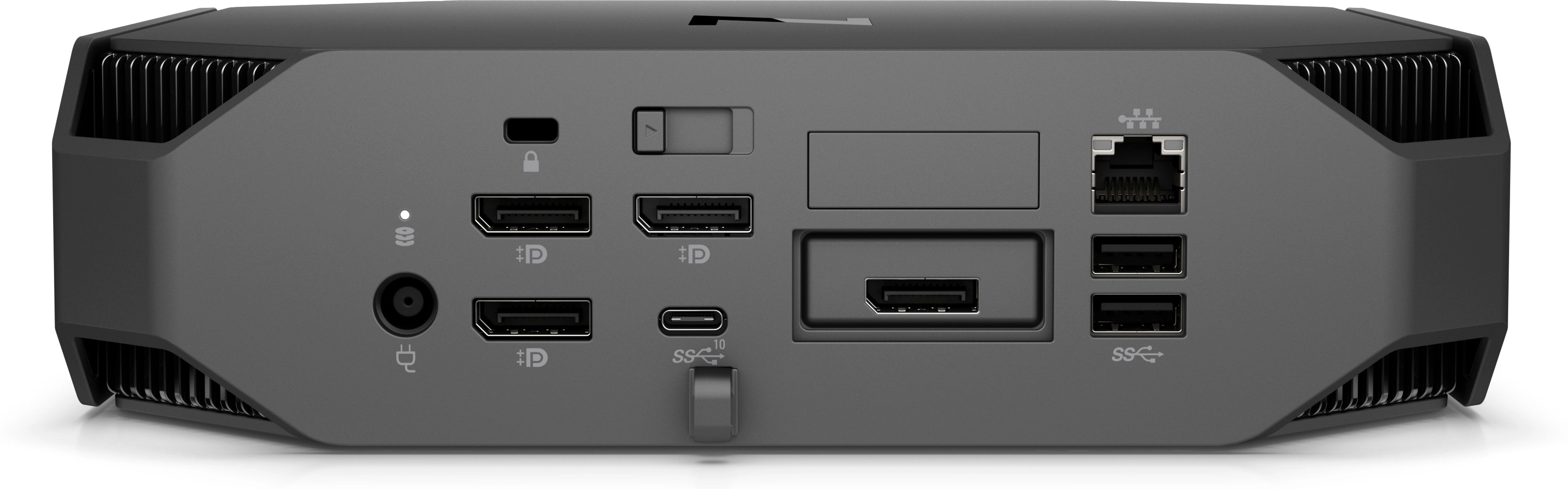

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DVI port	N
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Microphone in	N
Headphone outputs	1
Line-in	Y
Line-out	Y
Combo headphone/mic port	Y
Design
Chassis type	Mini PC
Placement supported	Horizontal
Product colour	Black
Country of origin	China
Performance
Product type	Workstation
Motherboard chipset	Intel C246
Audio chip	Conexant CX20632-31Z
Software
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Processor special features
Thermal solution specification	PCG 2015C
CPU configuration (max)	1
Scalability	1S
Processor code	SR3QS
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Processor package size	37.5 x 37.5 mm
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Y
Intel Software Guard Extensions (Intel SGX)	Y
Intel Enhanced Halt State	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Processor ARK ID	126686
Intel TSX-NI version	1.00
Intel Virtualization Technology (VT-x)	Y
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Identity Protection Technology version	1.00
Enhanced Intel SpeedStep Technology	Y
Intel 64	Y
Intel® InTru™ 3D Technology	Y
Intel® Clear Video HD Technology (Intel® CVT HD)	Y
Execute Disable Bit	Y
Intel Trusted Execution Technology	Y
Intel® OS Guard	Y
Intel® Secure Key	Y
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel Stable Image Platform Program (SIPP)	Y
Thermal Monitoring Technologies	Y
Embedded options available	Y
Intel Clear Video Technology	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel TSX-NI	Y
Idle States	Y
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Y
Intel® Quick Sync Video Technology	Y
Intel® Identity Protection Technology (Intel® IPT)	Y
Conflict-Free processor	Y
Brand-specific features
HP Software provided	HP Client Security-Software; HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP Remote Graphics Software (RGS) 7.1; HP Sure Recover; HP Manageability Integration Kit Gen2
HP segment	Business
Weight & dimensions
Width	216 mm
Depth	216 mm
Height	58 mm
Weight	2040 g
Packaging content
Display included	N
Mouse included	Y
Keyboard included	Y
Other features
Harmonized System (HS) code	84715000
