HP ZBook Studio 16 G9. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel® Core™ i7, Processor model: i7-12800H, Processor frequency: 2.4 GHz. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1000 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics. Operating system installed: Windows 10 Pro. Product colour: Silver

Specification

Product
Product id	824963
Brand	Hewlett Packard
Partnr	62U46EA/ABH
EAN/UPC code	196786464287
Warranty (months)	36 months
Design
Product type	Mobile workstation
Product colour	Silver
Form factor	Clamshell
Introduction year	2022
Market positioning	Performance
Display
Display diagonal	16 inch
Display resolution	1920 x 1200 Pixels
Touchscreen	N
Panel type	IPS
HD type	WUXGA
Native aspect ratio	16:10
Anti-glare screen	Y
Display bezel technology	Micro-Edge
Display brightness	400 cd/m²
Colour gamut	100 procent
RGB colour space	sRGB
Display diagonal (metric)	40.6 cm
Processor
Processor manufacturer	Intel
Processor family	Intel Core i7
Processor model	i7-12800H
Processor generation	Intel Core i7-12xxx
Processor frequency	2.4 GHz
Processor boost frequency	4.8 GHz
Processor cores	14
Processor threads	20
Processor cache	24 MB
Processor cache type	L3
Configurable TDP-down	35 W
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Storage
Total storage capacity	1000 GB
Storage media	SSD
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
SSD memory type	TLC
SSD interface	PCI Express, NVMe
NVMe	Y
Optical drive type	N
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
Graphics
On-board graphics adapter	Y
Discrete graphics adapter	Y
Discrete GPU manufacturer	NVIDIA
Discrete graphics adapter model	NVIDIA GeForce RTX 3080 Ti
On-board graphics adapter model	Intel Iris Xe Graphics
Discrete graphics adapter memory	16 GB
Discrete graphics memory type	GDDR6X
Audio
Audio system	Bang & Olufsen
Built-in microphone	Y
Camera
Front camera	Y
Front camera HD type	HD
Front camera signal format	720p
Infrared (IR) camera	Y
Network
Bluetooth	Y
Mobile network connection	N
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth version	5.2

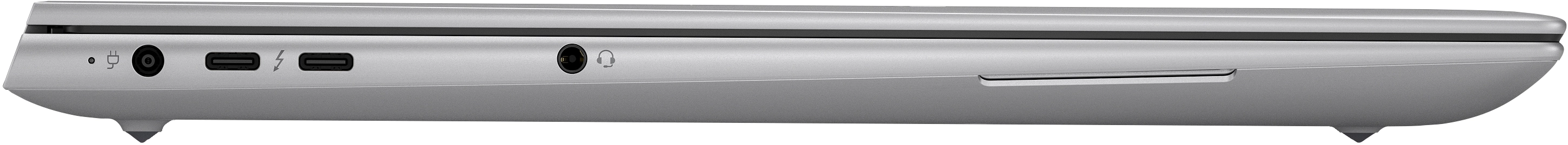

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Combo headphone/mic port	Y
Thunderbolt 4 ports quantity	2
Charging port type	DC-in jack
USB Type-C DisplayPort Alternate Mode	Y
USB Power Delivery	Y
USB Sleep-and-Charge	Y
Keyboard
Pointing device	Clickpad
Keyboard backlit	Y
Numeric keypad	N
Full-size keyboard	Y
Keyboard special features	Resistente a derrames
Input device model	Teclado silencioso HP Premium
Software
Operating system installed	Windows 10 Pro
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Execute Disable Bit	Y
CPU configuration (max)	1
Embedded options available	N
Intel Virtualization Technology (VT-x)	Y
Intel Stable Image Platform Program (SIPP)	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel Trusted Execution Technology	Y
Intel Flex Memory Access	Y
Battery
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	6
Battery capacity (Watt-hours)	86 Wh
Quick charge	Y
Quick charge time (50%)	30 min
Power
AC adapter power	200 W
Security
Cable lock slot	Y
Fingerprint reader	Y
Weight & dimensions
Weight	1730 g
Width	356 mm
Depth	242 mm
Height	19 mm
Logistics data
Harmonized System (HS) code	84713000
Technical details
Sustainability certificates	ENERGY STAR
