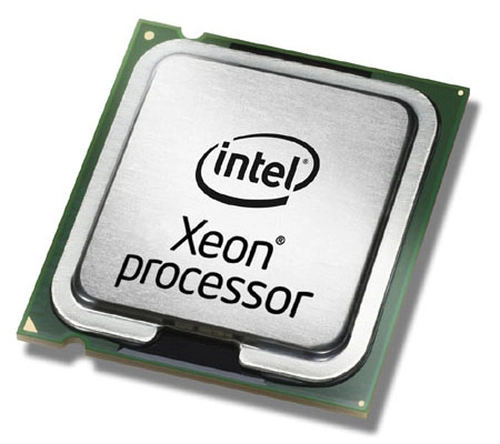

Increase the processing power of your ThinkServer Dual-Socket systems with Intel Xeon E5-2600 family processors to boost your system's performance for advanced applications, technical computing, multithread applications, virtualization, and multitasking.

The ThinkServer solutions based on the new Intel Xeon processor E5-2600 family deliver the best combination of performance, built-in capabilities, and cost-effectiveness to make data centers more flexible and efficient. From virtualization and cloud computing solutions to design automation or real-time financial transactions, you’ll be delighted by better than ever performance no matter what tasks you face.

Specification

Product
Product id	545078
Brand	Lenovo
Partnr	00YJ198
EAN/UPC code	889488081981
Processor
Processor family	Intel Xeon E5 v4
Processor series	Intel Xeon E5-2600 v4
Processor model	E5-2630V4
Processor codename	Broadwell
Cooler included	N
Component for	Server/Workstation
Processor socket	LGA 2011-v3
Processor cores	10
Processor threads	20
Processor base frequency	2.2 GHz
Processor boost frequency	3.1 GHz
Thermal Design Power (TDP)	85 W
Processor lithography	14 nm
System bus rate	8 GT/s
Processor operating modes	64-bit
Processor cache	25 MB
Processor cache type	Smart Cache
Stepping	R0
Bus type	QPI
Number of QPI links	2
Memory bandwidth supported by processor (max)	68.3 GB/s
Memory
Maximum internal memory supported by processor	1540 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600, 1866, 2133 MHz
Memory channels	Quad-channel
ECC	Y
Graphics
On-board graphics adapter	N
Discrete graphics adapter	N
On-board graphics adapter model	Not available
Discrete graphics adapter model	Not available
Features
Execute Disable Bit	Y
Idle States	Y
Thermal Monitoring Technologies	Y
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Supported instruction sets	AVX 2.0
Physical Address Extension (PAE)	46 Bit
Scalability	2S
Physical Address Extension (PAE)	Y
CPU configuration (max)	2
Embedded options available	N
Market segment	Server
Processor special features
Intel Flex Memory Access	N
Intel® AES New Instructions (Intel® AES-NI)	Y
Enhanced Intel SpeedStep Technology	Y
Intel Trusted Execution Technology	Y
Intel® Hyper Threading Technology (Intel® HT Technology)	Y
Intel® Turbo Boost Technology	2.0
Intel® Identity Protection Technology (Intel® IPT)	N
Intel® vPro™ Platform Eligibility	Y
Intel® OS Guard	Y
Intel TSX-NI	Y
Intel® Secure Key	Y
Intel Demand Based Switching	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel Virtualization Technology (VT-x)	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel 64	Y
Operational conditions
Tcase	74 °C
Other features
Compatibility	System x3550 M5
