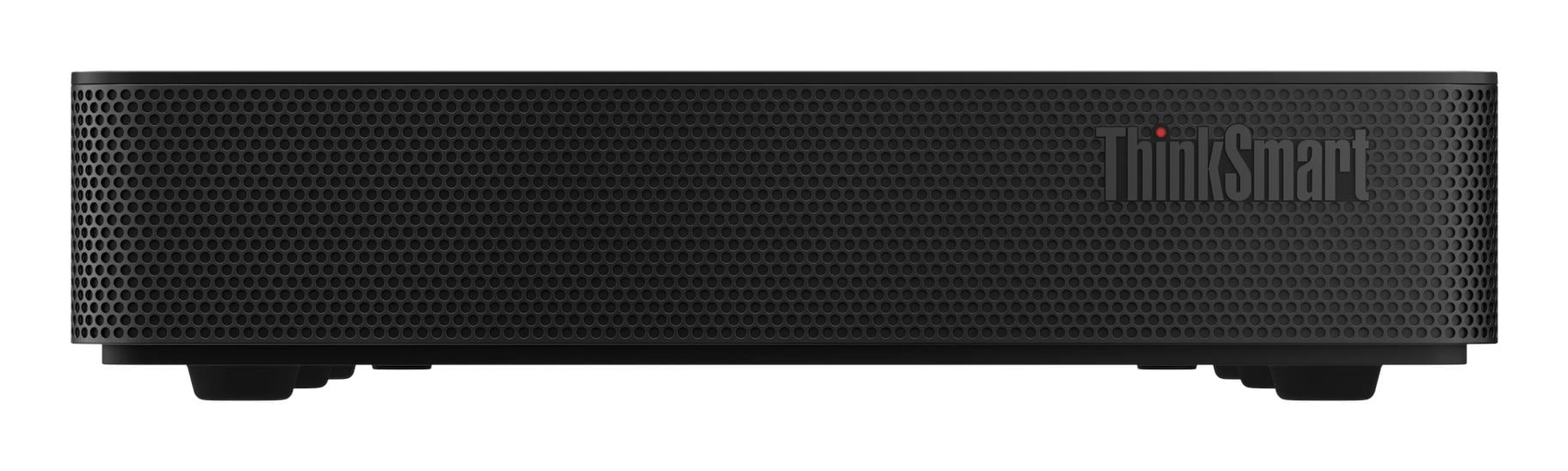

Lenovo ThinkSmart Core Gen 2 MTR. Processor family: Intel Core Ultra 5, Processor model: 135H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics. Operating system installed: Windows 11 IoT Enterprise, Operating system architecture: 64-bit. Power supply: 170 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.01 kg. Product colour: Black

Specification

Product
Product id	1021965
Brand	Lenovo
Partnr	12W6000RMB
EAN/UPC code	199274180430
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel Core Ultra (Series 1)
Processor model	135H
Processor cores	14
Processor boost frequency	4.6 GHz
Performance cores	4
Processor socket	BGA 2049
Efficient cores	8
Processor cache	18 MB
Processor cache type	Smart Cache
Performance-core base frequency	1.7 GHz
Processor threads	18
Efficient-core base frequency	1.2 GHz
Efficient-core Max Turbo Frequency	3.6 GHz
Performance-core Max Turbo Frequency	4.6 GHz
Processor base power	28 W
Maximum turbo power	115 W
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	2 x 8 GB
Memory slots	1x SO-DIMM
Memory clock speed	5600 MHz
Memory channels	Dual-channel
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Total processor performance (up to)	33 TOPs
NPU performance up to	11 TOPs
GPU performance up to	18 TOPs
Storage
Total storage capacity	256 GB
Optical drive type	N
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel Arc Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Arc Graphics
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 1000 Mbit/s
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Antenna type	2x2
Bluetooth	Y
Bluetooth version	5.3
Ports & interfaces
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Type-C DisplayPort Alternate Mode	Y
HDMI ports quantity	3
HDMI version	2.1
Ethernet LAN (RJ-45) ports	2
Design
Chassis type	Mini PC
Cable lock slot	Y
Cable lock slot type	Kensington
Product colour	Black
Performance
Product type	Mini PC (<= 3L)
Motherboard chipset	Intel SoC
Password protection	Y
Password protection type	BIOS, Power on, HDD
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 IoT Enterprise
Operating system architecture	64-bit
Power
Power supply	170 W
Weight & dimensions
Width	185 mm
Depth	220 mm
Height	38 mm
Weight	1010 g
Packaging content
Display included	N
Technical details
Box contents	External Adapter Cage + Removable Cable Management Box + Lenovo BYOM Cable for ThinkSmart Core Gen 2 - USB-C to USB-C 3m + VESA Mount Bracket
