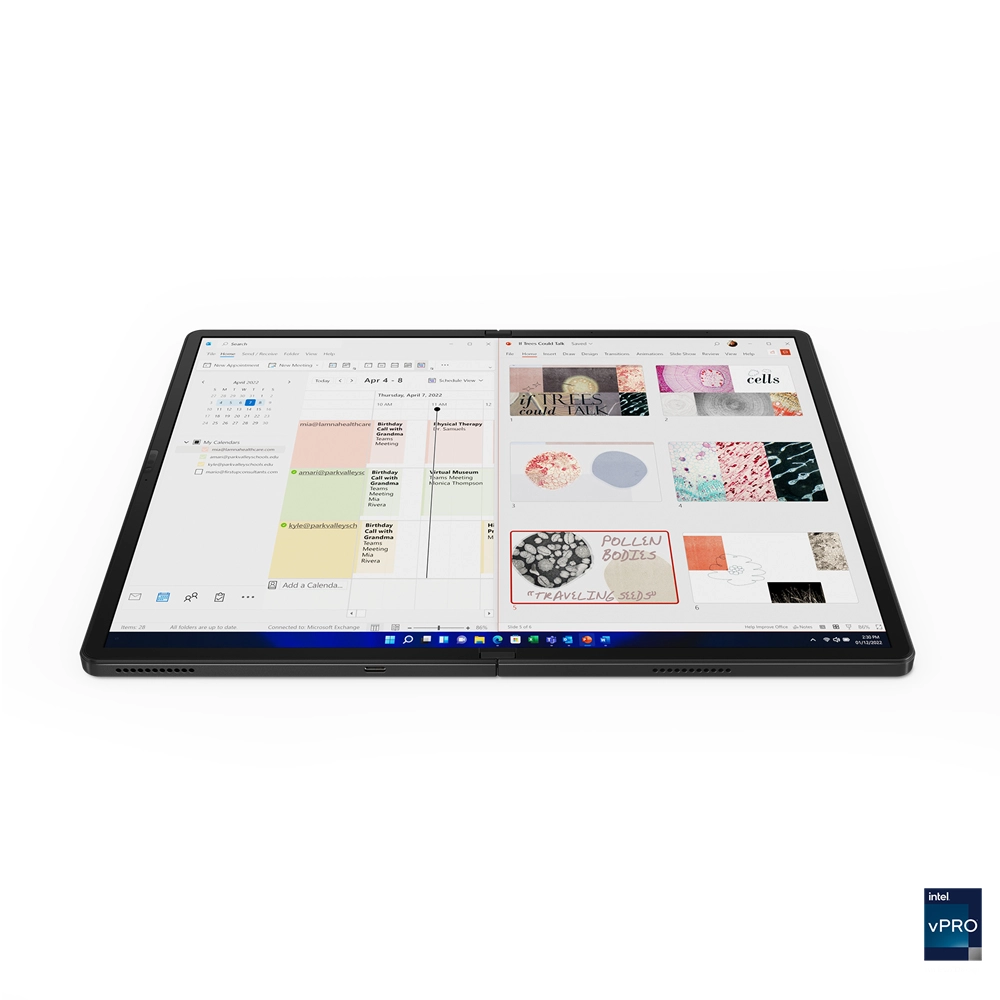

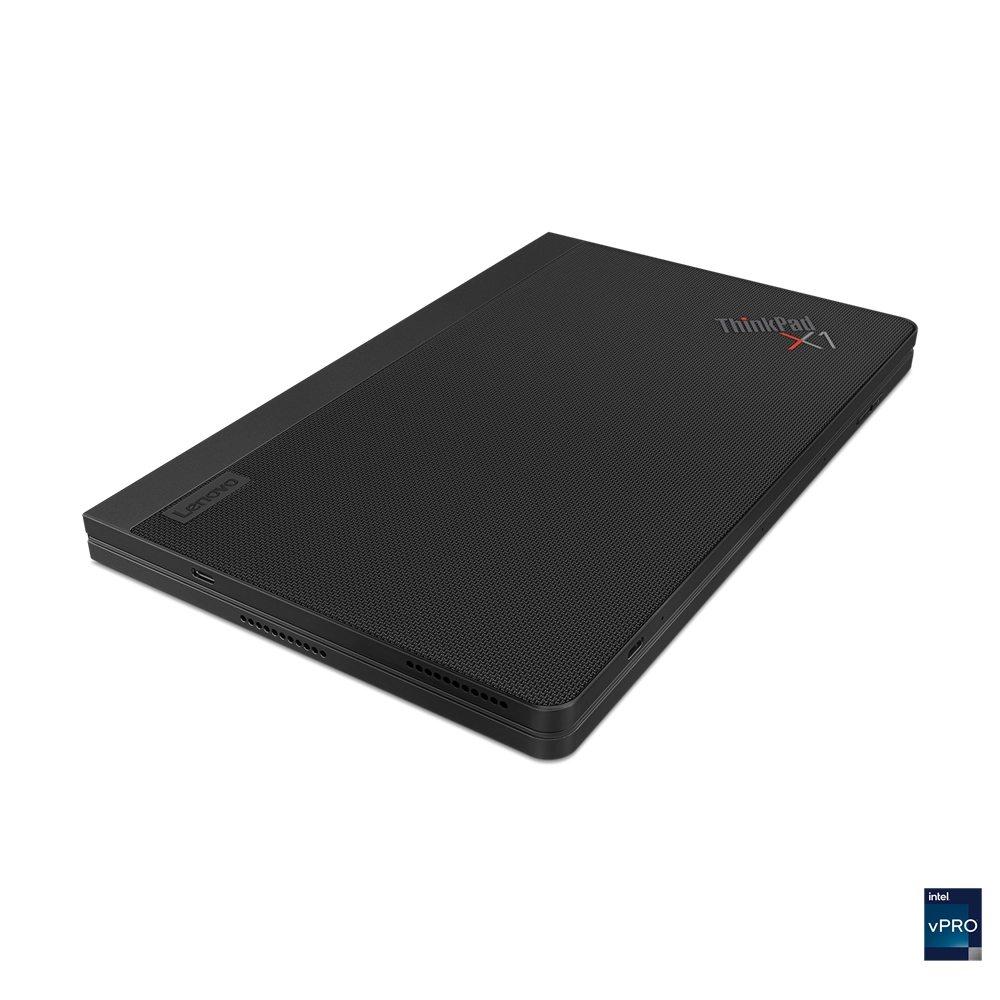

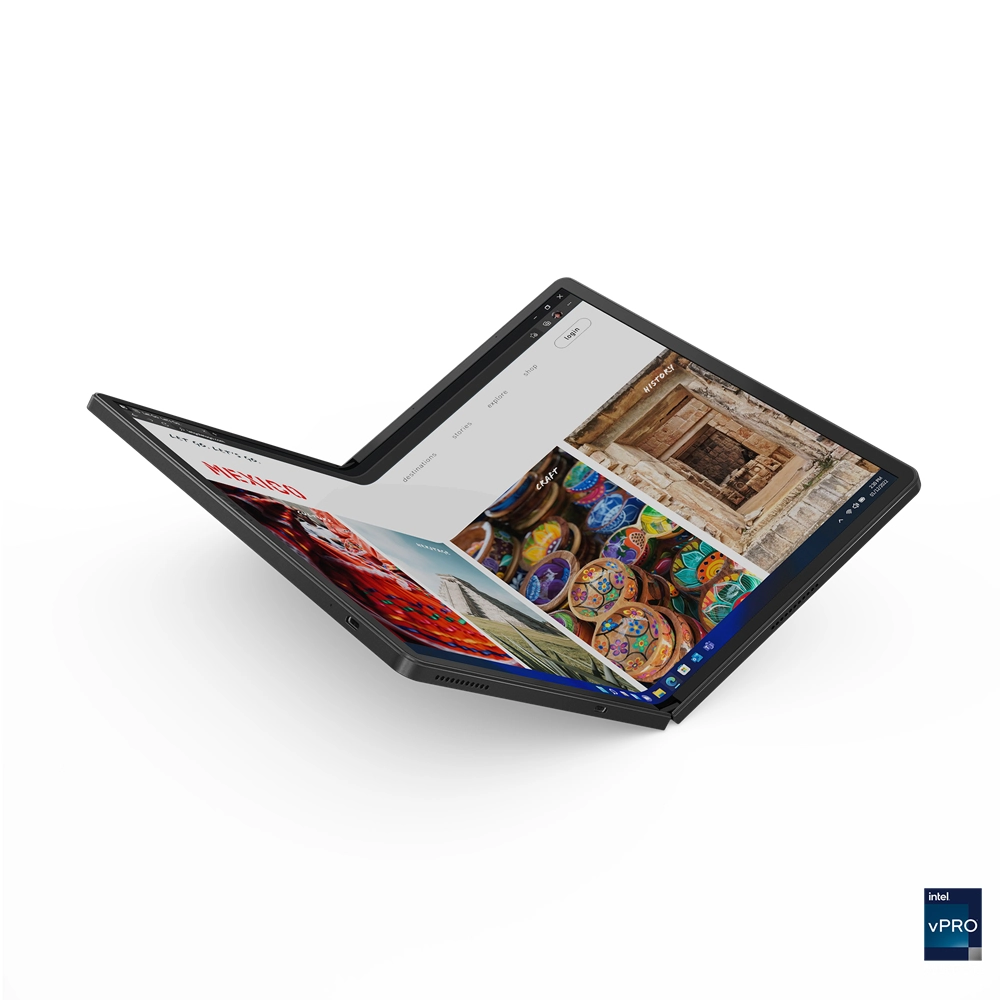

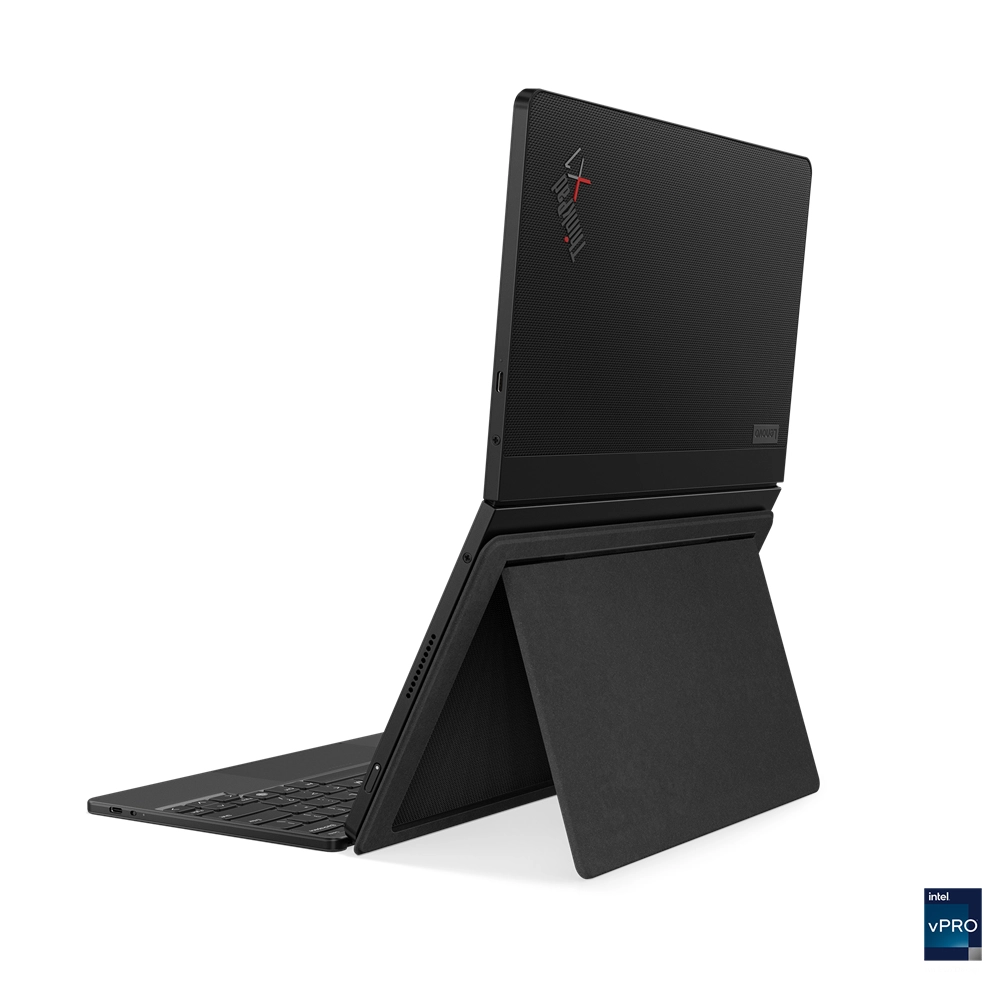

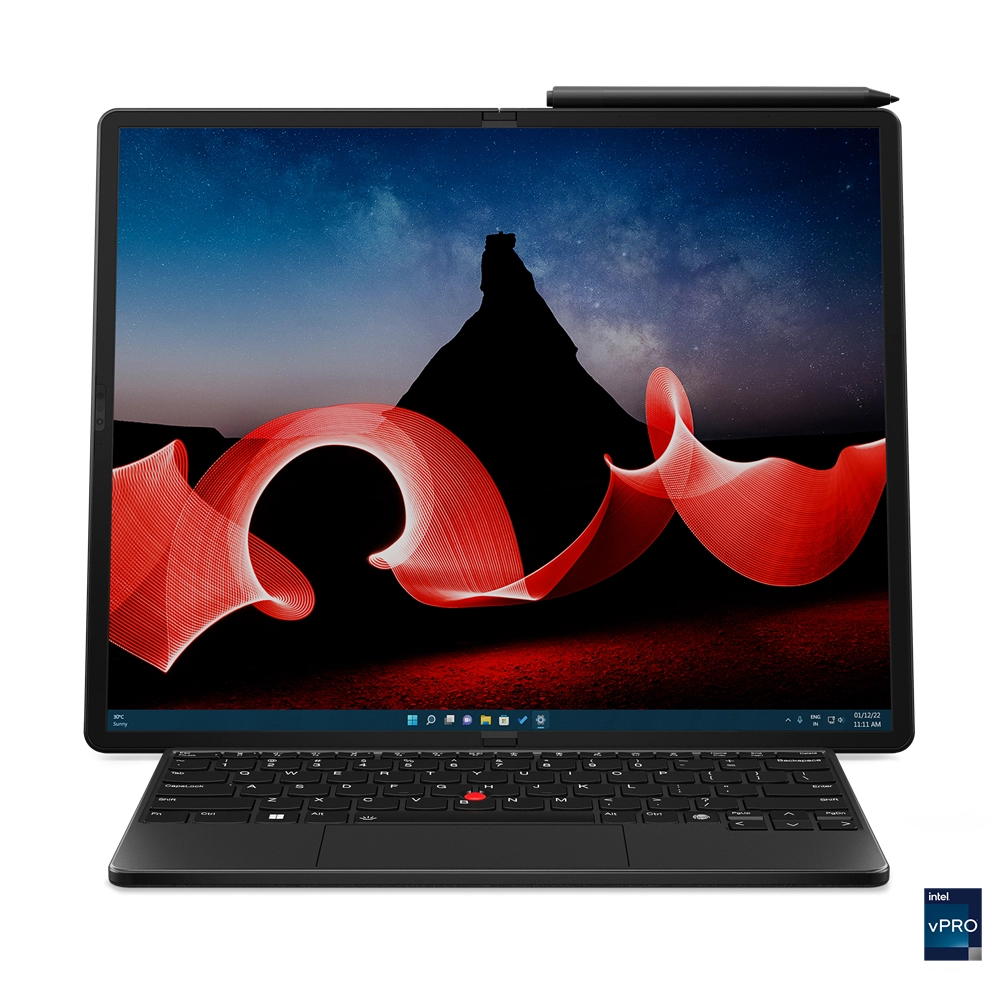

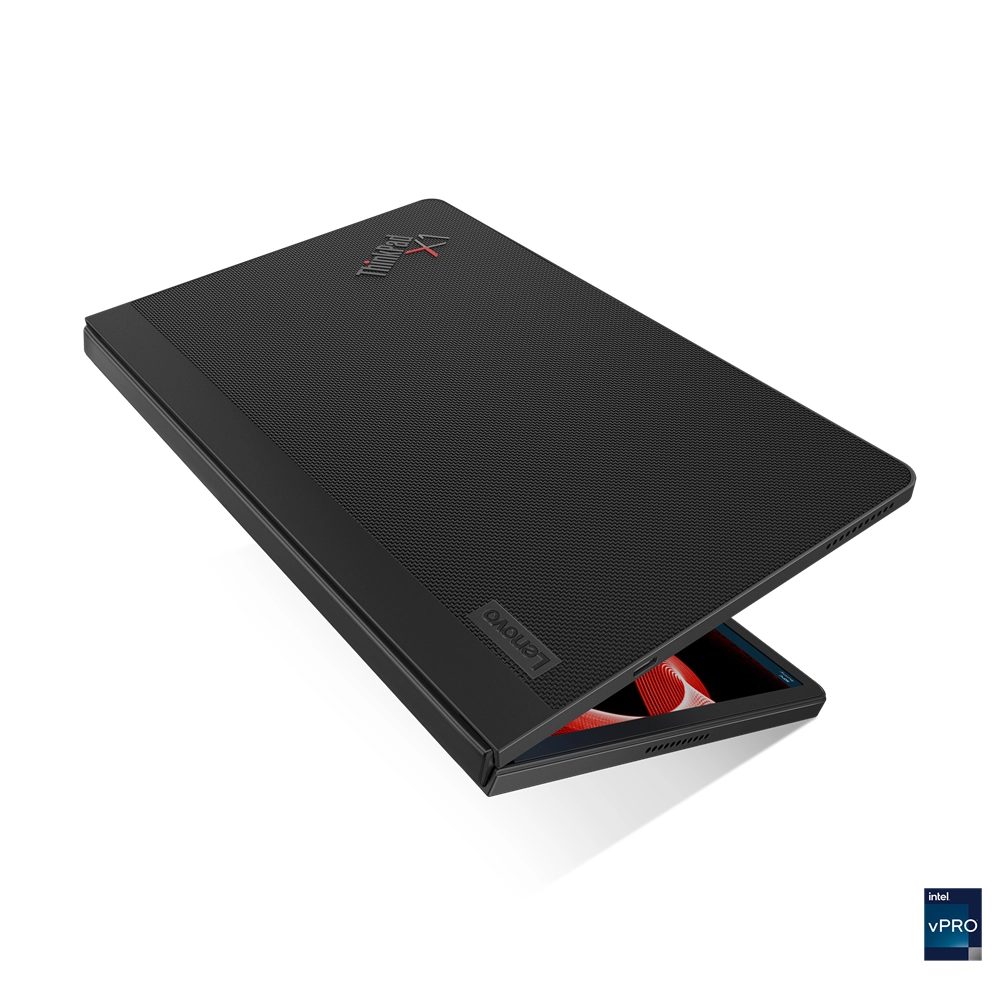

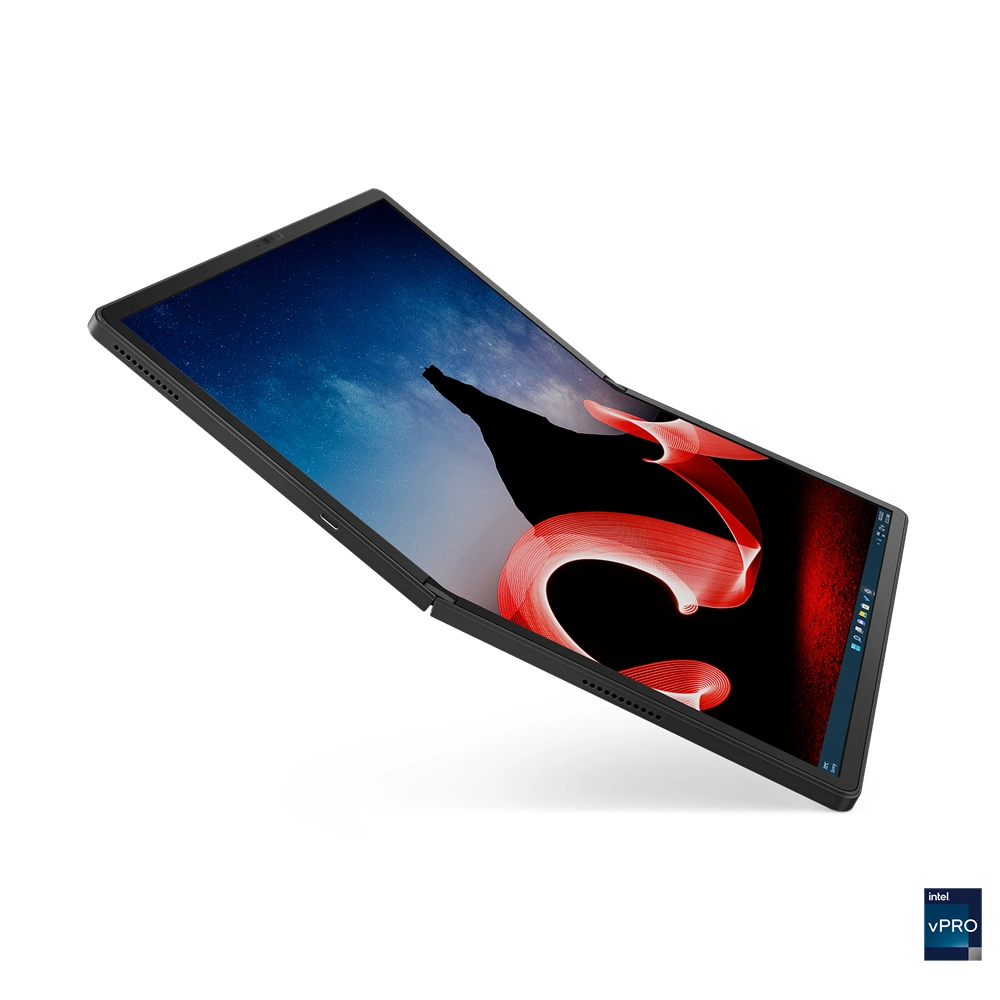

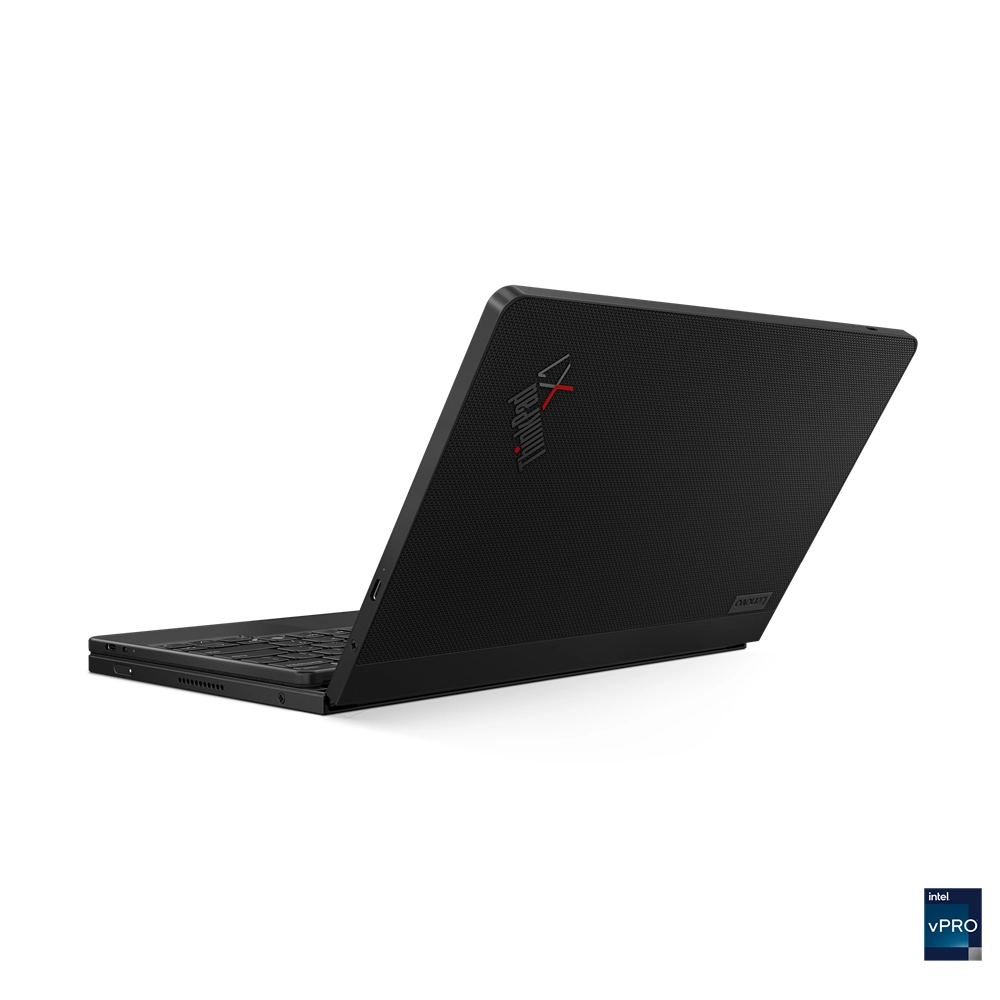

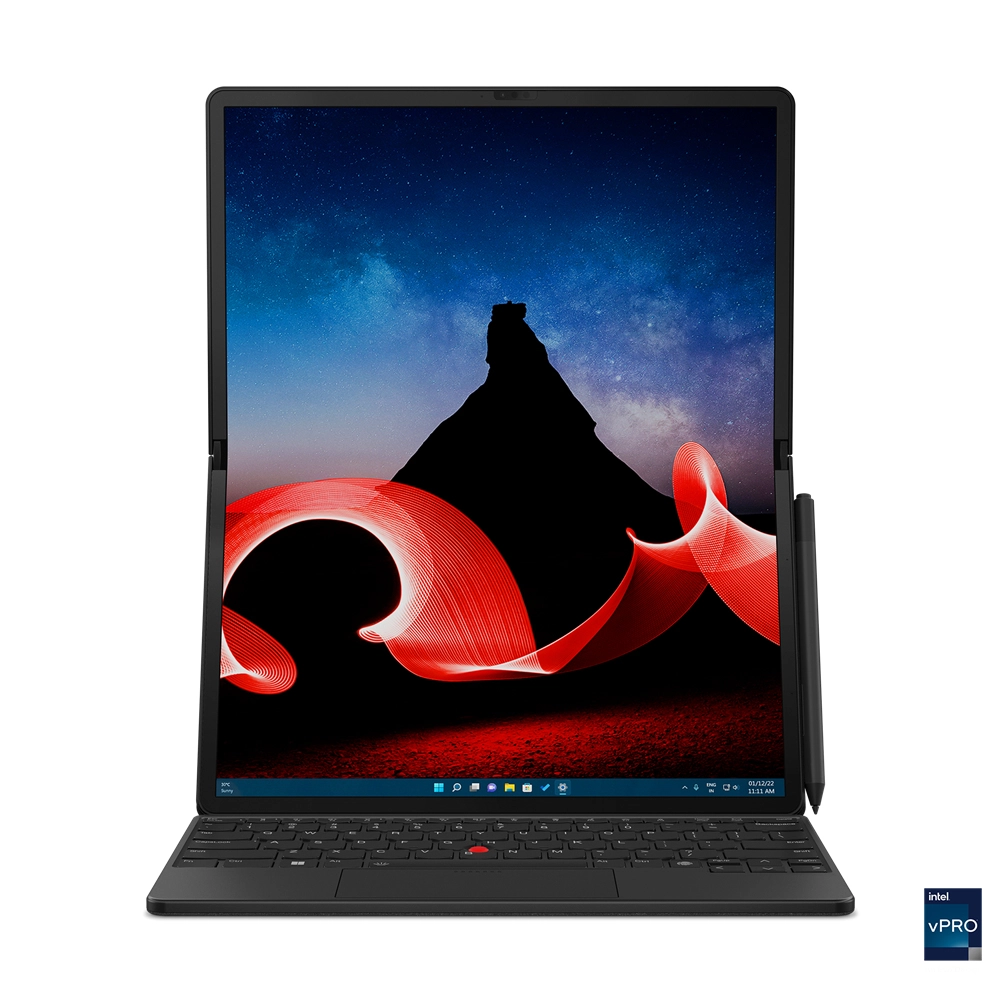

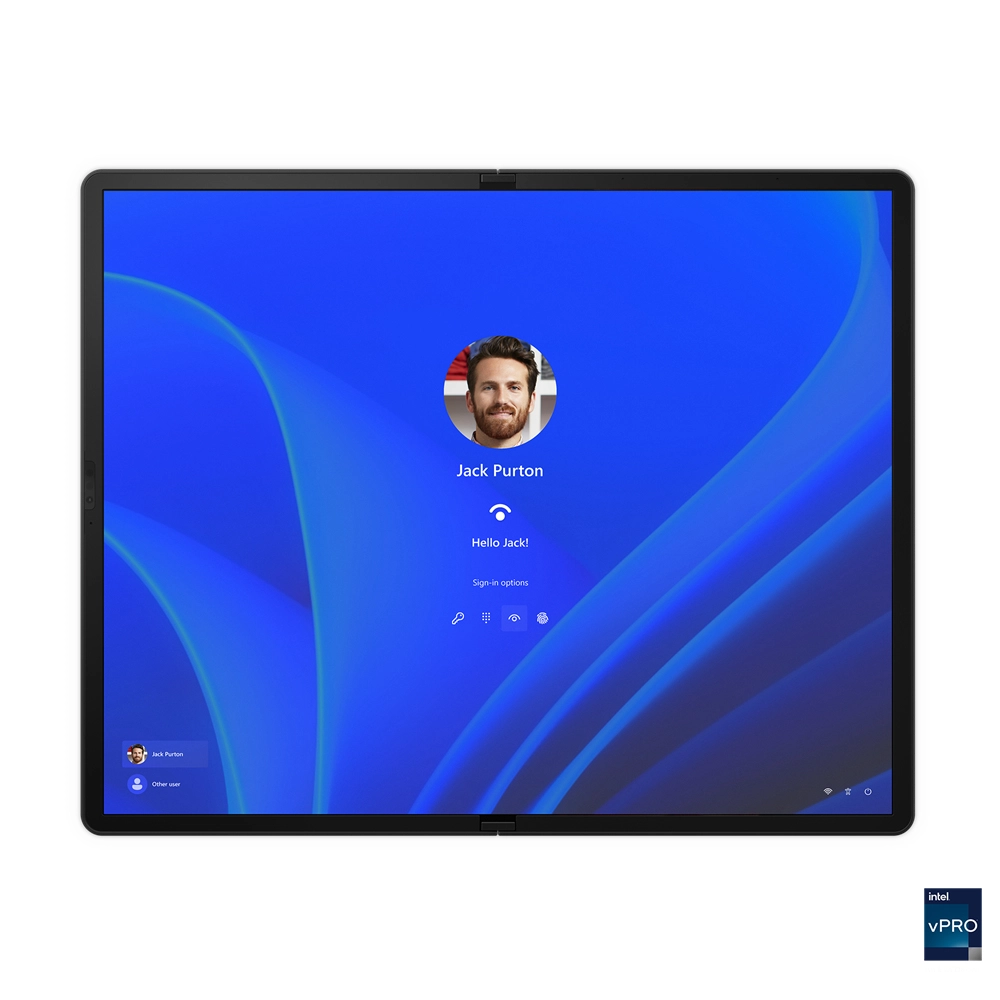

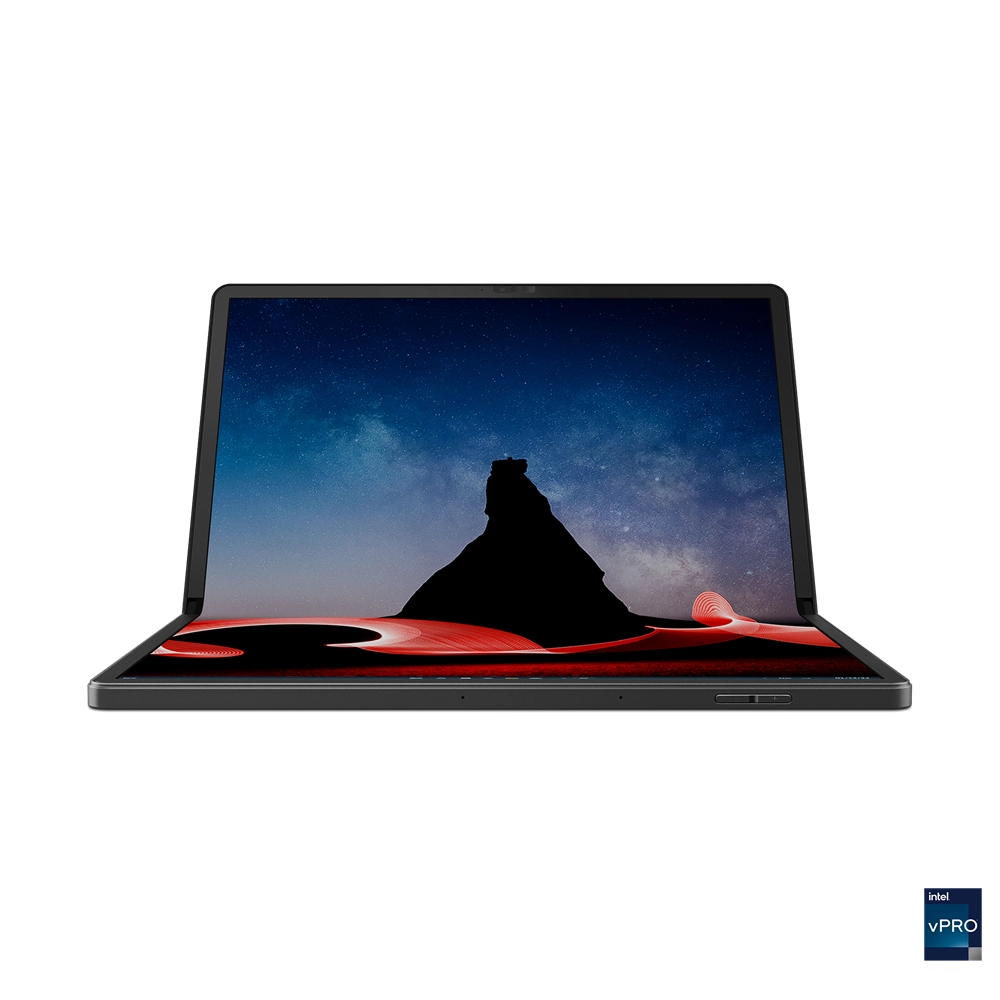

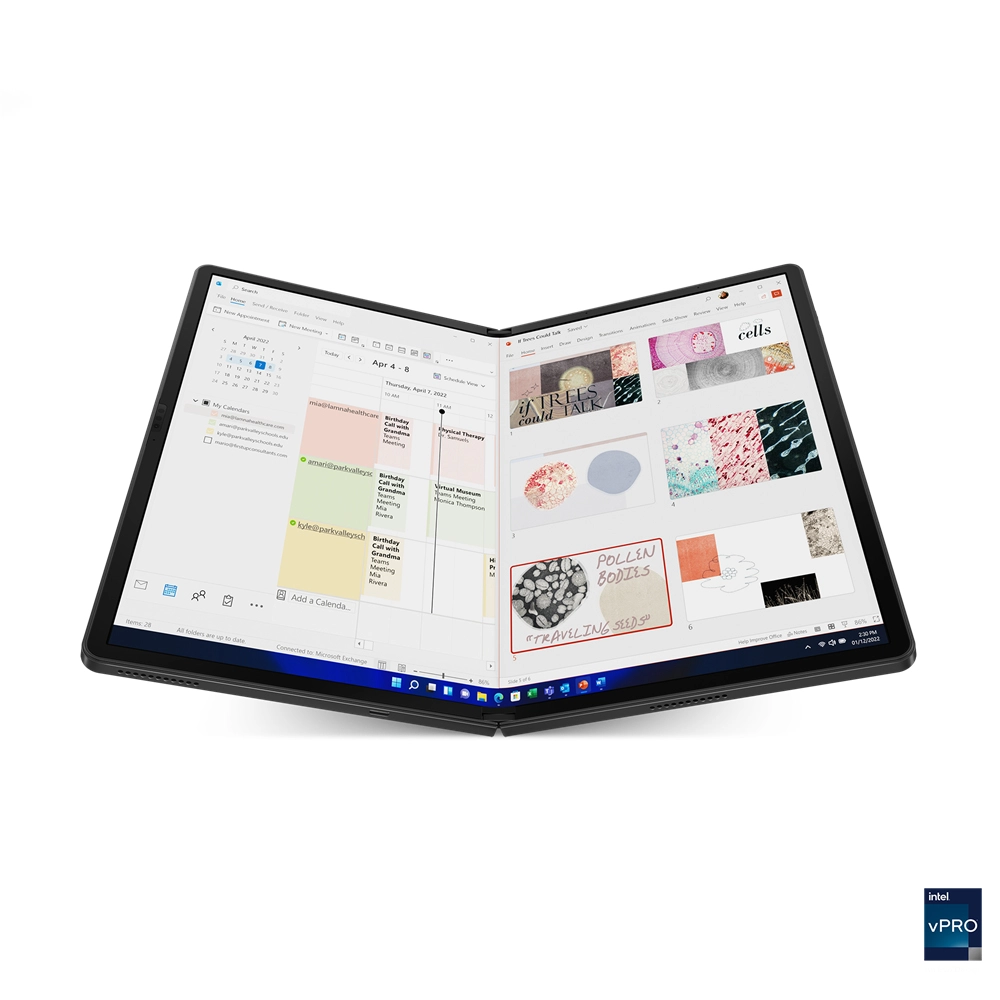

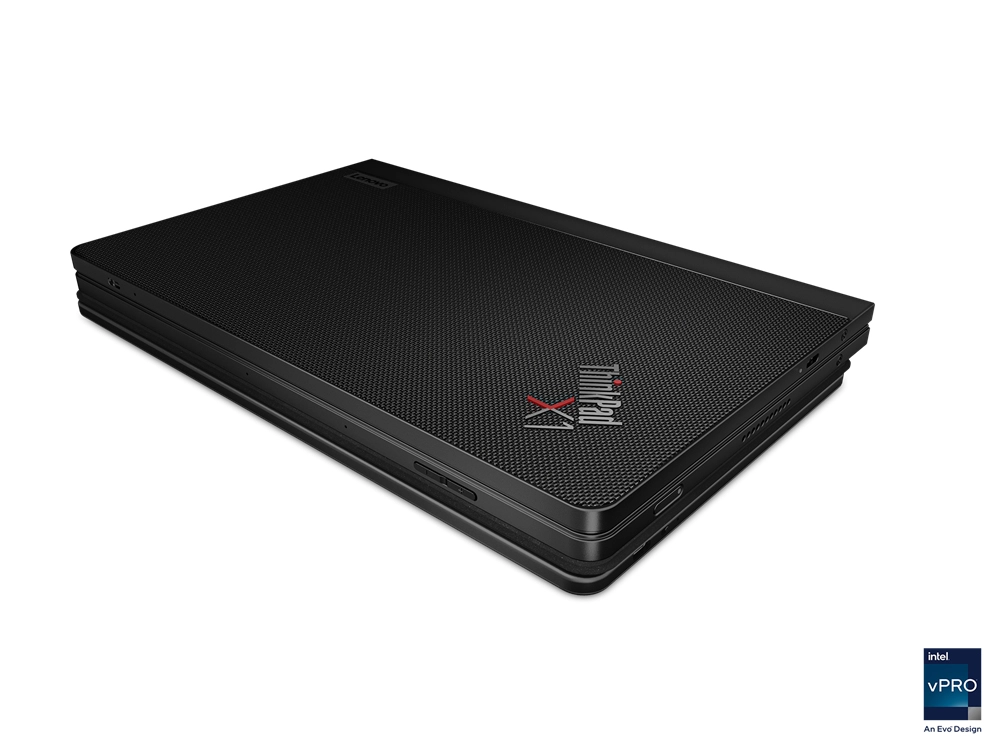

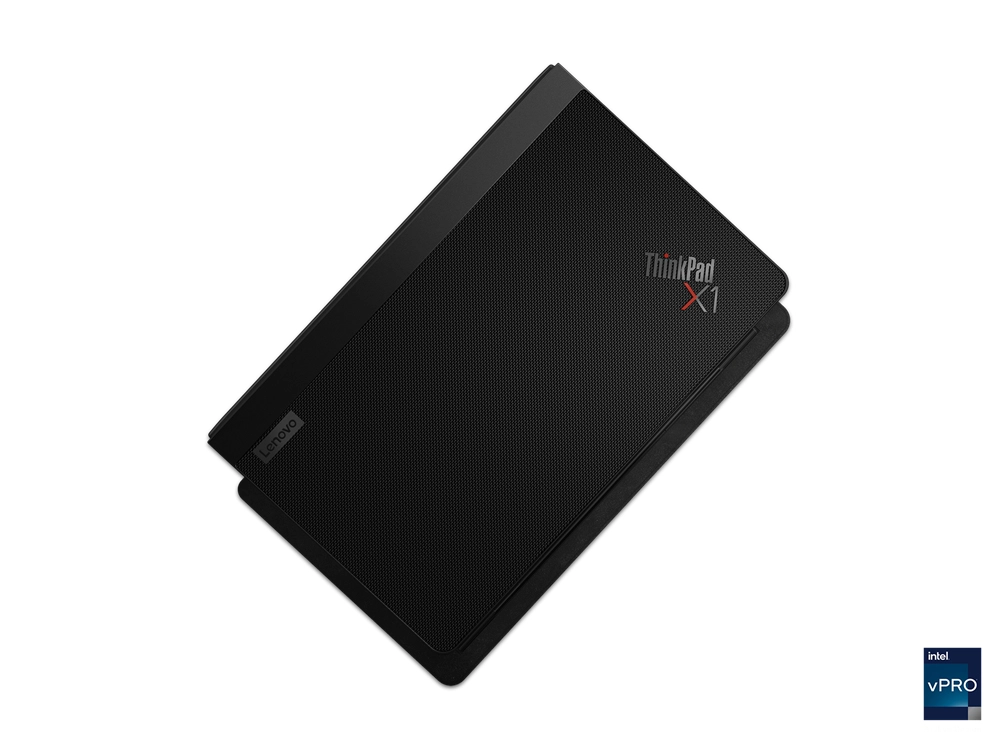

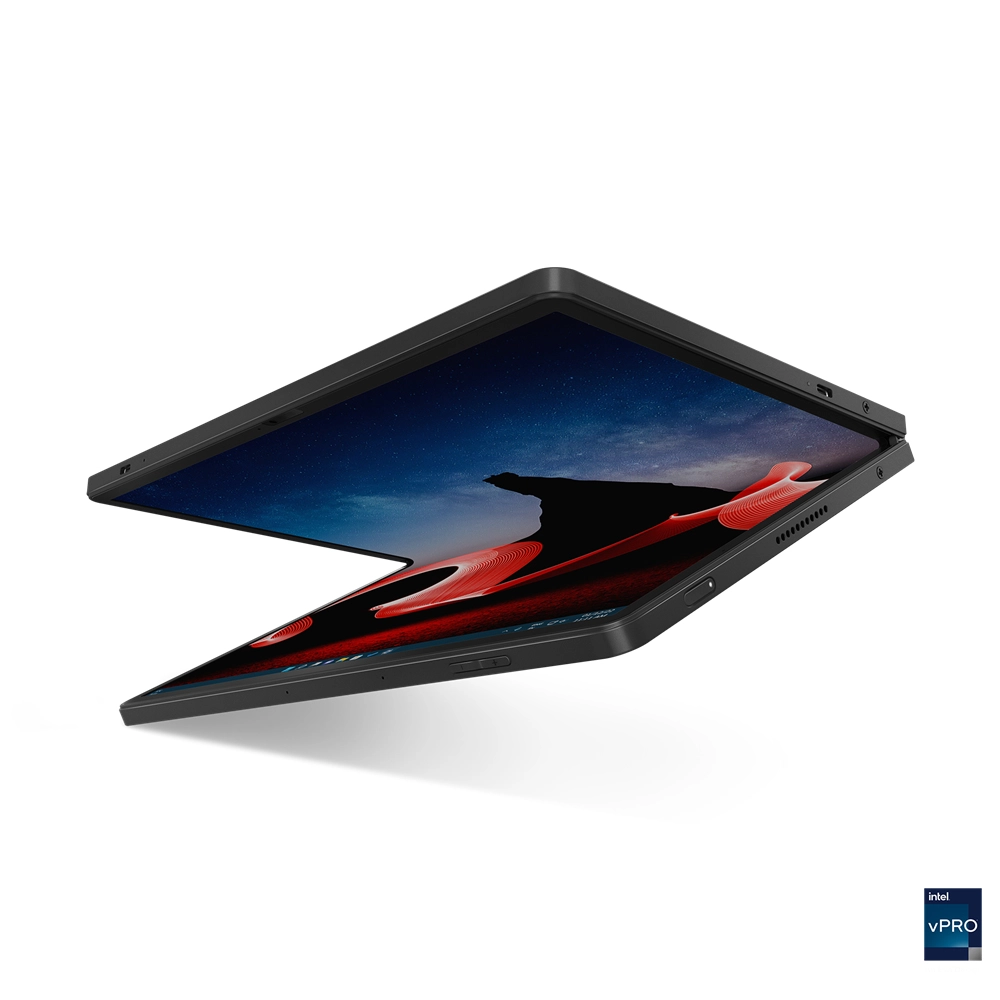

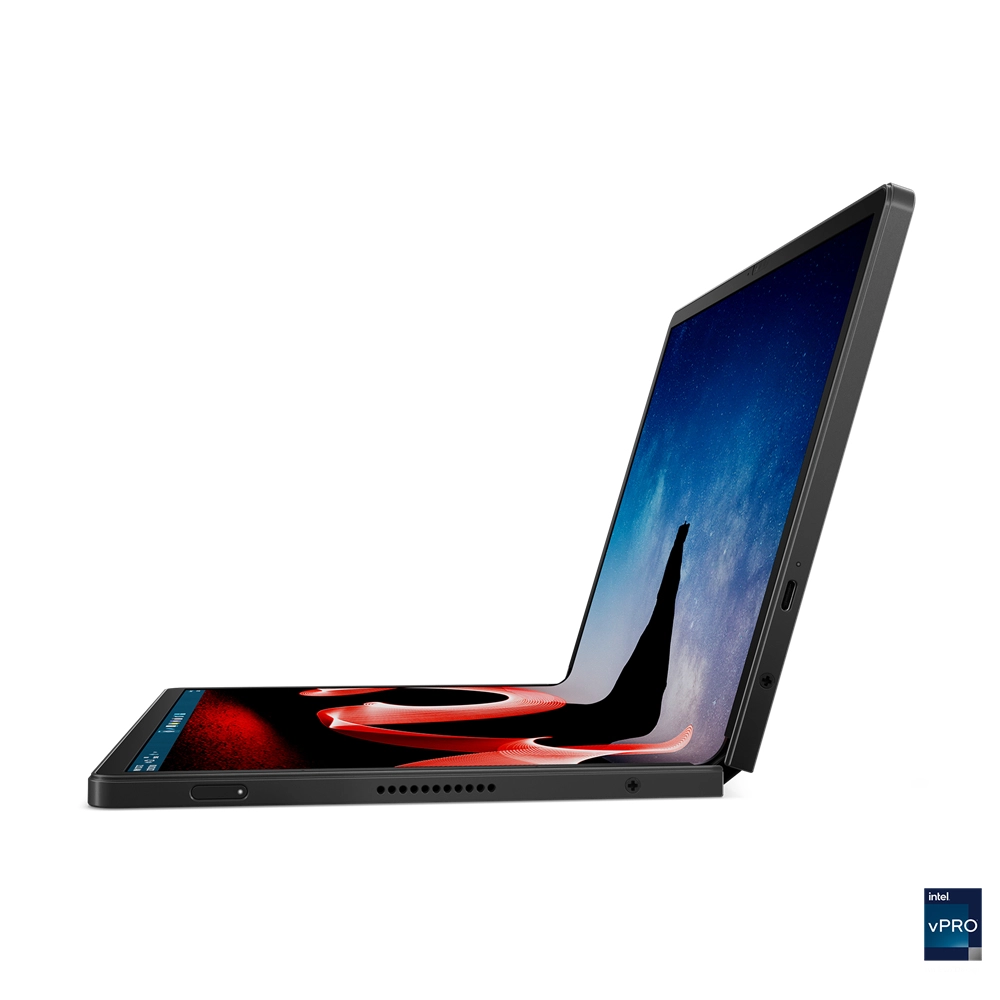

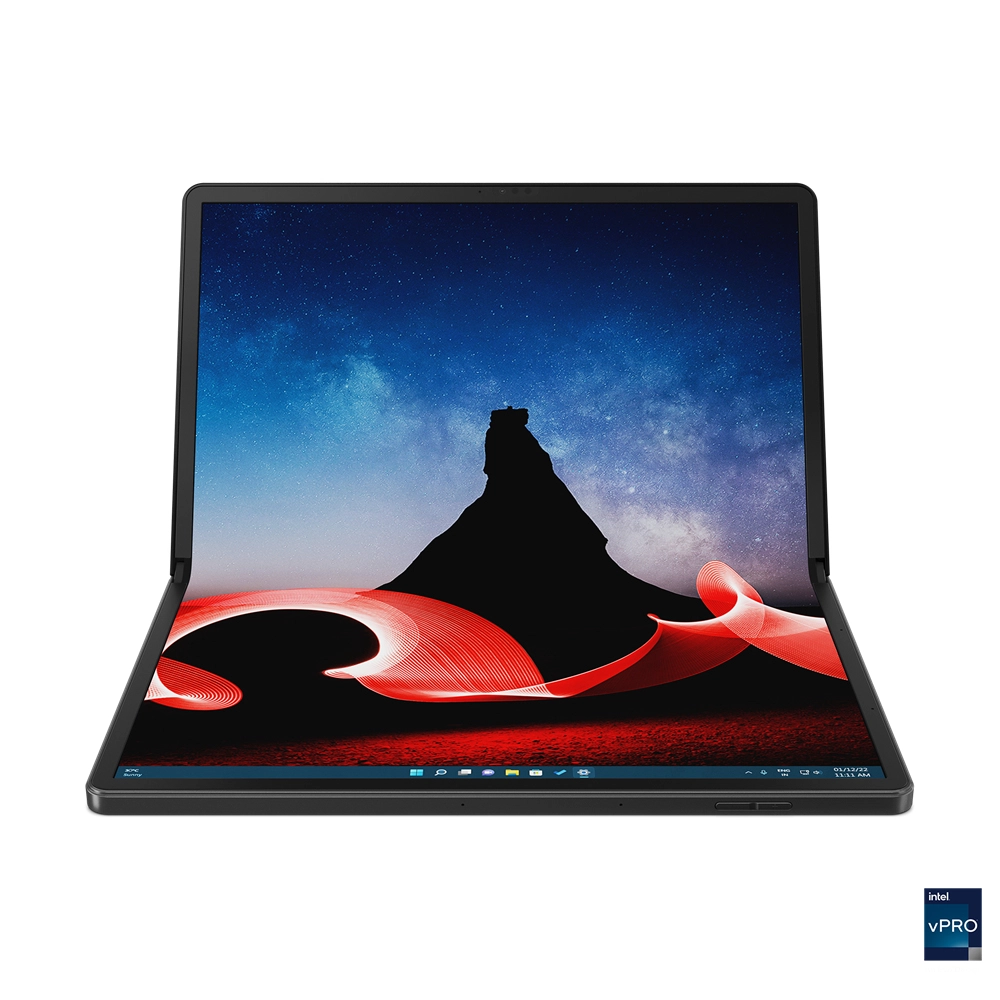

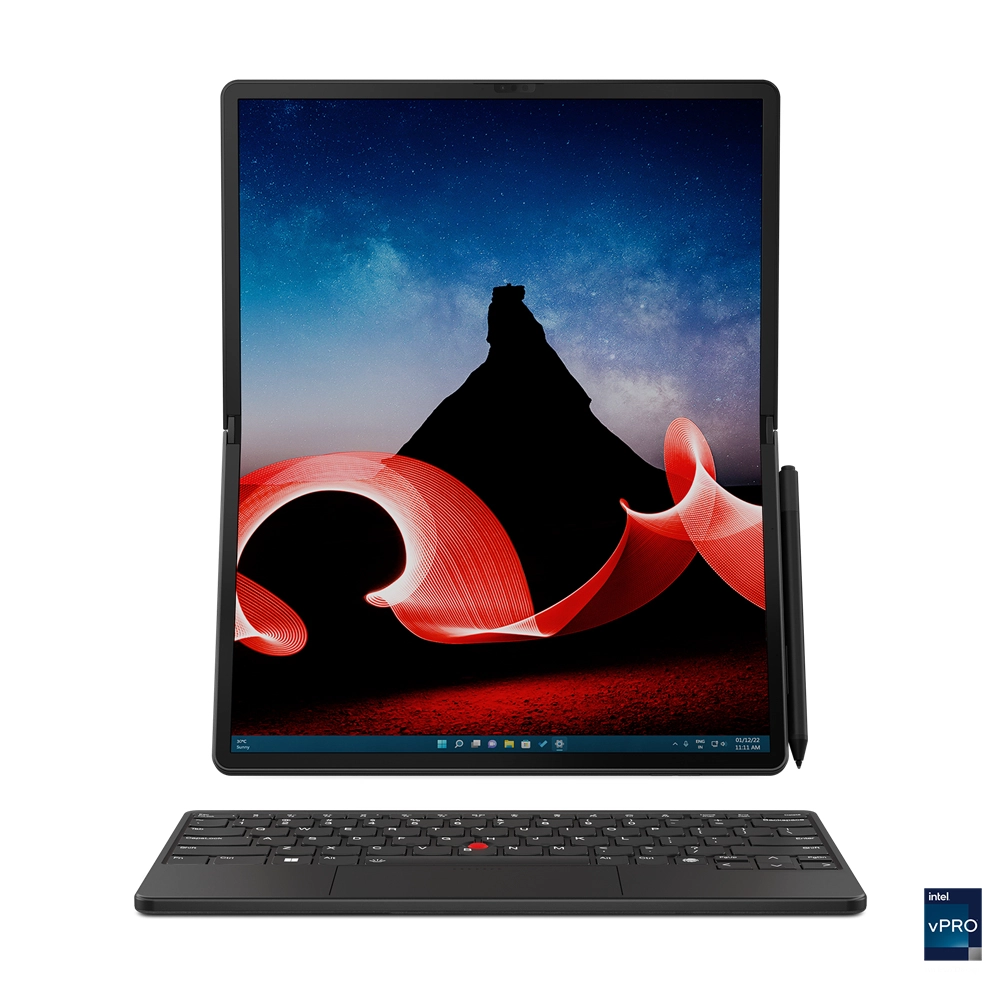

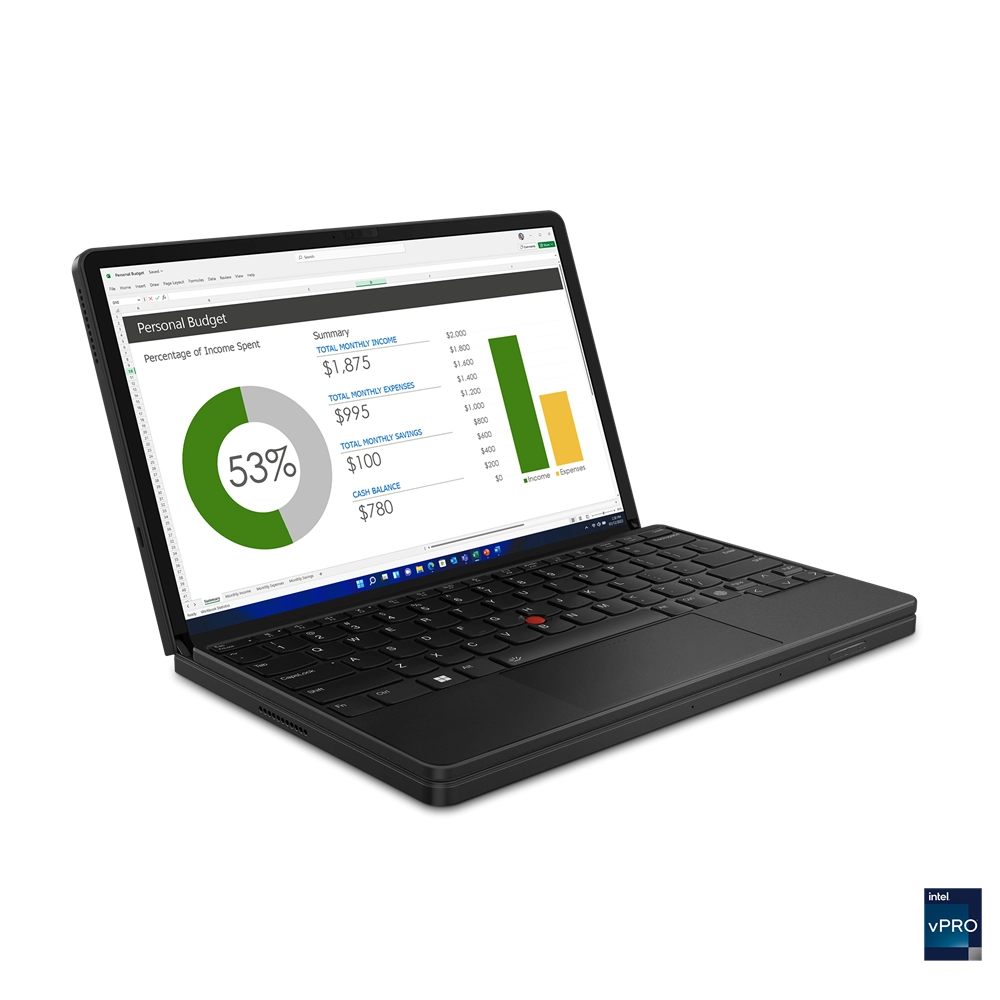

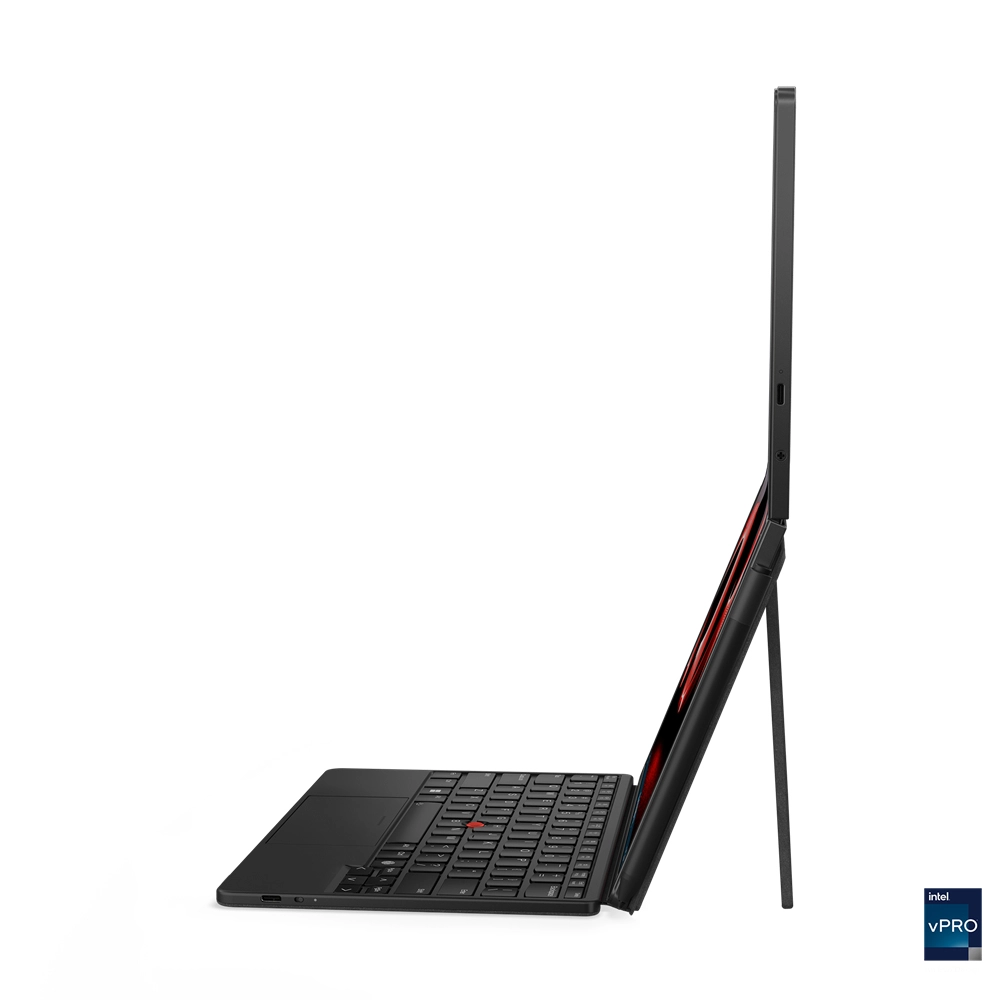

Lenovo ThinkPad X1 Fold 16. Product type: Hybrid (2-in-1), Form factor: Convertible (Detachable). Processor family: Intel® Core™ i5, Processor model: i5-1230U. Display diagonal: 41.4 cm (16.3"), Display resolution: 2560 x 2024 pixels, Touchscreen. Internal memory: 16 GB, Internal memory type: LPDDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics. Operating system installed: Windows 11 Pro. Product colour: Black. Weight: 1.94 kg

Specification

Product
Product id	862736
Brand	Lenovo
Partnr	21ES0017NX
EAN/UPC code	196803234916
Design
Product type	Hybrid (2-in-1)
Product colour	Black
Form factor	Convertible (Detachable)
Housing material	Aluminium
Display
Display diagonal	16.3 inch
Display resolution	2560 x 2024 Pixels
Touchscreen	Y
Foldable display	Y
Panel type	OLED
LED backlight	Y
Native aspect ratio	4:3
Colour gamut	100 procent
RGB colour space	DCI-P3
High Dynamic Range (HDR) technology	Dolby Vision
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Y
Processor
Processor manufacturer	Intel
Processor family	Intel Core i5
Processor model	i5-1230U
Processor generation	Intel Core i5-12xxx
Processor boost frequency	4.4 GHz
Processor cores	10
Processor cache	12 MB
Processor cache type	Smart Cache
Motherboard chipset	Intel SoC
Memory
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Memory clock speed	5200 MHz
Memory form factor	On-board
Maximum internal memory	16 GB
Memory channels	Octa-channel
Storage
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Optical drive type	N
Card reader integrated	N
Graphics
On-board graphics adapter	Y
Discrete graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter model	Intel Iris Xe Graphics
Audio
Audio system	Dolby Atmos
Number of built-in speakers	3
Speaker power	2 W
Built-in microphone	Y
Number of microphones	4
Camera
Front camera	Y
Front camera resolution (numeric)	5 MP
Infrared (IR) camera	Y
Network
Bluetooth	Y
Mobile network connection	N
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	N
Bluetooth version	5.1
WWAN	N
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Intel® Thunderbolt 4	Y
Thunderbolt 4 ports quantity	2
USB Type-C DisplayPort Alternate Mode	Y
USB Power Delivery	Y
Keyboard
Pointing device	ThinkPad UltraNav
Keyboard layout	QWERTY
Keyboard language	English
Numeric keypad	N
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	DEU, DUT, ENG, FRE, ITA
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Execute Disable Bit	Y
CPU configuration (max)	1
Embedded options available	N
Intel Virtualization Technology (VT-x)	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel Trusted Execution Technology	Y
Intel Flex Memory Access	N
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity (Watt-hours)	64 Wh
Power
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Security
Fingerprint reader	Y
Smart card reader	N
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Password protection	Y
Password protection type	BIOS, Power on, SSD, Supervisor
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95 procent
Storage relative humidity (H-H)	5 - 95 procent
Maximum shipping altitude	3048 m
Certificates
Certification	MIL-STD-810H
Weight & dimensions
Weight	1938 g
Weight (tablet mode)	1311 g
Width (tablet mode)	345.7 mm
Depth (tablet mode)	276.2 mm
Height (tablet mode)	8.6 mm
Packaging content
Stylus pen	Y
Technical details
Sustainability certificates	RoHS, TCO, ENERGY STAR, EPEAT Gold, ErP
