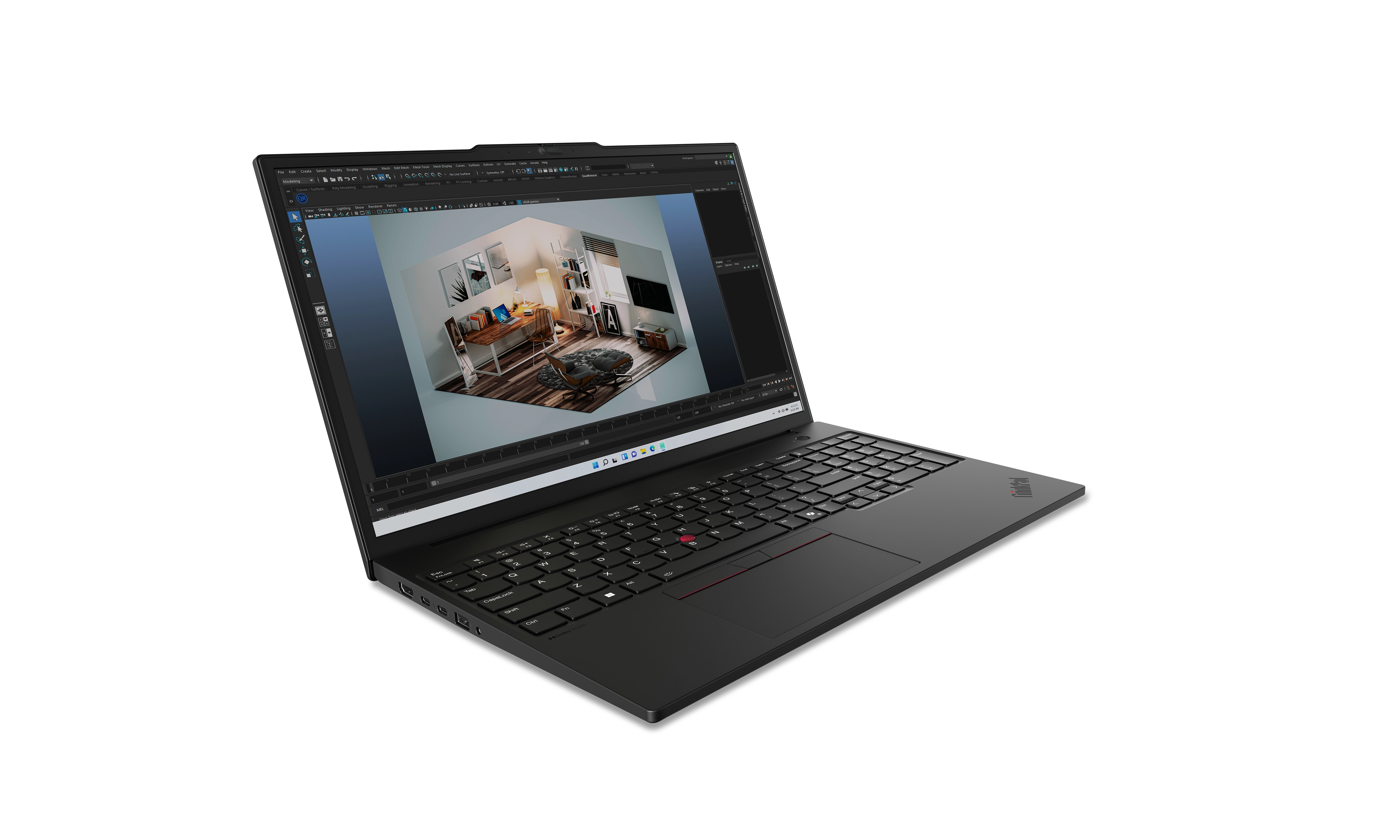

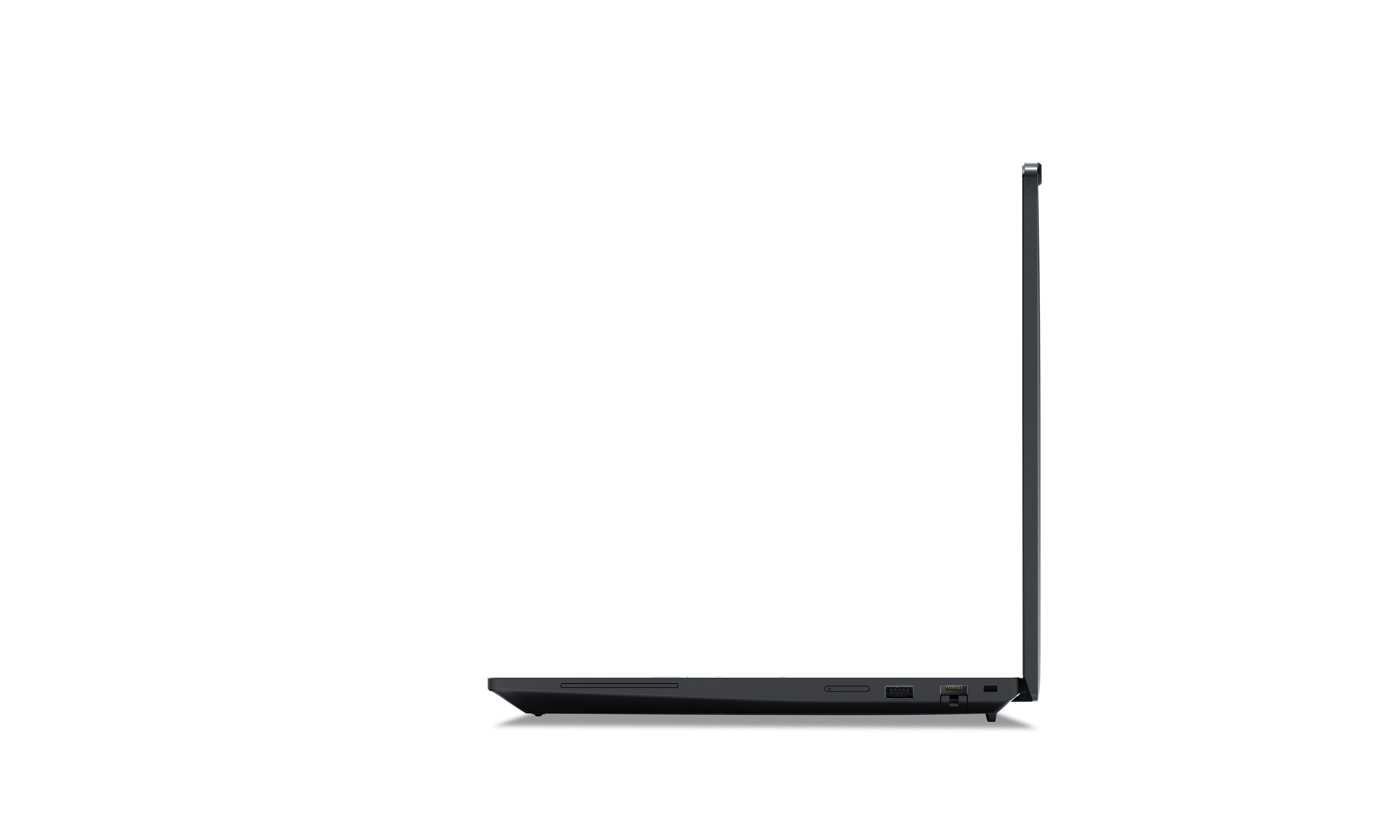

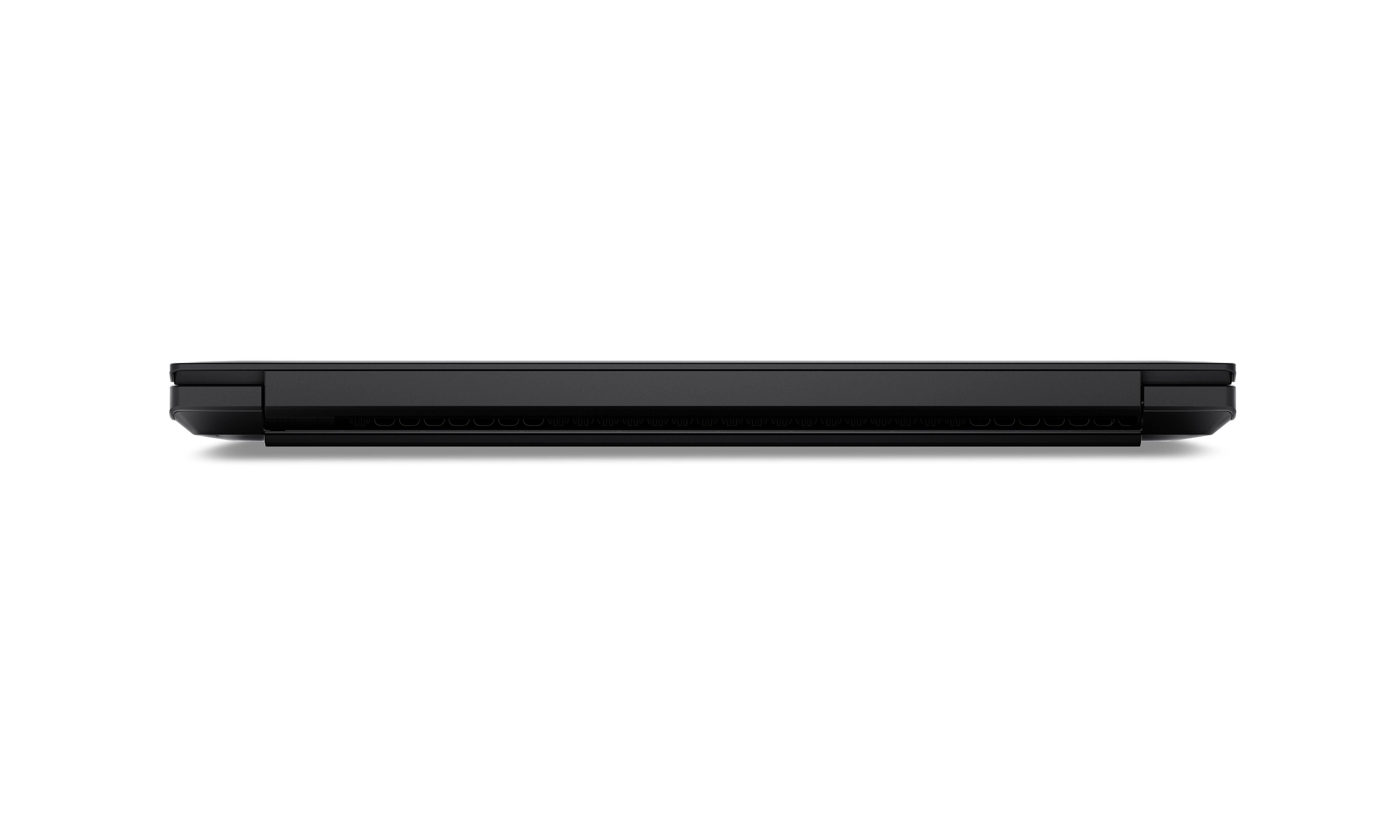

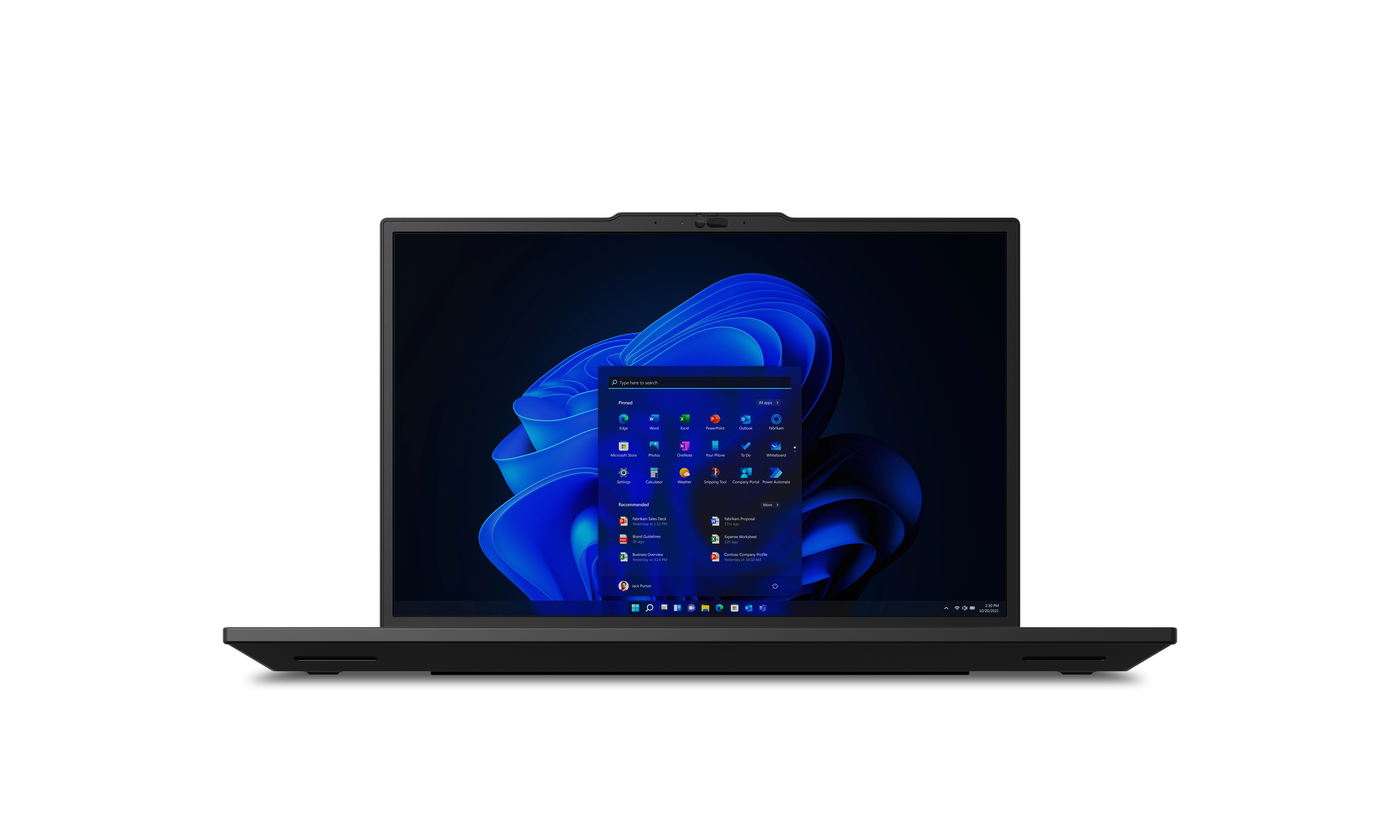

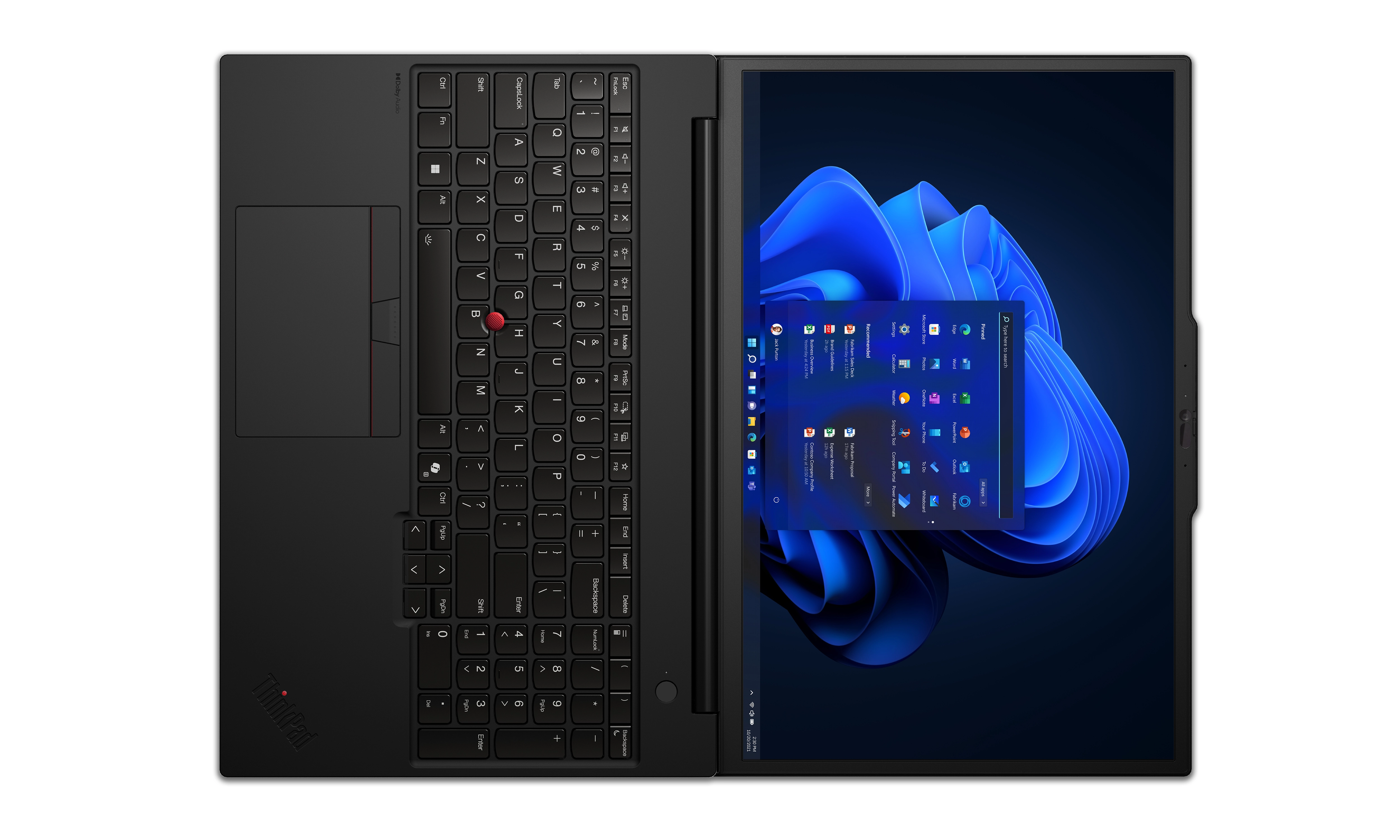

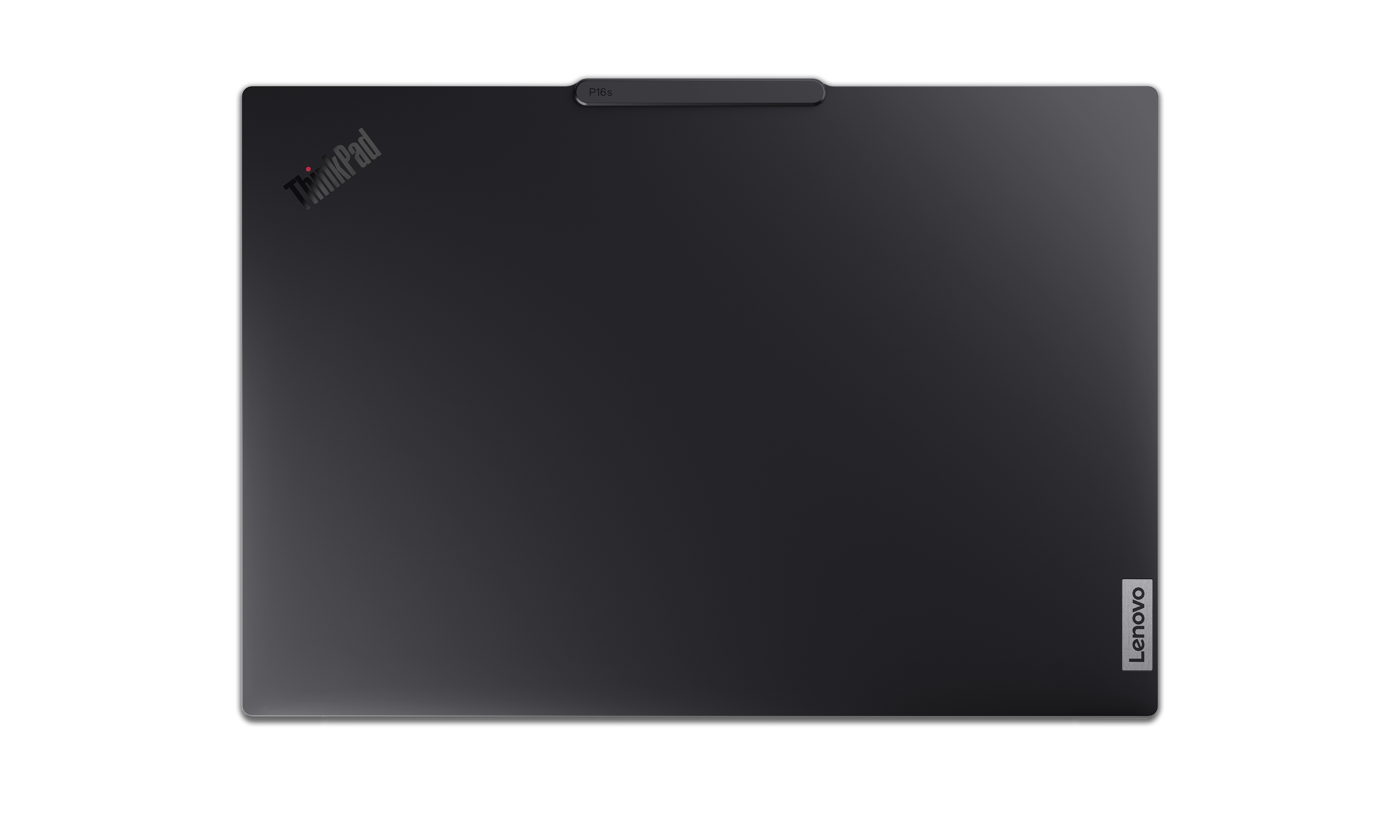

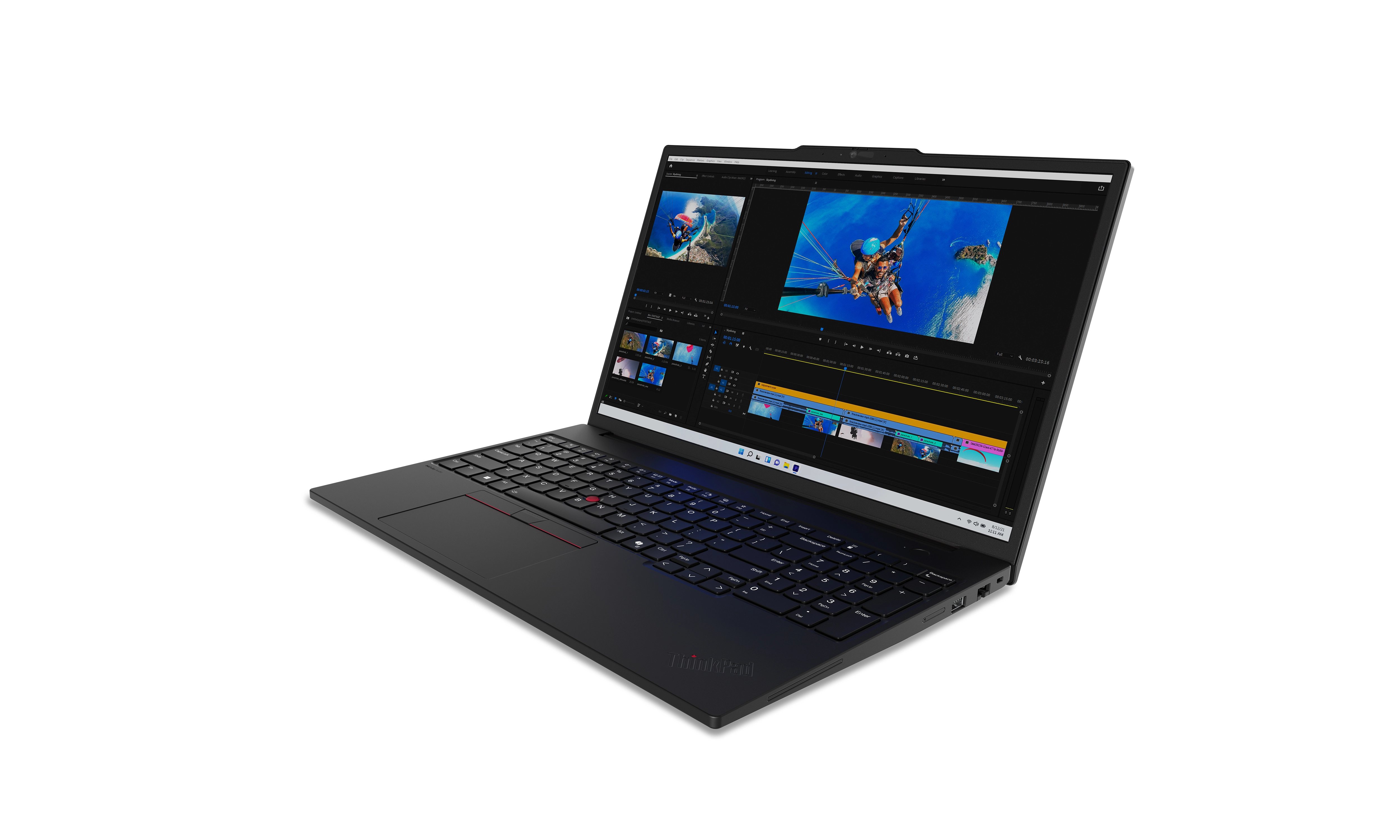

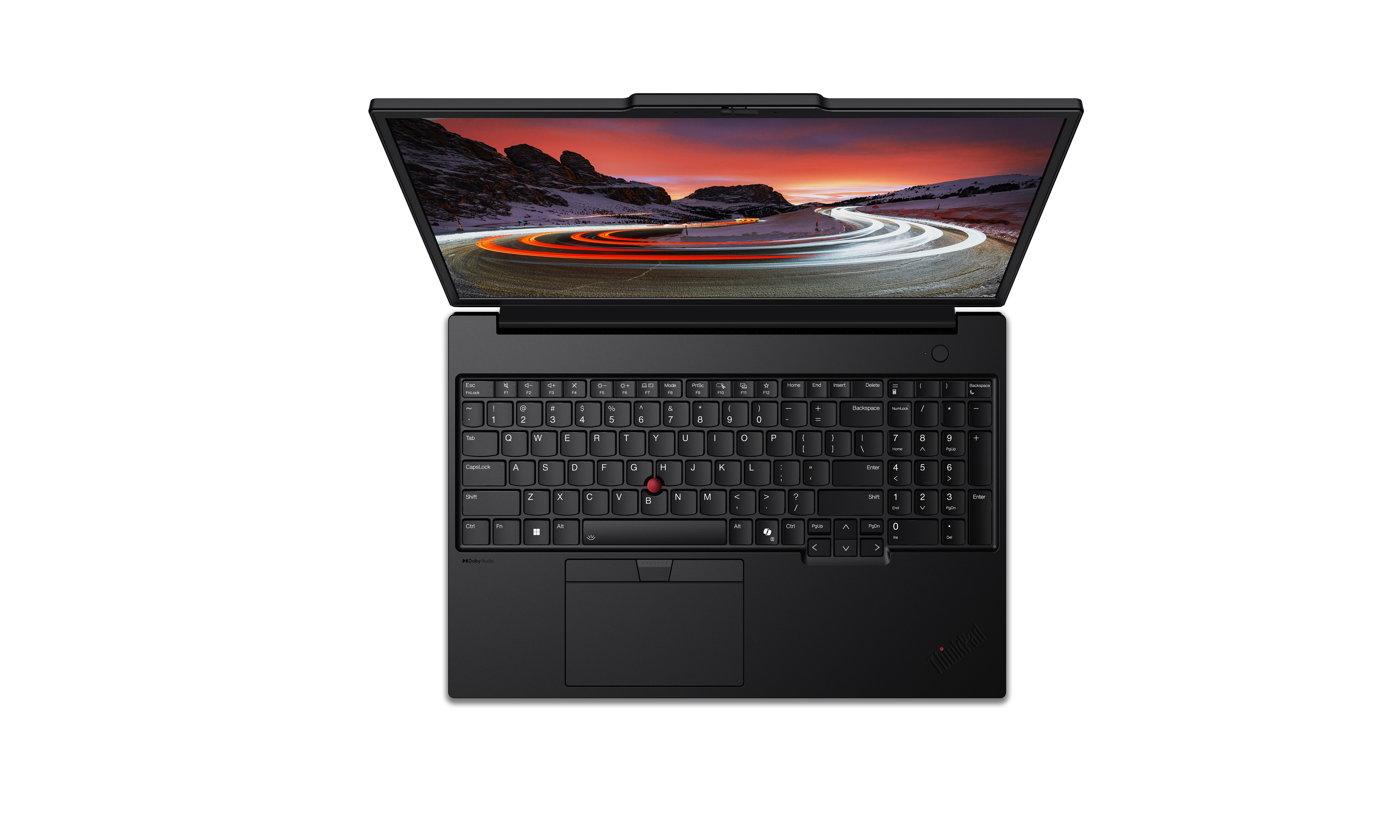

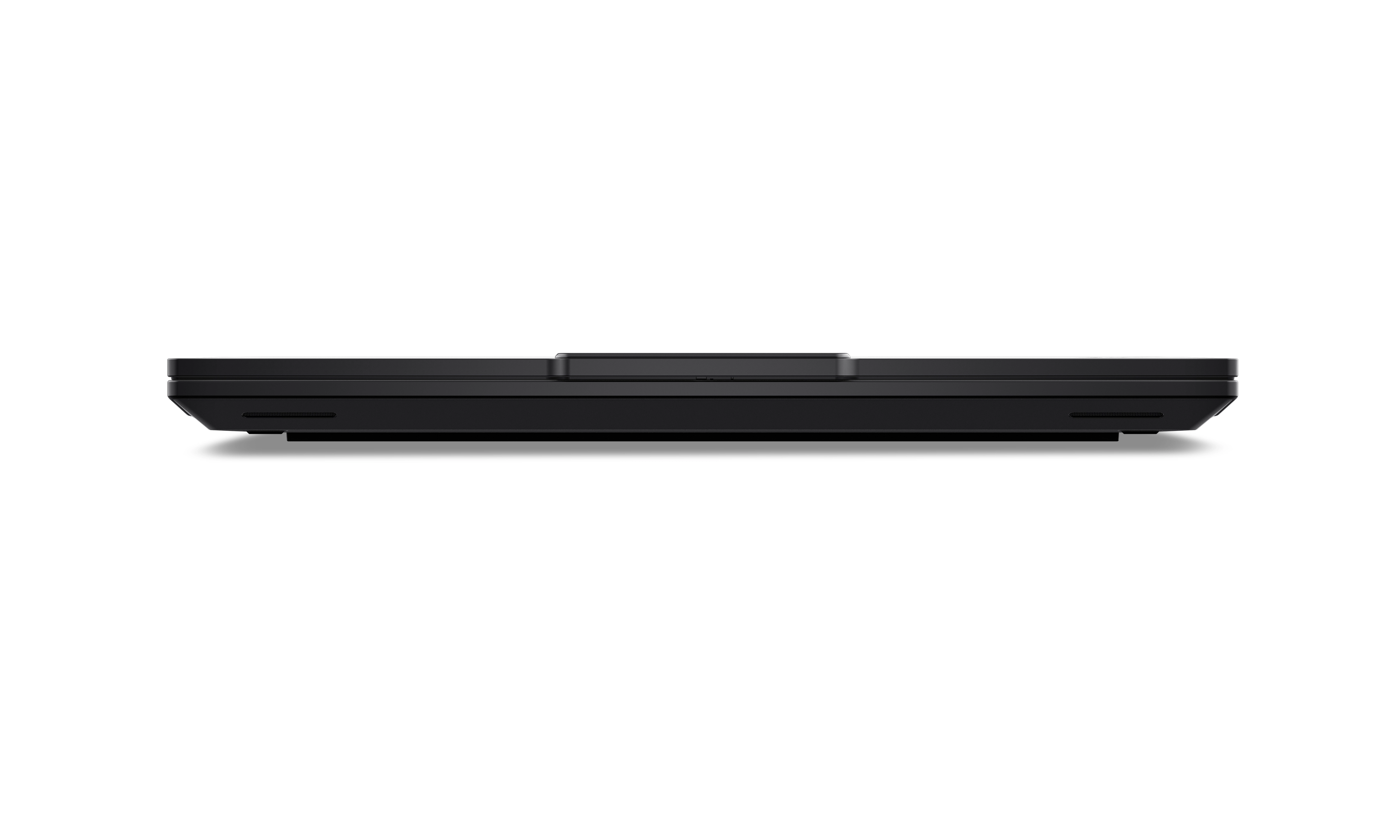

Lenovo ThinkPad P16s Gen 3 (Intel). Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 155H. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics, Discrete graphics card model: NVIDIA RTX 500 Ada. Operating system installed: Windows 11 Pro. Product colour: Black

Specification

Product
Product id	951927
Brand	Lenovo
Partnr	21KS0006MH
EAN/UPC code	198153380848
Design
Product type	Mobile workstation
Product colour	Black
Colour name	Black
Form factor	Clamshell
Housing material	Aluminium
Display
Display diagonal	16 inch
Display resolution	1920 x 1200 Pixels
Touchscreen	N
Panel type	IPS
HD type	WUXGA
LED backlight	Y
Native aspect ratio	16:10
Anti-glare screen	Y
Display brightness	300 cd/m²
Colour gamut	45 procent
RGB colour space	NTSC
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor model	155H
Processor generation	Intel Core Ultra (Series 1)
Processor boost frequency	4.8 GHz
Processor cores	16
Processor threads	22
Low Power Efficient-cores	2
Efficient-core base frequency	0.9 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Processor cache	24 MB
Performance-core base frequency	1.4 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache type	Smart Cache
Motherboard chipset	Intel SoC
Processor base power	28 W
Maximum turbo power	115 W
Performance cores	6
Efficient cores	8
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	96 GB
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Maximum frequency NPU	1.4 GHz
Sparsity support	Y
Windows Studio effects support	Y
AI datatype support on NPU	FP16, FP32, Int8
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Storage
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Optical drive type	N
Card reader integrated	N
Graphics
On-board graphics adapter	Y
Discrete graphics adapter	Y
Discrete graphics adapter model	NVIDIA RTX 500 Ada
On-board graphics adapter family	Intel Arc Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Arc Graphics
Discrete graphics adapter memory	4 GB
Discrete graphics memory type	GDDR6
Audio
Audio chip	Realtek ALC3287
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Y
Number of microphones	2
Camera
Front camera resolution (numeric)	5 MP
Infrared (IR) camera	Y
Privacy camera	Y
Privacy type	Privacy shutter
Network
Bluetooth	Y
Mobile network connection	N
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Y
Bluetooth version	5.3
Near Field Communication (NFC)	N
WWAN	Not installed
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Intel® Thunderbolt 4	Y
Combo headphone/mic port	Y
Thunderbolt 4 ports quantity	2
USB Sleep-and-Charge	Y
Keyboard
Pointing device	ThinkPad UltraNav
Keyboard language	English
Keyboard backlit	Y
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity (Watt-hours)	75 Wh
Power
AC adapter power	135 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Security
Cable lock slot	Y
Cable lock slot type	Kensington
Fingerprint reader	Y
Smart card reader	Y
Windows Hello	Y
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95 procent
Storage relative humidity (H-H)	5 - 95 procent
Maximum shipping altitude	3048 m
Weight & dimensions
Weight	1820 g
Width	361.5 mm
Depth	248.6 mm
Height	21.13 mm
