Versatile Workstation for Smart Work
Designed for innovators and professionals, the 16″ ThinkPad P16v Gen 2 mobile workstation packs the power of Intel® Core Ultra™ processors with Intel vPro® and AI-ready integrated Neuro Processing Unit (NPU) for anything you want to do. Even better — it boasts OS alternatives, embracing performance, versatility, mobility, and affordability.

Execute Workloads Like a Boss
Now, multitask and execute complex workflows in AI effortlessly with up to NVIDIA® RTX™ 3000 Ada laptop GPUs. Produce high-quality images and animations, and create high-end 3D visualizations, thanks to vast memory and storage options. Also, this mobile workstation runs software optimally as it is Independent Software Vendor (ISV)* certified. *See the complete list of ISV certifications

Embark on a Stunning Visual Journey
With entry-level to premium display options, narrow bezels for an unobstructed gaze, and a range of brightness and colour gamut options, this 16″ ThinkPad mobile workstation is a visual powerhouse. Choose a 5MP + infrared webcam to enjoy stunning clarity during video calls with HDR400 and Dolby Vision® and elevate online meetings. *Dolby Vision® on select panels only

User Experience Functionality Reimagined

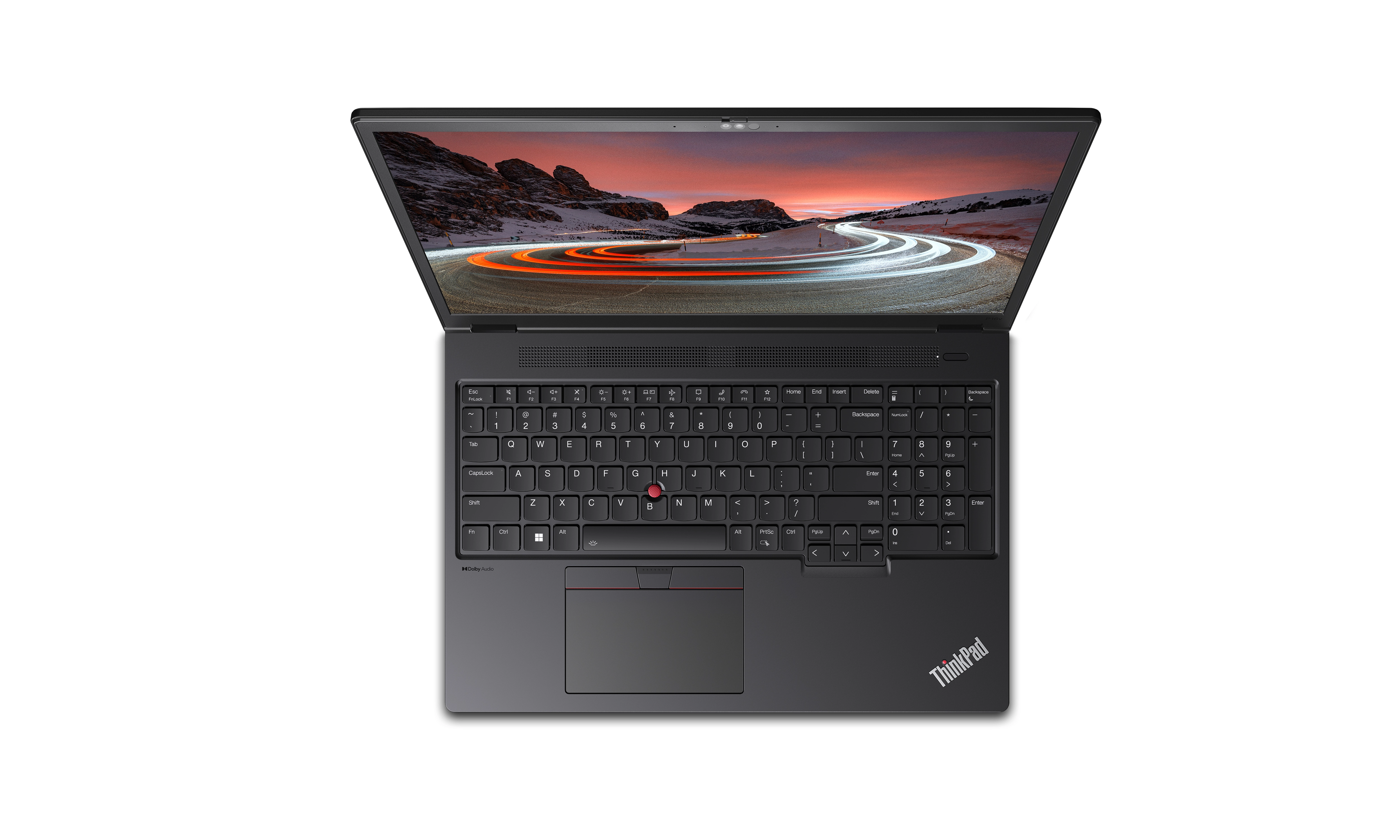

With a spill-resistant, full-sized backlit keyboard containing a numeric pad, LED on some keys, and a large TrackPad (115mm / 4.53″), the 16″ ThinkPad P16v Gen 2 workstation is engineered for accessibility, functionality, and usability. Add a Thunderbolt™ 4 Docking station to expand your useable visual real estate with one or two external displays.

Your Connectivity Playground
Access designs and move large files at lightning-fast data transfer speed (up to 40Gbps) of Thunderbolt™ 4. Delve into seamless online interactions on WiFi, Ethernet, or 4G/5G. Instantly transfer photos from your phone to the device with Magic Move, and sync data to your workstation with just a tap or swipe via Near Field Communication (NFC)*. *NFC is optional

Fearless in Security, Durability, & Form
Protected by ThinkShield, the ThinkPad P16v Gen 2 mobile workstation includes a fingerprint reader for easy log in and self-healing BIOS to restore earlier system settings. It is MIL-SPEC tested for ultimate durability, energy efficient with several certifications including EPEAT® Gold, and comprises recycled components and plastic-free packaging.

Specification

Product
Product id	951957
Brand	Lenovo
Partnr	21KX000KMH
EAN/UPC code	197530860867
Warranty (months)	3-year, Courier or Carry-in + 1Y Premier Support from 3Y Depot Windchill bundles (CPN), CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
Design
Product type	Mobile workstation
Product colour	Black
Colour name	Black
Form factor	Clamshell
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Display
Display diagonal	16 inch
Display resolution	1920 x 1200 Pixels
Touchscreen	N
Panel type	IPS
HD type	WUXGA
LED backlight	Y
Native aspect ratio	16:10
Anti-glare screen	Y
Display brightness	300 cd/m²
Colour gamut	45 procent
RGB colour space	NTSC
Maximum refresh rate	60 Hz
Contrast ratio (typical)	800:1
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor model	155H
Processor generation	Intel Core Ultra (Series 1)
Processor boost frequency	4.8 GHz
Processor cores	16
Processor threads	22
Low Power Efficient-cores	2
Efficient-core base frequency	0.9 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Processor cache	24 MB
Performance-core base frequency	1.4 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache type	Smart Cache
Motherboard chipset	Intel SoC
Processor base power	28 W
Maximum turbo power	115 W
Performance cores	6
Efficient cores	8
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	96 GB
Memory channels	Dual-channel
Non-ECC	Y
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Maximum frequency NPU	1.4 GHz
Sparsity support	Y
Windows Studio effects support	Y
AI datatype support on NPU	FP16, FP32, Int8
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Storage
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Optical drive type	N
Card reader integrated	Y
Compatible memory cards	SD
Graphics
On-board graphics adapter	Y
Discrete graphics adapter	Y
Discrete GPU manufacturer	NVIDIA
Discrete graphics adapter model	NVIDIA RTX 1000 Ada
On-board graphics adapter family	Intel Arc Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Arc Graphics
Discrete graphics adapter memory	6 GB
Discrete graphics memory type	GDDR6
Audio
Audio chip	Realtek ALC3287
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Y
Number of microphones	2
Camera
Front camera	Y
Front camera resolution (numeric)	5 MP
Infrared (IR) camera	Y
Privacy camera	Y
Privacy type	Privacy shutter
Network
Bluetooth	Y
Mobile network connection	N
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Y
Ethernet LAN data rates	100, 1000 Mbit/s
Bluetooth version	5.3
Near Field Communication (NFC)	N
WWAN	Not installed
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Intel® Thunderbolt 4	Y
Combo headphone/mic port	Y
Thunderbolt 4 ports quantity	2
USB Type-C DisplayPort Alternate Mode	Y
USB Power Delivery	Y
USB Sleep-and-Charge	Y
USB Sleep-and-Charge ports	1
Keyboard
Pointing device	ThinkPad UltraNav
Keyboard language	English
Keyboard backlit	Y
Numeric keypad	Y
Spill-resistant keyboard	Y
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	DEU, DUT, ENG, FRE, ITA
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity (Watt-hours)	90 Wh
Quick charge	Y
Power
AC adapter power	170 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Security
Cable lock slot	Y
Cable lock slot type	Kensington
Fingerprint reader	Y
Smart card reader	Y
Windows Hello	Y
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Password protection	Y
Password protection type	BIOS, Power on, SSD, Supervisor
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95 procent
Storage relative humidity (H-H)	5 - 95 procent
Maximum shipping altitude	3048 m
Certificates
Compliance certificates	RoHS
Certification	ENERGY STAR® 8.0 EPEAT™ Gold Registered[3] RoHS compliant TCO Certified 9.0 MIL-STD-810H military test passed
Weight & dimensions
Weight	2220 g
Width	365 mm
Depth	262 mm
Height	24.66 mm
Sustainability
Sustainability compliance	Y
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Gold, TCO
