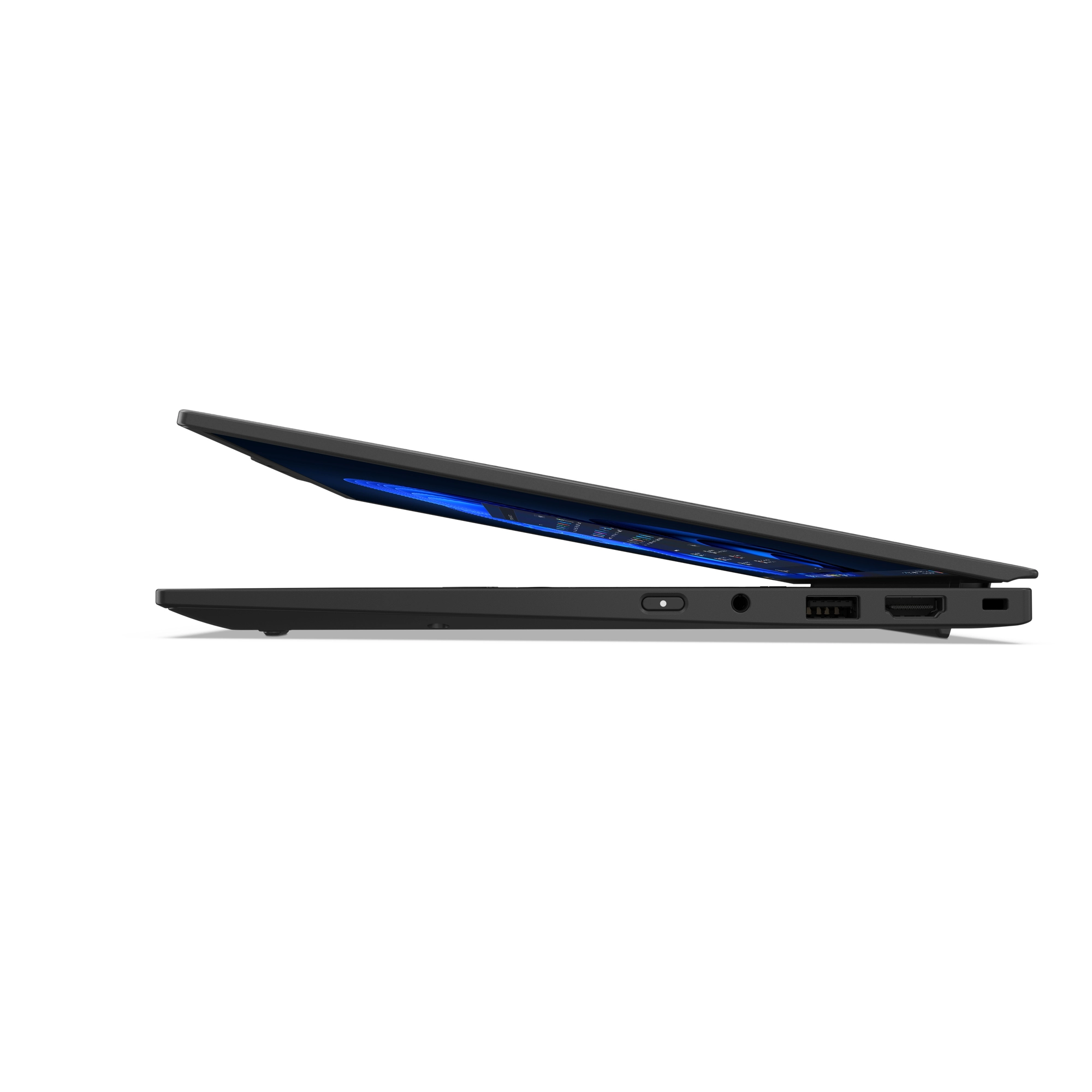

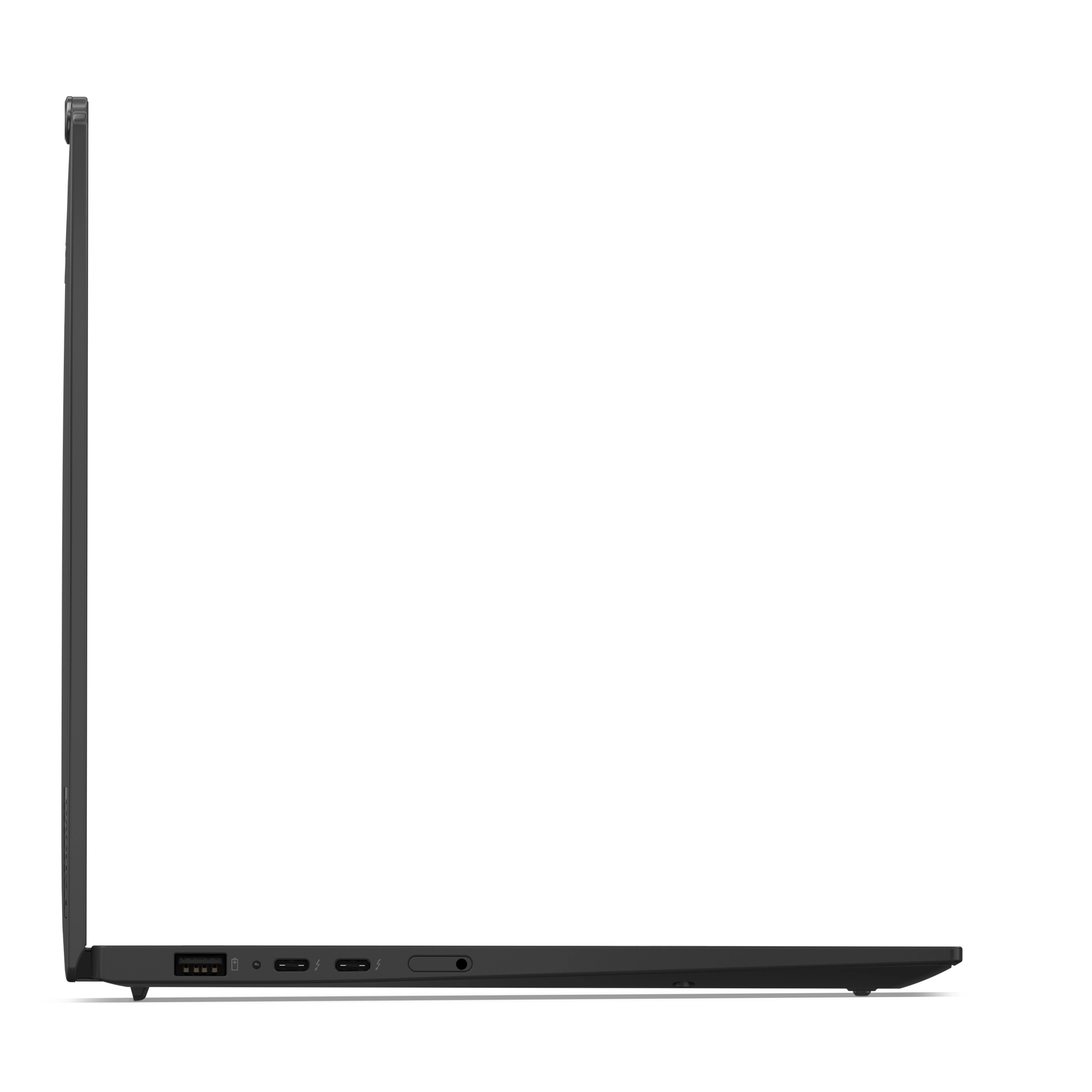

NO SCRIMPING ON PORTS
Tips the Scales on Features — Not Weight

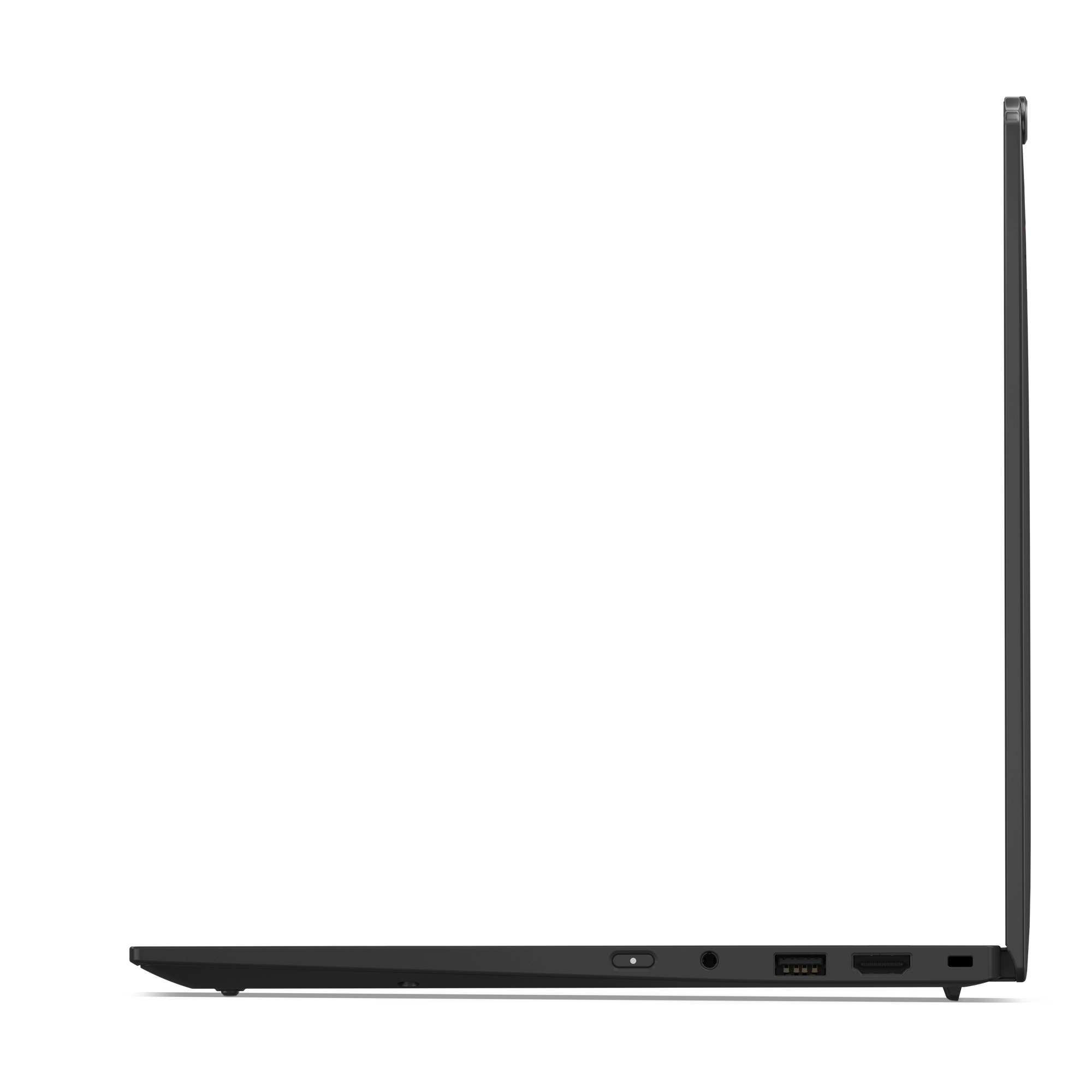

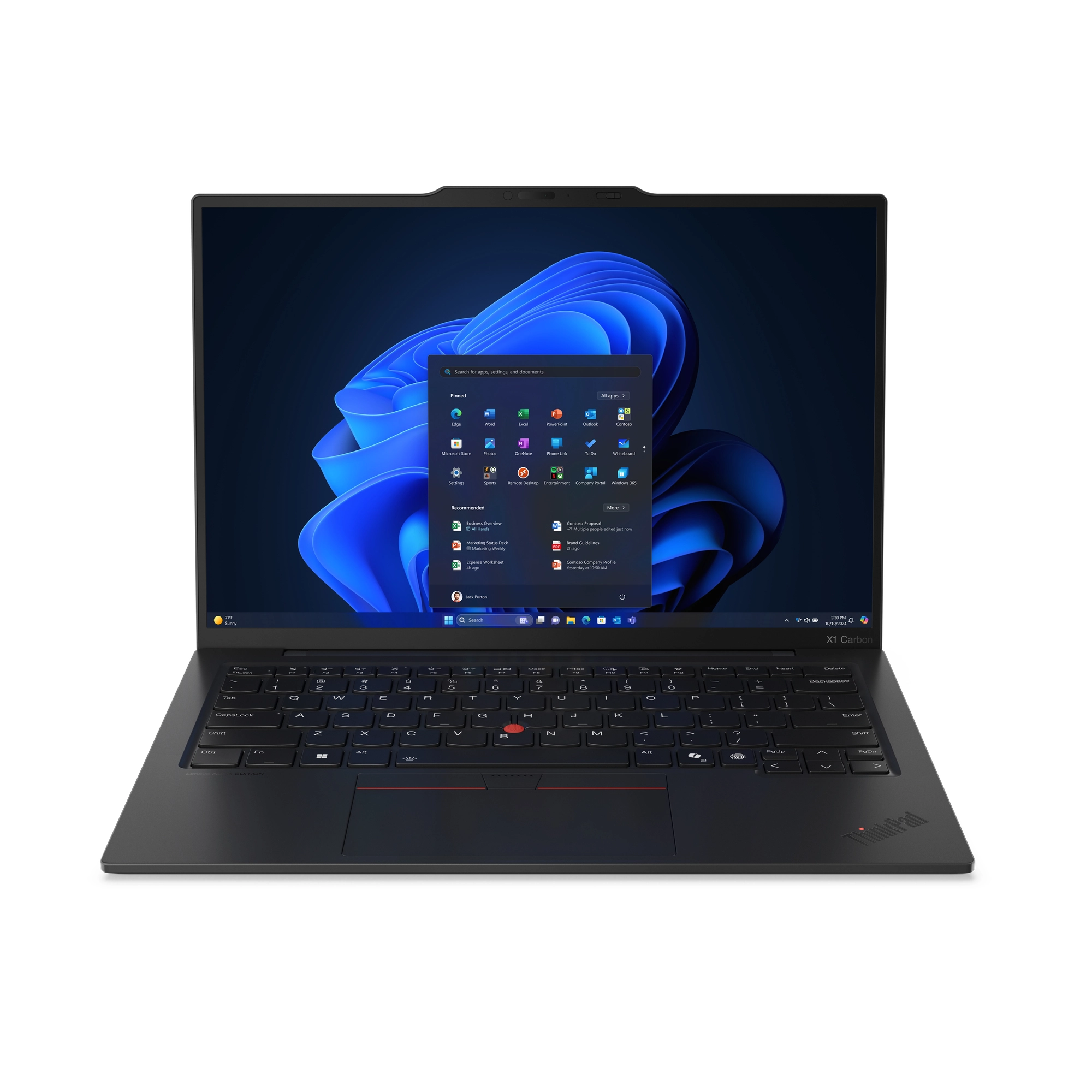

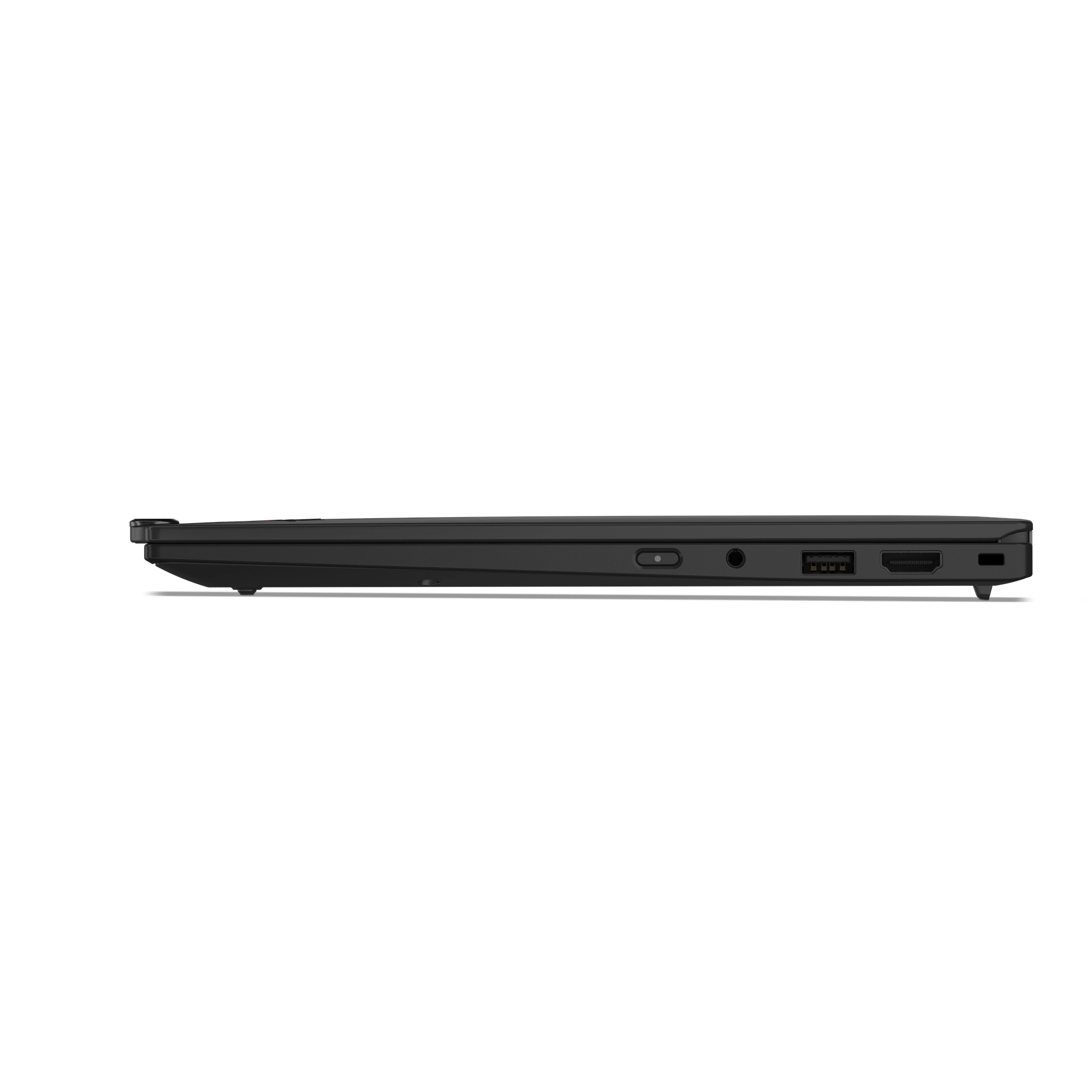

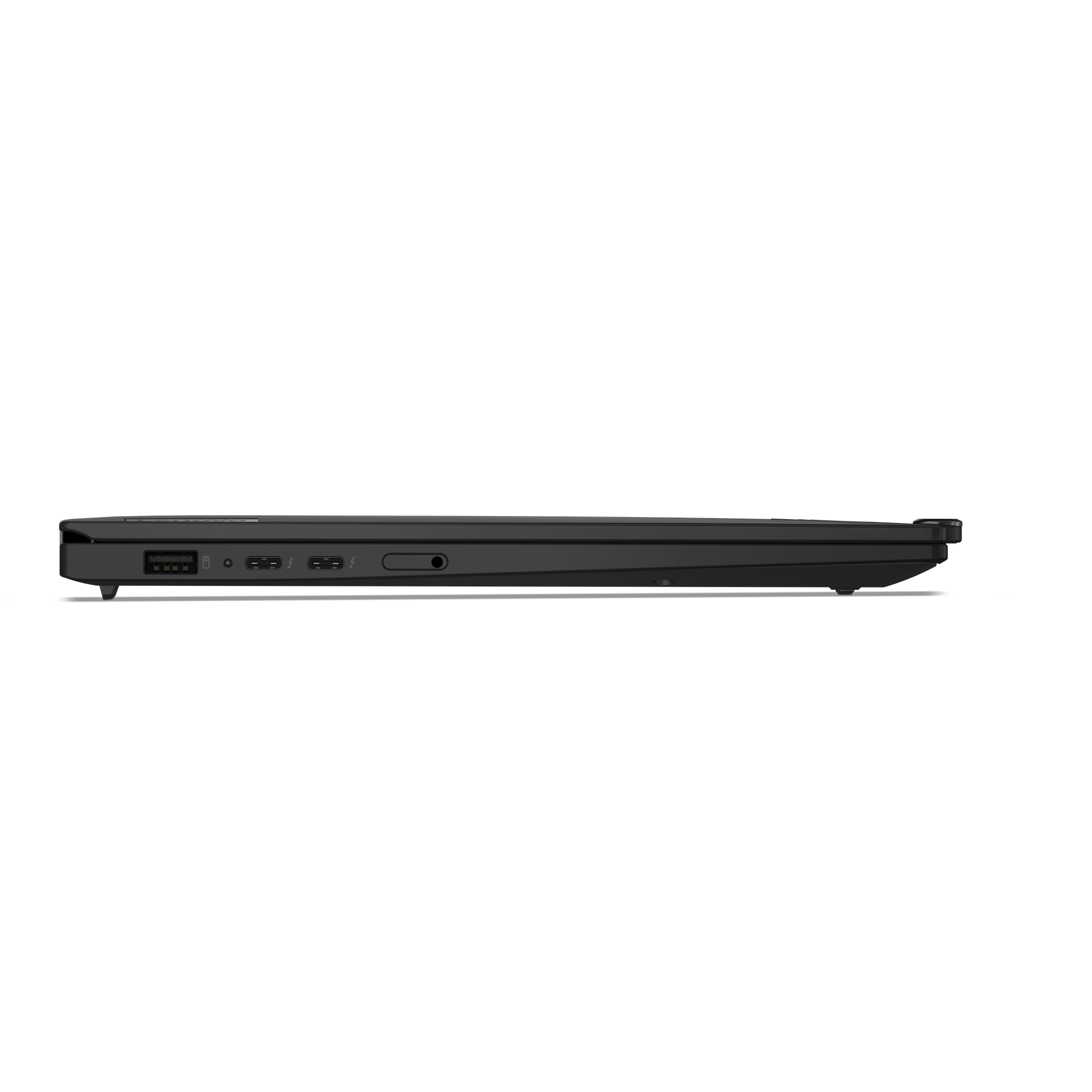

The ThinkPad X1 Carbon Gen 13 Aura Edition weighs less than a kilogram, so you can manage it with one hand — and open it easily with one finger. But the best part? This super-thin laptop includes lots of connectivity options to hook up a monitor, quickly charge other devices, transfer files, and even plug in a headset if you’re old school.

WORK ON YOUR TERMS
Powered From Dallas to Dubai
Enjoy amazing performance efficiency with extended battery life to power through your day — and night — or a flight from Dallas to Dubai. Don’t worry about having to plug in. But when you do need more juice, the GaN charger saves power and charges up to four times faster than a conventional AC adapter.

MULTIDEVICE SYNC
Just Tap to Connect
Smart Share connects your smartphone to your laptop instantly via an AI virtual sensor. Just tap your Android™ or iOS device to your laptop — then drag and drop. Edit photos and share easily. Plus access and send text messages from your PC. Phone sold separately.

LOW CARBON FOOTPRINT
Efficient Inside, Recycled Outside
This X1 Carbon is even better than previous generations when it comes to sustainability, featuring energy efficient certifications and 100% plastic-free packaging that’s Forest Stewardship Council® certified. It’s comprised of recycled carbon fiber, recycled magnesium, and recycled plastic—and several components use low temperature soldering*.

*See Tech Specs for details.

KISS YOUR MOUSE GOODBYE
Haptic TouchPad or Glass TrackPad

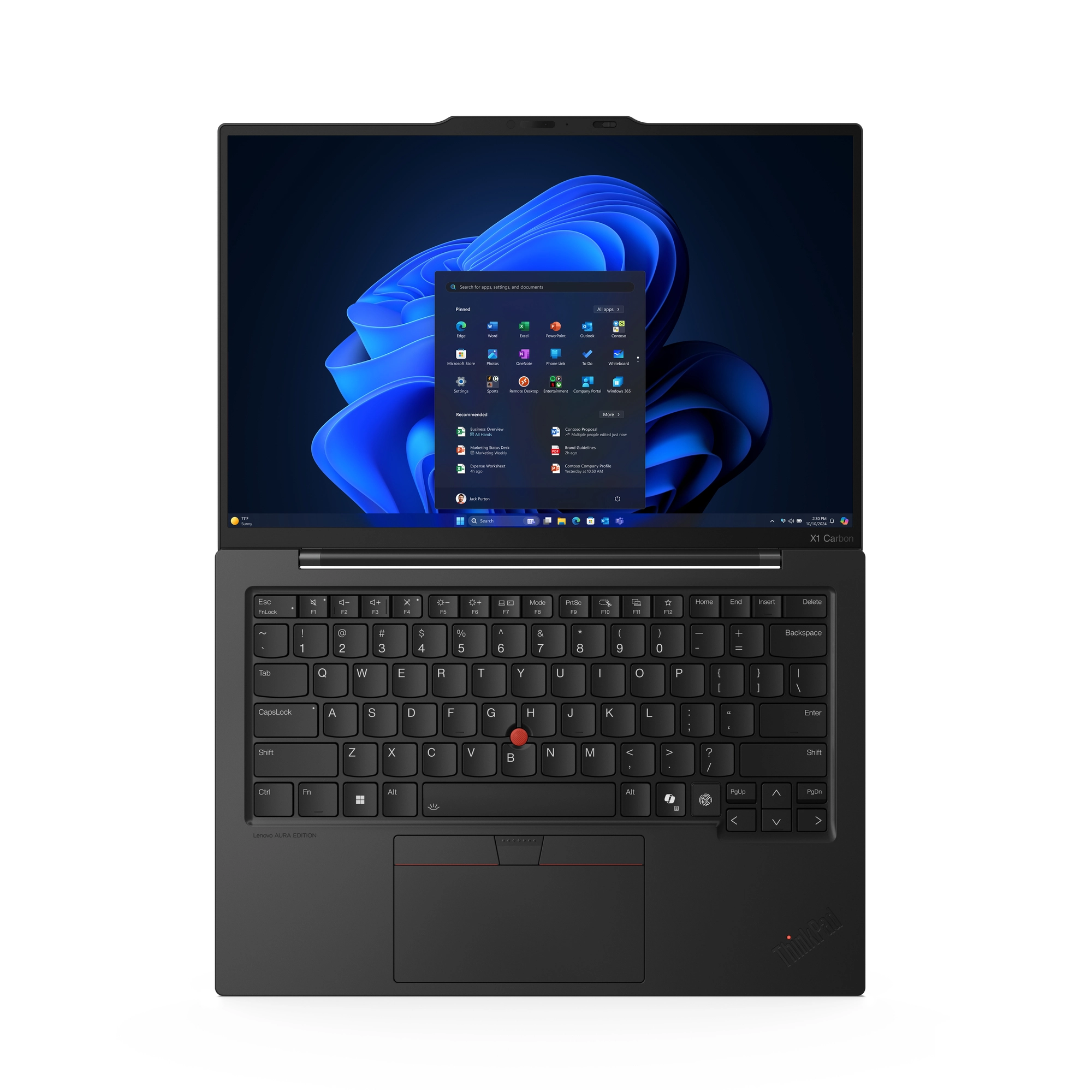

Our ThinkPad keyboard improves accessibility with tactile markings. The glass TrackPad or haptic TouchPad, along with our iconic red TrackPoint provide navigation — and with a double tap on the latter, a quick menu opens to optimize audio-video settings and even take notes with the Dictation Toolbar for handy speech-to-text transcription.

PRIVACY & PROTECTION
Security Like Your Business Depends On It
The ThinkPad X1 Carbon, Lenovo Aura Edition boasts multilevel security. ThinkShield, our comprehensive suite of security solutions, boasts discrete Trusted Platform Module to safeguard critical data with encryption. Biometrics provide extra protection too. With Intel® Core™ Ultra, you get AI-enhanced threat detection and defense — even below the OS.

THINKPAD TOUGH
When Reliability Isn’t Optional
We use the US Department of Defense MIL-STD-810H for a balance of reliability and durability in ThinkPad laptops. Meeting or exceeding 12 standards, 26 procedures, and 200+ quality checks ensure these devices run in extreme conditions, including harsh variables like Arctic wilderness, desert dust storms, extreme temps, pressure, vibration, and more.

Specification

Product
Product id	986630
Brand	Lenovo
Partnr	21NY000WMH
EAN/UPC code	198158600255
Warranty (months)	3-year, Courier or Carry-in; 3Y Premier Support WHB (CPN), CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
Design
Product type	Notebook
Product colour	Black
Colour name	Black, Paint
Form factor	Clamshell
Housing material	Aluminium, Carbon fibre
Market positioning	Premium
Display
Display diagonal	14 inch
Display resolution	1920 x 1200 Pixels
Touchscreen	N
Panel type	IPS
HD type	WUXGA
LED backlight	Y
Native aspect ratio	16:10
Anti-glare screen	Y
Display brightness	500 cd/m²
Colour gamut	100 procent
RGB colour space	sRGB
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000:1
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor model	225U
Processor generation	Intel Core Ultra (Series 2)
Processor boost frequency	4.8 GHz
Processor cores	12
Processor threads	14
Low Power Efficient-cores	2
Efficient-core base frequency	1.3 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.4 GHz
Processor cache	12 MB
Performance-core base frequency	1.5 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Low Power Efficient-core Base Frequency	700 MHz
Motherboard chipset	Intel SoC
Processor base power	15 W
Maximum turbo power	57 W
Performance cores	2
Efficient cores	8
Memory
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	8400 MHz
Memory form factor	On-board
Maximum internal memory	16 GB
Memory channels	Dual-channel
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Y
Windows Studio effects support	Y
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Storage
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Optical drive type	N
Card reader integrated	N
Graphics
On-board graphics adapter	Y
Discrete graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Graphics
Audio
Audio chip	Realtek ALC3306
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Y
Number of microphones	2
Camera
Front camera	Y
Front camera resolution	1920 x 1080 Pixels
Front camera HD type	Full HD
Infrared (IR) camera	Y
Privacy camera	Y
Privacy type	Privacy shutter
Network
Bluetooth	Y
Mobile network connection	N
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	N
Bluetooth version	5.3
Near Field Communication (NFC)	N
WWAN	Upgradable
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
Intel® Thunderbolt 4	Y
Combo headphone/mic port	Y
Thunderbolt 4 ports quantity	2
USB Type-C DisplayPort Alternate Mode	Y
USB Power Delivery	Y
USB Sleep-and-Charge	Y
USB Sleep-and-Charge ports	1
Keyboard
Pointing device	ThinkPad UltraNav
Keyboard language	English
Keyboard backlit	Y
Numeric keypad	N
Spill-resistant keyboard	Y
Copilot key	Y
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	DEU, DUT, ENG, FRE, ITA
Bundled software	Intel Connectivity Performance Suite
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity (Watt-hours)	57 Wh
Quick charge	Y
Power
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Y
Security
Cable lock slot	Y
Cable lock slot type	Kensington
Fingerprint reader	Y
Smart card reader	N
Windows Hello	Y
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Password protection	Y
Password protection type	BIOS, Power on, Supervisor
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95 procent
Storage relative humidity (H-H)	5 - 95 procent
Maximum shipping altitude	3048 m
Certificates
Certification	Eyesafe MIL-STD-810H TCO 9 Zoom Certified – Premium Laptop
Weight & dimensions
Weight	1006 g
Width	312.8 mm
Depth	214.75 mm
Height (front)	8.38 mm
Height (rear)	14.77 mm
Other features
AC adapter included	Y
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Gold, Forest Stewardship Council (FSC)
